DATA SHEET
GENERAL PURPOSE CHIP RESISTORS
RC1206
5%, 1%, 0.5%
RoHS compliant
Product specification – August 27, 2013 V.6Supersedes
Date of Mar. 06, 2003
Product specification
2
9
Chip Resistor Surface Mount
RC
SERIES
1206 (RoHS Compliant)
SCOPE
This specification describes
RC1206 series chip resistors
with lead-free terminations made
by thick film process.
APPLICATIONS
All general purpose application
FEATURES
Halogen Free Epoxy
ORDERING INFORMATION - GLOBAL PART NUMBER & 12NC
Both part numbers are identified by the series, size, tolerance, packing
type, temperature coefficient, taping reel and resistance value.
YAGEO BRAND ordering code
GLOBAL PART NUMBER
(
PREFERRED
)
RC1206
X R - XX XXXX L
(1) (2) (3) (4)
(5)
(6)
(1) TOLERANCE
D = ± 0.5%
F = ± 1%
J = ± 5% (for Jumper ordering, use code of J)
RoHS compliant
-
Products with lead free
terminations meet RoHS
requirements
Pb-glass contained in electrodes,
resistor element and glass are
exempted by RoHS
(2) PACKAGING TYPE
R = Paper taping reel
-
(3) TEMPERATURE COEFFICIENT OF RESISTANCE
– = Base on spec
Reducing environmentally
hazardous wastes
High component and equipment
reliability
Saving of PCB space
None forbidden-materials used
in products/production
(4) TAPING REEL
07 = 7 inch dia. Reel
10 = 10 inch dia. Reel
13 = 13 inch dia. Reel
(5) RESISTANCE VALUE
There are 2~4 digits indicated the resistor value. Letter R/K/M is decimal point, no need
to mention the last zero after R/K/M, e.g.1K2, not 1K20.
Detailed resistance rules show in table of “Resistance rule of global part number”.
(6) DEFAULT CODE
Letter L is system default code for order only
(Note)
Resistance rule of global part
number
Resistance code rule
Example
0R
XRXX
(1 to 9.76
Ω)
XXRX
(10 to 97.6
Ω)
XXXR
(100 to 976
Ω)
XKXX
(1 to 9.76 KΩ)
XMXX
(1 to 9.76 MΩ)
0R = Jumper
1R = 1
Ω
1R5 = 1.5
Ω
9R76 = 9.76
Ω
10R = 10
Ω
97R6 = 97.6
Ω
100R = 100
Ω
1K = 1,000
Ω
9K76 = 9760
Ω
1M = 1,000,000
Ω
9M76= 9,760,000
Ω
O
RDERING EXAMPLE
The ordering code of a RC1206
chip resistor, value 56
X
with
± 1% tolerance, supplied in 7-inch
tape reel is: RC1206FR-0756RL.
NOTE
1. All our RSMD products meet RoHS
compliant and Halogen Free. "LFP" of
the internal 2D reel label mentions
"Lead Free Process"
2. On customized label, "LFP" or specific
symbol can be printed
www.yageo.com
Aug. 27, 2013 V.6
Product specification
3
9
Chip Resistor Surface Mount
RC
SERIES
1206 (RoHS Compliant)
PHYCOMP BRAND ordering codes
Both GLOBAL PART NUMBER (preferred) and 12NC (traditional) codes are acceptable to order Phycomp
brand products.
GLOBAL PART NUMBER
(
PREFERRED
)
For detailed information of GLOBAL PART NUMBER and ordering example, please refer to page 2.
12NC
(1)
CODE
2322 / 2350
XXX XXXXX L
(2)
(3)
(4)
Last digit of 12NC
Resistance decade
(3)
PAPER / PE TAPE ON REEL (units)
(2)
5,000
711 61xxx
724 6xxxx
520 10xxx
711 91032
10,000/not preferred
711 51xxx
724 7xxxx
-
711 91005
20,000
711 81xxx
724 8xxxx
-
711 92004
Last digit
0
7
8
9
1
2
3
4
5
6
TYPE/ START TOL. RESISTANCE
1206 IN
(1)
(%) RANGE
RC01
RC02
2322
2322
± 5% 1 to 10 MΩ
± 1% 1 to 10 MΩ
± 5% 11 to 22 MΩ
-
0
Ω
0.01 to 0.0976
X
0.1 to 0.976
X
1 to 9.76
X
10 to 97.6
X
100 to 976
X
1 to 9.76 K
X
10 to 97.6 K
X
100 to 976 K
X
1 to 9.76 M
X
10 to 97.6 M
X
Example:
0.02
X
0.3
X
1
X
33 K
X
10 M
X
=
=
=
=
=
HRC01
2350
Jumper
2322
(1) The resistors have a 12-digit ordering code starting with 2322 / 2350.
(2) The subsequent 4 or 5 digits indicate the resistor tolerance and
packaging.
(3) The remaining 4 or 3 digits represent the resistance value with the
last digit indicating the multiplier as shown in the table of
“Last digit of 12NC”.
(4) Letter L is system default code for order only
O
RDERING EXAMPLE
The ordering code of a RC02 resistor, value 56
X
with ± 1% tolerance,
supplied in tape of 10,000 units per reel is: 232272465609L or
RC1206FR-0756RL.
NOTE
(Note)
0200 or 200
3007 or 307
1008 or 108
3303 or 333
1006 or 106
1. All our RSMD products meet RoHS compliant and Halogen Free. "LFP" of the internal 2D reel label mentions "Lead Free Process"
2. On customized label, "LFP" or specific symbol can be printed
www.yageo.com
Aug. 27, 2013 V.6
Product specification
4
9
Chip Resistor Surface Mount
RC
SERIES
1206 (RoHS Compliant)

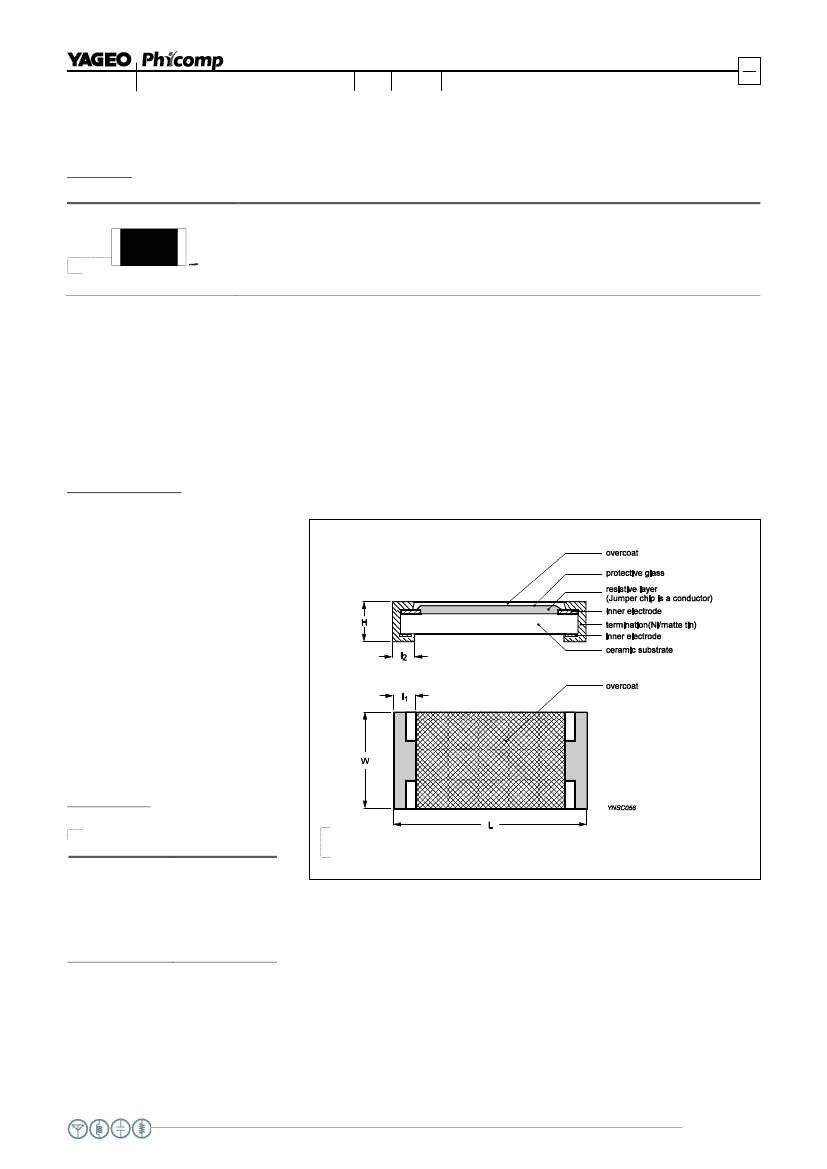

MARKING
RC1206
No marking
Fig. 1
For further marking information, please refer to data sheet “Chip resistors marking”
CONSTRUCTION
The resistor is constructed on top
of a high-grade ceramic body.
Internal metal electrodes are added
on each end to make the contacts to
the thick film resistive element. The
composition of the resistive element
is a noble metal imbedded into a
glass and covered by a second glass
to prevent environment influences.
The resistor is laser trimmed to the
rated resistance value. The resistor
is covered with a protective epoxy
coat, finally the two external
terminations (matte tin on Ni-
barrier) are added. See fig.3
OUTLINES
For dimension see Table 1
DIMENSIONS
Table 1
TYPE
L (mm)
W (mm)
H (mm)
I
1
(mm)
I
2
(mm)
RC1206
3.10 ± 0.10
1.60 ± 0.10
0.55 ± 0.10
0.45 ± 0.20
0.40 ± 0.20
Fig. 2
Chip resistor outlines
www.yageo.com
Aug. 27, 2013 V.6
Product specification
5
9
Chip Resistor Surface Mount
RC
SERIES
1206 (RoHS Compliant)
ELECTRICAL CHARACTERISTICS
Table 2
CHARACTERISTICS
Operating Temperature Range
Maximum Working Voltage
Maximum Overload Voltage
Dielectric Withstanding Voltage
RC1206 1/4 W
–55 °C to +155 °C
200 V
400 V
500 V
5% (E24) 1
Ω
to 22 MΩ
1% (E24/E96) 1
Ω
to 10 MΩ
0.5% (E24/E96) 10
Ω
to 1 MΩ
Zero Ohm Jumper < 0.05
Ω
1
Ω
≤ R ≤ 10
Ω
± 200 ppm/°C
± 200 ppm/°C
± 100 ppm/°C
2A
10 A
FOOTPRINT AND SOLDERING
PROFILES
For recommended footprint and
soldering profiles, please refer to data
sheet “Chip resistors mounting”.
Resistance Range
Temperature Coefficient
10 MΩ < R ≤ 22 MΩ
10
Ω
< R ≤ 10 MΩ
Rated Current
Maximum Current
Jumper Criteria
PACKING STYLE AND PACKAGING QUANTITY
Table 3
Packing style and packaging quantity
PRODUCT TYPE
RC1206
PACKING STYLE
Paper Taping Reel (R)
REEL DIMENSION
7" (178 mm)
10" (254 mm)
13" (330 mm)
QUANTITY PER REEL
5,000 units
10,000 units
20,000 units
NOTE
1. For paper tape and reel specification/dimensions, please see the special data sheet “Chip resistors packing”
FUNCTIONAL DESCRIPTION
POWER RATING
RC1206 rated power at 70°C is 1/4 W
R
ATED VOLTAGE
The DC or AC (rms) continuous working voltage
corresponding to the rated power is determined by
the following formula:
V=
(P X R)
or max. working voltage whichever is less
Where
V=Continuous rated DC or
AC (rms) working voltage (V)
P=Rated power (W)
R=Resistance value (X)
Fig. 4
Maximum dissipation (P) in percentage of rated power as a
function of the operating ambient temperature (T
amb
)
