54F241/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F241/B2A

54F241/B2A: DescriptionBus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20,; Categorylogic logic; File Size168KB，5 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54F241/B2A Overview

Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20,

54F241/B2A Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
series	F/FAST
JESD-30 code	S-CQCC-N20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER

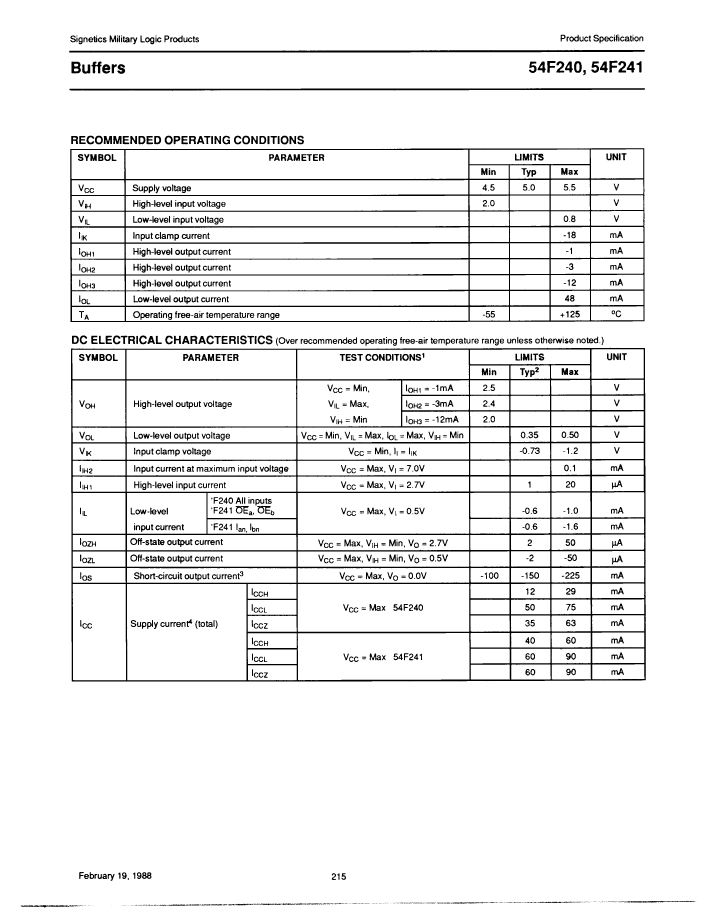

Maximum supply current (ICC)	90 mA
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

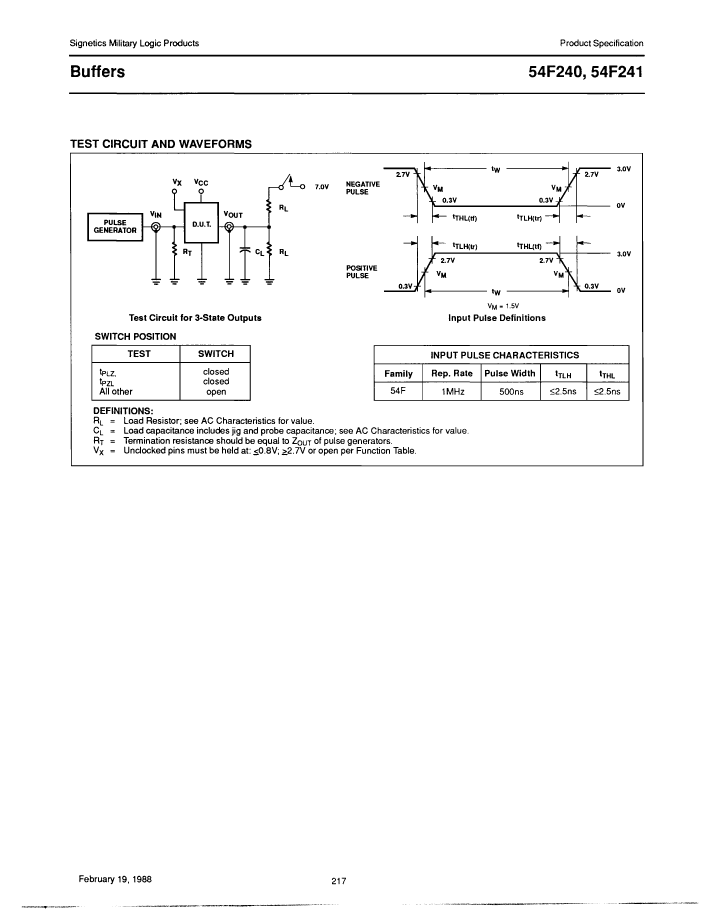

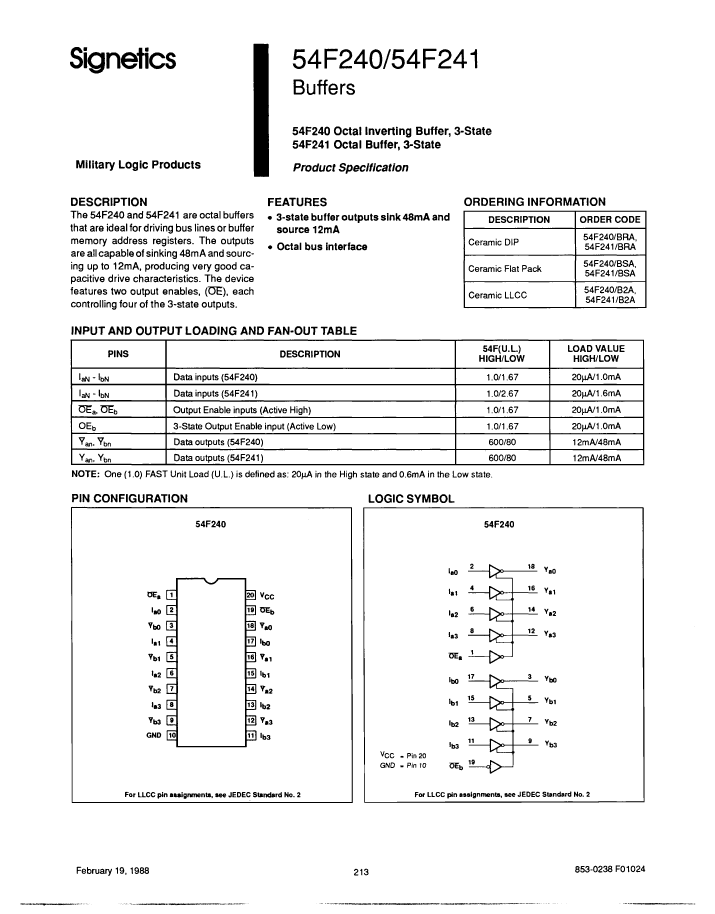

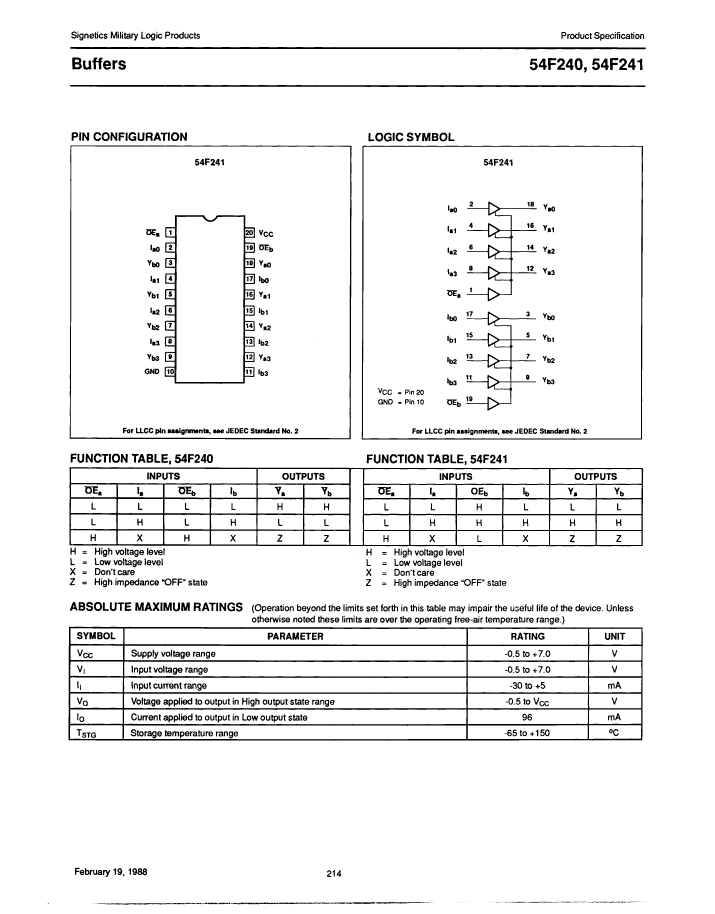

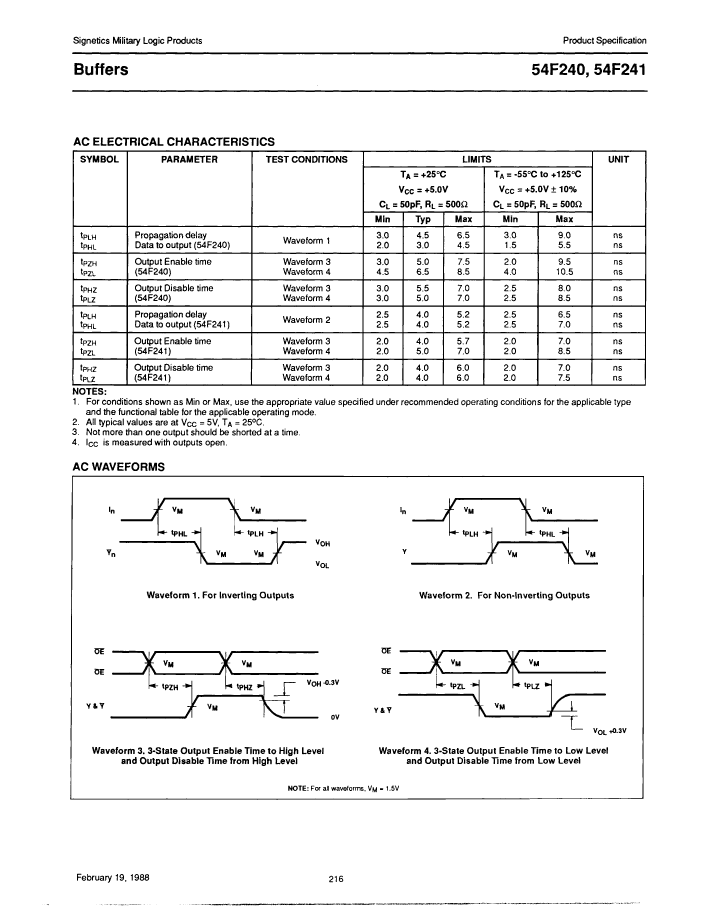

Preview

Download Datasheet

View All

54F241/B2A Related Products

	54F241/B2A	54F240/BRA	54F240/B2A	54F241/BRA	54F241/BSA	54F240/BSA
Description	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CQCC20,	Bus Driver, F/FAST Series, 2-Func, 4-Bit, Inverted Output, TTL, CDIP20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, Inverted Output, TTL, CQCC20	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDIP20,	Bus Driver, F/FAST Series, 2-Func, 4-Bit, True Output, TTL, CDFP20,	Bus Driver, F/FAST Series, 2-Func, 4-Bit, Inverted Output, TTL, CDFP20
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDIP-T20	S-CQCC-N20	R-CDIP-T20	R-CDFP-F20	R-CDFP-F20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	INVERTED	INVERTED	TRUE	TRUE	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	FLATPACK	FLATPACK
Maximum supply current (ICC)	90 mA	75 mA	75 mA	90 mA	90 mA	75 mA
propagation delay (tpd)	7 ns	5.5 ns	5.5 ns	7 ns	7 ns	5.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	FLAT	FLAT
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
