Data Sheet
Features
•
•
•
•
•
•
•
For PCS handset IF applications
Usable bandwidth of 1.260 MHz
Low loss
High attenuation at tones
Single-ended or balanced operation
Ceramic Surface Mount Package (SMP)
Small size
Part Number 855693
220.38 MHz SAW Filter
•
Package

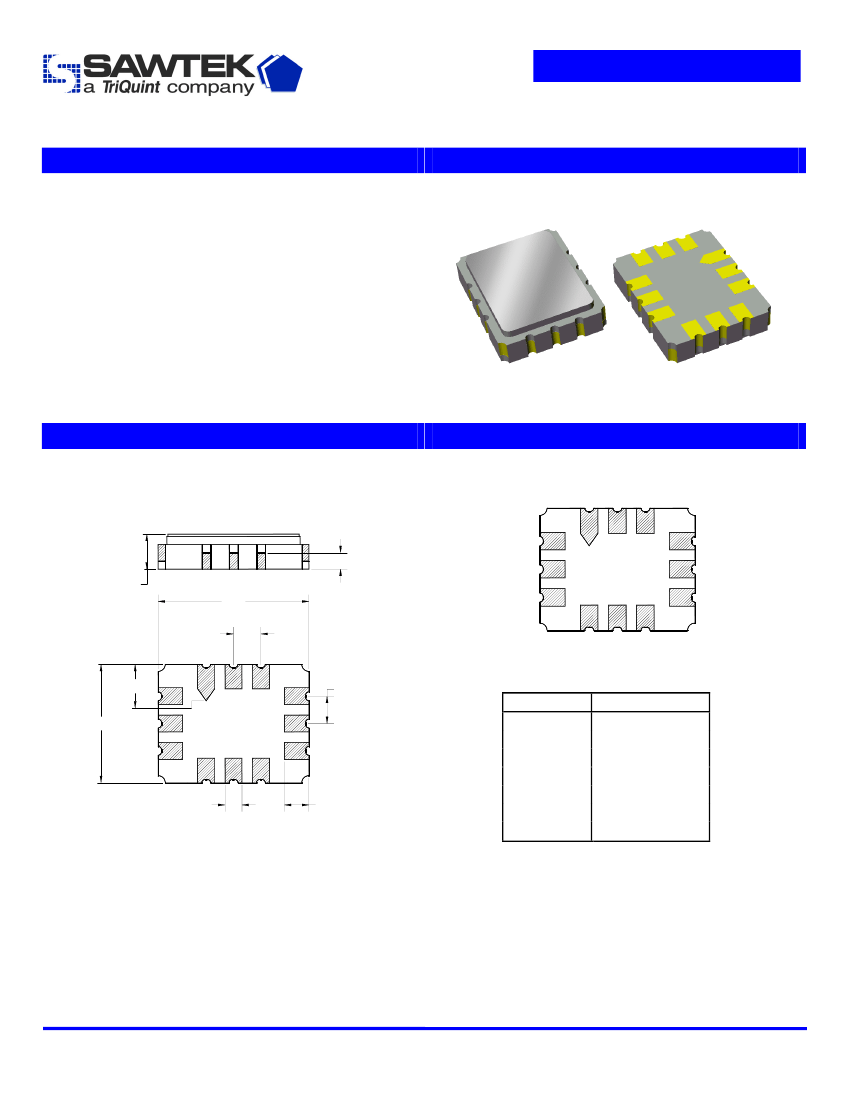

Surface Mount 5.51 x 7.01 x 1.63 mm
Pin Configuration
Bottom View
1
2
3
12
0.76
1.63 NOM.
1.78 MAX.
4
5
6
11
10
7.01
1.27
9
8
7
1.70
5.51
1.27
0.79
1.14
Pin No.
4
6
10
12
3,9
1,2,5
7,8,11
Description
Output
Output return
Input return
Input
Ground
Case Ground
Case Ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.13mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev -
28-Feb-2002
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-30 to +80
o
C
Part Number 855693
220.38 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency, f
0
Insertion Loss at 220.38 MHz
Lower 5 dB Point
Upper 5 dB Point
Lower 33 dB Point
Upper 33 dB Point
Amplitude Variation
220.08 - 220.68 MHz
Phase Ripple
219.765 - 220.995 MHz
Attenuation
(4)
219.13 MHz (+25
o
C)
221.63 MHz (+25
o
C)
218.33 MHz
222.43 MHz
Source Impedance
(5)
Load Impedance
(5)
Notes:
1.
2.
3.
4.
5.
Minimum
-
-
-
221.01
219.13
-
-
-
35
35
-
-
-
-
Typical
220.38
7.2
219.64
221.20
219.29
221.55
0.5
2.1
44
42
48
48
50
50
Maximum
-
9
219.75
-
-
221.63
1.2
3.5
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
dB p-p
deg RMS
dB
dB
dB
dB
Ω
Ω
All specifications are based on the test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Relative to insertion loss at 220.38 MHz
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
27nH
12
4
12nH
50Ω
30nH
50Ω
Single-ended
50Ω
12nH
1,2,3,5,6
7,8,9,10,11
Subject to change or obsolescence without notice
Rev -
28-Feb-2002
Page 2 of 5
Data Sheet
Part Number 855693
220.38 MHz SAW Filter

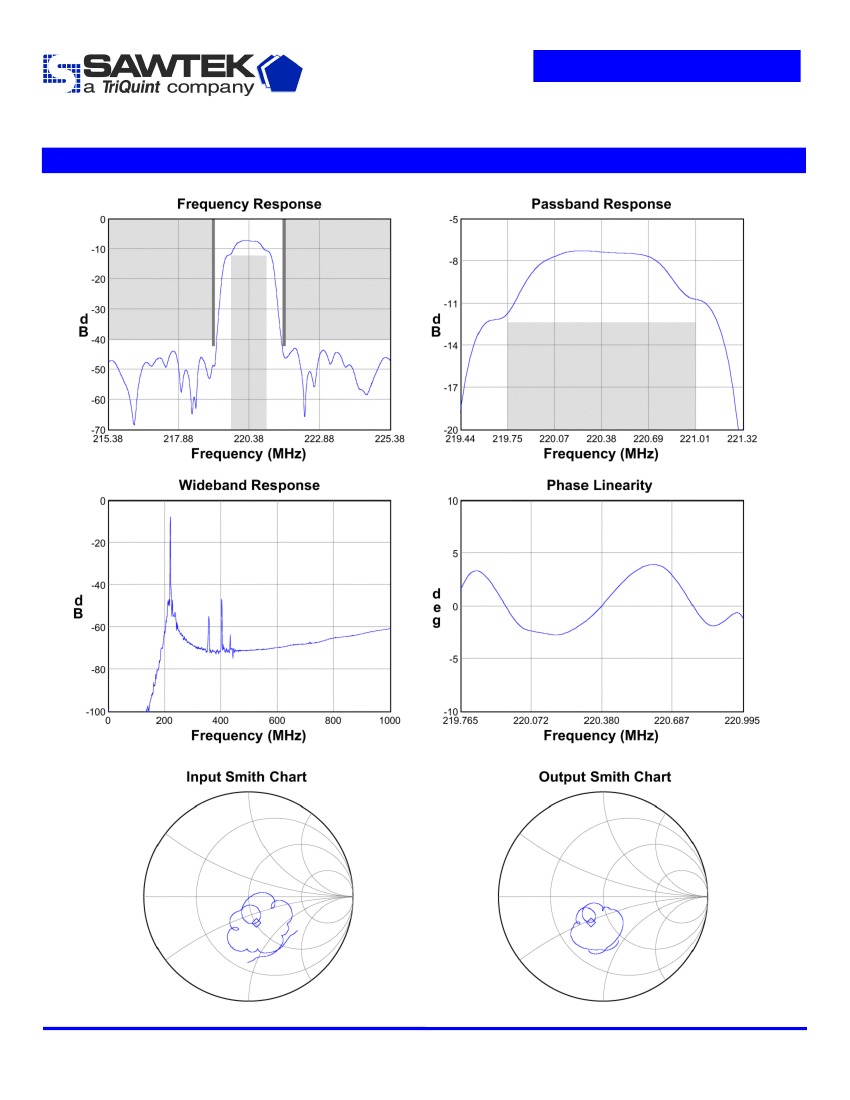

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev -
28-Feb-2002
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
27nH
12
4
Part Number 855693
220.38 MHz SAW Filter
Matching Schematics
30nH
50Ω
Single-ended
50Ω
12nH
1,2,3,5,6
7,8,9,10,11
12nH
50Ω
Marking
1.34
PCB Footprint
.99
.28
1.34
.28
Date code
ID dot
SAWTEK
855693
XXXXXX
5.71
.99
7.21
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
16.8
Ø330
Pad 1 ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
7.3
16.0
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.2
Section A-A
5.8
8.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity: 3000 units/reel
Subject to change or obsolescence without notice
Rev -
28-Feb-2002
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 855693
220.38 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
Minimum
-30
-40
Maximum
+80
+85
Unit
o
o
C
C
Warnings
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
custservice@sawtek.com
Web:
www.sawtek.com
Rev -
Or contact one of our worldwide
network of
sales offices,
representatives or distributors
28-Feb-2002
Page 5 of 5
