SWT-NS117-2-2000-KEY datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> SWT-NS117-2-2000-KEY

SWT-NS117-2-2000-KEY: DescriptionKeylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size207KB，1 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

SWT-NS117-2-2000-KEY Overview

Keylock Switch, 2 Positions, Off-on, Solder Lug Terminal, Keylock Actuator, Panel Mount

SWT-NS117-2-2000-KEY Parametric

Parameter Name	Attribute value
Objectid	304550177
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.157 inch
Actuator type	KEYLOCK
Other features	ROHS COMPLIANT
body height	21.0058 mm
Body length or diameter	15.0114 mm
Casing type	M12P1
Center contact plating	SILVER
Contact function	OFF-ON
End contact plating	SILVER
Shell material	ZINC ALLOY
Graduation angle	90 deg
Installation features	PANEL MOUNT
Number of positions	2
surface mount	NO
Switch type	KEYLOCK SWITCH
Terminal length	0.236 inch
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

SPECIFICATIONS

•

Zinc alloy die cast housing and cylinder

•

Bright chrome plated

•

7 pin tumbler mechanism

•

Key withdrawal in off or both positions

•

Zinc alloy tubular keys, chrome plated

•

Silver plated contacts and terminals

•

2 position (off-on) 2 terminals

•

Hex nut mounted

•

5000 key combinations available

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Series

Style

Key Withdrawal Key Combination

Options

SWT

S117

XXXX

KEY

Key lock 12mm cylinder 1=Off position 0001 to 5000

KEY=With key

switch

2=Off and on

Date

08/10/02

08/10/02 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

SWT-NS117-X-XXXX-KEY

0.00 ± 0.20 Angles ± 3’

UNIT: mm

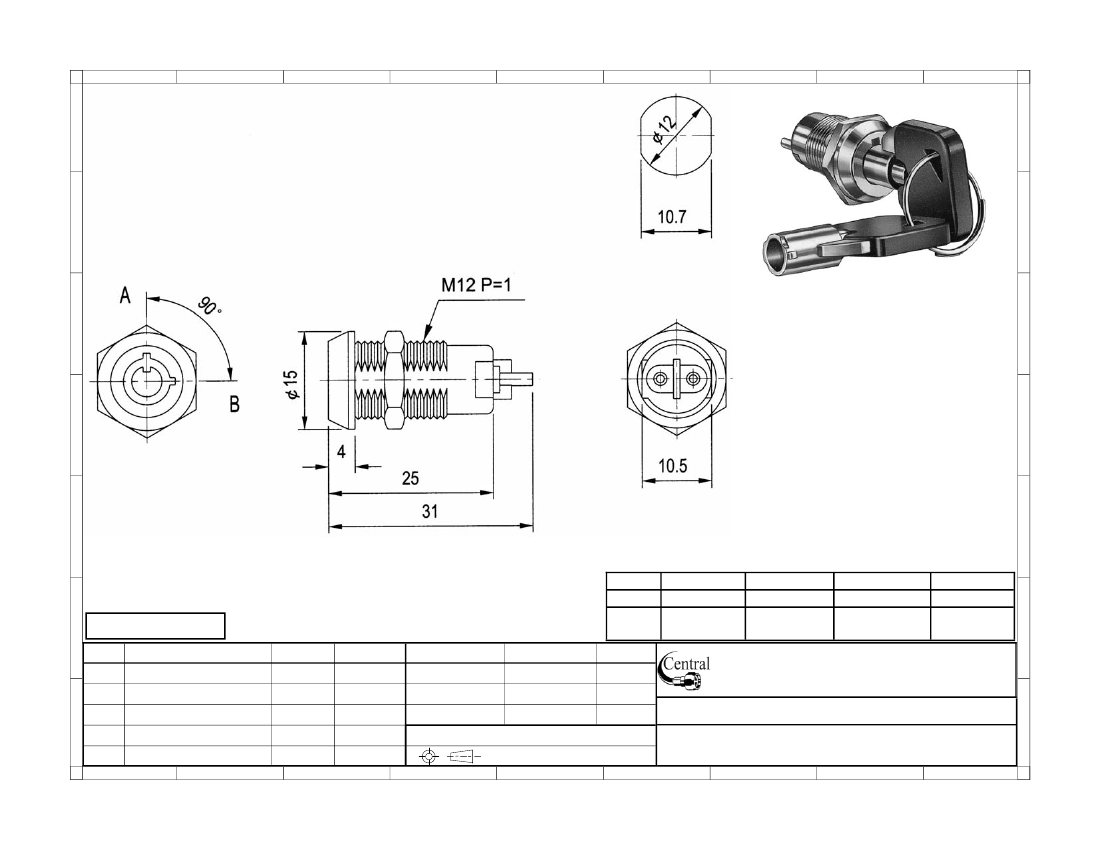

Description: Key lock switch, 12mm diameter
