691401710027B

Description
Barrier Strip Terminal Block
CategoryThe connector    terminals
File Size246KB，1 Pages
ManufacturerWurth Elektronik
Download Datasheet Parametric Compare View All

691401710027B Overview

Barrier Strip Terminal Block

691401710027B Parametric

Parameter NameAttribute value
MakerWurth Elektronik
Reach Compliance Codecompliant
ECCN codeEAR99
Manufacturer's serial number401
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1

Preview

Download Datasheet
1
2
3
4
5

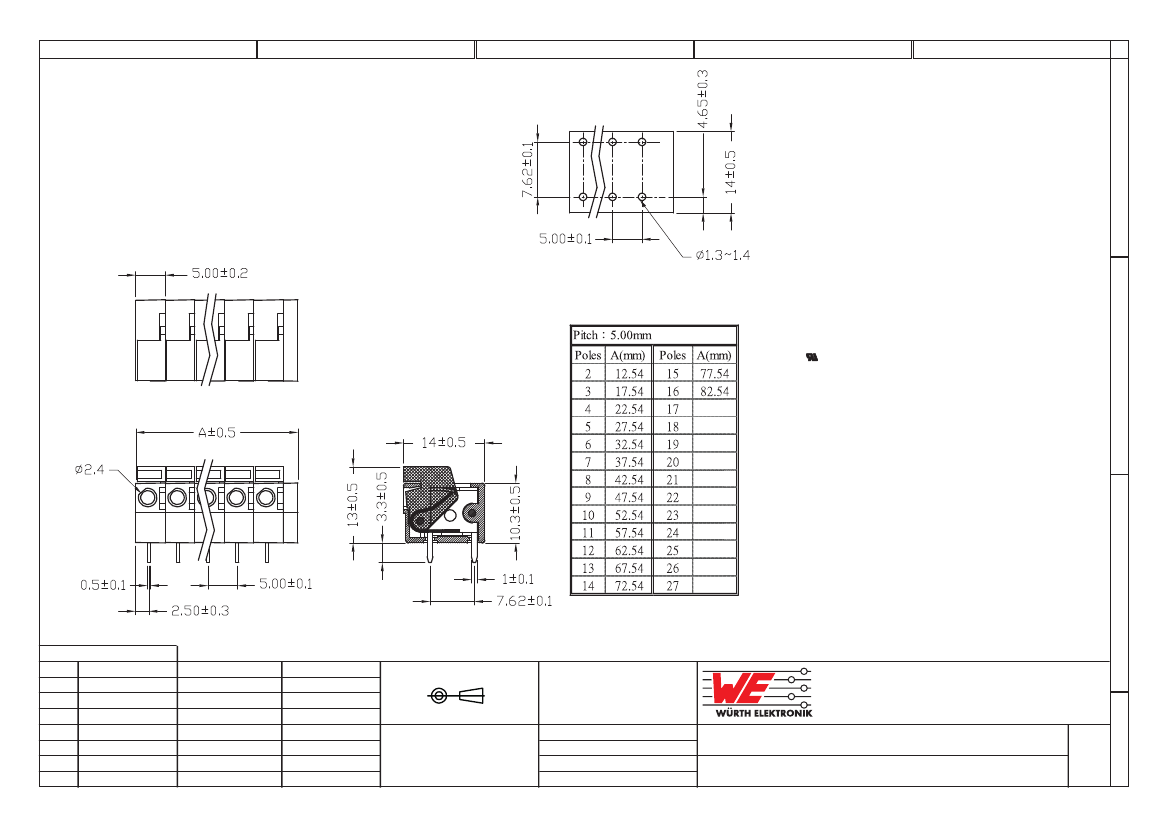

TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
METAL HOUSING: BRASS (CuZn)
WIRE GUARD: STAINLESS STEEL
SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
RECOMMENDED PCB LAYOUT - COMPONENT VIEW
A
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
cULus
10A
300VAC
2.0KV
20mOhm MAX
STANDARD
c
us
CERTIFIED E315414 / MODEL NUMBER 401 B
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
24-14 AWG / 0.2-2.0MM²
24-14 AWG / 0.2-2.0MM²
B
WIRE STRIPE LENGTH: 9-10MM
PITCH: 5.0MM
SOLDERING: WAVE PROCESS ONLY
PACKAGING: BOX
SERIE 401 B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
24-SEP-13
02-JUL-12
DATE
DWG REVIEW
PDF
FILE
QL
GG
BY
APPROVAL: RJ
SCALE:
SHEET: 1/1
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: SERIE 401 - 5.00MM SCREWLESS HORIZONTAL ENTRY
2.0MM² WIRES WR-TBL
WERI PART NO: 691 401 710 0xx B
SIZE
A4
D
