Bulletin PD-20042 rev. C 09/01
83CNQ...A SERIES
SCHOTTKY RECTIFIER
New GenIII D-61 Package
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
range
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 40 Apk, T
J
= 125°C
(per leg)
range
80 Amp
Description/Features
The 83CNQ...A center tap Schottky rectifier module series
has been optimized for low reverse leakage at high tempera-
ture. The proprietary barrier technology allows for reliable
operation up to 175 °C junction temperature. Typical applica-
tions are in switching power supplies, converters, free-
wheeling diodes, and reverse battery protection.
175 °C T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
83CNQ...A Units
80
80 to 100
7000
0.67
A
V
A
V
- 55 to 175
°C
New fully transfer-mold low profile, small
footprint, high current package
Case Styles
83CNQ...A
83CNQ...ASM
83CNQ...ASL
D61-8
www.irf.com
D61-8-SM
D61-8-SL
1
83CNQ...A Series
Bulletin PD-20042 rev. C 09/01
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
83CNQ080A
80
83CNQ100A
100
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
* See Fig. 5
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg) * See Fig. 7
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
7000
720
15
1
A
mJ
A
Following any rated
load condition and with
10ms Sine or 6ms Rect. pulse rated V
RRM
applied
5µs Sine or 3µs Rect. pulse
T
J
= 25 °C, I
AS
= 1 Amps, L = 30 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
83CNQ Units
80
A
Conditions
50% duty cycle @ T
C
= 132 °C, rectangular wave form
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg) * See Fig. 1
(1)
83CNQ Units
0.81
1.00
0.67
0.82
1.5
35
1400
5.5
10000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 40A
@ 80A
@ 40A
@ 80A
T
J
= 25 °C
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg) * See Fig. 2
Typical Series Inductance
(1)
(Per Leg)
Max. Junction Capacitance (Per Leg)
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
Measured lead to lead 5mm from package body
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
(1) Pulse Width < 300µs, Duty Cycle <2%
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
83CNQ Units
-55 to 175
-55 to 175
0.85
0.42
0.30
7.8 (0.28)
Min.
Max.
12 (10)
24 (20)
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
R
thCS
Typical Thermal Resistance, Case
to Heatsink
(D61-8 Only)
wt
T
Approximate Weight
MountingTorque
(D61-8 Only)
°C/W DCoperation
°C/W DCoperation
* See Fig. 4
°C/W Mounting surface , smooth and greased
Device flatness < 5 mils
g (oz.)
Kg-cm (*)
(Ibf-in)
(*) Recommended hardware 3M stainless screw
2
www.irf.com
83CNQ...A Series
Bulletin PD-20042 rev. C 09/01
1000
1000
100
10
1
0.1
0.01
0.001
0
20
40
60
80
100
T = 175˚C
J
150˚C
125˚C
100˚C
75˚C
50˚C
25˚C
100
Instantaneous Forward Current - I
F
(A)
Reverse Current - I
R
(mA)
10
T J = 175˚C
Junction Capacitance - C
T
(p F)
Reverse Voltage - V
R
(V)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
10000
T J = 125˚C
T = 25˚C
J
T = 25˚C
J
1
1000
0.1
0
0.2
0.4
0.6
0.8
1
1.2
1.4
Forward Voltage Drop - V
FM
(V)
Fig. 1 - Max. Forward Voltage Drop Characteristics
(Per Leg)
100
0
20
40
60
80
100
120
Reverse Voltage - V
R
(V)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage (Per Leg)
1
Thermal Impedance Z
thJC
(°C/W)
D = 0.50
D = 0.33
D = 0.25
D = 0.17
P
DM
0.1
D = 0.08
t1
t2
Notes:
Single Pulse
(Thermal Resistance)
1. Duty factor D = t1 / t2
2. Peak Tj = Pdm x ZthJC + Tc
0.01
0.00001
0.0001
0.001
0.01
0.1
1
t
1
, Rectangular Pulse Duration (Seconds)
10
100
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics (Per Leg)
www.irf.com
3
83CNQ...A Series
Bulletin PD-20042 rev. C 09/01
180
Allowable Case Temperature (°C)
40
RthJC (DC) = 0.85 ˚C/W
Average Power Loss (Watts)
35
30
25
20
170
D = 0.08
D = 0.17
D = 0.25
D = 0.33
D = 0.50
DC
RMS Limit
160
DC
15
10
5
150
140
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
Non-Repetitive Surge Current - I
FSM
(A)
0
0
10
20
30
40
50
60
Average Forward Current - I
F(AV)
(A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
10000
1000
At Any Rated Load Condition
And With Rated Vrrm Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
SWITCH
FREE-WHEEL
DIODE
40HFL40S02
Vd = 25 Volt
DUT
IRFP460
Rg = 25 ohm
+
CURRENT
MONITOR
Fig. 8 - Unclamped Inductive Test Circuit
4
www.irf.com
83CNQ...A Series
Bulletin PD-20042 rev. C 09/01

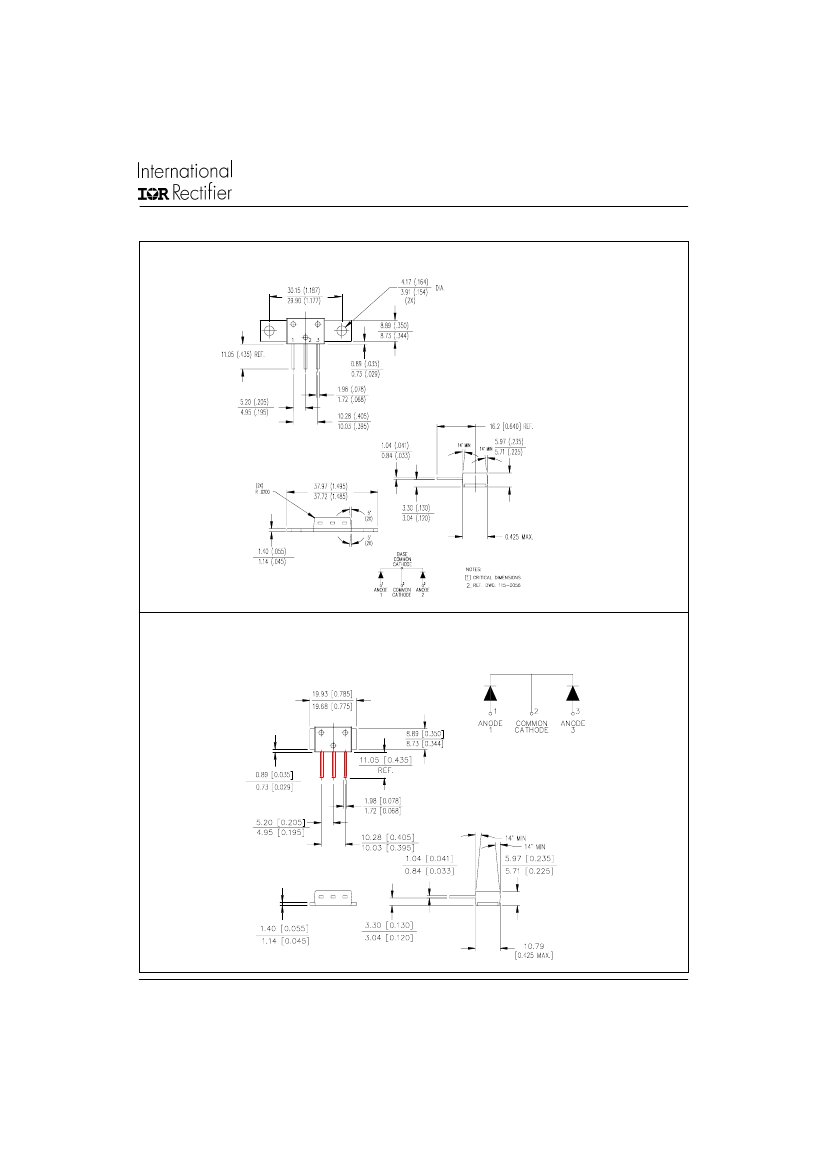

Outline Table
Outline D61-8
Dimensions are in millimeters and (inches)
Outline D61-8-SM
Dimensions are in millimeters and (inches)
www.irf.com
5
