5084-0-18-15-34-80-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 5084-0-18-15-34-80-10-0

5084-0-18-15-34-80-10-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size691KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

5084-0-18-15-34-80-10-0 Overview

PCB Terminal

5084-0-18-15-34-80-10-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
Manufacturer's serial number	5084
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

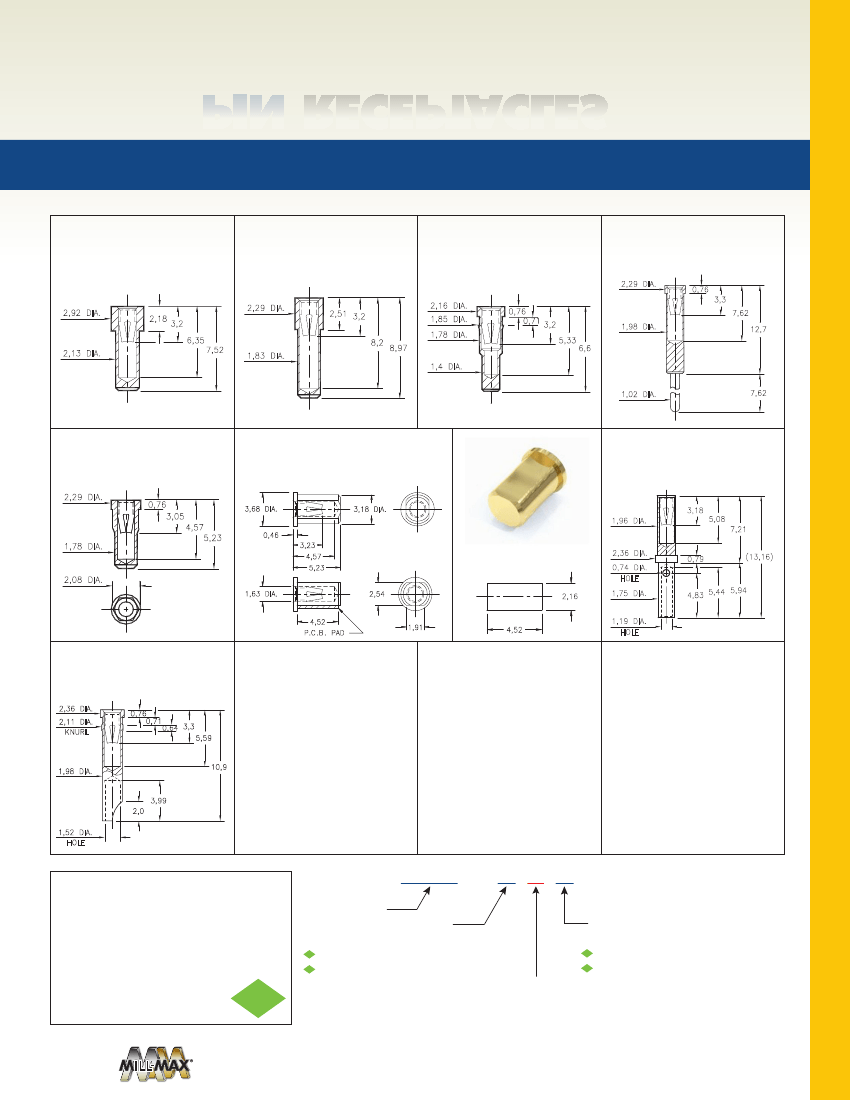

RECEPTACLES

FOR 0,81 - 1,17 DIAMETER PINS

8838

8838-0-15-XX-34-XX-10-0

Solder mount in 2,18 min. mounting hole

3100

3100-0-15-XX-34-XX-10-0

Solder mount in 1,88 min. mounting hole

8853

8853-0-15-XX-34-XX-10-0

Press-fit in 1,8 mounting hole

6800

2,29 DIA.

6800-0-15-XX-34-XX-04-0

Solder mount in 2,03 min. mounting hole

0,76

3,3

7,62

1,98 DIA.

12,7

2,92 DIA.

2,29 DIA.

2,18

3,2

6,35

7,52

2,51 3,2

8,2

2,16 DIA.

1,85 DIA.

1,78 DIA.

0,76

0,71 3,2

5,33

6,6

2,13 DIA.

1,83 DIA.

8,97

1,4 DIA.

1,02 DIA.

7,62

0739

2,29 DIA.

0739-0-15-XX-34-XX-10-0

Hex press-fit in 1,98 plated through-hole

0,76

3,05

4,57

5,23

8206

3,68 DIA.

8206-0-15-XX-34-XX-40-0

Surface mount, board edge

0720

0720-0-33-XX-34-XX-10-0

Wire crimp termination. Accepts wire

sizes 20 AWG Max. / 24 AWG Min.

3,18

1,96 DIA.

3,18 DIA.

5,08

7,21

0,46

3,23

4,57

5,23

1,78 DIA.

P.C.B. Layout

2,54

2,36 DIA.

0,74 DIA.

HOLE

2,16

0,79

(13,16)

2,08 DIA.

1,63 DIA.

1,75 DIA.

5,94

4,83 5,44

4,52

P.C.B. PAD

1,91

4,52

1,19 DIA.

HOLE

5084

2,36 DIA.

2,11 DIA.

KNURL

5084-0-18-XX-34-XX-10-0

Press-fit in 2,06 mounting hole

0,76

0,71

0,64 3,3

5,59

1,98 DIA.

10,9

3,99

2,0

1,52 DIA.

HOLE

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,051

Angles:

±2°

ORDER CODE: XXXX - X - 15 - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

5,08μm TIN/LEAD OVER NICKEL

5,08μm TIN OVER NICKEL (RoHS)

0,25μm GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

5,08μm TIN/LEAD OVER NICKEL

5,08μm TIN OVER NICKEL (RoHS)

0,76μm GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#34

CONTACT (DATA ON PAGE 258)

(For alternate contact choices, see group E on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 185 | PIN RECEPTACLES
