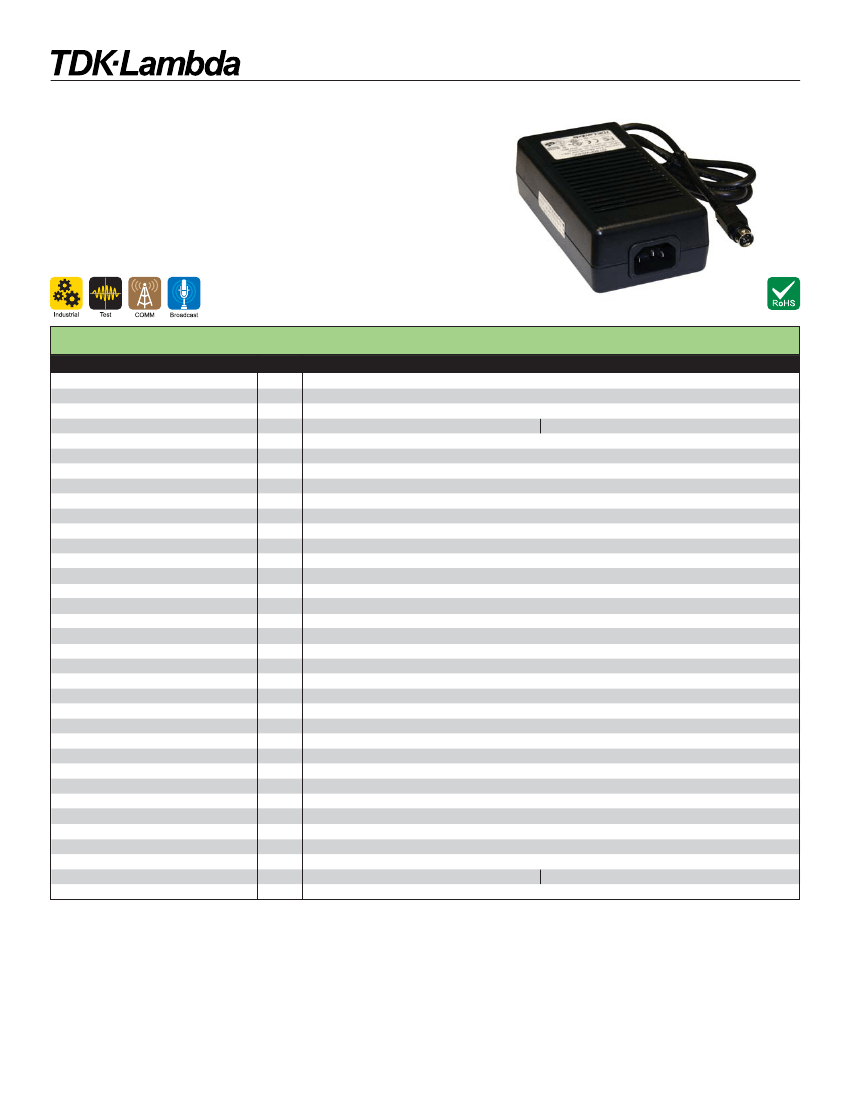

DT62/80-C Series
62W to 80W AC-DC External Power Supplies
Features
CEC, EISA
(1)
& ErP Stage 2 Compliant
Wide Range AC Input
Power Factor Correction (DT80)
Low Profile & Lightweight
85% Efficient
Key Market Segments & Applications
Specifications
Model
Input Voltage range
VAC
Inrush Current
A
Input Current (Maximum)
A
Power Factor
-
Leakage Current (typ, 264VAC 63Hz) mA
Hold Up Time (Typ)
ms
Temperature Coefficient
°C
Voltage Accuracy
%
Adjustment Range
-
Minimum Load
-
Total Regulation
-
Ripple & Noise
%
Short Circuit Protection
-
Overvoltage Protection
V
Efficiency
%
Operating Temperature
°C
Storage Temperature
°C
Humidity (non condensing)
-
Cooling
-
Withstand Voltage
-
Vibration (non operating)
-
Shock
-
Safety Agency Approvals
-
California Energy Commission (CEC)
-
EISA
(1)
-
Offload Power Consumption
W
Conducted & Radiated EMI
-
Immunity
-
Weight (Typ)
g
Size (WxLxH)
in
Cable Length and Thickness
mm
AC Input Connector
-
Output Connector
-
MTBF (MIL-HNBK), 100% load, 25C
hours
Warranty
yrs
DT62PWxxx-C
DT80PWxxx-C
90 - 264VAC (47 - 63Hz)
<50A at 230VAC input, 25°C ambient cold start
2.5A
None
Typically 0.9 at full load(Meets EN61000-3-2)
0.7mA
16ms at 115VAC input
±0.05%/°C
±1%
None
None
±5%
1%
Continuous - hiccup mode (110-160%)
110 - 130% of nominal (Cycle input power to reset)
>85% typical
0 to +40°C Full load, derate linearly to 50% load at 60°C
-10 to +70°C
10 - 90% RH
Convection
Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
< 196.1 m/s
2
(20G)
UL60950-1, EN609501-1, IEC60950-1
See model selector
See model selector
< 0.5W
EN55022-B, FCC Class B
EN55024
410g
2.71 x 5.2 x 1.57
1050mm
IEC 320-C14 (Accepts IEC 320-C13)
Kycon KPPx-4P or equivalent. Pins 1 & 2: -Vout, Pins 3 & 4: +Vout
223,933 Hours
203,109 Hours
One Year
(1) EISA - Energy Independence and Security Act of 2007.
1-800-526-2324 • www.us.tdk-lambda.com/lp/
43
Disclaimer: us.tdk-lambda.com/lp/legal.htm
DT62/80-C Series
Output Ratings
Mo
Model
DT62PW090C
DT62PW120C
DT62PW150C
DT62PW180C
DT62PW240C
DT80PW090C
DT80PW120C
DT80PW150C
DT80PW180C
DT80PW240C
Output (V)
9
12
15
18
24
9
12
15
18
24
Maximum
Output (A)
5.56
5.17
4.14
3.54
2.59
8.00
6.67
5.33
4.45
3.34
Maximum
Power (W)
50
62
62
64
62
72
80
80
80
80
CEC
IV
-
Y
-
-
-
-
Y
Y
-
-
V
-
-
Y
Y
Y
-
-
-
Y
Y
EISA
Level IV
-
Y
-
-
-
-
Y
Y
-
-
EISA
Level V
-
-
Y
Y
Y
-
-
-
Y
Y
Outline Drawing
DC OUTPUT CABLE
69.0
132.0
40.0
NOTE:
1. AC INLET: IEC320-C14 STANDARD
2. BOX COLOR: BLACK
3. TOLERANCE: ±0.5mm
4. UNIT: mm
RUBBER FOOT X4
Other AC-DC Products
DTM65-C
DT100/150-C
DTM110-C
65W CEC Compliant Medical Adapters
100W to 150W CEC Compliant Adapters
110W CEC Compliant Medical Adapters
For Additional Information, please visit
us.tdk-lambda.com/lp/products/dt-c-series.htm
1-800-526-2324 • www.us.tdk-lambda.com/lp/
44
Revision A5: Aug 2014
