10131920-308ALF datasheet, PDF

10131920-308ALF: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10131920-308ALF Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7050461689
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.55
Board mount options	SOLDER HOLDING POSTS
body width	0.157 inch
subject depth	0.091 inch
body length	0.315 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	NO
JESD-609 code	e3
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.794 mm
Plating thickness	7.87u inch
Guideline	UL
Termination type	SURFACE MOUNT
Total number of contacts	8

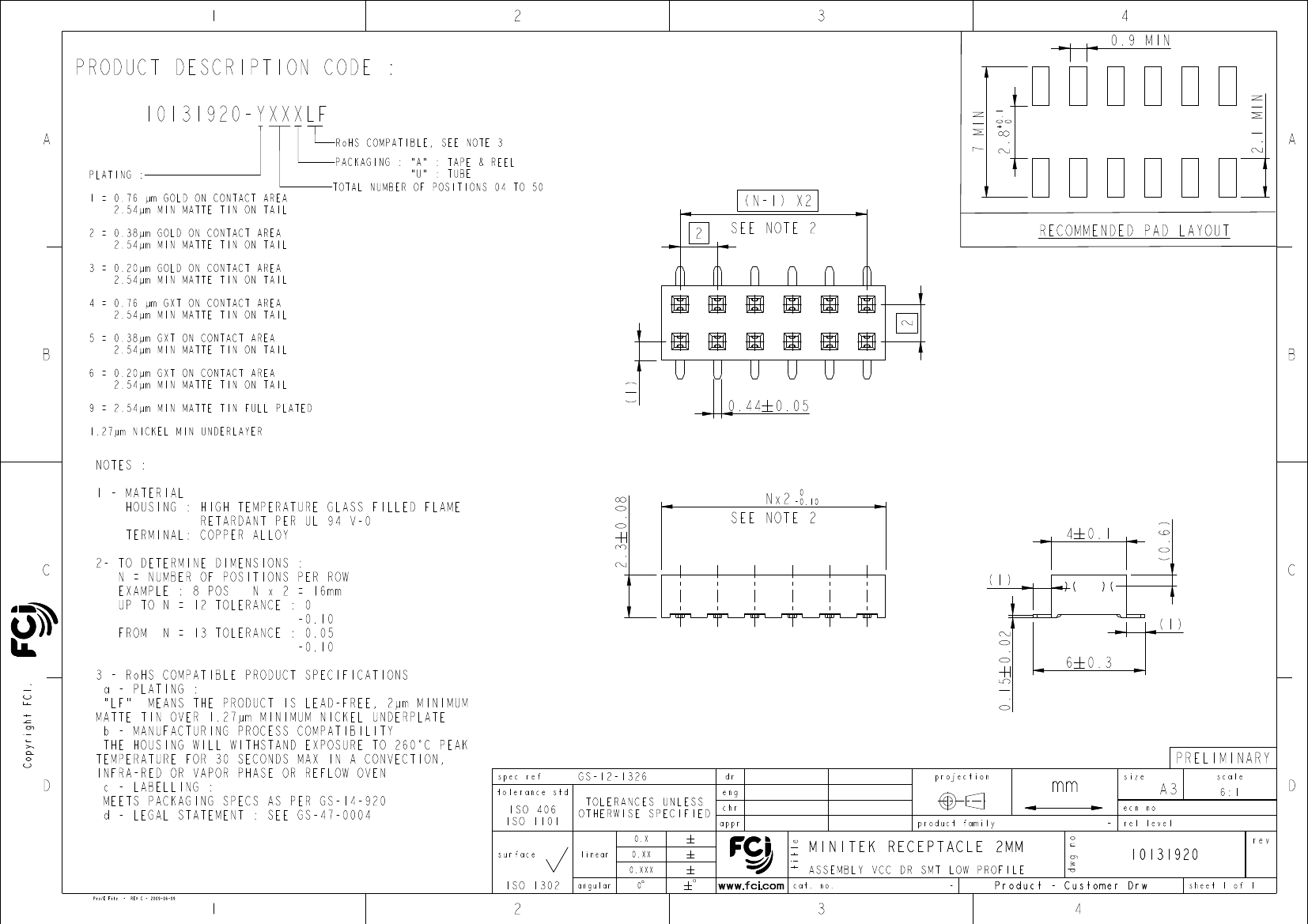

Cyril Jeune

-

2014/12/02

2015/11/18

-

Preliminary

2

For information only. This is a preliminary customer document that is subject to change without notice.
