571-060-0048N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 571-060-0048N

571-060-0048N: DescriptionRF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric Compare View All

571-060-0048N Overview

RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack

571-060-0048N Parametric

Parameter Name	Attribute value
Maker	Winchester Electronics
Reach Compliance Code	unknown
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	75 Ω
Connector type	RF SMB CONNECTOR
Contact to complete cooperation	NICKEL
Contact completed and terminated	NICKEL
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES
Manufacturer's serial number	51
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

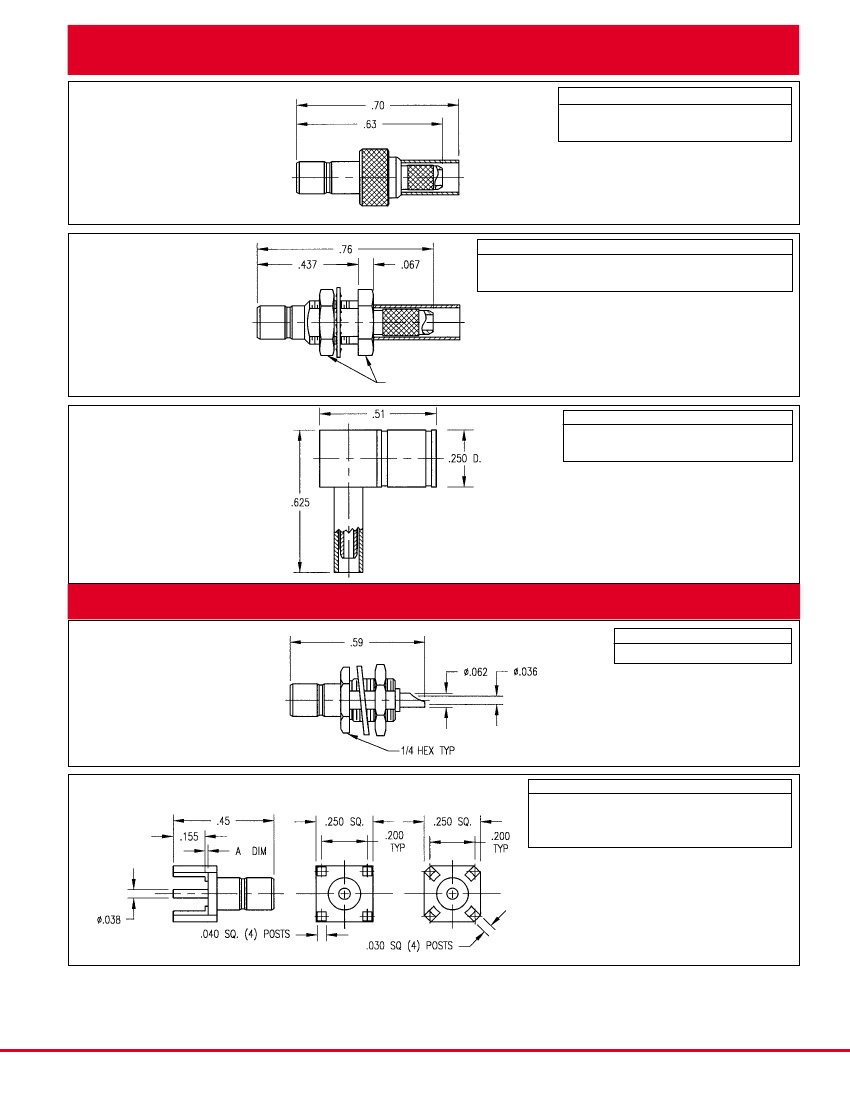

SMB MINI 75 Ohm:

Straight Plug

Crimp / Crimp

Crimp Flexible Cable

Part Number

571-900-0630H

571-900-0631H

Cable

RG-179

RG-179 double shielded

• See page 111 for cable assembly procedures: 9-08

• Part number shopwn is for gold plated.

• For nickel plate change suffix to “N”.

Straight

Bulkhead Jack

Crimp / Crimp

Part Number

Cable

Mounting Hole

571-980-0630H RG-179

No. 080

571-980-0631H RG-179 double shielded

No. 080

• See page 83 for mounting hole layout.

• See page 111 for cable assembly procedures: 9-08

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

1/4 HEX

Right Angle

Plug

Part Number

Cable

572-900-0630H RG-179

572-900-0631H RG-179 double shielded

• See page 110 for cable assembly procedures: 9-06

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

SMB MINI 75 Ohm:

Straight Jack

Front Mount

D Hole

Bulkhead & PCB Mount Receptacles

Part Number

Mounting Hole

571-080-0000H

No. 080

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Straight Jack

Figure 1

Part Number Mounting Hole A Dim

571-060-0040H

No. 060 B

571-060-0047H

No. 060 A

571-060-0048H

No. 060 A

.020

Figure

• See page 83 for mounting hole layout.

• Part number shown is for gold plated.

• For nickel plate change suffix to “N”.

Figure 2

Note: Dimensions shown in inches.

Winchester/Retconn

400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com

RF/33

571-060-0048N Related Products

	571-060-0048N	571-900-0630N	571-060-0047H	571-060-0047N	571-060-0040N	571-060-0048H
Description	RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack	RF SMB Connector, Female, Cable Mount, Crimp Terminal, Plug	RF SMB Connector, Male, Board Mount, Solder Terminal, Jack	RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack	RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Jack	RF SMB Connector, Male, Board Mount, Solder Terminal, Jack
Maker	Winchester Electronics	Winchester Electronics	Winchester Electronics	Winchester Electronics	Winchester Electronics	Winchester Electronics
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012, APPLICABLE CABLE: RG-179	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	JACK	PLUG	JACK	JACK	JACK	JACK
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω	75 Ω
Connector type	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR	RF SMB CONNECTOR
Contact to complete cooperation	NICKEL	NICKEL	GOLD	NICKEL	NICKEL	GOLD
Contact completed and terminated	NICKEL	NICKEL	GOLD	NICKEL	NICKEL	GOLD
Contact point gender	MALE	FEMALE	MALE	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	51	51	51	51	51	51
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	CABLE	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO	YES	YES	NO
Termination type	SOLDER	CRIMP	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1
