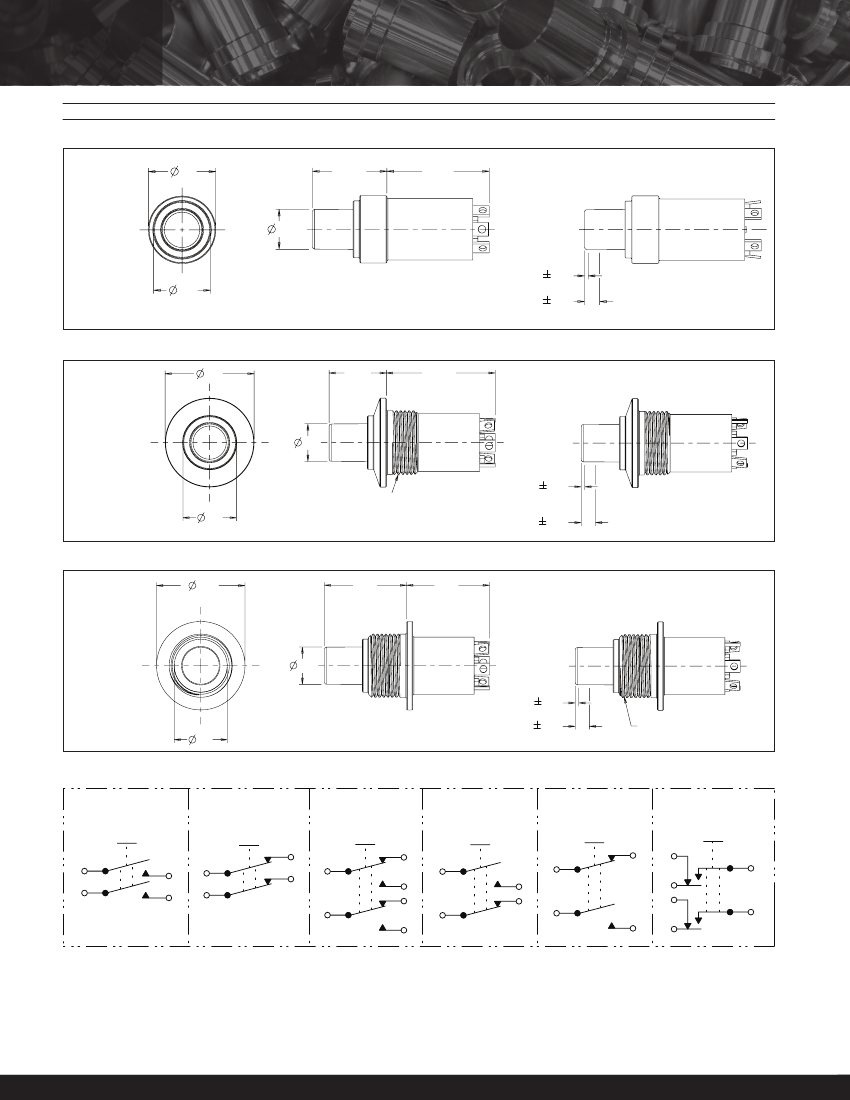

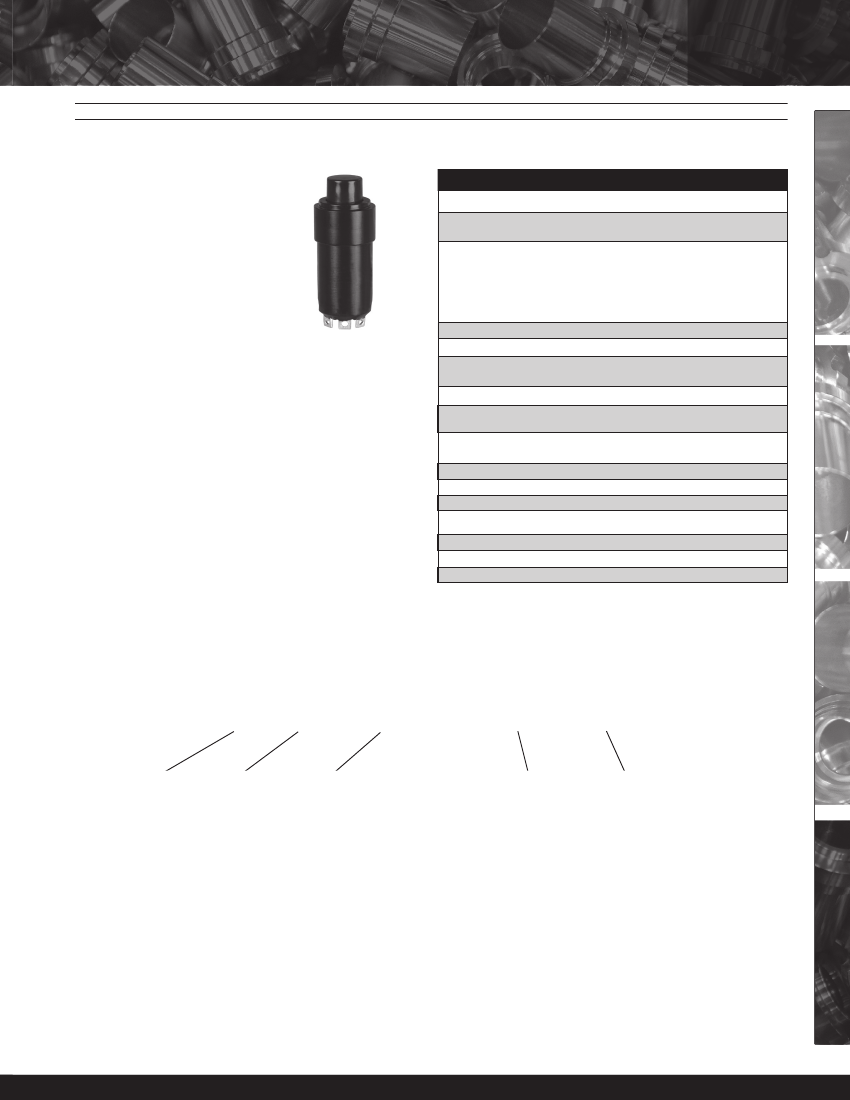

COMMERCIAL GRADE PUSHBUTTONS
3-POSITION MOMENTARY ACTION, ONE OR TWO STEP
COMMERCIAL
PUSHBUTTONS
P2
OTTO'S unique 3-position P2
pushbutton offers two levels (steps)
of momentary switch action plus "rest"
(or "off") for applications requiring
three modes of operation.
Each detent operates an independent
set of SPDT contacts rated to 5A @
28VDC or 125 VAC wrapped up in a
watertight and dusttight package.
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
DWV
Sea Level @ 28VDC
or 125VAC, 60/400Hz
5A
3A
3A
1000Vrms Initial
10mA @ 5VDC Resistive
25,000 cycles
25,000 cycles
Dusttight per MIL-PRF-8805 Design 2 and
Watertight per MIL-PRF-8805 Design 3
Pole One: 2.9 lbs. ± 0.6 lbs.
Pole Two: 5.0 lbs. ± 1.5 lbs.
Pole One: .75 lbs. min.
Pole Two: 1.0 lbs. min.
One Step Style .125 max, Two Step Style .250 max
0.015 inches min.
0.020 inches min.
The OTTO P2 series works like this:
Upon actuation, level one is reached
with a positive tactile feel transmitted back to the operator. The
operator has the option of either releasing the pushbutton, which
will return to the normal (off) position, or continuing to level two.
Upon release, the pushbutton returns to the normal position.
Designed for applications in the commercial market such as the
control of two-speed motors, the P2 also works well in numerous
military applications.
P2-1
Low Level
Electrical Life:
Mechanical Life:
Seal:
Operating Temp Range:
-55°C to +85°C
Operating Forces:
Release Forces:
Total Travel:
Overtravel:
Pretravel:
Features:
•
•
•
•
•
•
Unique three-mode design
Sequential DPDT contact action
One Step and Two Step versions
6 circuit forms
Watertight and dusttight
25,000 mechanical cycles
MATERIALS:
Case:
Button:
Mounting Hardware:
Black anodized aluminum alloy
Thermoplastic
Hex nut and lockwasher for case styles 3 and 6
P2
Case Style
1.
Style 1
3.
Style 3
6.
Style 6
(See diagrams
on next page)
–
X
Terminal
Style
1.
Solder
X
P2 PART NUMBER CODE
XX
X
Circuit
Form
11.
2-SPST - N.O.
22.
2-SPST - N.C.
33.
2-SPDT - Form C
(Break before Make)
44.
1-SPST - N.O.
1-SPST - N.C.
55.
1-SPST - N.C.
1-SPST - N.O.
66.
2-SPDT - MBB*
(Make before Break)
X
Button
Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Purple
8.
Gray
9.
White
Action
1.
One Step
2.
Two Step
PUSHBUTTONS
*
Available with Two Step version only.
Specifications Subject To Change Without Notice
www.ottoexcellence.com
131
P2
COMMERCIAL
PUSHBUTTONS
COMMERCIAL GRADE PUSHBUTTONS
3-POSITION MOMENTARY ACTION, ONE OR TWO STEP
.72
MAX.
.98
MAX.
.62
CASE
STYLE 1
.38
.53
.035 .020
DETENT POSITION #1
.140 .020
DETENT POSITION #2
.88
.58
MAX
1.10
MAX
CASE
STYLE 3
.37
.53
5/8-24 UNEF-2A TO WITHIN
.062 OF SHOULDER
.035 .020
DETENT POSITION
.140 .020
DETENT POSITION #2
.88
.84
MAX
.85
MAX
CASE
STYLE 6
.37
.035 .020
DETENT POSITION #1
.140 .020
DETENT POSITION #2
.53
5/8-24 UNEF-2A TO WITHIN
.062 OF SHOULDER
CIRCUIT FORM 11
2-SPST-NO
CIRCUIT FORM 22
2-SPST-NC
CIRCUIT FORM 33
SPDT-FORM C
BREAK BEFORE MAKE
CIRCUIT FORM 44
SPST-N.O.
SPST-N.C.
CIRCUIT FORM 55
SPST-N.C.
SPST-N.O.
CIRCUIT FORM 66
SPDT-MAKE
BEFORE BREAK
1
2
5
3
6
2
5
5
4
2
1
2
3
4
5
6
3
4
5
2
1
1
3
2
4
6
6
5
For two step switches:
Circuit 1-2-3 operates and resets between the first and second detent.
Circuit 4-5-6 operates and resets between the second detent and full travel.
