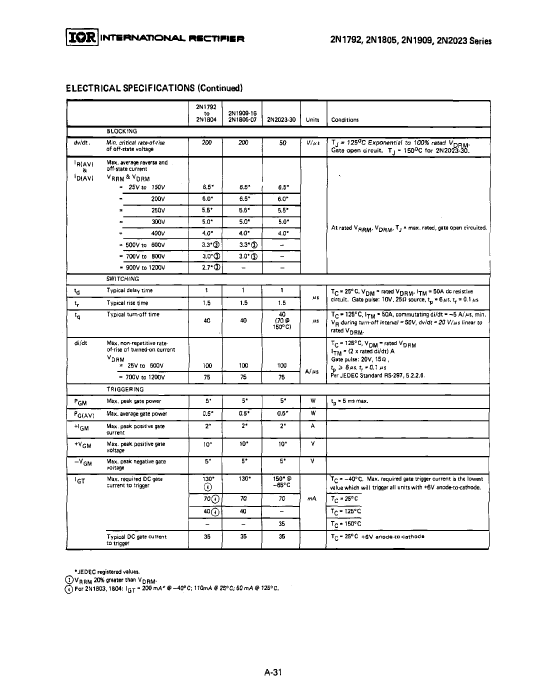

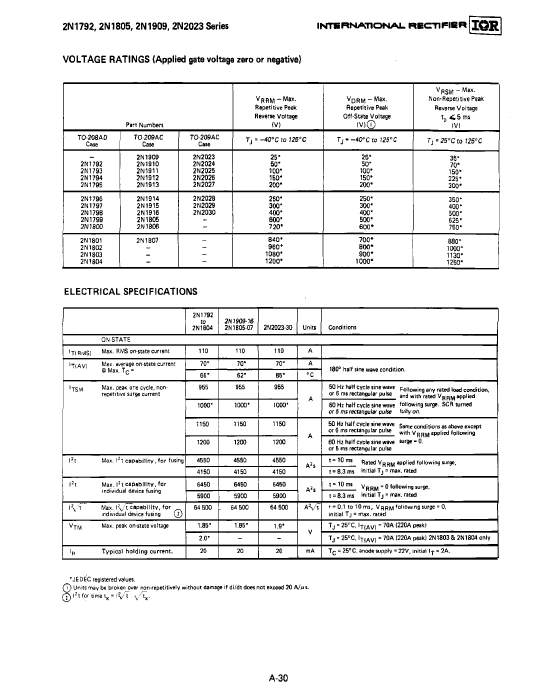

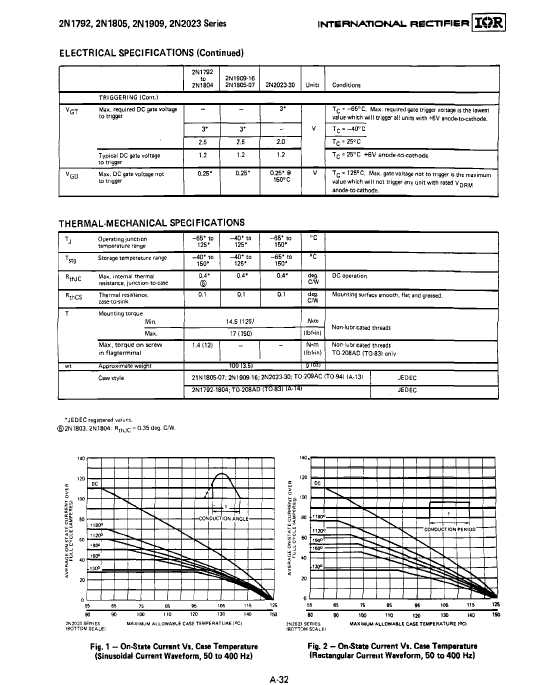

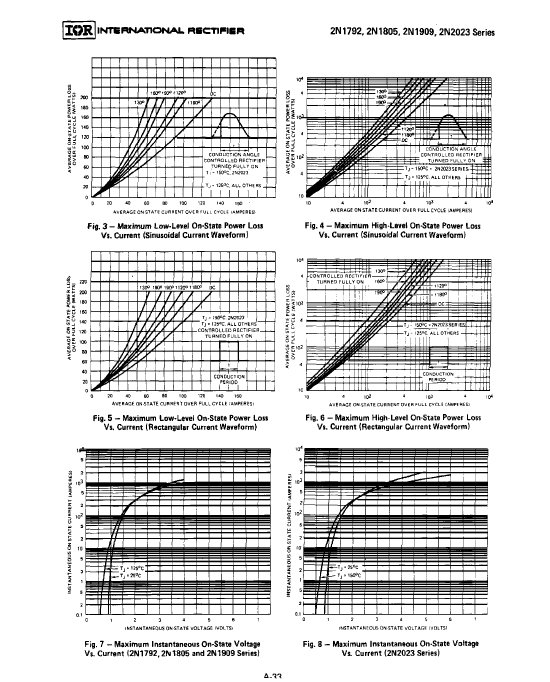

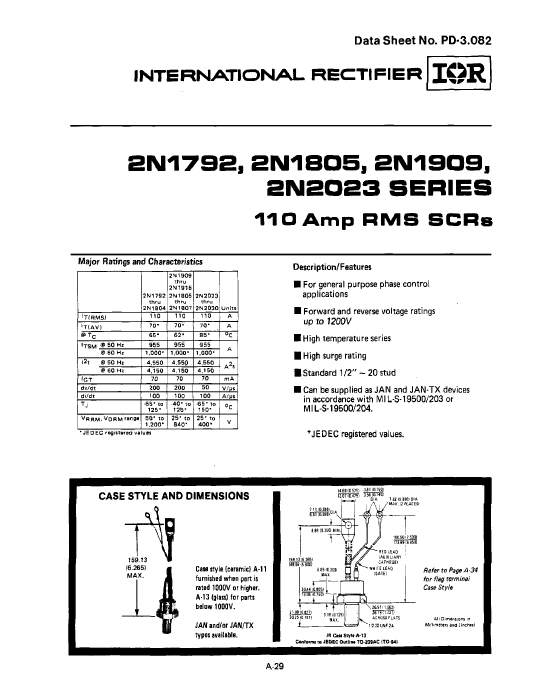

Preview

2N2026PBF: DescriptionSilicon Controlled Rectifier, 110A I(T)RMS, 150V V(DRM), 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size189KB，6 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2N2026PBF Overview

Silicon Controlled Rectifier, 110A I(T)RMS, 150V V(DRM), 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN

2N2026PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	70 mA
Maximum DC gate trigger voltage	2 V
JEDEC-95 code	TO-209AC
JESD-30 code	O-MUPM-H3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	110 A
Off-state repetitive peak voltage	150 V
Repeated peak reverse voltage	150 V
surface mount	NO
Terminal form	HIGH CURRENT CABLE
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

2N2026PBF Related Products

	2N2026PBF	2N2023PBF	2N2024PBF	2N2028PBF
Description	Silicon Controlled Rectifier, 110A I(T)RMS, 150V V(DRM), 150V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 25V V(DRM), 25V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 50V V(DRM), 50V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN	Silicon Controlled Rectifier, 110A I(T)RMS, 250V V(DRM), 250V V(RRM), 1 Element, TO-209AC, TO-94, 3 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Parts packaging code	TO-94	TO-94	TO-94	TO-94
package instruction	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3	POST/STUD MOUNT, O-MUPM-H3
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	50 V/us	50 V/us	50 V/us	50 V/us
Maximum DC gate trigger current	70 mA	70 mA	70 mA	70 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V
JEDEC-95 code	TO-209AC	TO-209AC	TO-209AC	TO-209AC
JESD-30 code	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3	O-MUPM-H3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	110 A	110 A	110 A	110 A
Off-state repetitive peak voltage	150 V	25 V	50 V	250 V
Repeated peak reverse voltage	150 V	25 V	50 V	250 V
surface mount	NO	NO	NO	NO
Terminal form	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE	HIGH CURRENT CABLE
Terminal location	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	40	40	40	40
Trigger device type	SCR	SCR	SCR	SCR
Base Number Matches	1	1	1	-
