BX6181 datasheet, PDF - EEWORLD Datasheet

BX6181: Description10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size624KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX6181 Overview

10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	7.5 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

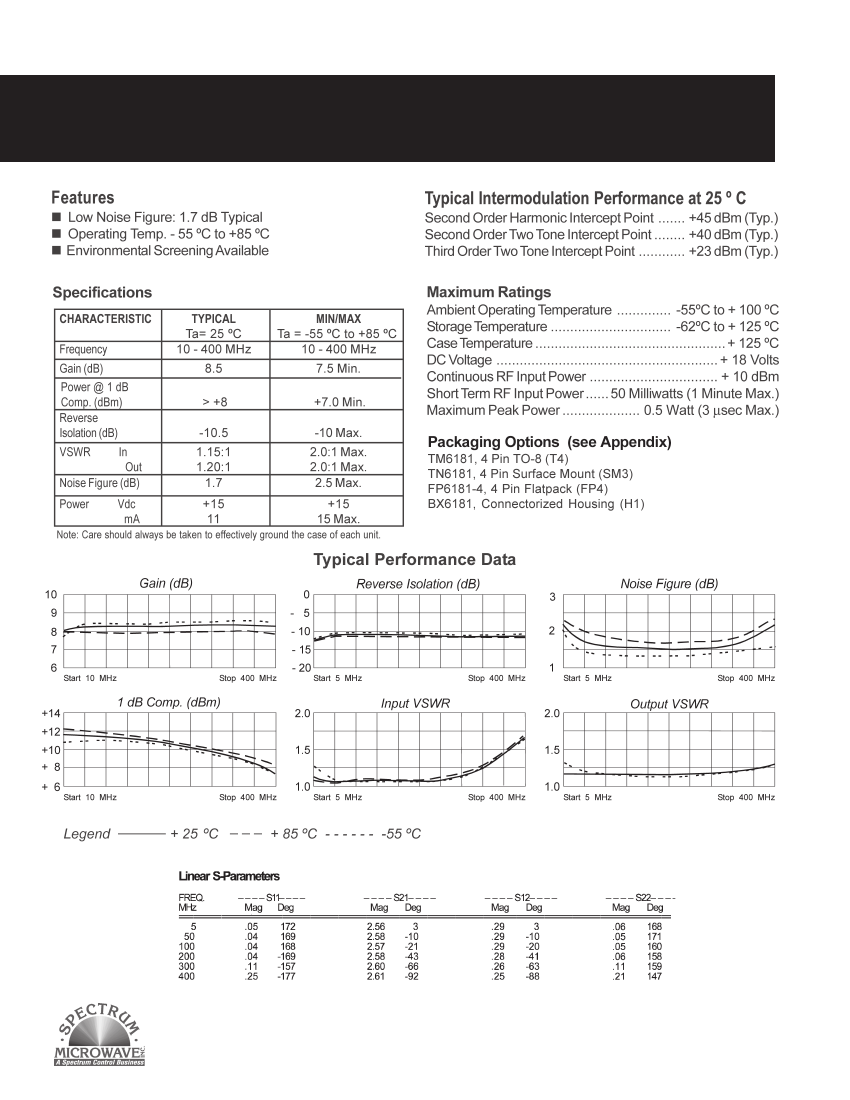

RF Amplifier

Low Midband Noise: 1.7 dB

Model TM6181

10 to 400 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

256

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	BX6181	TM6181
Description	10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	10 MHz - 400 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT
Gain	7.5 dB	7.5 dB
Maximum input power (CW)	10 dBm	10 dBm
Maximum operating frequency	400 MHz	400 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
Base Number Matches	1	1
