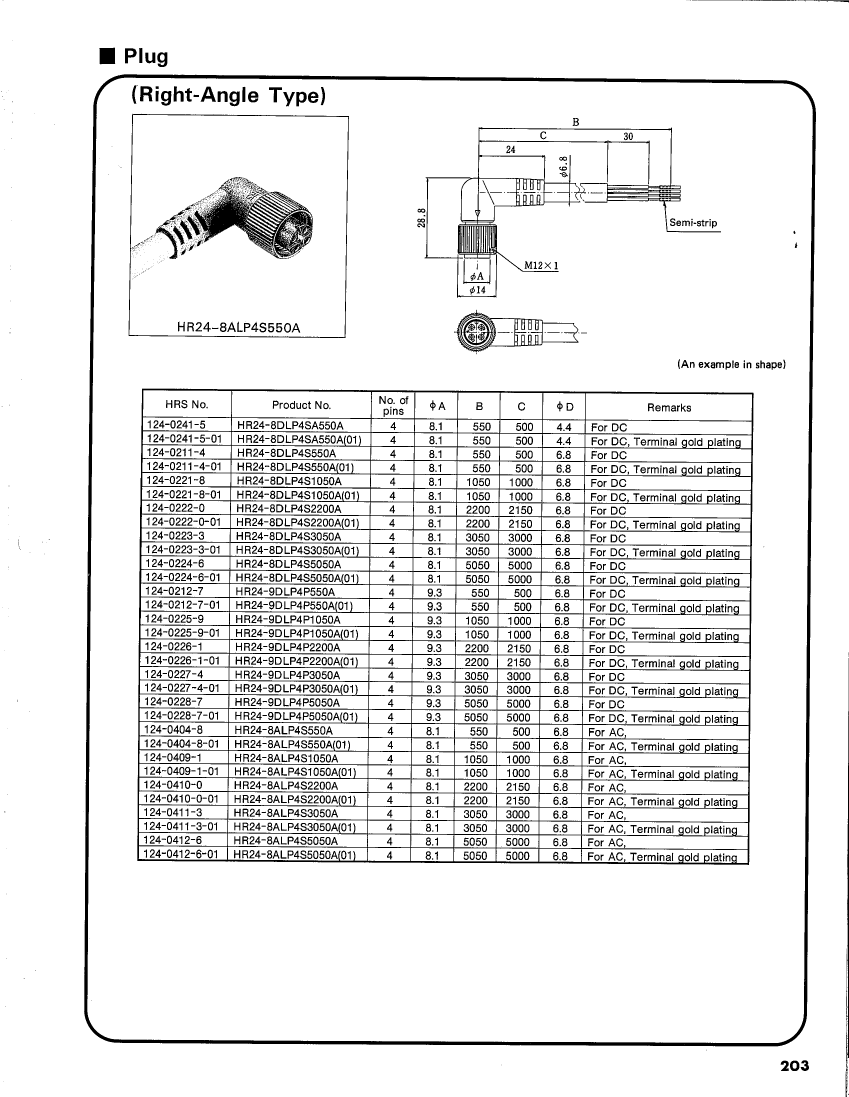

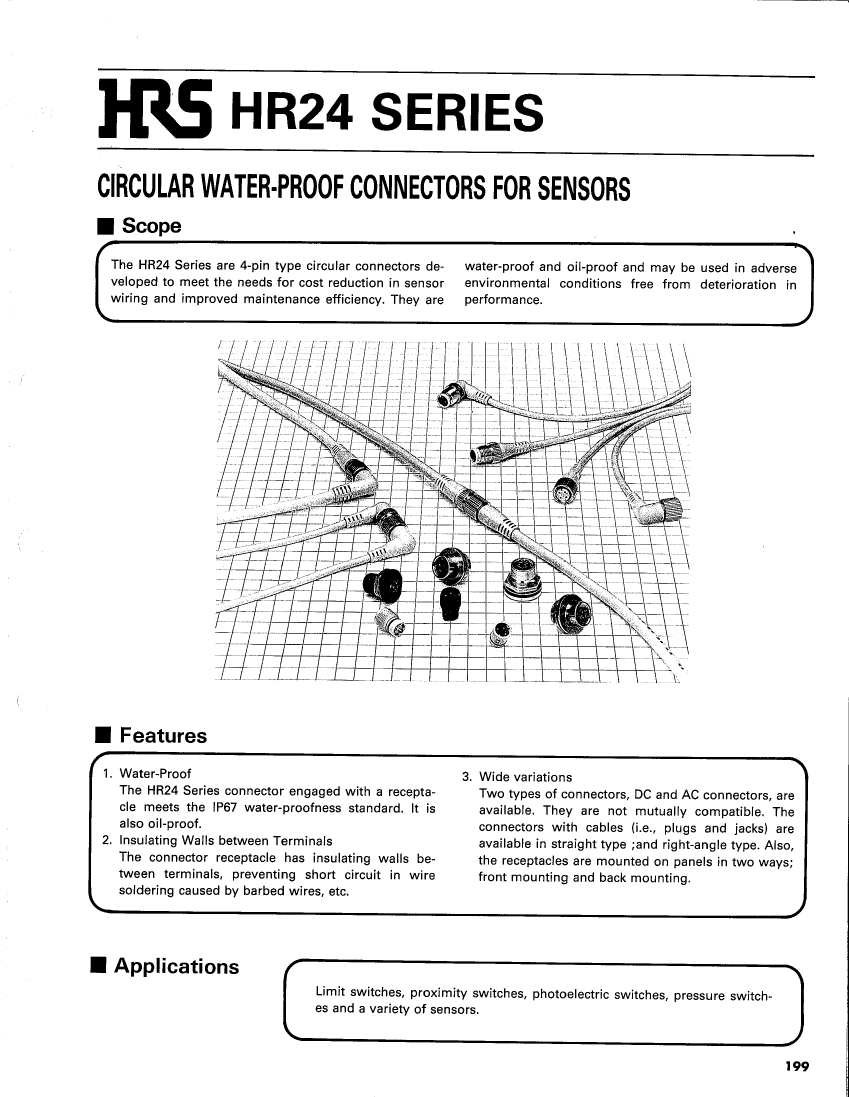

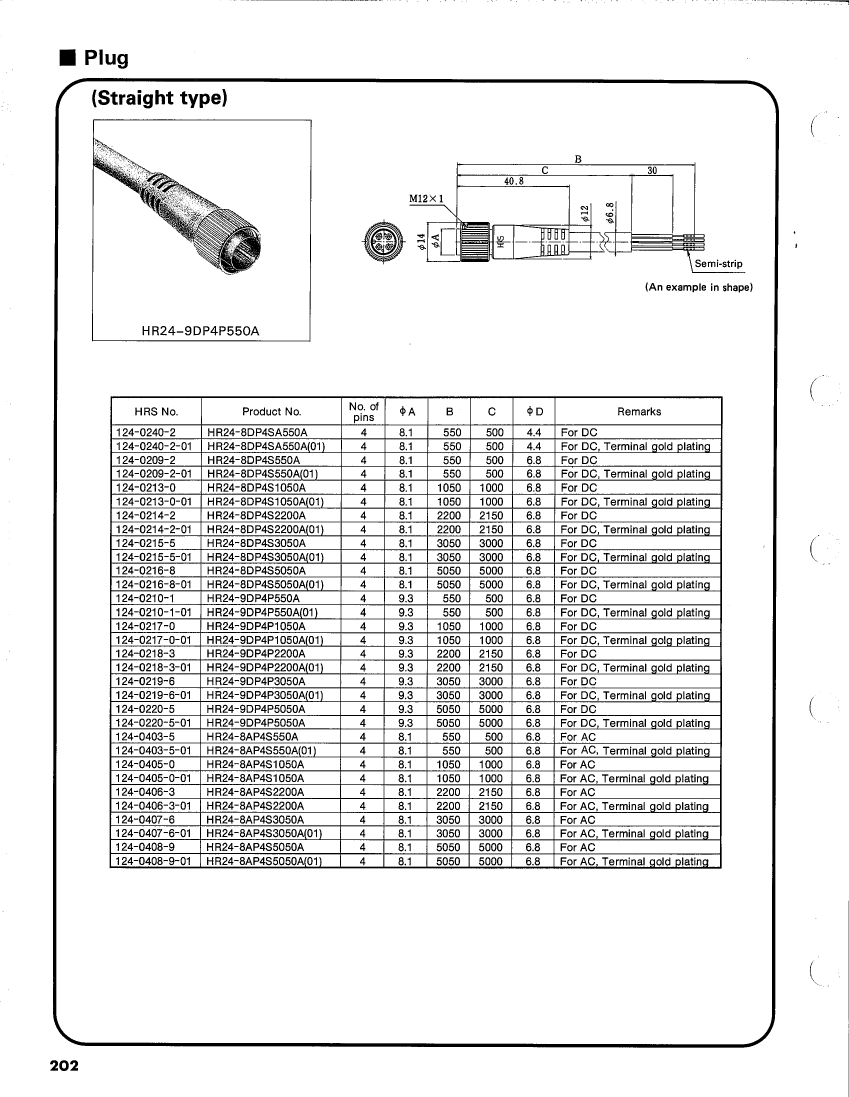

HR24-8AP4S550A Overview

Circular Connector, 4 Contact(s), Brass, Female, Plug

HR24-8AP4S550A Parametric

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown

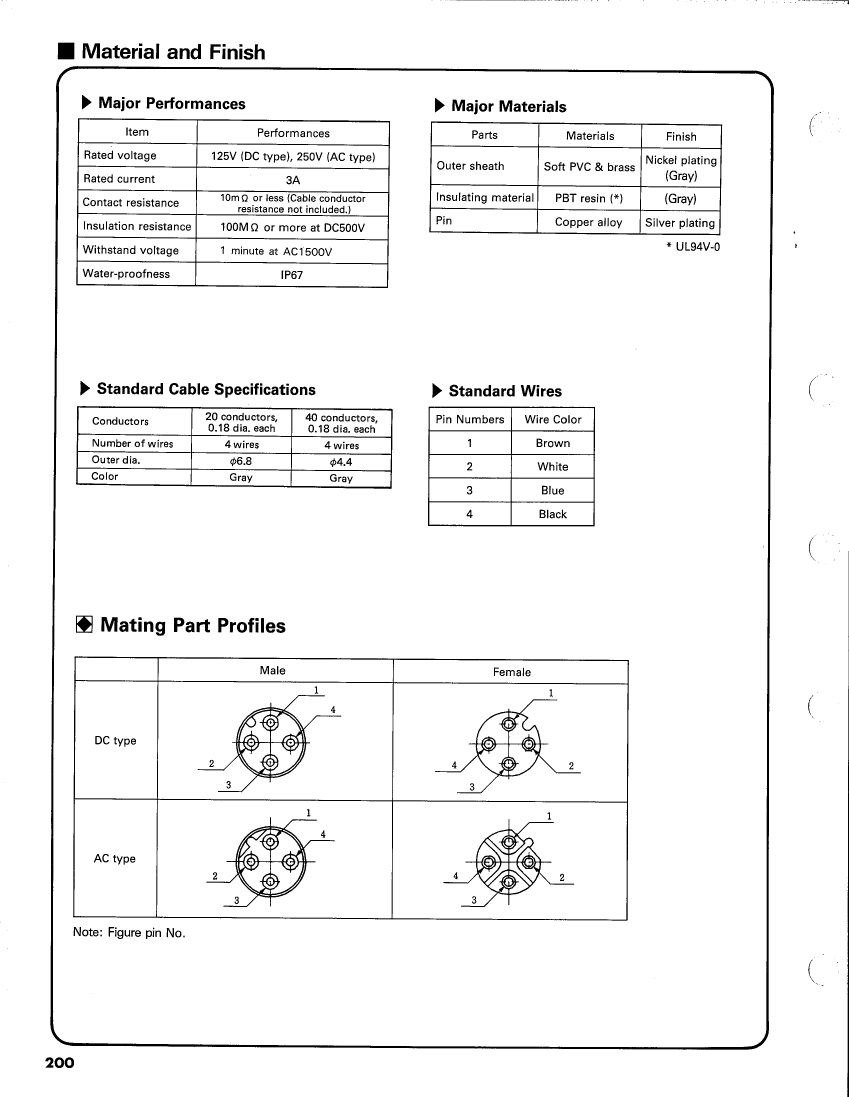

Other features	SEAL MATERIAL: PVC, CONTACT MATERIAL: COPPER, SILVER PLATED, 3A, 250V
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO

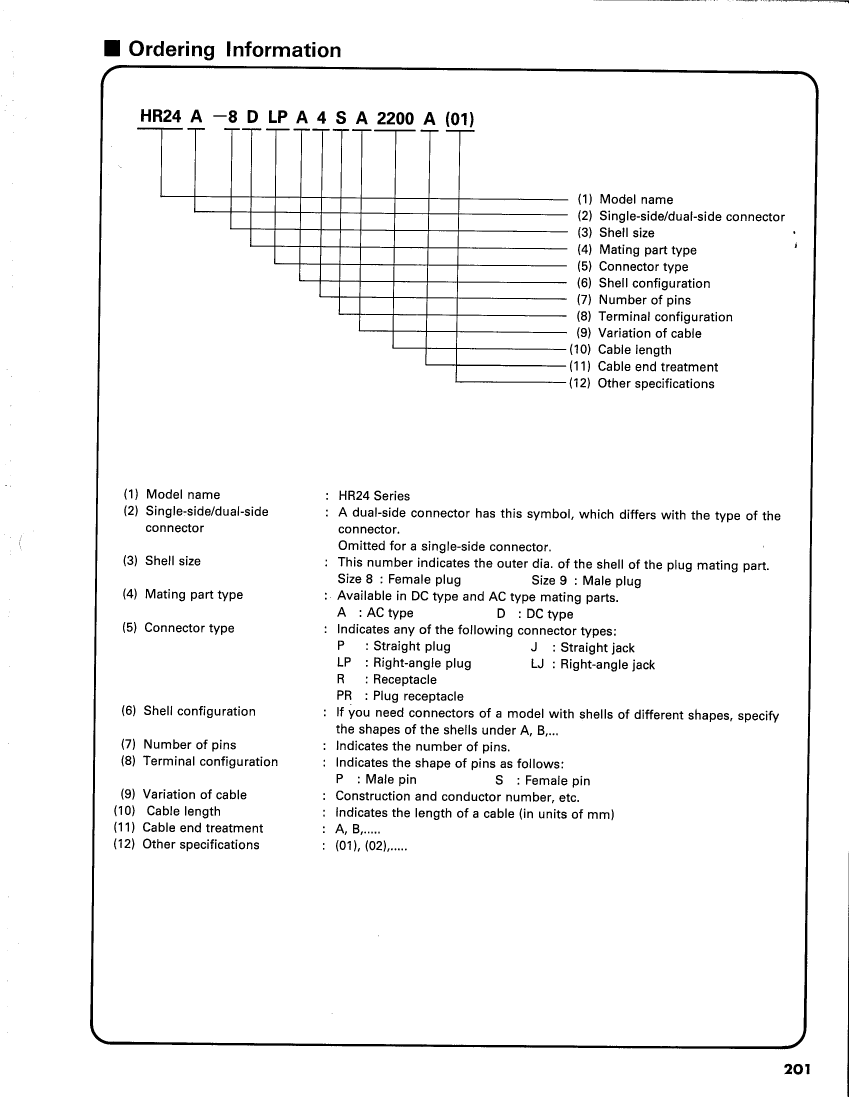

Manufacturer's serial number	HR24
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	WATERPROOF
Shell surface	NICKEL PLATED
Shell material	BRASS
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
