Part Number

Search

501531-0810

Description
Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
CategoryThe connector    The connector
File Size720KB,11 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

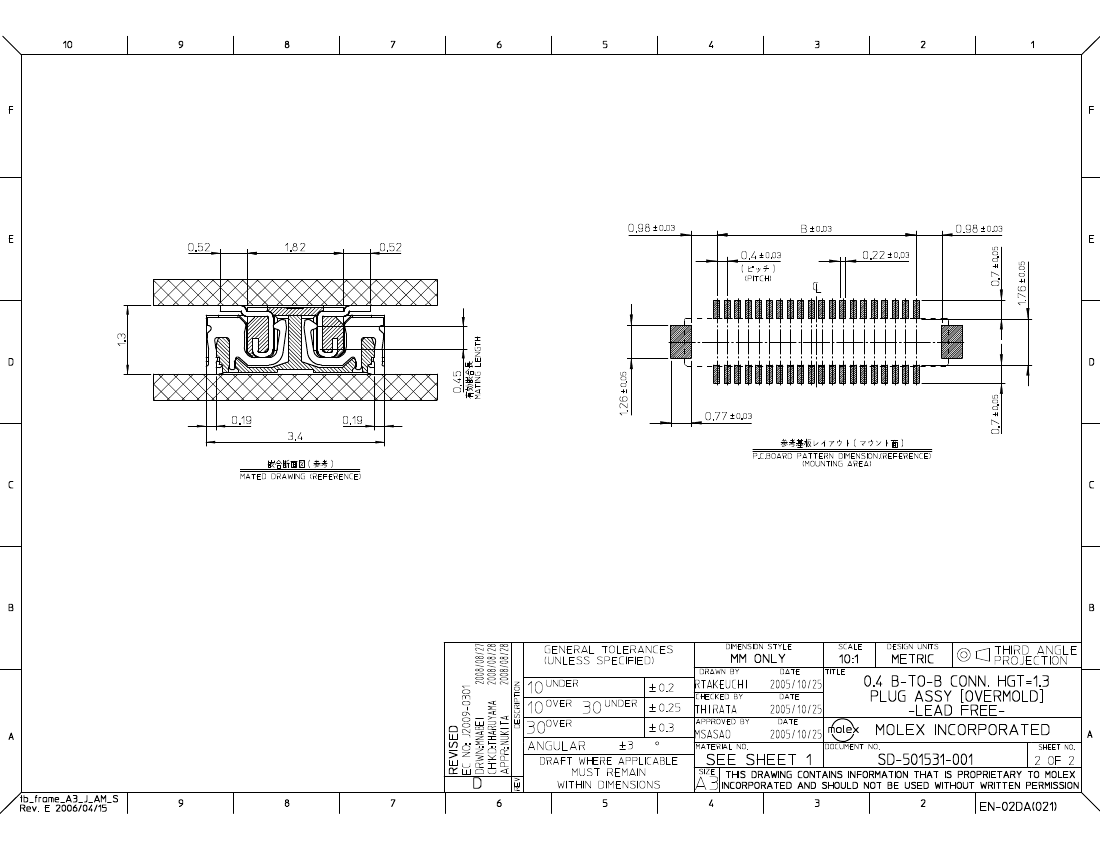

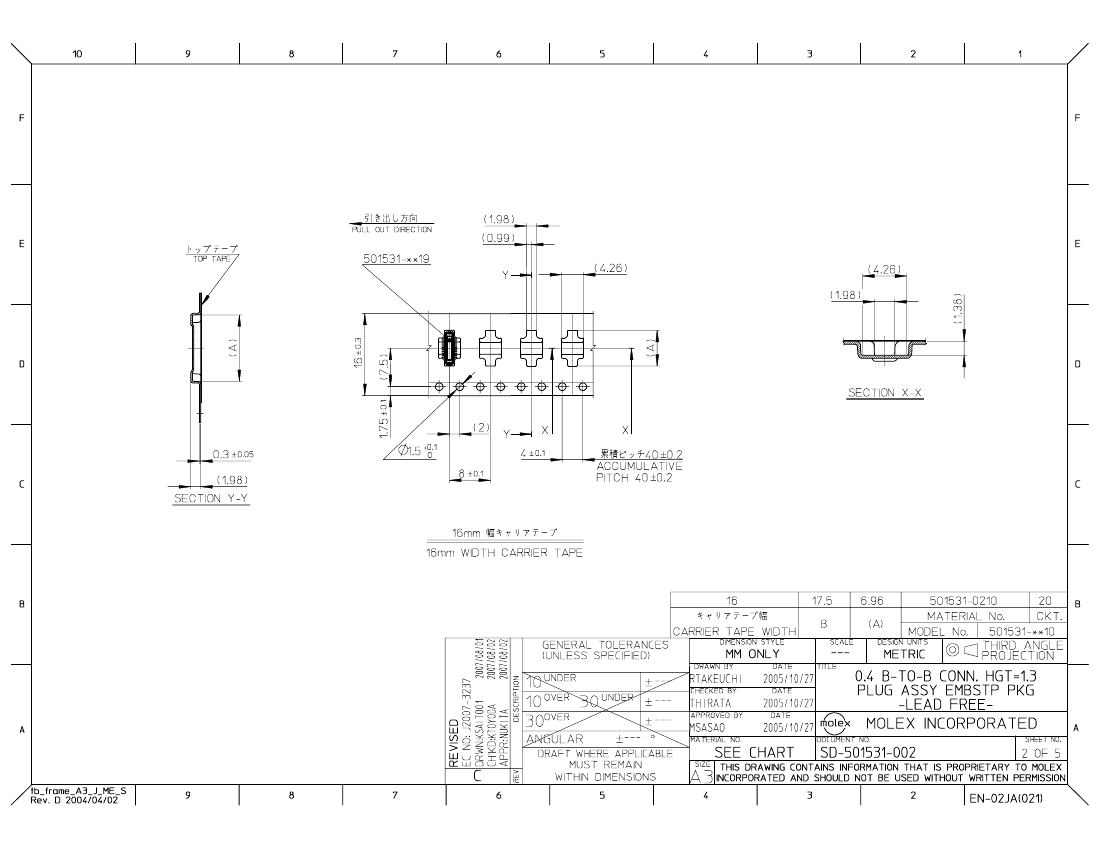

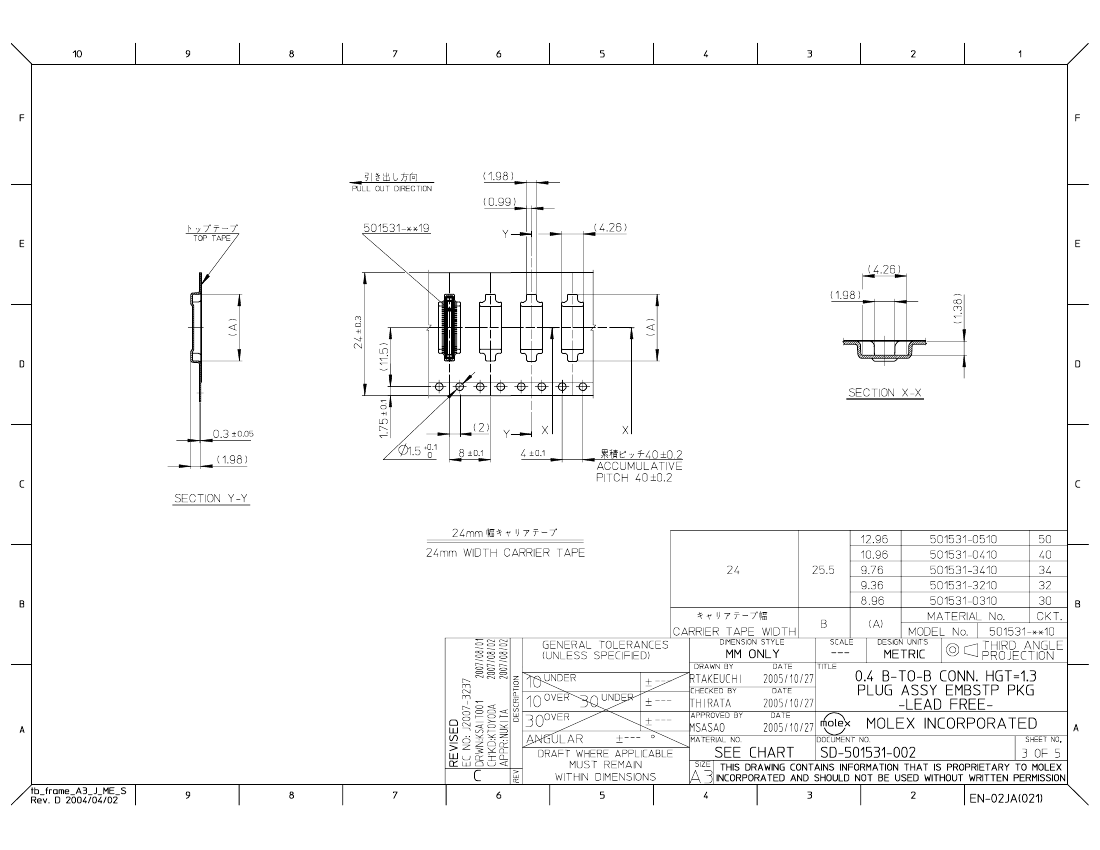

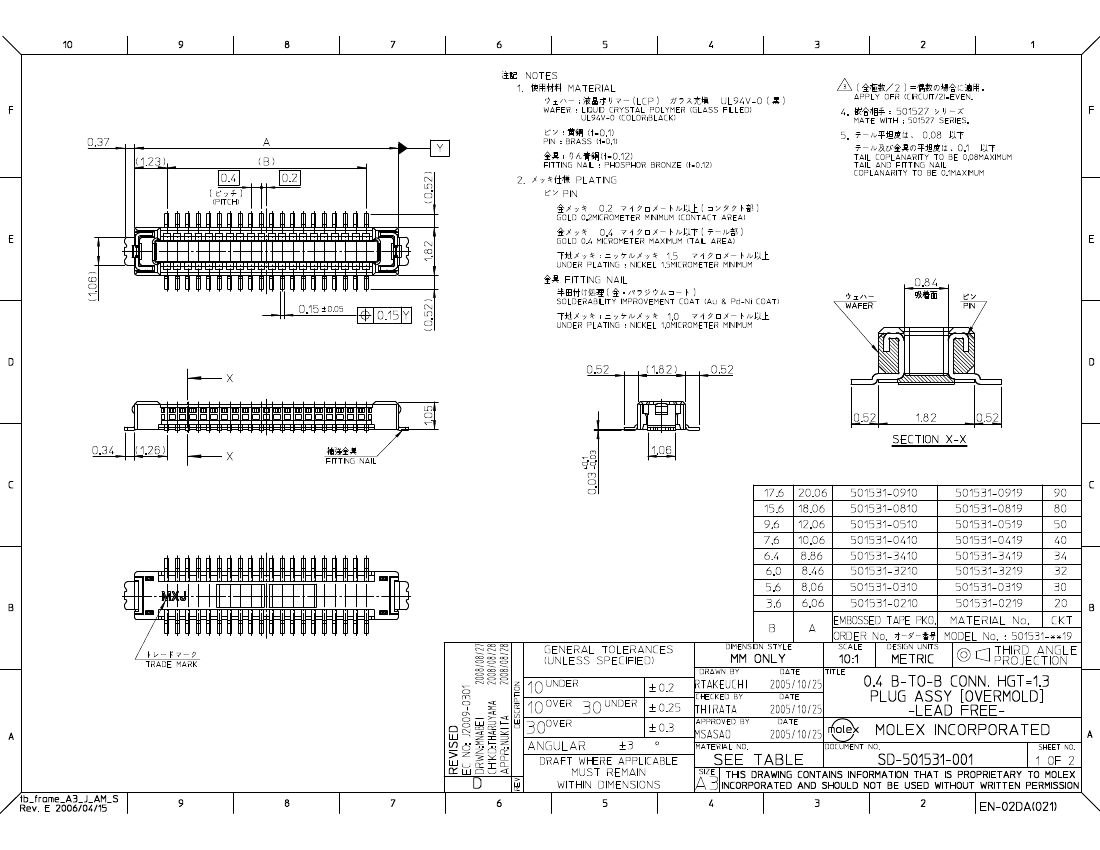

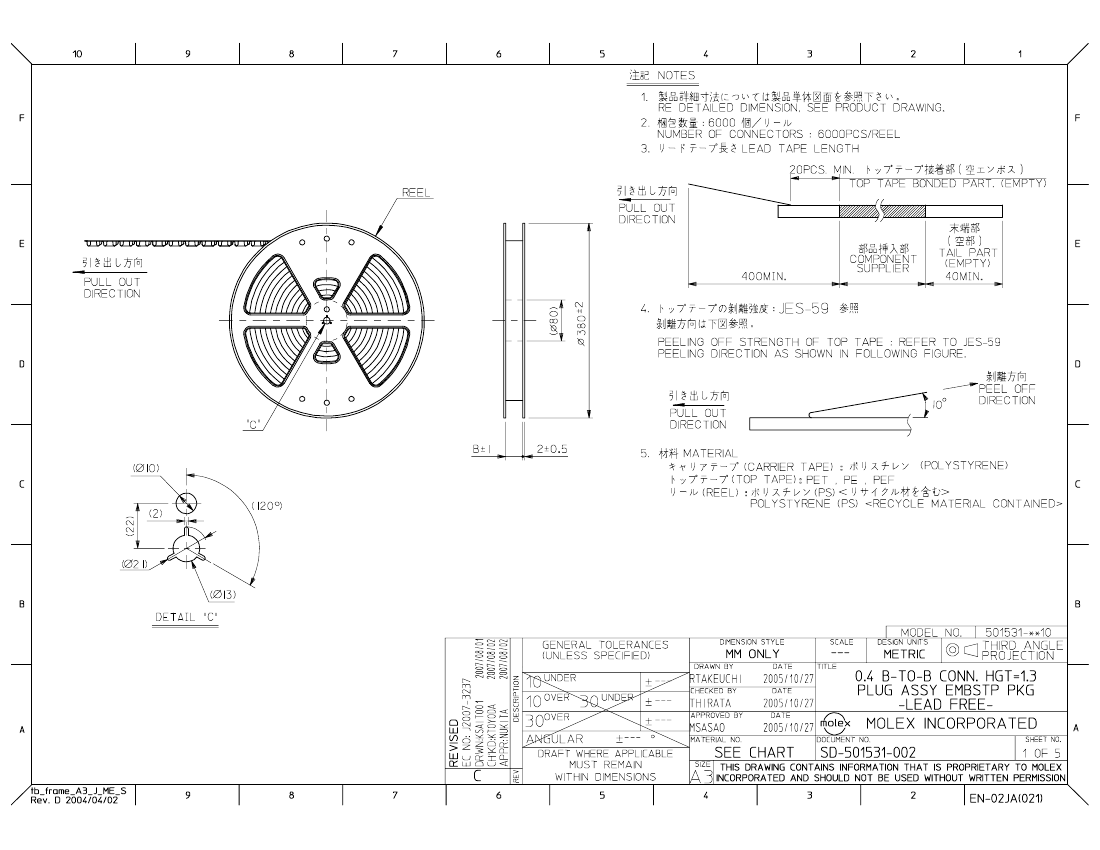

501531-0810 Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug

501531-0810 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Board mount optionsFITTING NAIL
body width0.072 inch
subject depth0.041 inch
body length0.74 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance40 mΩ
Dielectric withstand voltage350VAC V
Durability30 Cycles
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number501531
Plug contact pitch0.016 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.8288 mm
Plating thickness8u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4064 mm
Termination typeSURFACE MOUNT
Total number of contacts80
Base Number Matches1

501531-0810 Related Products

501531-0810 505226-0900
Description Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, 0.016 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Plug
Reach Compliance Code unknown compliant
Board mount options FITTING NAIL FITTING NAIL
body width 0.072 inch 0.072 inch
subject depth 0.041 inch 0.041 inch
body length 0.74 inch 0.84 inch
Body/casing type PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI
Contact completed and terminated GOLD OVER NICKEL GOLD OVER NICKEL
Contact point gender FEMALE FEMALE
Contact material BRASS BRASS
contact mode RECTANGULAR RECTANGULAR
Contact resistance 40 mΩ 40 mΩ
Dielectric withstand voltage 350VAC V 350VAC V
Durability 30 Cycles 30 Cycles
Insulation resistance 100000000 Ω 100000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number 501531 501531
Plug contact pitch 0.016 inch 0.016 inch
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 2 2
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 1.8288 mm 1.8288 mm
Plating thickness 8u inch 4u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 0.3 A 0.3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 0.4064 mm 0.4064 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 80 90
