5-1112522-1: DescriptionData Line Filter, 1 Function(s), 250V, 10A,; CategoryAnalog mixed-signal IC filter; File Size82KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

5-1112522-1 Overview

Data Line Filter, 1 Function(s), 250V, 10A,

5-1112522-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PI-TYPE CIRCUIT
Certification	EN
capacitance	4000 µF
diameter	152.4 mm
filter type	DATA LINE FILTER
inductance	1 µH
Minimum insulation resistance	10000 MΩ
Installation type	PANEL MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
physical size	D152.4XL304.8 (mm)/D6XL12 (inch)
Rated current	10 A
Rated voltage	250 V
Base Number Matches	1

Preview

Download Datasheet

View All

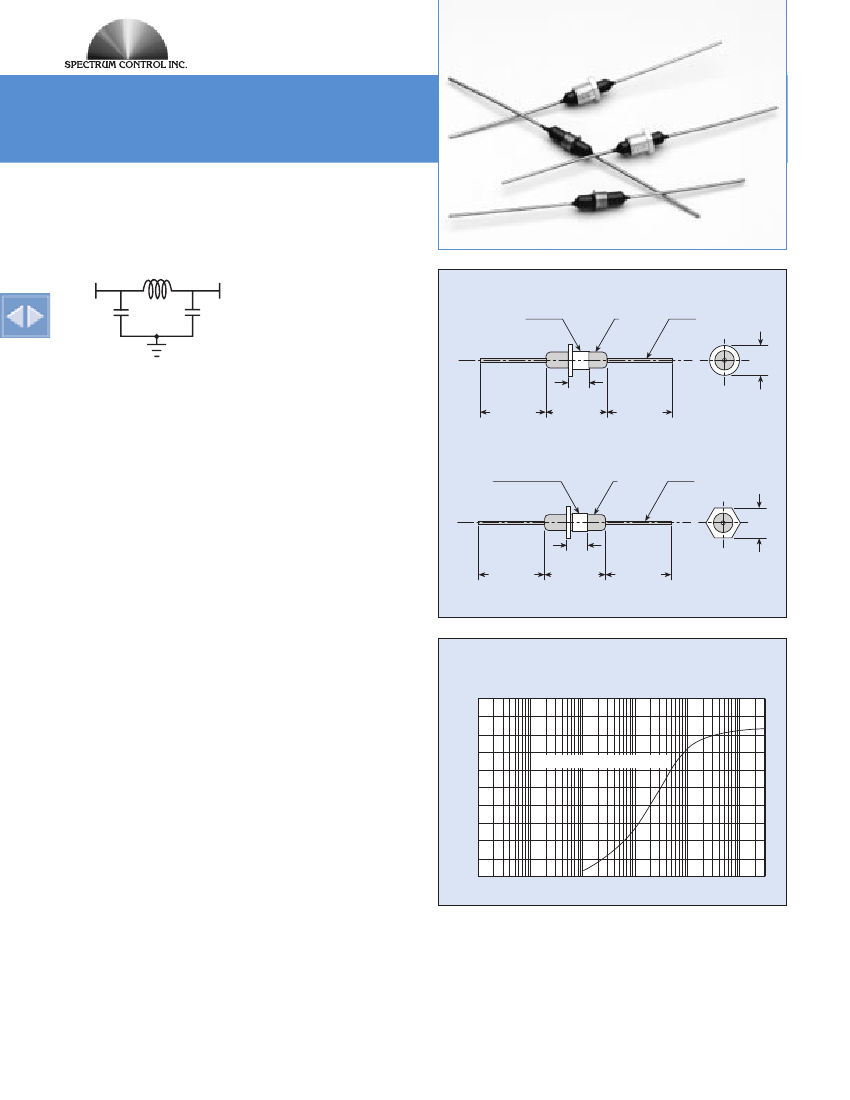

Explosion Proof Filters

Ceramic Pi Filter for Explosion Proof

Equipment According to EN 50 020

Circuit Schematic

Input

Output

Solder Mount Type

Mounting hole

min. dia. 4.2

(min. dia. 106.7)

Coating

ø0.8

(20.32)

tinned Cu

4.0

(101.6)

Explosion Proof Filters

Ground

Typical Electrical Characteristics

Working Voltage.

. . . . . . . . 250 VDC

Test Voltage

. . . . . . . . . . . . 1500 VDC 1 Min.

. . . . . . . . . . . . . . . . . . . .

1060 VAC 1 Min.

Feed-thru

Current

. . . . . . . . . . . . . . . Max. 10A

Insulation

Resistance

. . . . . . . . . . . . . Min. 10

MOhm

Capacitance (total)

. . . . . . . 4nF -0/+100%

Inductance.

. . . . . . . . . . . . 1000nH -50/+100%

Soldering

Conditions

. . . . . . . . . . . . . Max. 250°C

Marking

. . . . . . . . . . . . . . None

Operating Temperature.

. . . . -55°C to +85°C

3.0

(76.2)

min. 25.0

max. 12.0

min. 25.0

(min. 635.0) (max. 304.8) (min. 635.0)

Bushing Mount Type

M5X0.5

Coating

ø0.8

(20.32)

tinned Cu

6.0

(152.4)

3.0

(76.2)

min. 25.0

max. 12.0

min. 25.0

(min. 635.0) (max. 304.8) (min. 635.0)

Dimensions in inches

(mm)

Pi Insertion Loss

Typical Explosion Proof Applications

100

Part Numbers

Insertion Loss (dB)

Solder Mount and Bushing Mount

0.01

0.1

Frequency (MHz)

100

1000 3000

Solder Mount: 1113243-1

Bushing Mount: 1112522-1

Bushing Mount with Nut: 5-1112522-1

SPECTRUM CONTROL INC.

• 8031 Avonia Rd. • Fairview, PA 16415 • Phone: 814-835-1650 • Fax: 814-835-1651 • Web site: www.spectrumcontrol.com

SPECTRUM CONTROL GmbH

• Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58
