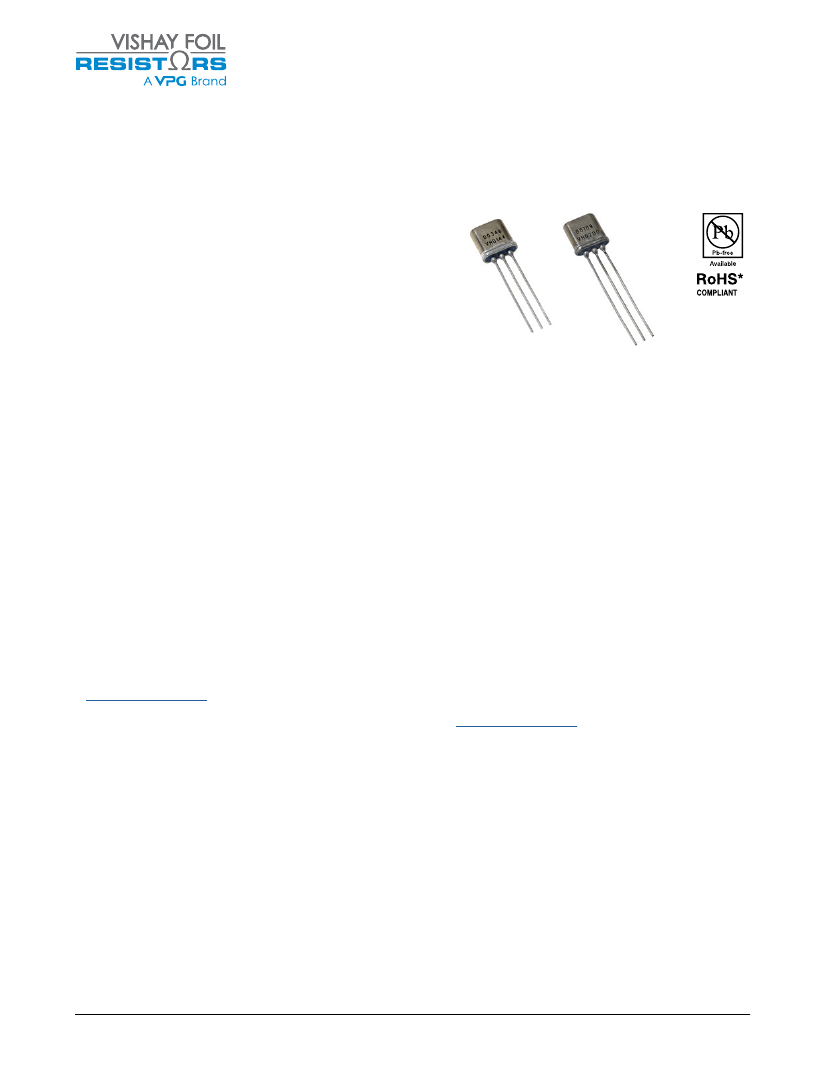

VHD200, VHD144
Bulk Metal®Foil Hermetically Sealed, Small Package, Voltage Dividers
Metal
®
Foil Hermetically Sealed, Small
with TCR Tracking of 0.1 ppm/°C and Tolerance Match Down to 0.001%
FEATURES
• Temperature coefficient of resistance (TCR):
Absolute: ±2 ppm/°C typical
(–55°C to +125 C, 25°C ref.)
Tracking: 0.1 ppm/°C typical
• Tolerance:
Absolute to ±0.005%
Match to 0.001%
• Power rating:
VHD144 0.2 W at 70°C (see table 1)
VHD200 0.1 W at 70°C (see table 1)
• Ratio stability: <0.001% (10 ppm) 0.2 W at 70°C for
2000 h
• Electrostatic discharge (ESD): to 25k V
• Non inductive, non capacitive design
• Rise time: 1 ns without ringing
• Current noise: 0.010 µV
RMS
/V of applied voltage
(<–40 dB)
• Thermal EMF: 0.05 µV/°C typical
• Voltage coefficient: <0.1 ppm/V
• Non inductive: 0.08 µH
• Non hot spot design
• Terminal finishes available: lead (Pb)-free or tin/lead
alloy
• Bulk Metal
®
Foil resistors are not restricted to standard
values; specific “as required” values can be supplied at
no extra cost or delivery (e.g., 1K2345 vs. 1K)
• Impervious to harmful environments – oil filled
(VHD200)
• Prototype quantities available contact:
foil@vpgsensors.com
• For better performances (values, TCR, tolerance,
stability), please contact us
Any value at any ratio available within resistance range
INTRODUCTION
Vishay Foil Resistors Models VHD200 and VHD144 are
hermetic versions of the molded divider 300144. The
difference between them is that the VHD144 has the
full power rating of the 300144 while the VHD200 has
a reduced power rating in exchange for a full spectrum
of values without the time delay for new artwork (for
values not yet tooled) and without NRE charges. Further,
the VHD200 is oil filled, providing additional moisture
protection and allowing considerable improvement in ratio
match and TCR tracking.
The value of the hermetic enclosure over the molded part
is in the long-term performance. Moisture and oxygen
both pass through plastic and both contribute to long
term degradation of resistive elements. Divider ratios of
1:1 are not as likely to lose ratio with time but as the ratios
become greater, the imbalance of power has more effect
on the ratio stability and the hermetic enclosure becomes
of paramount importance.
Our Application Engineering Department is available to
advise and make recommendations for non-standard
technical requirements and special applications. Contact
us at
foil@vpgsensors.com
Note
* This datasheet provides information about parts that are RoHS-compliant (with exemption) and/or parts that are non-RoHS-compliant.
For example, parts with lead (Pb) terminations are not RoHS compliant. Please see the information/tables in this datasheet for details.
Document No.: 63036
Revision: 10-Aug-2017
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
1
VHD200, VHD144
Table 1 – VHD200 and VHD144 Specifications
MODEL
RESISTANCE
RATIO
AVAILABLE
(1)
(Ω)
POWER RATING
(3),(6)
STANDARD RESISTANCE
TOLERANCE
ABSOLUTE
MATCH
AVAILABLE TO AVAILABLE TO
±0.005%
0.001%
TCR
TRACKING
AVAILABLE
TO
0.1 ppm/°C
<0.5 ppm/°C
for like values
<1 ppm/°C
standard
SHELF
LIFE
STABILITY
(ppm/yr)
5
VHD200
(2)
VHD144
(5)
0.1 W at +25°C (for the entire resistive
element R
1
+ R
2
) divided proportionally
(4)
Any value from between the two elements (over 10K).
100 Ω to 20K
0.2 W at +70°C (for the entire resistive
per side
element R
1
+ R
2
) divided proportionally
between the two elements.
±0.005%
0.005%
5
Notes
(1)
For resistance ratios outside the range, contact our Applications Engineering Department.
(2)
The VHD200 is available in any required ratio between the resistance values of 100 Ω and 20 kΩ, such that R
1
can be any value
between 100 Ω and 20 kΩ and R
2
can also be any value between 100 Ω and 20 kΩ.
(3)
Power is proportional to the divider ratio.
Example: In a VHD144 (1K/10K dual), the power rating would be 18 mW on the 1K and 182 mW on the 10K, for a total of 200 mW
on R
1
+ R
2
.
P
1
=
(4)
(5)
(6)
(
R
1
P
R
1
+ R
2
)
P
2
=
(
R
2
P
R
1
+ R
2
)
For power rating of values below 10K, contact the applications engineering department.
Any value from 100 Ω to 20 kΩ inclusive is available with some derating of power.
Maximum voltage is 200 V.
Figure 1 – Typical TCR Curve
+150
+100
Figure 2 – Trimming to Values
Interloop
capacitance
reduction
in series
Mutual
inductance
reduction
due to change
in current
direction
+ 125
R
R
(ppm)
+50
0
Current path
before trimming
Current path after trimming
– 50
– 100
– 150
– 200
– 50
– 55
– 25
± 2 ppm/°C (+ 25°C Reference)
0
+ 20
+ 50
+ 75
+ 100
Ambient Temperature (°C)
(For more details, see table 1)
Note
To acquire a precision resistance value, the Bulk Metal
®
Foil
chip is trimmed by selectively removing built-in “shorting bars.”
To increase the resistance in known increments, marked
areas are cut, producing progressively smaller increases in
resistance. This method reduces the effect of “hot spots” and
improves the long-term stability of Bulk Metal
®
Foil resistors.
Trimming process
removes this material
from shorting strip area
changing current path
and increasing
resistance
Foil shown in black, etched spaces in white
www.vishayfoilresistors.com
2
For any questions, contact
foil@vpgsensors.com
Document No.: 63036
Revision: 10-Aug-2017
VHD200, VHD144
Figure 3 – VHD200 and VHD144 Standard Printing and Dimensions
in inches (millimeters)
0.398
(10.11)
Date Code
Model No .
0.095
(2.41)
0.75
(1)
(19.05)
Standard Printing and Dimensions
Match
Tolerance
Schematic
(2)
R
1
R
2
VFR
0746
VHD200
0.430
(10.92)
1
0.047
(1.19)
R1
Indicator
1
2
3
0.435
(11.05)
0.370
(9.40)
5K0000
0.01%
10K000
1
2
3
0.185
(4.70)
0.146
(3.71)
0.1 (2.54)
Notes
1. Lead wires: #22 AWG solder coated copper, 0.75 in minimum length.
2. Each resistor contains 1 chip consisting of two resistive elements. Tol: ±0.020 in.
Figure 4 – Power Derating Curve
– 55 °C
100
Percent of Rated Power (%)
75
50
25
0
VHD144
+70
– 55 °C
100
Percent of Rated Power (%)
75
50
25
0
VHD200
+25
+125
– 50
Ambient Temperature (°C)
0
+50
+100
+150
– 50
Ambient Temperature (°C)
0
+50
+100
+130
Document No.: 63036
Revision: 10-Aug-2017
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
3
VHD200, VHD144
Table 2 – Global Part Number Information
NEW GLOBAL PART NUMBER: Y0076V0058QT9L (preferred part number format)
DENOTES PRECISION
Y
RESISTANCE VALUE CODE
VCODE
TOLERANCE MATCH
S = 0.001%
V = 0.005%
T = 0.01%
Q = 0.02%
A = 0.05%
B = 0.1%
D = 0.5%
F = 1.0%
CHARACTERISTICS/TERMINATION*
0
= standard
9
= lead (Pb)-free
1 – 999
= custom
Y
0
0
7
6
V
0
0
5
8
Q
T
9
L
PRODUCT CODE
0076
= VHD144
5076
= VHD200
V
=
T
=
Q
=
A
=
B
=
D
=
F
=
ABSOLUTE
TOLERANCE
±0.005%
±0.01%
±0.02%
±0.05%
±0.1%
±0.5%
±1.0%
PACKAGING
L = bulk pack
FOR EXAMPLE: ABOVE GLOBAL ORDER Y0076 V0058 Q T 9 L:
TYPE: VHD144
VALUE: 2K/20K
ABSOLUTE TOLERANCE: ± 0.02%
TOLERANCE MATCH: 0.01%
TERMINATION: lead (Pb)-free
PACKAGING: bulk pack
HISTORICAL PART NUMBER: VHD144T 2K/20K TCR2 Q T B
(will continue to be used)
VHD144
MODEL
VHD144
VHD200
T
TERMINATION
T = lead (Pb)-free
None = tin/lead alloy
2K/20K
OHMIC VALUE
R
1
= 2.0 k
R
2
= 20.0 k
TCR2
TCR
Characteristic
Q
ABSOLUTE
TOLERANCE
± 0.005%
±0.01%
±0.02%
±0.05%
±0.1%
±0.5%
±1.0%
T
TOLERANCE
MATCH
S = 0.001%
V = 0.005%
T = 0.01%
Q = 0.02%
A = 0.05%
B = 0.1%
D = 0.5%
F = 1.0%
B
PACKAGING
B = bulk pack
V=
T=
Q=
A=
B=
D=
F=
Note
For customized requests, please contact application engineering at
foil@vpgsensors.com.
www.vishayfoilresistors.com
4
For any questions, contact
foil@vpgsensors.com
Document No.: 63036
Revision: 10-Aug-2017
VHD200, VHD144
Table 3 – VHD144 and VHD200 Popular Ratios
(other values available upon request)
VCODE
V0009
V0010
V0100
V0055
V0223
V0097
V0094
V0001
V0042
V0006
V0226
V0003
V0013
V0107
V0014
V0159
V0005
R1
20K
20K
20K
19K4
17K5
15K
10K
10K
10K
10K
9K
9K
8K
6K
6K
5K5
5K
R2
20K
10K
2K
9K7
20K
15K
20K
10K
8K323
2K
10K
1K
16K
20K
7K
7K7
10K
VCODE
V0002
V0026
V0156
V0158
V0058
V0030
V0029
V0103
V0059
V0103
V0032
V0121
V0004
V0022
V0162
V0091
V0061
R1
5K
3K
3K
2K7
2K
2K
2K
2K
2K
1K5
1K
1K
1K
511R
500R
500R
300R
R2
5K
19K2
6K
10K
20K
18K
4K
3K
2K
3K
16K
2K
1K
16K2
15K
500R
300R
Document No.: 63036
Revision: 10-Aug-2017
For any questions, contact
foil@vpgsensors.com
www.vishayfoilresistors.com
5
