MM13FGN67.0000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MM13FGN67.0000MHZ

Preview

MM13FGN67.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 50MHz Min, 67MHz Max, 67MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, LEADLESS PACKAGE-4; CategoryPassive components oscillator; File Size299KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MM13FGN67.0000MHZ Overview

HCMOS Output Clock Oscillator, 50MHz Min, 67MHz Max, 67MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, LEADLESS PACKAGE-4

MM13FGN67.0000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1021223552
package instruction	DILCC4,.24,200
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	MM
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	67 MHz
Minimum operating frequency	50 MHz
Nominal operating frequency	67 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	50 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.24,200
physical size	7.2mm x 5.2mm x 2.0mm
power supply	5 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	45 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

MM Series

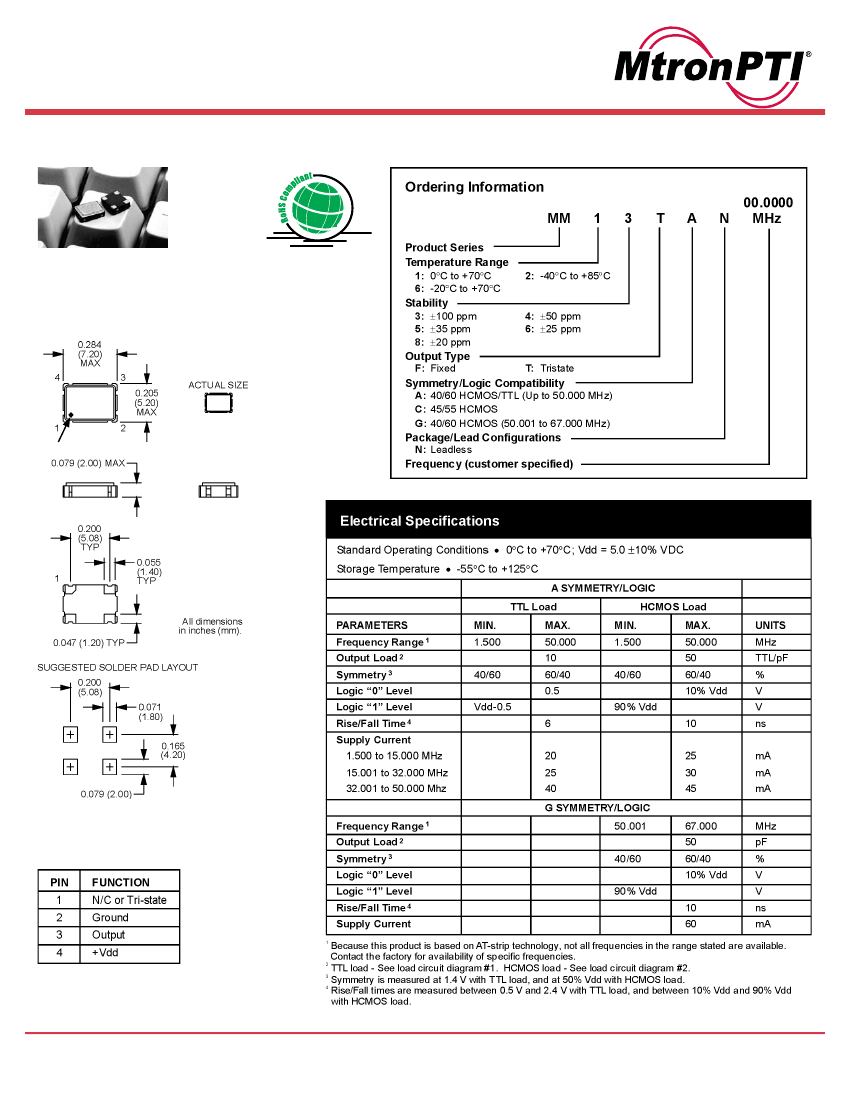

5x7 mm, 5 Volt, HCMOS/TTL, Surface Mount Oscillator

OBSOLETE

THIS PRODUCT IS NOT RECOMMENDED FOR NEW DESIGNS.

PLEASE REFER TO THE M1 PRODUCT SERIES.

•

AT-strip crystal in a miniature ceramic

surface mount package.

TTL and HCMOS compatible

Tri-state output is optional

DENOTES PIN 1

NOTE: A capacitor of value 0.01

µF

or greater between Vdd and

Ground is recommended.

Tri-state Control Logic

Pin 1 high or ﬂoating: clock signal output.

Pin 1 low: output disabled to high impedance.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com for our complete offering and detailed datasheets. Contact us for your application speciﬁc requirements: MtronPTI 1-800-762-8800.

Revision: 03-13-07
