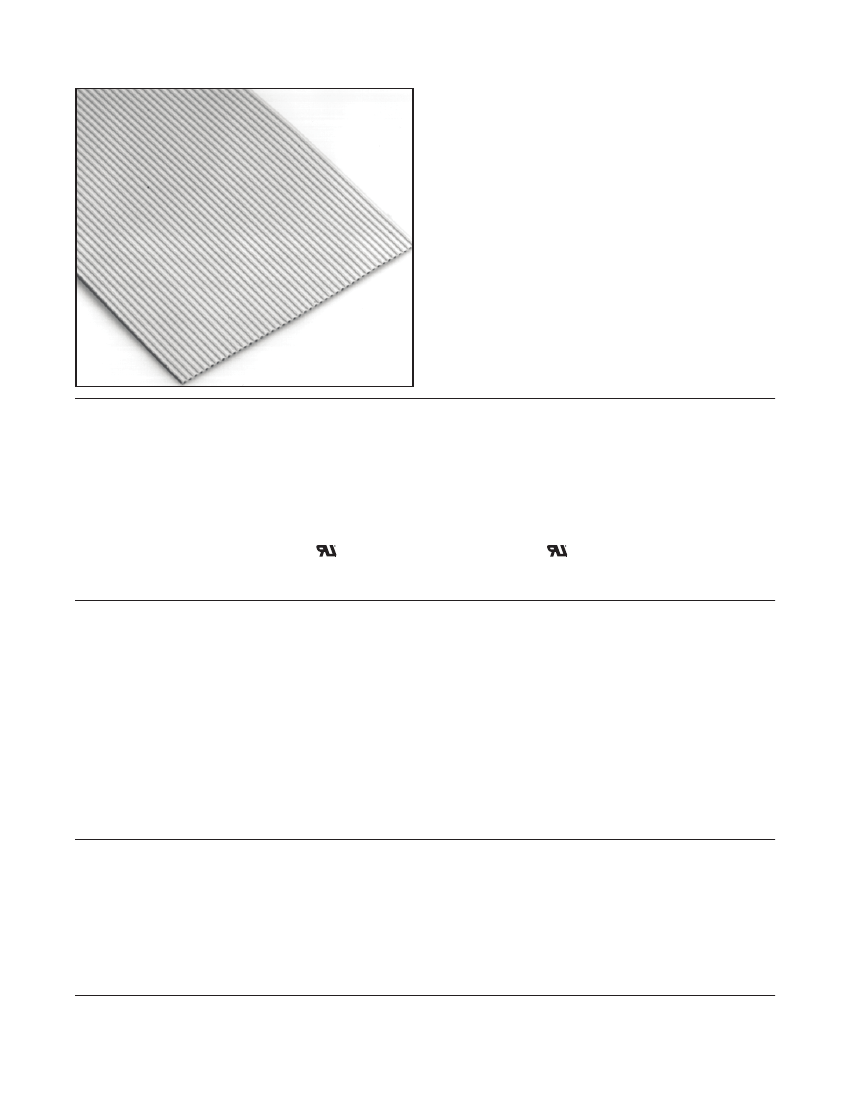

is designed for mass termination to metric connectors
•
Stranded wire provides flexibility and extended
product life
•
Zippable for branching or discrete termination
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 13, 2009
TS-0452-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Gray
Marking:
Standard: None
Canadian Option:
AWM 2651 105C 300V VW1 3M NU C
AWM IA 105C 300V FT1 EU <50V
Conductors:
28 AWG, 7
×
36 AWG [ 7
×
Ø 0.127 ] Tinned Stranded Copper
Electrical
Voltage Rating:
USA: 300V
Canada: 300V
Insulation Resistance:
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
Characteristic Impedance:
Unbalanced
Balanced
89
Ω
146
Ω
32.2 pF/m [ 9.8 pF/ft ]
0.68 μH/m [ 0.21 μH/ft ]
4.69 ns/m [ 1.43 ns/ft ]
71%
EU: <50V
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
54.5 pF/m [ 16.6 pF/ft ]
0.43 μH/m [ 0.14 μH/ft ]
4.86 ns/m [ 1.48 ns/ft ]
69%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 2651
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
1.0 mm 28 AWG Stranded, PVC
Number of
Conductors
06
08
10
3M Part
Number
3625/06
3625/08
3625/10
Dimension A
6.00 ± 0.20 [ .236 ]
8.00 ± 0.20 [ .315 ]
10.00 ± 0.20 [ .394 ]
3625 Series
Dimension B
5.00 ± 0.18 [ .197 ]
7.00 ± 0.18 [ .276 ]
9.00 ± 0.18 [ .354 ]
12
14
16
C
18
20
22
24
26
28
30
32
34
mm
[inch]
Tolerance Unless Noted
.0
Inch
±.3
.00
±.13
.000
36
38
40
42
44
46
48
50
3625/12
3625/14
3625/16
3625/18
3625/20
3625/22
3625/24
3625/26
3625/28
3625/30
3625/32
3625/34
3625/36
3625/38
3625/40
3625/42
3625/44
3625/46
3625/48
3625/50
A
B
12.00 ± 0.20 [ .472 ]
14.00 ± 0.20 [ .551 ]
16.00 ± 0.22 [ .630 ]
18.00 ± 0.22 [ .709 ]
20.00 ± 0.22 [ .787 ]
22.00 ± 0.22 [ .866 ]
11.00 ± 0.18 [ .433 ]
13.00 ± 0.18 [ .512 ]
15.00 ± 0.20 [ .591 ]
17.00 ± 0.20 [ .669 ]
19.00 ± 0.20 [ .748 ]
21.00 ± 0.20 [ .827 ]
(OPTIONAL)
24.00 ± 0.22 [ .945 ]
26.00 ± 0.22 [ 1.024 ]
28.00 ± 0.22 [ 1.102 ]
30.00 ± 0.25 [ 1.181 ]
32.00 ± 0.25 [ 1.260 ]
34.00 ± 0.25 [ 1.339 ]
36.00 ± 0.25 [ 1.417 ]
38.00 ± 0.25 [ 1.496 ]
40.00 ± 0.25 [ 1.575 ]
42.00 ± 0.25 [ 1.654 ]
44.00 ± 0.25 [ 1.732 ]
46.00 ± 0.25 [ 1.811 ]
48.00 ± 0.25 [ 1.890 ]
50.00 ± 0.25 [ 1.969 ]
23.00 ± 0.20 [ .906 ]
25.00 ± 0.20 [ .984 ]
27.00 ± 0.20 [ 1.063 ]
29.00 ± 0.23 [ 1.142 ]
31.00 ± 0.23 [ 1.220 ]
33.00 ± 0.23 [ 1.299 ]
35.00 ± 0.23 [ 1.378 ]
37.00 ± 0.23 [ 1.457 ]
39.00 ± 0.23 [ 1.535 ]
41.00 ± 0.23 [ 1.614 ]
43.00 ± 0.23 [ 1.693 ]
45.00 ± 0.23 [ 1.772 ]
47.00 ± 0.23 [ 1.850 ]
49.00 ± 0.23 [ 1.929 ]
[ ] Dimensions for Reference Only
0.89
±
0.08
[ .035 ]
0.50
±
0.15
[ .020 ]
1.00
±
0.05
[ .039 ]
PVC Insulation
Note: Red marking on one edge of cable designates wire #1.
28 AWG 7 × 36 AWG [ 7 ×
ø
0.127 ] Tinned
Stranded Copper Conductors
Ordering Information
3625 / XX XX
Blank = Standard
C = Canadian Certified Version
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Note: Available in standard 30 m or 100 m rolls, please
specify when ordering. Contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0452-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E2: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E3: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by
EU Court of Justice Decision 2008/C 116/04
This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished
products subject to EU RoHS that are placed on the EU market after June 30, 2008.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
RIA-2217B-E
Appendix E5: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under
Item 6 of the Annex to the Directive.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information
represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the
product or part
does not
contain any of the following substances in excess of the following maximum concentration values in any
homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated
diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and
Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or
polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
RIA-2217B-E
Appendix C3: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for
Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that
the product or part
does
contain a substance, as detailed in the chart below, in excess of the following maximum concentration
values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or
polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with
3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the
product Warranty stated below.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
Thanks for your help: I want to add the following code to change the size of the form, and display pictures and scroll text, where should I add it, how to add #include "stdafx.h" #include
#include
#in...
[i=s]This post was last edited by paulhyde on 2014-9-15 09:04[/i] I hesitated between B and E. Finally I decided to do B. If you are also doing B, come and discuss it! ! ! !...
Hi guys, I have a problem. When I insert the pins of my 12864 correctly, the background light does not light up, but when I insert the pins the other way around, it lights up. What is going on? My 128...
[p=25, null, left][font=宋体, arial][size=3][color=#8b0000] The serial communication working mode of different models of MSP430 is the same. Take MSP430G2553 as an example. MSP430G2553 is a 16-bit micro...
AT91F_AIC_ConfigureIt ( pAic, AT91C_ID_PIOA, PIO_INTERRUPT_LEVEL,AT91C_AIC_SRCTYPE_INT_HIGH_LEVEL, pio_c_irq_handler) Could you please explain it to me?...
1. Several nouns
ABI:
The specifications that an executable file must follow in order to run in a specific execution environment;
Separately generated relocatabl...[Details]
The core of a machine vision system is image acquisition and processing. All information comes from images, and image quality is crucial to the entire vision system. A good image can improve the st...[Details]
Wave soldering is a crucial electronic component soldering technique used in the production of a wide range of electronic devices, from home appliances to computers to avionics. The process is wide...[Details]
Most of the houses we live in now are elevator buildings, mainly because it is more convenient to go up and down the stairs! It can also make life more comfortable. It even helps to increase the ad...[Details]
The jammer is a signal blocker, mainly composed of a chip and a radio transmitter. When the car owner presses the remote control lock button, the jammer interferes with the electronic lock receivin...[Details]
As the number of cars increases, environmental pressures are also increasing. At this time, some people are saying that new energy vehicles are energy-efficient and environmentally friendly, and ar...[Details]
Whether it is an electric car or an ordinary fuel car, for the vast majority of car buyers, the final cost of use is what they care about most. For fuel cars, how to save fuel is what drivers care ...[Details]
On August 22nd, Lantu Motors unveiled a new technology called "Lanhai Intelligent Hybrid" during a live broadcast of CCTV News' "Top Laboratory." The name sounds like another new term, but a closer...[Details]
In the summer of 2025, BlueOval SK, a joint venture between Ford and SK On, officially started production at its first battery factory in Kentucky.
According to the original plan, this w...[Details]
On August 22, according to the Ministry of Industry and Information Technology's official website, my country's first mandatory national standard for the control of hazardous substances in electric...[Details]
Tires are a very important component for cars. They are related to the driving experience of the vehicle. We are almost inseparable from cars in our daily lives. For tires, according to the role of...[Details]
The practice of warming up a car originated with gasoline-powered vehicles. Warming up the engine allows it to enter a better working state and ensures good lubrication. This has become a habit for...[Details]
SMT placement machines are important equipment in surface mount technology (Surface Mount Technology). Their performance has a decisive impact on the quality and efficiency of electronic manufactur...[Details]
Reflow soldering, as an electronics assembly process, has become a vital component of the electronics manufacturing industry. Choosing reflow soldering equipment is crucial for improving production...[Details]
To improve the lateral active safety of intelligent connected vehicles, the identification and definition of unexpected functional safety scenarios for the EPS (Electronic Steering System) ...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
