T8800VABB132B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> T8800VABB132B

T8800VABB132B: DescriptionRocker Switch, SPST, Latched, Solder Terminal, Curved Rocker Actuator, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size77KB，2 Pages; ManufacturerArcolectric; Environmental Compliance

Download Datasheet Parametric View All

T8800VABB132B Overview

Rocker Switch, SPST, Latched, Solder Terminal, Curved Rocker Actuator, Panel Mount, ROHS COMPLIANT

T8800VABB132B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1584528158
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	CURVED ROCKER
body width	9.5 mm
body height	14.5 mm
Body length or diameter	21 mm
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	250 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	ROCKER SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

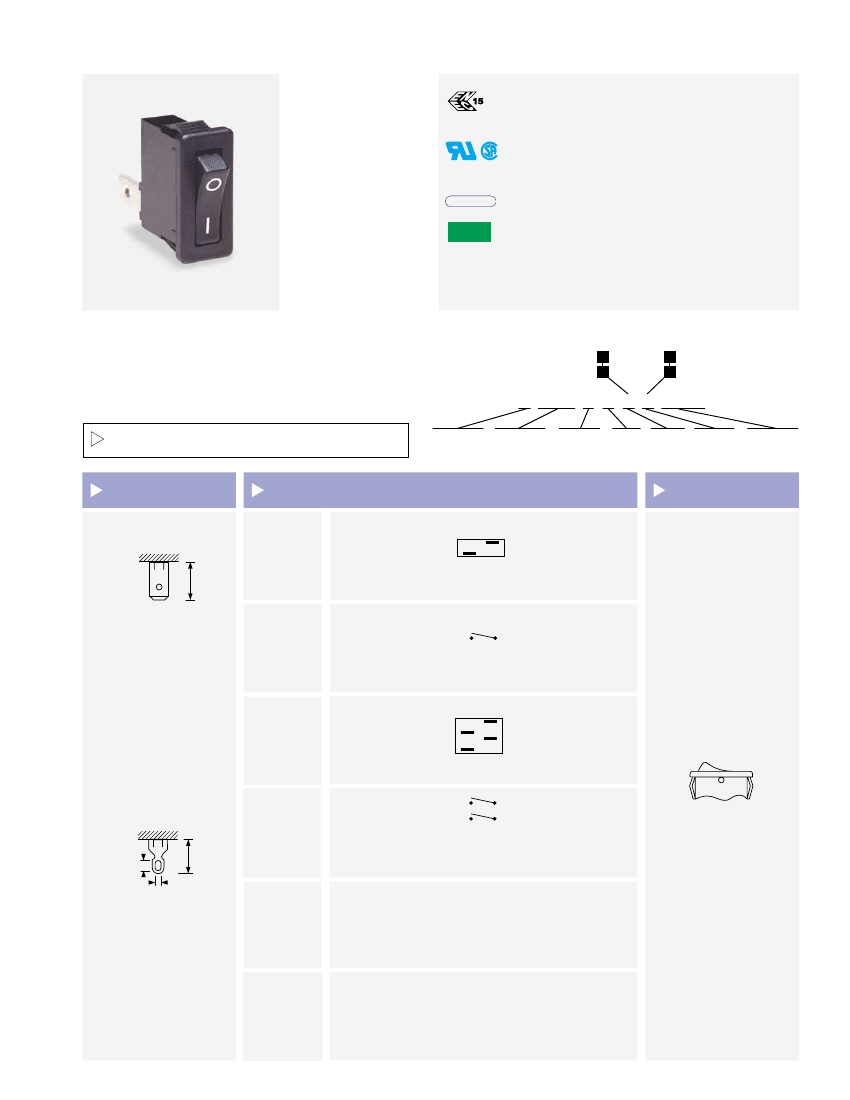

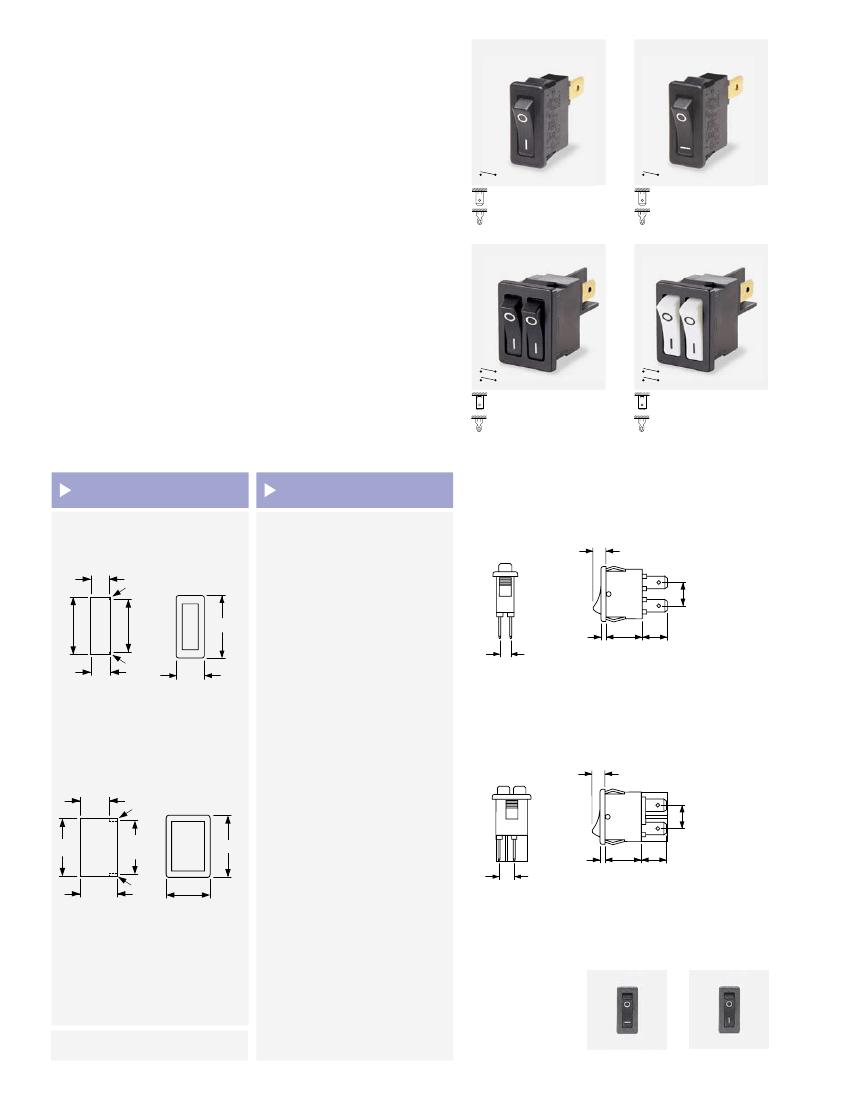

8800 Thinline Rocker Switches

10A 250Vac

Ultra thin rocker switch

Ratings up to 15A,

250Vac

Single and twin gang

Bezel sizes:

Single 21 x 9.5

Twin 21 x 15.5

In house test

10(6)A 250Vac T100

6(2)A 250Vac T100 5E4 (50,000 Operations)

Inrush 50A to EN60065:1998

UL CSA 15A 250Vac (Twin unit is 10A 250Vac)

UL CSA 125Vac 1/2hp

UL 100˚C, file E45221, CSA file LR10990

10A 28Vdc

RoHS compliant

3mm contact gap.

Technical data on pages 4 & 5.

RoHS

BLACK

WHITE

BLACK

WHITE

H 8800 V A B B 133W

ORDER FORMAT

TERMINAL

9.7

TERMINAL

CODE

FUNCTION

CODE

ROCKER

CODE

BODY BODY

CODE COLOR

ROCKER

COLOR

ROCKER

LEGEND &

OPTIONS

Curved

Switches are ON when pressed over terminal 1

4.8 x 0.8

8800

ON - OFF

Single pole

Switches are ON when pressed over terminals 1 or 3

8800 8800

8.8

2.6

1.5

ON - OFF

Twin (Single pole)

3.5 x 0.8

Solder

ARCOLECTRIC CORPORATION

31-315 Plantation Drive, Thousand Palms, CA 92276 Tel: 760-343-3650 Fax: 760-343-3651 email: info@arcolectric.com
