0603U680G251GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0603U680G251GT

0603U680G251GT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.000068uF, 0603,; CategoryPassive components capacitor; File Size83KB，1 Pages; ManufacturerCapax Technologies Inc; Websitehttp://www.capaxtechnologies.com/; Environmental Compliance

Download Datasheet Parametric View All

0603U680G251GT Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.000068uF, 0603,

0603U680G251GT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	890743798
package instruction	, 0603
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	8.13
capacitance	0.000068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.838 mm
JESD-609 code	e4
length	1.524 mm
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR
positive tolerance	2%
Rated (DC) voltage (URdc)	250 V
size code	0603
Temperature characteristic code	NP0
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
width	0.762 mm

Preview

Download Datasheet

View All

Technologies, Inc

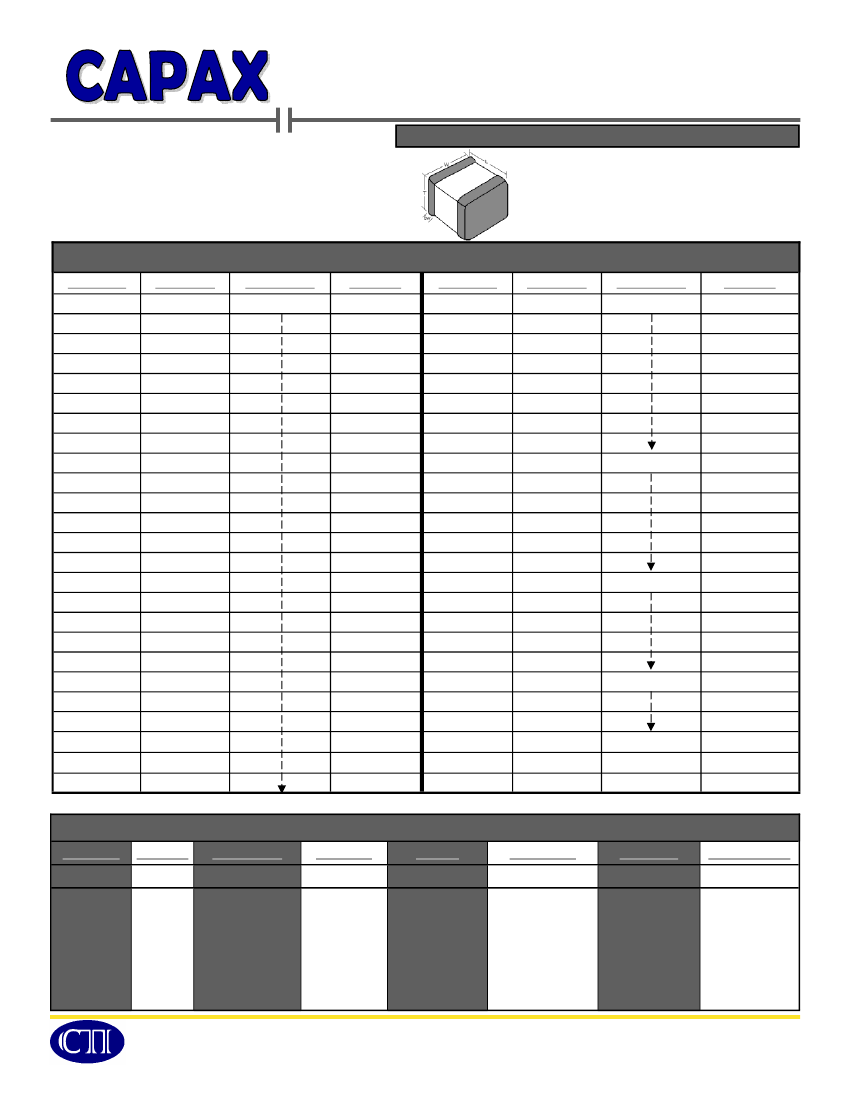

Surface Mount Capacitors:

0603 - NPO/ Hi-Q NPO

Mechanical Dimensions

Length (L): .060” ± .005”

Width (W): .030” ± .005”

Thickness (T): .033” max

Bandwidth (bw): .010” ± .005”

0603 SMT Capacitors feature:

•

0603 Case Size

•

High Voltage

•

Low ESR

•

NPO and Hi-Q Dielectric Materials

Capacitance Value

Value (pF)

0.1 to 1.2

1.5

1.8

2.2

2.4

2.7

3.3

3.9

4.7

5.6

6.8

8.2

Cap. Code

0R1 to 1R2

1R5

1R8

2R2

2R4

2R7

3R3

3R9

4R7

5R6

6R8

8R2

100

120

150

180

220

270

330

390

470

510

560

680

750

Max Voltage

250 VDC

Dielectric

NPO, Hi-Q NPO

Value (pF)

100

110

120

150

180

200

220

270

330

390

430

470

560

680

820

1000

1200

1500

2200

3300

Cap. Code

820

910

101

111

121

151

181

201

221

271

331

391

431

471

561

681

821

102

122

152

222

332

Max Voltage

250 VDC

Dielectric

NPO, Hi-Q NPO

NPO

200 VDC

NPO

100 VDC

NPO

50 VDC

NPO

** For Additional Capacitance Values and Working Voltages, Please Contact the Factory **

RDERING

NFORMATION

Case Size

Dielectric

Capacitance

Tolerance

Voltage

Termination

Packaging

Hi-Reli Testing

0603

Mechanical

Dimensions

Shown

Above

G = NPO

U = Hi Q

NPO

330

First 2 digits are

Significant; Third

digit indicates #

of Zeros. Use “R”

for decimal point

Examples:

201 = 200pF

2R2 = 2.2pF

P ±.03pF

A ±.05pF

B ±.1pF

C ±.25pF

F ±1%

G ±2%

J ±5%

K ±10%

201

First 2 digits are

Significant; Third

digit indicates

number of Zeros

Examples:

201 = 200V

151 = 150V

S Solder Plated

Over Nickel

SN Tin over

Nickel Plated

G Gold over

Nickel Plated

(RoHS Compliant)

T = Tape and

Reel

- A

(Optional)

A = Group A

B = Group B

C = Group C

Tested and

Screened

APAX

ECHNOLOGIES

, I

24842 A

IBBITTS

ALENCIA

, C

91355

661.257.7666

: 661.257.4819

WWW

APAX

ECHNOLOGIES
