0805X332G250SNW-C: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 2% +Tol, 2% -Tol, X7R, -/+15ppm/Cel TC, 0.0033uF, 0805,; CategoryPassive components capacitor; File Size82KB，1 Pages; ManufacturerCapax Technologies Inc; Websitehttp://www.capaxtechnologies.com/; Environmental Compliance

Download Datasheet Parametric View All

0805X332G250SNW-C Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 2% +Tol, 2% -Tol, X7R, -/+15ppm/Cel TC, 0.0033uF, 0805,

0805X332G250SNW-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	916546539
package instruction	, 0805
Reach Compliance Code	compliant
Country Of Origin	USA
ECCN code	EAR99
YTEOL	7.89
capacitance	0.0033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.016 mm
JESD-609 code	e3
length	2.032 mm
multi-layer	Yes
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	Waffle Pack
positive tolerance	2%
Rated (DC) voltage (URdc)	25 V
size code	0805
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	1.27 mm

Preview

Download Datasheet

View All

Technologies, Inc

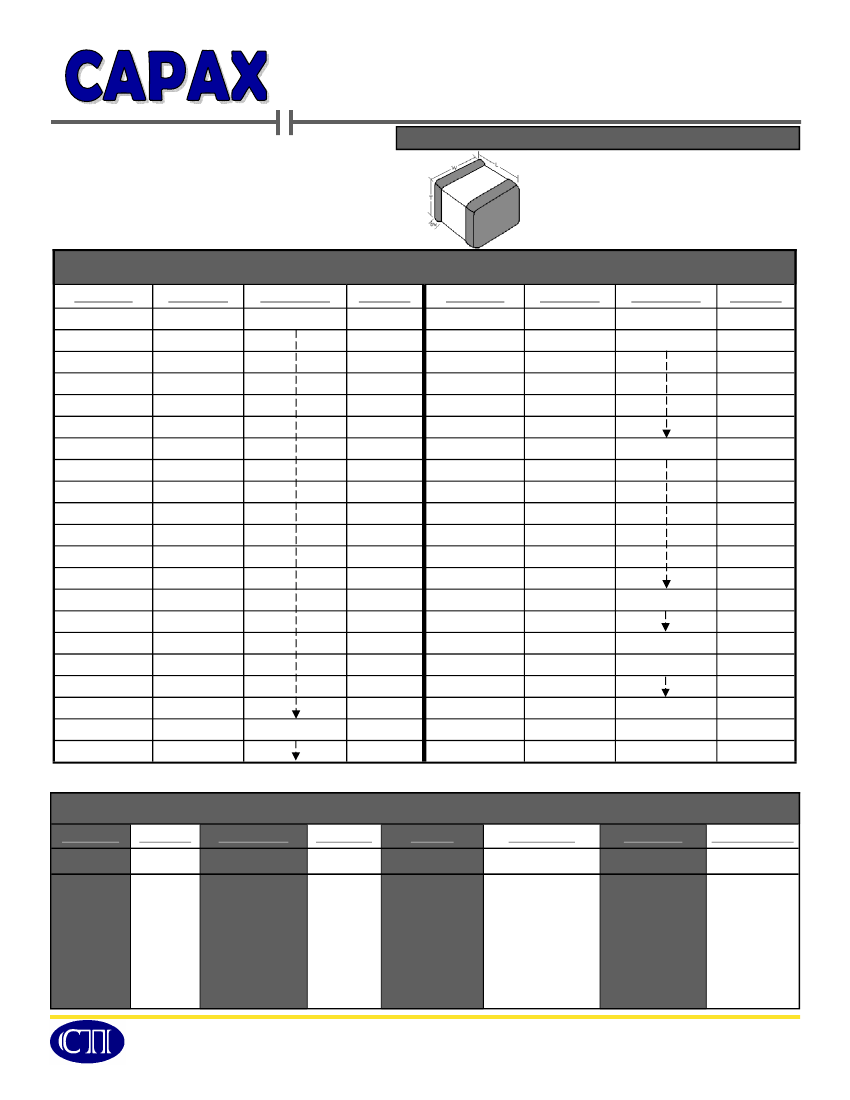

Surface Mount Capacitors:

0805 - X7R/ X5R, High Voltage

Mechanical Dimensions

Length (L): .080” ± .006”

Width (W): .050” ± .006”

Thickness (T): .040” ± .010”

Bandwidth (bw): .015”

0805 SMT Capacitors feature:

•

0805 Case Size

•

High Voltage

•

High Capacitance

•

X7R and X5R Dielectric Materials

Capacitance Value

Value (pF)

100

150

220

330

470

680

820

1000

1500

1800

2200

2700

3300

3900

4700

5600

6800

8200

10,000 (.01µF)

15,000 (.015µF)

18,000 (.018µF)

Cap. Code

101

151

221

331

471

681

821

102

152

182

222

272

332

392

472

562

682

822

103

153

183

Max Voltage

500 VDC

Dielectric

X7R

Value (pF)

22,000 (.022µF)

39,000 (.039µF)

47,000 (.047µF)

56,000 (.056µF)

68,000 (.068µF)

82,000 (.082µF)

100,000 (.10µF)

150,000 (.15µF)

220,000 (.22µF)

330,000 (.33µF)

470,000 (.47µF)

680,000 (.68µF)

1,000,000 (1µF)

1,500,000 (1.5µF)

2,200,000 (2.2µF)

4,700,000 (4.7µF)

6,800,000 (6.8µF)

10µF

22µF

Cap. Code

223

393

473

563

683

823

104

154

224

334

474

684

105

155

225

475

685

106

226

Max Voltage

300 VDC

200 VDC

Dielectric

X7R

100 VDC

X7R

X7R, X5R

50 VDC

X7R, X5R

25 VDC

16 VDC

X7R, X5R

10 VDC

X5R

300 VDC

X7R

** For Additional Capacitance Values and Working Voltages, Please Contact the Factory **

O

RDERING

I

NFORMATION

Case Size

Dielectric

Capacitance

Tolerance

Voltage

Termination

Packaging

Hi-Reli Testing

0805

Mechanical

Dimensions

Shown

Above

X

X = X7R

B = X5R

103

First 2 digits are

Significant; Third

digit indicates #

of Zeros. Use “R”

for decimal point

Examples:

201 = 200pF

2R2 = 2.2pF

K

F ±1%

G ±2%

J ±5%

K ±10%

M ±20%

501

SN

T

T = Tape and

Reel

W = Waffle Pack

- A

(Optional)

A = Group A

B = Group B

C = Group C

Tested and

Screened

First 2 digits are

S Solder Plated

Over Nickel

Significant; Third

digit indicates

SN Tin over

number of Zeros

Nickel Plated

Examples:

(RoHS Compliant)

201 = 200V

G Gold over

151 = 150V

Nickel Plated

202 = 2000V

(RoHS Compliant)

C

APAX

T

ECHNOLOGIES

, I

NC

º

24842 A

VE

T

IBBITTS

º

V

ALENCIA

, C

A

º

91355

º

661.257.7666

º

F

AX

: 661.257.4819

WWW

.C

APAX

T

ECHNOLOGIES

.C

OM
