5004-3016 datasheet, PDF - EEWORLD Datasheet

5004-3016: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size183KB，2 Pages; ManufacturerElectro-Term/Hollingsworth

Download Datasheet Parametric View All

5004-3016 Overview

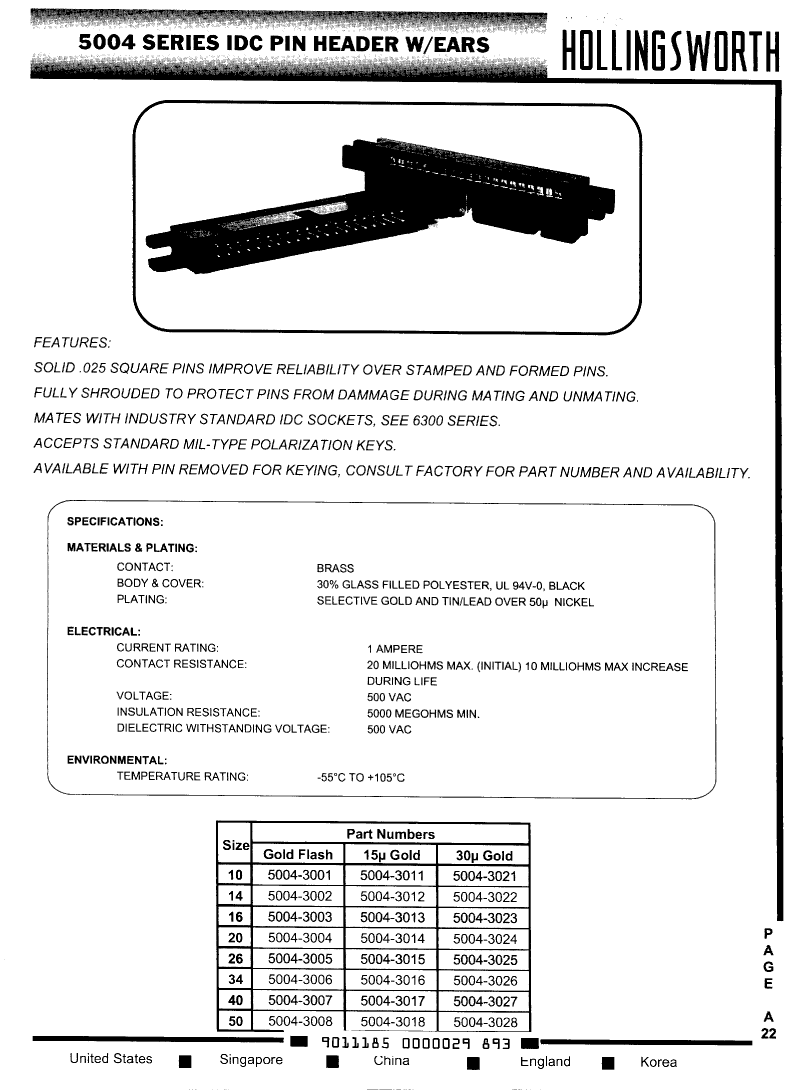

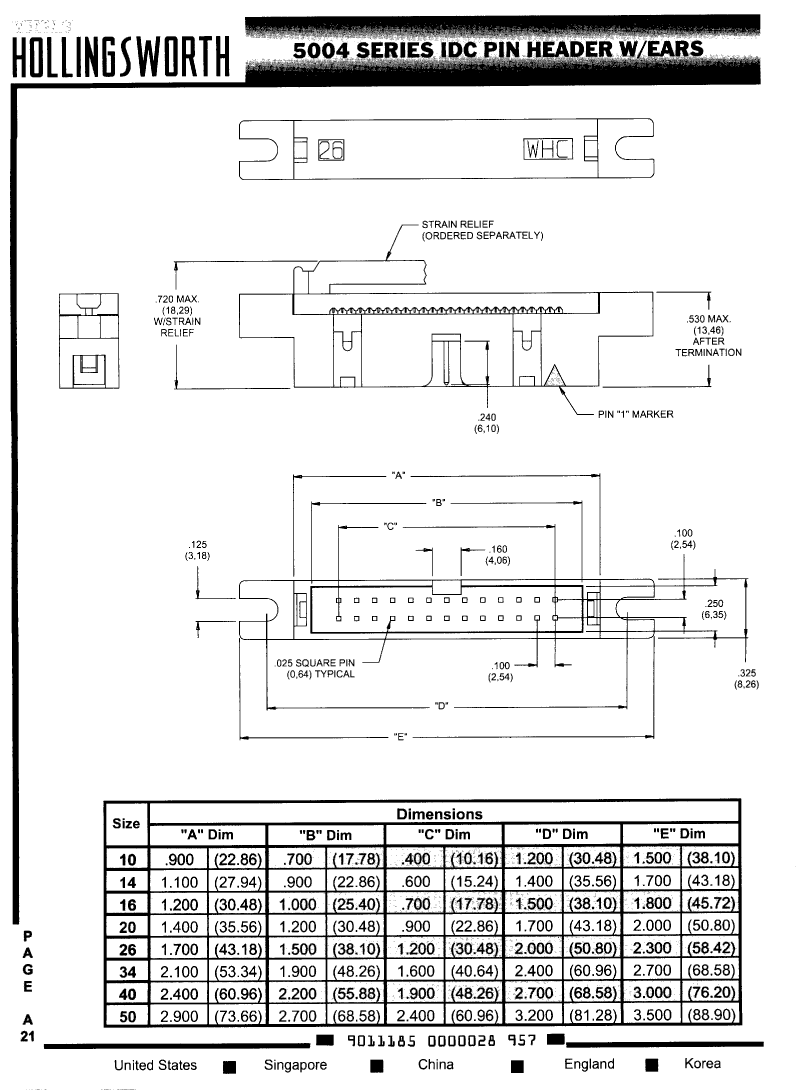

Board Connector, 34 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Objectid	300362996
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Other features	WITH MOUNTING EARS
body width	0.325 inch
subject depth	0.53 inch
body length	2.7 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	SHRD CENTER
Rated current (signal)	1 A
Guideline	UL, CSA
Termination type	IDC
Total number of contacts	34
