TEL2-4823

Description
Analog Circuit
File Size165KB，2 Pages
ManufacturerPowersolve Electronics Ltd
Download Datasheet Parametric View All

TEL2-4823 Overview

Analog Circuit

TEL2-4823 Parametric

Parameter NameAttribute value
Objectid114023545
package instruction,
Reach Compliance Codeunknown

Preview

Download Datasheet

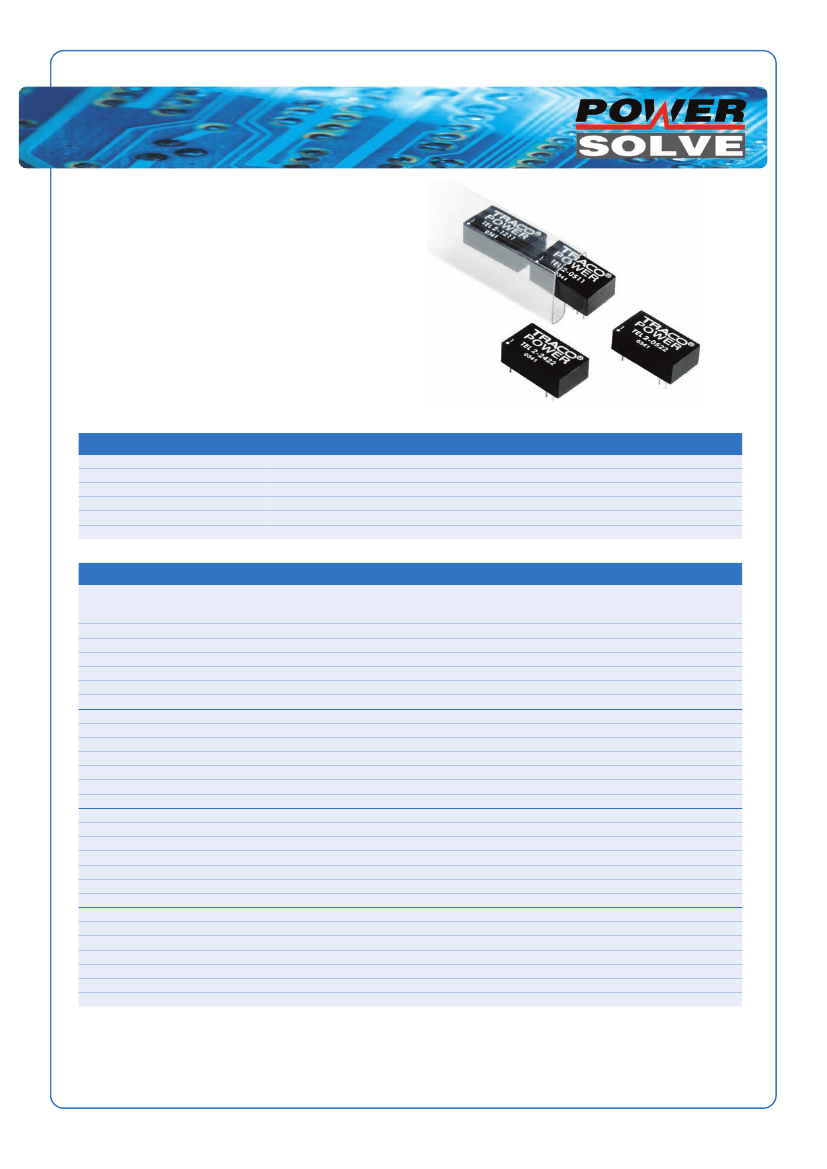

DC-DC Converters
TEL2 Series, 2 Watt
Features
•
•
•
•
•
•
•
•
Ultracompact DIP-16 package
Wide 2:1 input range
I/O Isolation 1500VDC
Operating temperature range -40°C to +75°C
Low ripple and noise
Short circuit protection
Input filter to meet EN55022 Class A
Cost Optimized Design
www.powersolve.co.uk
Electrical Specification
Conducted EMI
Short Circuit Protection
Operating Temperature Range
I/O Isolation test voltage
Safety Approvals
Casing
EN55022 Class A & FCC level A (internal filter)
continuous, automatic recovery
-40°C to +75°C (derate at 2.8%/K above 65°C)
1500VDC
cUL/UL 60950-1, IEC/EN 60950-1, CB
plastic (UL94V-0 rated)
Output Voltage and Current Ratings
MODEL
TEL 2-0510
TEL 2-0511
TEL 2-0512
TEL 2-0513
TEL 2-0521
TEL 2-0522
TEL 2-0523
TEL 2-1210
TEL 2-1211
TEL 2-1212
TEL 2-1213
TEL 2-1221
TEL 2-1222
TEL 2-1223
TEL 2-2410
TEL 2-2411
TEL 2-2412
TEL 2-2413
TEL 2-2421
TEL 2-2422
TEL 2-2423
TEL 2-4810
TEL 2-4811
TEL 2-4812
TEL 2-4813
TEL 2-4821
TEL 2-4822
TEL 2-4823
INPUT
VOLTAGE
OUTPUT
VOLTAGE
3.3VDC
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
3.3VDC
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
3.3VDC
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
3.3VDC
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
OUTPUT
CURRENT
500mA
400mA
165mA
135mA
±200mA
±85mA
±65mA
500mA
400mA
165mA
135mA
±200mA
±85mA
±65mA
500mA
400mA
165mA
135mA
±200mA
±85mA
±65mA
500mA
400mA
165mA
135mA
±200mA
±85mA
±65mA
RIPPLE &
NOISE
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
50mV pk-pk max.
LINE
REG.
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
0.5%
LOAD
REG.
0.75%
0.75%
0.75%
0.75%
2.0%
2.0%
2.0%
0.75%
0.75%
0.75%
0.75%
2.0%
2.0%
2.0%
0.75%
0.75%
0.75%
0.75%
2.0%
2.0%
2.0%
0.75%
0.75%
0.75%
0.75%
2.0%
2.0%
2.0%
EFF.
70%
73%
75%
73%
64%
69%
71%
73%
77%
80%
80%
73%
78%
78%
72%
77%
80%
81%
74%
78%
80%
71%
73%
79%
79%
71%
77%
77%
4.5 - 9.0V
9 - 18V
18 - 36V
36 - 75V

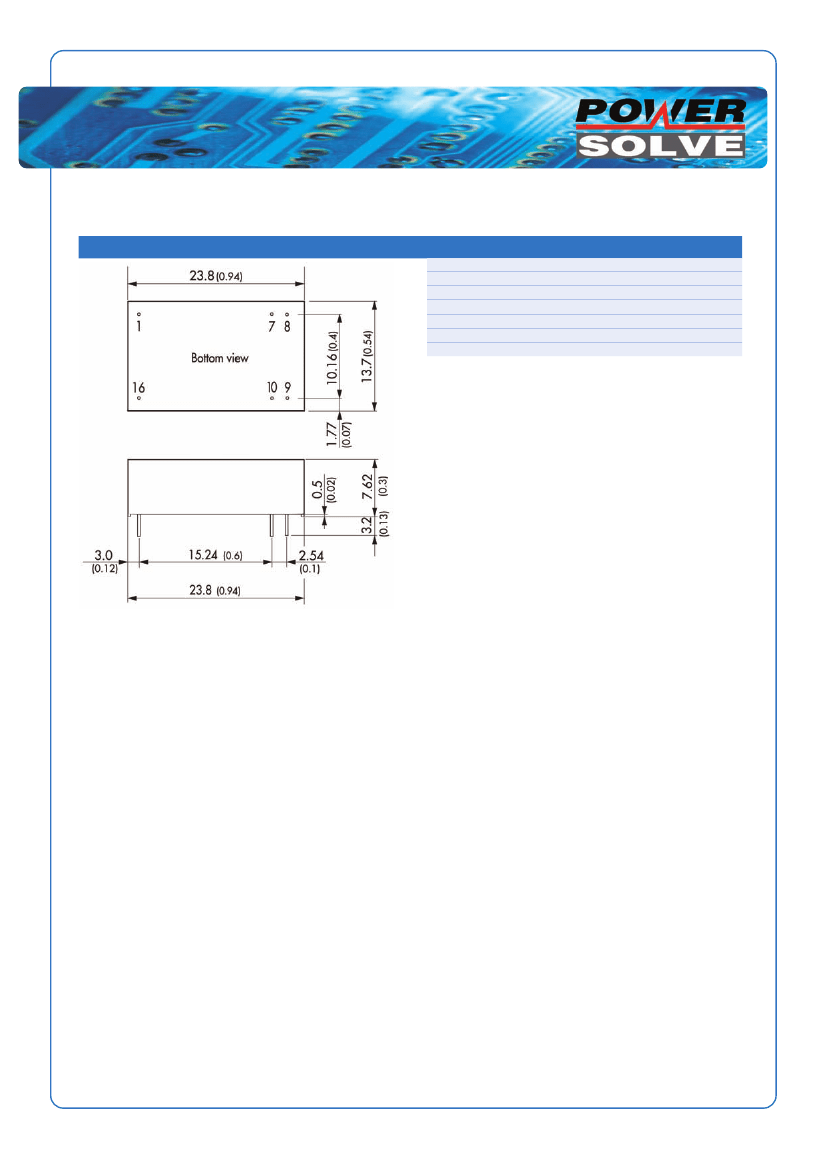

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: sales@powersolve.co.uk
