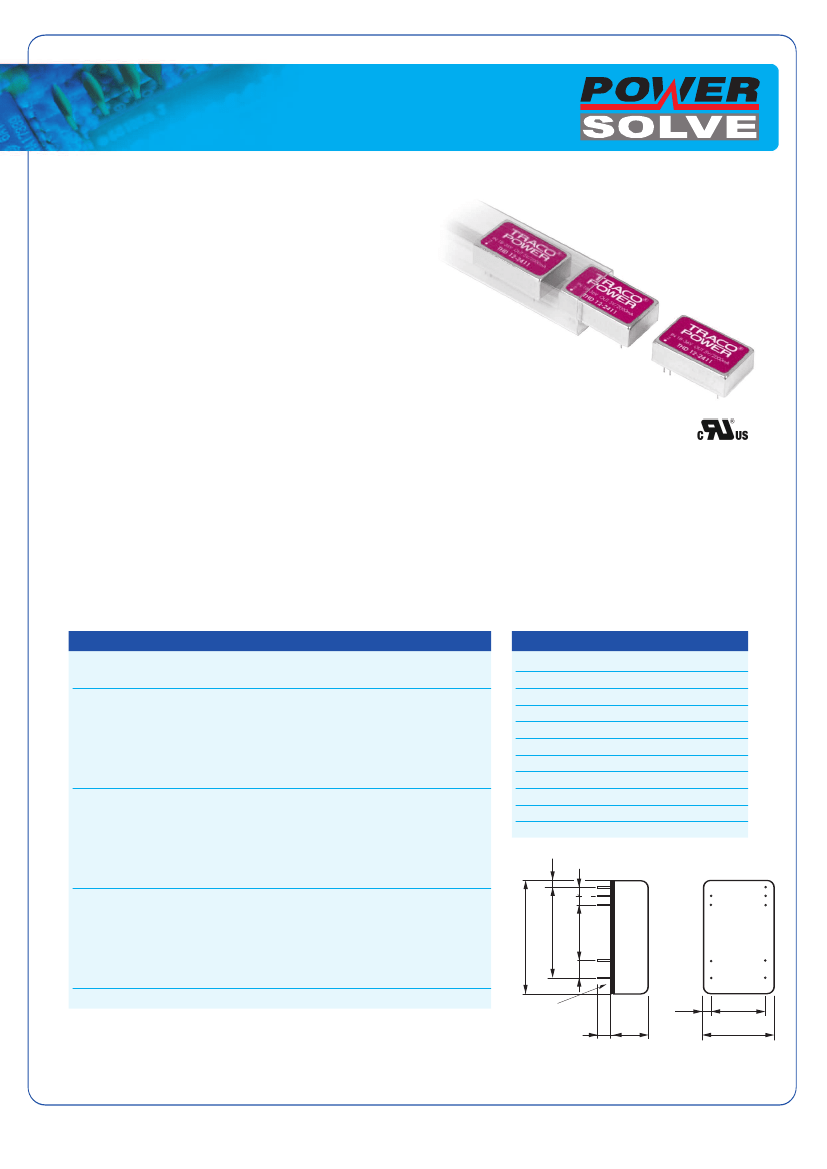

DC/DC Converters

THD 12 Series, 12 Watt

Highest Power Density in DIL-24 Package

Wide 2:1 Input Range

Very high Efficiency up to 88%

Operating Temperature Range –40°C to +85°C

I/O-Isolation 1500 VDC

Undervoltage Lockout

Short Circuit Protection

Input Filter to meet EN 55022, Class A

Remote On/Off

Industry Standard Pinout

Line regulation:

Load regulation:

Ripple & Noise:

Conducted EMI:

Short circuit protection:

Efficiency:

Operating temperature range:

I/O isolation voltage:

Safety standards / approvals:

Case:

Remote On/Off:

High Power Density

www.powersolve.co.uk

±0.5% max.

- Single output models: ±1.0% max.

- Dual output models: ±1.0% max.

<85 mVpk-pk (20MHz BW)

EN 55022 class A and FCC level A (internal filter)

continuous, automatic recovery

86% typ.

-40°C ... +85°C above 60°C derating 2.5%/°C

1’500 VDC

cUL/UL 60950, IEC/EN 60950

metal, 6-side shielded, with insulated baseplate

shutdown input for low current (2.5mA) in standby operation

pending

Models

Order Code

THD 12-1209

THD 12-1210

THD 12-1211

THD 12-1212

THD 12-1222

THD 12-1223

THD 12-2409

THD 12-2410

THD 12-2411

THD 12-2412

THD 12-2422

THD 12-2423

THD 12-4809

THD 12-4810

THD

12-4811

12-4812

12-4822

12-4823

36 - 75 VDC

18 - 36 VDC

9 - 18 VDC

Input voltage

Output voltage

2.5 VDC

3.3 VDC

5.1 VDC

12 VDC

±12 VDC

±15 VDC

2.5 VDC

3.3 VDC

5.1 VDC

12 VDC

±12 VDC

±15 VDC

2.5 VDC

3.3 VDC

5.1 VDC

12 VDC

±12 VDC

±15 VDC

Output current

max.

3500 mA

2400 mA

1000 mA

±500 mA

±400 mA

3500 mA

2400 mA

1000 mA

±500 mA

±400 mA

3500 mA

2400

1000

±500

±400

(1.25)

15.24

(0.6)

25.4

(1.0)

Pin-Out

Single Output

Remote On/Off

– Vin (GND)

No con.

+ Vout

– Vout

+ Vin (Vcc)

Dual Output

Remote On/Off

– Vin (GND)

Common

– Vout

+ Vout

Common

+ Vin (Vcc)

2.54

(0.1)

2.0

(0.08)

2.54

(0.1)

Bottom view

15.24

(0.6)

20.3

(0.8)

5.08

(0.2)

2.4

(0.1)

Insulated Baseplate

3.8 10.2

(0.15) (0.4)

() = Inches

0.5 mm (0.04)
