Extended Temperature/COTS
XO, 3.3V
20KHz to 100MHz
Features
Tiny 5X7 SMD form factor
Hermetically sealed for rugged environmental conditions
Extremely wide operating temperature range
accommodates harsh environments
All crystals are processed in-house with tight angle
control to assure best frequency-temperature
characteristics
All units are vacuum baked before sealing at 175°C for
16 hours to eliminate moisture traces and pre-age units
for superior stability
Tristate feature optional
Equivalent 5V parts are available in series T1254
RoHS Status
Description
Owing to their small size, light weight, and
rugged characteristics, these 3.3V HCMOS
extended temperature/COTS oscillators fulfill
tasks not previously feasible. They are used in
applications that take advantage of their
extended temperature range and high
performance. Twenty six different models
(with and without tristate) cover -55°C to
+200°C operation and provide frequency
selection from 20KHz to 100MHz. They
combine excellent long-term reliability, loading
characteristics, and superior startup
performance.
Applications
Any electronic circuit requiring 3.3V HCMOS
clocking that is exposed to very high or very low
temperatures such as oil drilling or weather
observation equipment
Electrical Specifications
Parameter
Frequency
Range
Frequency
Stability
Operating
Temperature
Aging
Supply
Voltage
Supply
Current
Output
Symmetry
Rise and Fall
Times
Vcc
Symbol
F
∆F/F
T
First Year
After First Year
3.0
Overall condition including calibration,
temperature voltage and load
variation
Condition
Min
0.02
±25
-55°
3
1
3.3
3.6
20
All units, full range
Loads 3 TLL loads, or 10 LSTTL loads, or 15pF CMOS
TTL and LSTTL @ 1.4V
CMOS, @ 50% V
DD
TTL and LSTTL from 0.4 to 2.4V
CMOS, 15 pF, from 0.4 to (V
DD
-0.4) V
CMOS, 30 pF, from 0.4 to (V
DD
-0.4) V
40/60
40/60
8
8
10
%
ns
Typ
Max
100
±500
+200°
Unit
MHz
ppm
°C
ppm
ppm/yr
V
mA
See Chart
See Chart
Note
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289
www.valpeyfisher.com
RevC0309
1
Extended Temperature/COTS
XO, 3.3V
20KHz to 100MHz
FIXED OUTPUT
Model
T7250
T7254
T7256
T7258
T7001
T7002
T7003
T7004
T7005
T7006
T7007
T7008
T7009
T7010
T7011
T7012
T7013
TRISTATE
Model
T9250
T9254
T9256
T9258
T9301
T9302
T9303
T9304
T9305
T9306
T9307
T9308
T9309
T9310
T9311
T9312
T9313
Frequency
Stability
±75ppm
±100 ppm
±75 ppm
±100 ppm
±500 ppm
±500 ppm
±250 ppm
±250 ppm
±250 ppm
±250 ppm
±150 ppm
±150 ppm
±100 ppm
±50 ppm
±25 ppm
±75 ppm
±50 ppm
Operating
Temperature
‐40° to +85°C
0° to +175°C
‐55° to +85°C
‐40° to +85°C
‐55° to +200°C
0° to 200°C
‐55° to +200°C
0° to +200°C
‐55° to +175°C
0° to +175°C
‐55° to +175°C
0° to +175°C
‐55° to +125°C
‐55° to +85°C
‐55° to +85°C
‐55° to +125°C
‐55° to +125°C
Waveforms
Waveforms

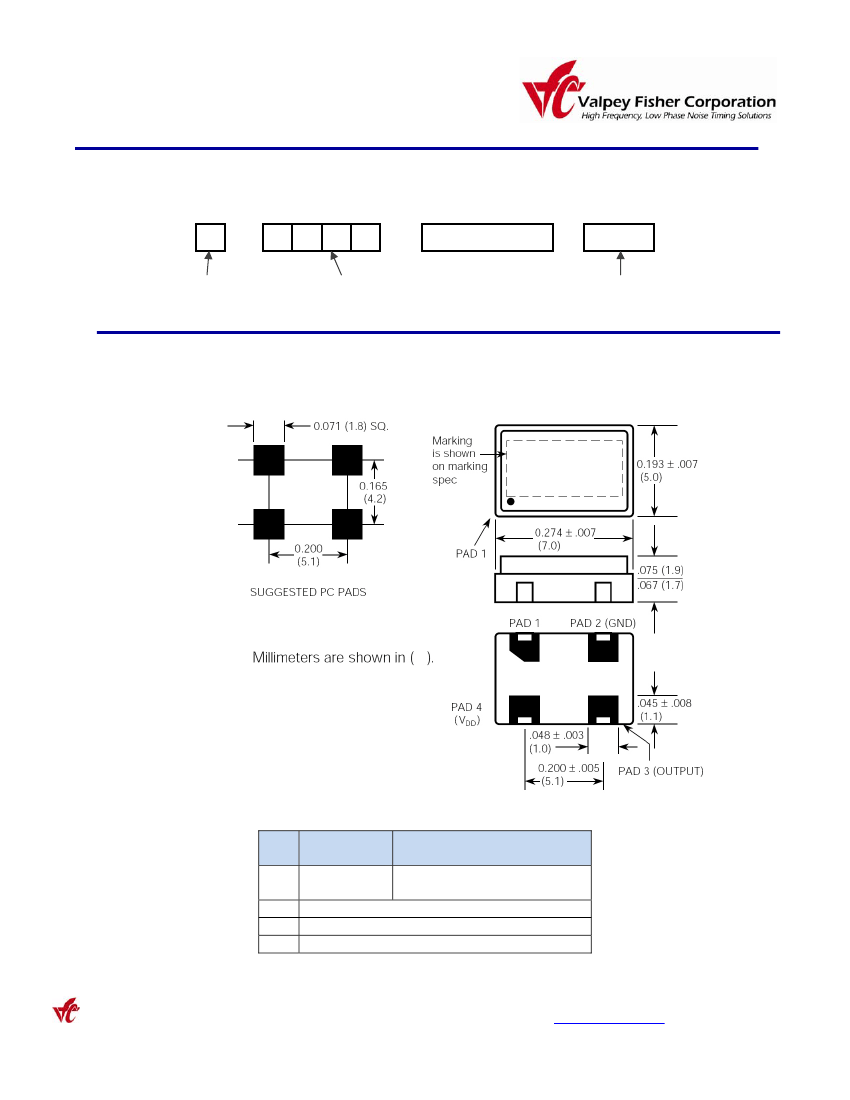

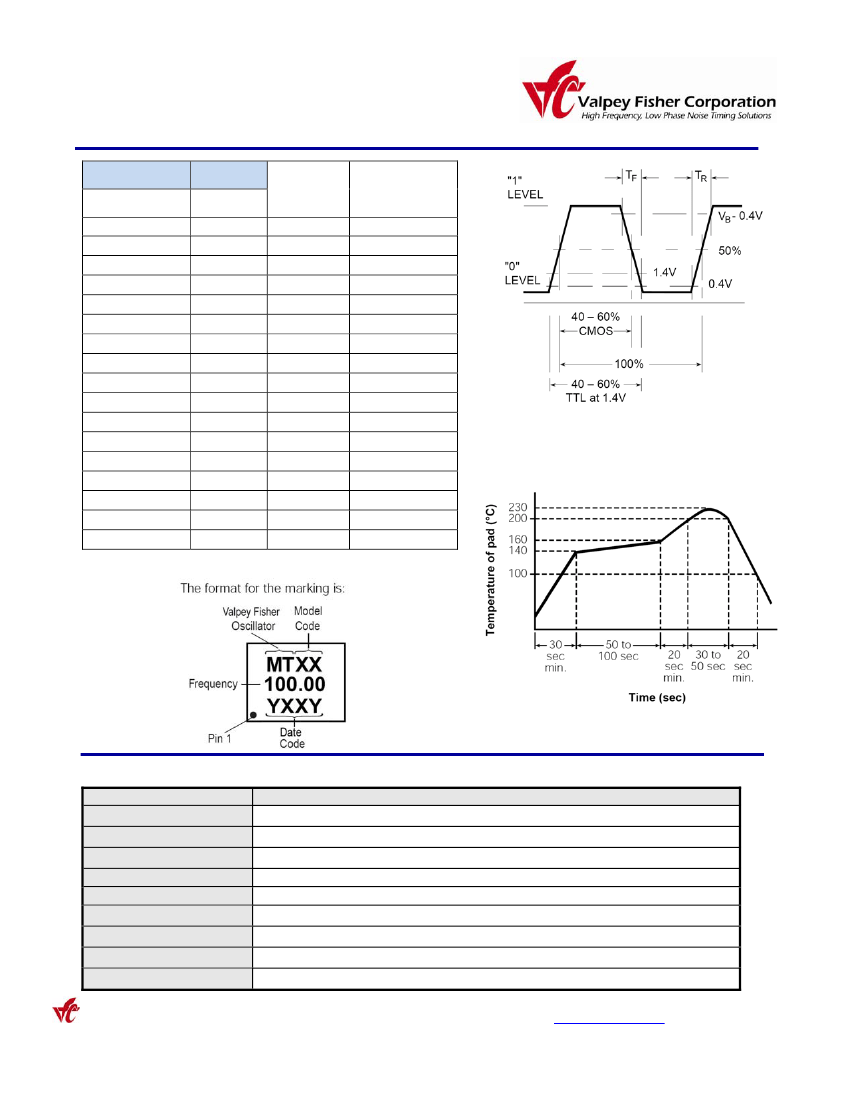

Marking Specifications
Recommended Reflow Soldering Profile
Environmental and Mechanical Conditions
Parameter
Shock
Vibration
Humidity
Gross Leak
Fine Leak
Case
Pads
Marking
Resistance to Solvents
Specification
1000 Gs, 0.35 ms, ½ sine wave, 3 shocks in each plane
10-2000 Hz of 0.06" d.a. or 20 Gs, whichever is less
Resistant to 85° R.H. at 85°C
Each unit checked in 125°C fluorocarbon
Mass spectrometer leak rate less than 2x10
-8
atm, cc/sec of helium
Ceramic with glass hermetic seal
40 microinch of gold over nickel or tinned (solder coated)
Epoxy ink or laser engraved
MIL STD 202, Method 215
75 South Street, Hopkinton, MA 01748 • 800-982-5737 • 508-435-6831 • FAX 508-435-5289
www.valpeyfisher.com
RevC0309
2
