DATA SHEET
NPN SILICON POWER TRANSISTOR
2SD882
NPN SILICON POWER TRANSISTOR
DESCRIPTION
The 2SD882 is NPN silicon transistor suited for the output stage of 3
watts audio amplifier, voltage regulator, DC-DC converter and relay
driver.
PACKAGE DRAWING (Unit: mm)
8.5 MAX.
3.2 ±0.2
3.8 ±0.2
2.8 MAX.
FEATURES
•
Low saturation voltage
V
CE(sat)
= 0.5 V MAX. (I
C
=
−2
A, I
B
= 0.2 A)
•
Excellent h
FE
linearity and high h
FE
h
FE
= 60 to 400 (V
CE
= 2 V, I
C
= 1 A)
•
Less cramping space required due to small and thin package and
reducing the trouble for attachment to a radiator.
No insulator bushing required.
12.0 MAX.
2.5 ±0.2
13.0 MIN.
ABSOLUTE MAXIMUM RATINGS
Maximum Temperature
Storage Temperature
−55
to +150°C
Junction Temperature
150°C Maximum
Maximum Power Dissipations
1.0 W
Total Power Dissipation (T
A
= 25°C)
10 W
Total Power Dissipation (T
C
= 25°C)
Maximum Voltages and Currents (T
A
= 25°C)
Collector to Base Voltage
40 V
V
CBO
V
CEO
Collector to Emitter Voltage
30 V
V
EBO
Emitter to Base Voltage
5.0 V
Collector Current (DC)
3.0 A
I
C(DC)
Note
I
C(pulse)
Collector Current (pulse)
7.0 A
Note
Pulse Test PW
≤
350
µ
s, Duty Cycle
≤
2%
12 TYP.
0.55
+0.08
–0.05
0.8
+0.08
–0.05
1.2 TYP.
2.3 TYP.
2.3 TYP.
1: Emitter
2: Collector: connected to mounting plane
3: Base
ELECTRICAL CHARACTERISTICS (T
A
= 25°C)
CHARACTERISTIC
DC Current Gain
DC Current Gain
Gain Bandwidth Product
Output Capacitance
Collector Cutoff Current
Emitter Cutoff Current
Collector Saturation Voltage
Base Saturation Voltage
SYMBOL
h
FE1
h
FE2
f
T
C
ob
I
CBO
I
EBO
V
CE(sat)
V
BE(sat)
TEST CONDITIONS
V
CE
= 2.0 V, I
C
= 20 mA
V
CE
= 2.0 V, I
C
= 1.0 A
V
CE
= 5.0 V, I
C
= 0.1 A
V
CB
= 10 V, I
E
= 0, f = 1.0 MHz
V
CB
= 30 V, I
E
= 0 A
V
EB
= 3.0 V, I
C
= 0 A
I
C
= 2.0 A, I
B
= 0.2 A
I
C
= 2.0 A, I
B
= 0.2 A
Note
Note
Note
Note
MIN.
30
60
TYP.
150
160
90
45
MAX.
400
UNIT
MHz
pF
1.0
1.0
µ
A
µ
A
V
V
0.3
1.0
0.5
2.0
Note
Pulse Test: PW
≤
350
µ
s, Duty Cycle
≤
2%
CLASSIFICATION OF h
FE
Rank
Range
R
60 to 120
Q
100 to 200
P
160 to 320
E
200 to 400
Remark
Test Conditions: V
CE
= 2.0 V, I
C
= 1.0 A
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. D17116EJ2V0DS00 (2nd edition)
(Previous No. TC-3564)
Date Published March 2004 N CP(K)
Printed in Japan
The mark
shows major revised points.
c
2004
2SD882

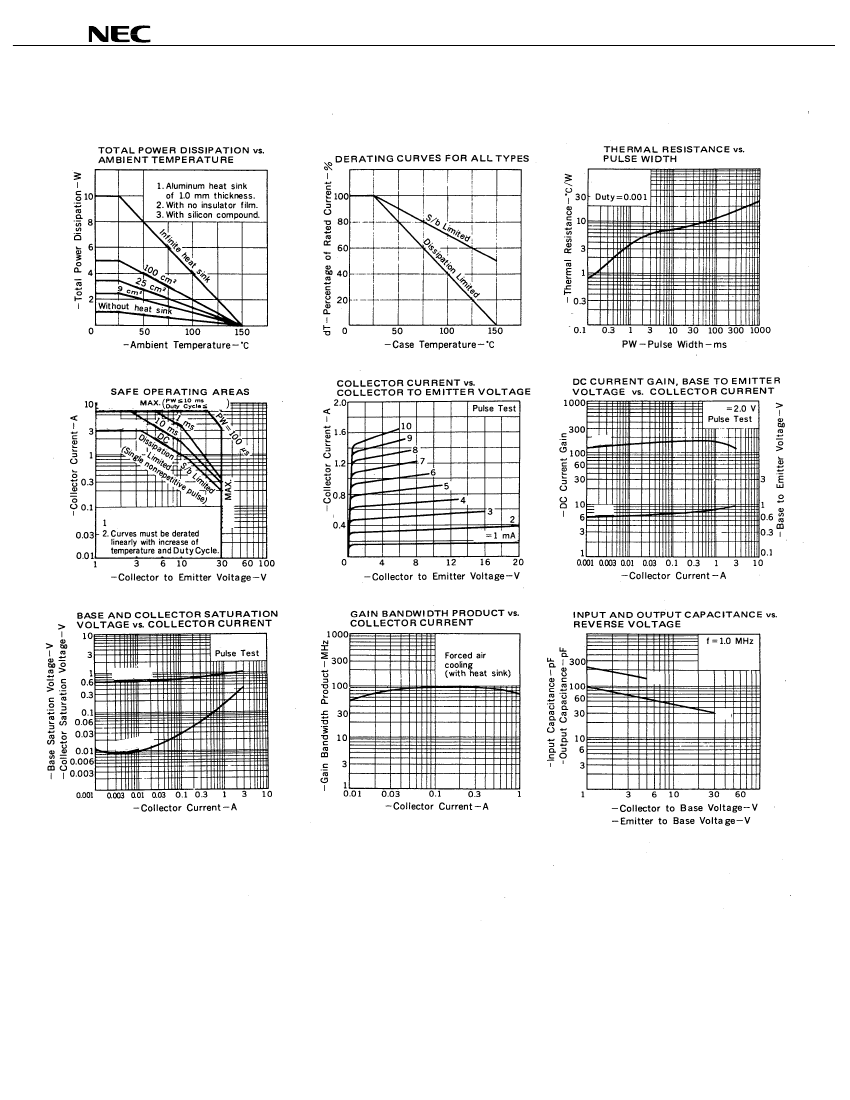

TYPICAL CHARACTERISTICS (T
A
