Part Number

Search

8807-160-170LH

Description
Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size309KB,2 Pages
ManufacturerKEL Corporation
Download Datasheet Parametric View All

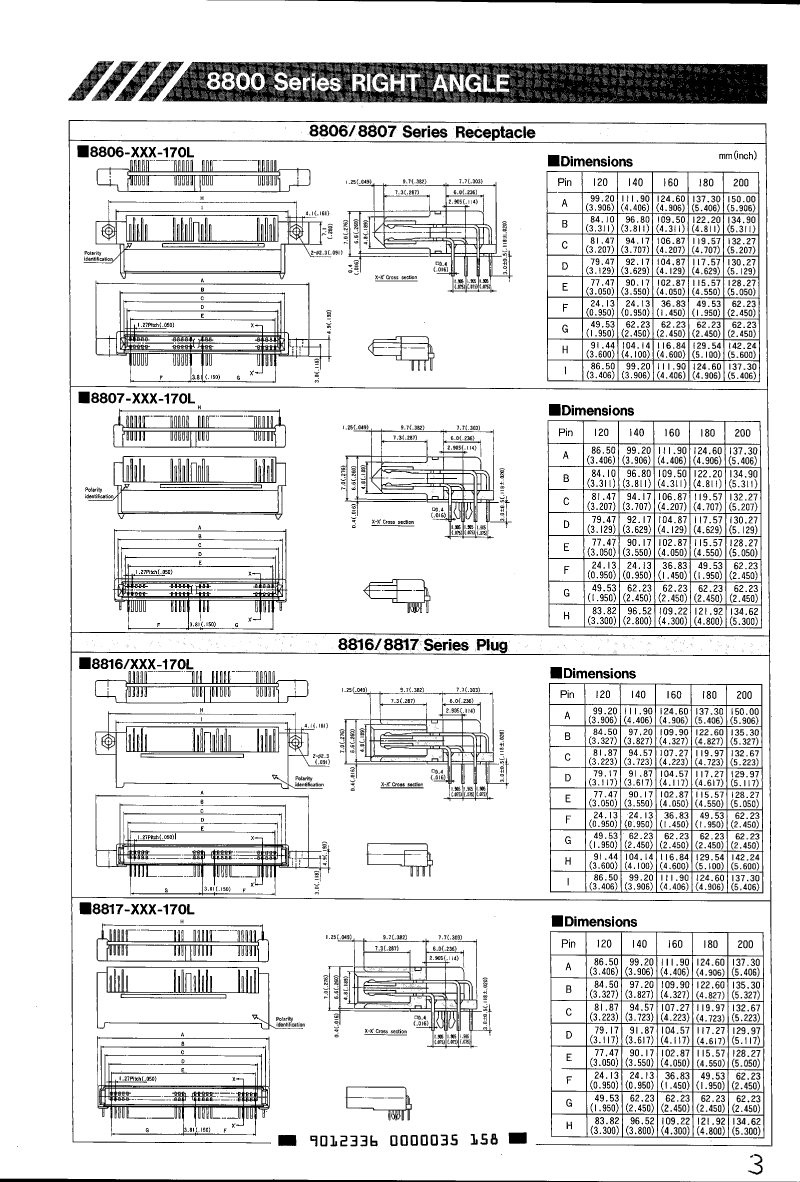

8807-160-170LH Overview

Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

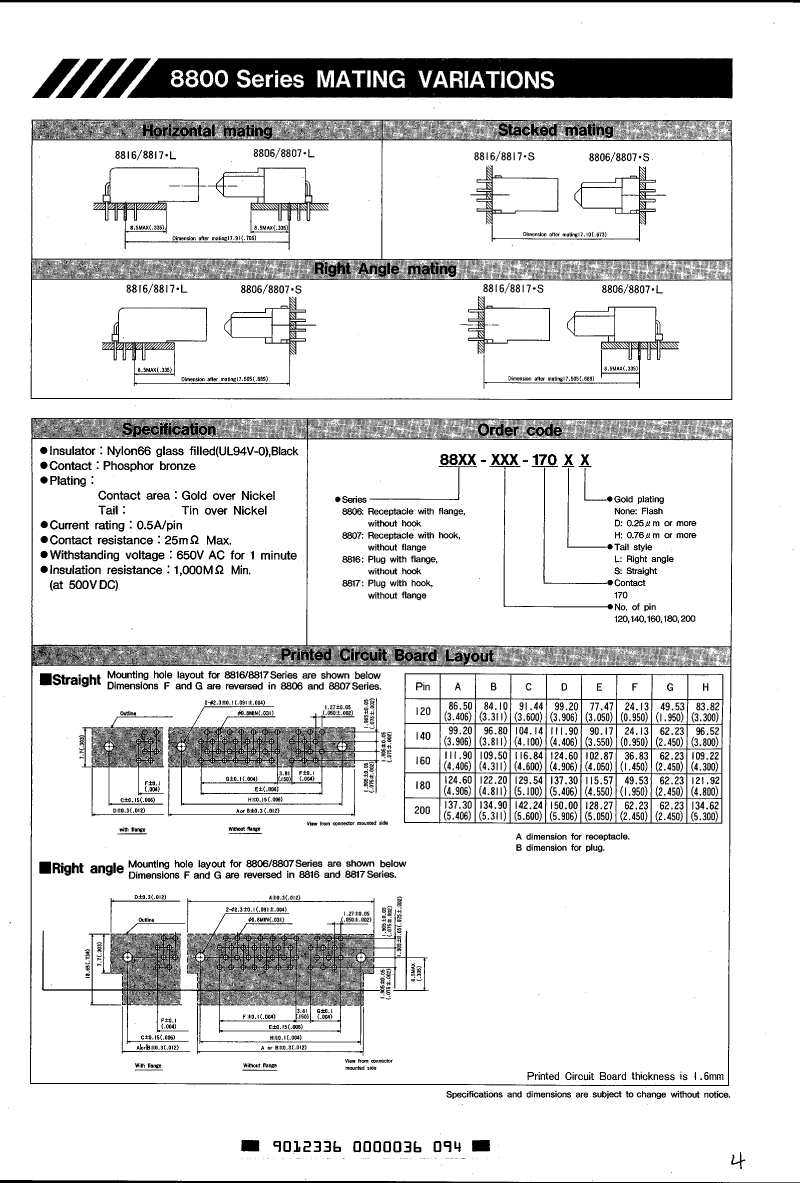

8807-160-170LH Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid300481212
Reach Compliance Codeunknown
ECCN codeEAR99
Board mount optionsHOLE .086-.098
body width0.685 inch
subject depth0.276 inch
body length4.406 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage650VAC V
Filter functionNO
maximum insertion forceLIF N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialPOLYAMIDE
Plug contact pitch0.05 inch
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness30u inch
Rated current (signal)0.5 A
GuidelineUL
Terminal length0.118 inch
Terminal pitch1.905 mm
Termination typeSOLDER
Total number of contacts160
