MM23TGN67.000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MM23TGN67.000MHZ

MM23TGN67.000MHZ: DescriptionOscillator, 50MHz Min, 67MHz Max, 67MHz Nom; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

MM23TGN67.000MHZ Overview

Oscillator, 50MHz Min, 67MHz Max, 67MHz Nom

MM23TGN67.000MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	102573791
package instruction	DILCC4,.24,200
Reach Compliance Code	unknown
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	67 MHz
Minimum operating frequency	50 MHz
Nominal operating frequency	67 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.24,200
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	60 mA
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

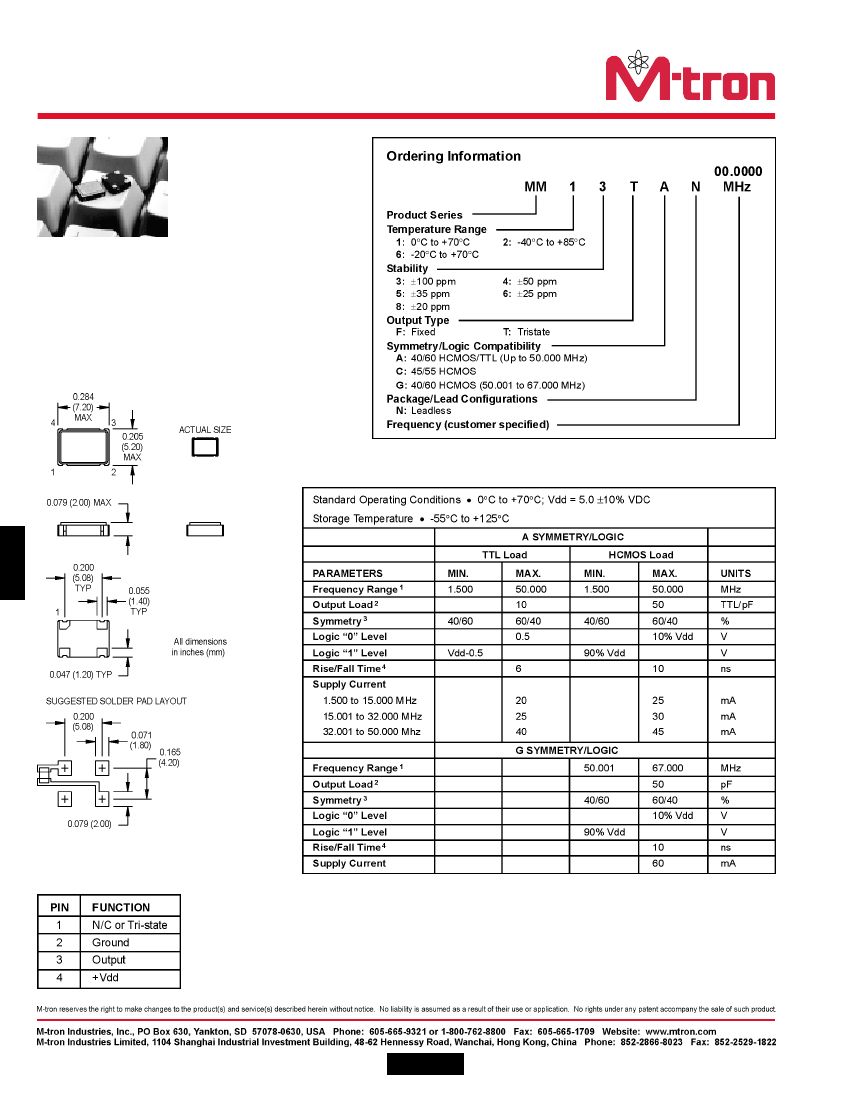

MM Series 5.0 X 7.0 X 2.0 mm HCMOS/TTL

Compatible Miniature Surface Mount Oscillators

High Performance HCMOS/TTL

Compatible Surface Mount Oscillators

M-tron MM series quartz crystal oscillators offer

HCMOS technology and an AT-strip crystal in a

miniature ceramic surface mount package.

Output is TTL and HCMOS compatible. Tri-state

output is optional.

Electrical Specifications

Pin Connections

Because this product is based on AT-strip technology, not all frequencies in the range stated are available.

Contact the factory for availability of specific frequencies.

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

See page 136, Figure 1 for suggested solder profile.

Tri-state Control Logic

Pin 1 high or floating: clock signal output.

Pin 1 low: output disabled to high impedance.

NOTE:

A capacitor of value 0.01

or greater between Vdd

and Ground is recommended.
