257-445NF11-4PN datasheet, PDF

Datasheet> All Categories > The connector> The connector> 257-445NF11-4PN

257-445NF11-4PN: DescriptionMIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

257-445NF11-4PN Overview

MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle

257-445NF11-4PN Parametric

Parameter Name	Attribute value
Reach Compliance Code	not_compliant
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	257-445
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	11
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

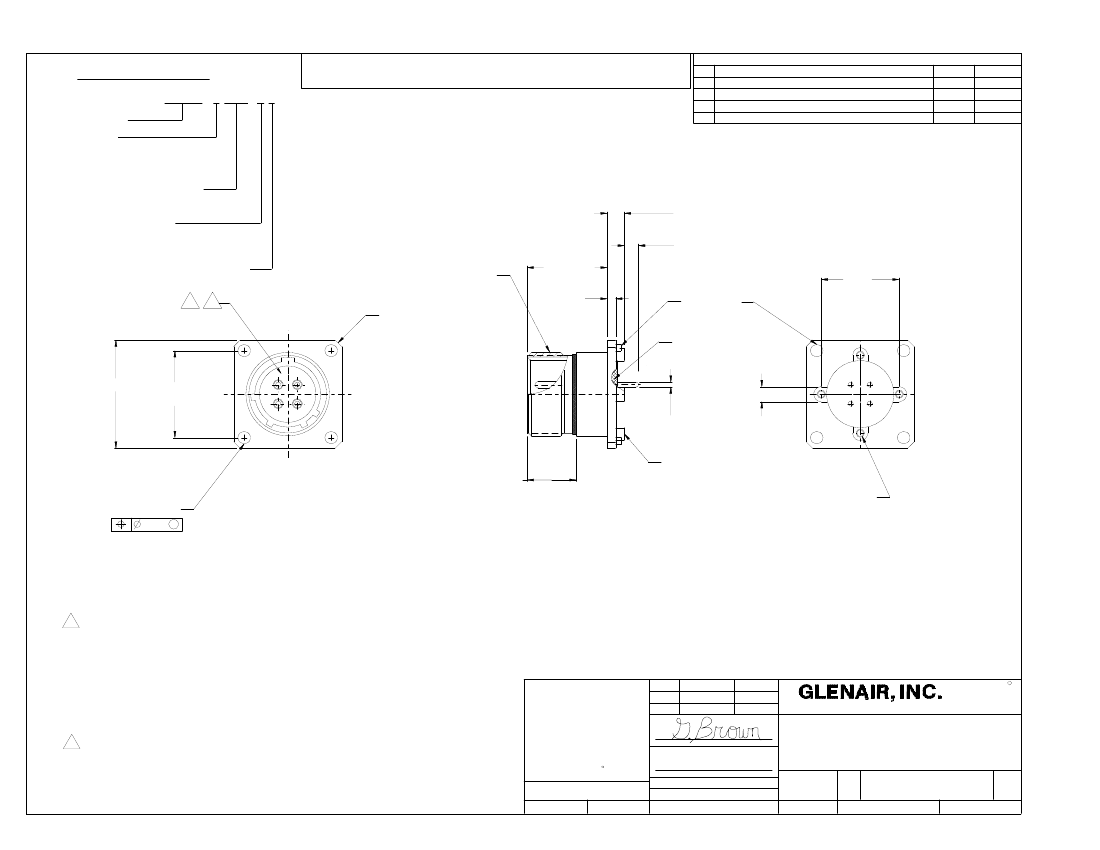

S:\part\s2\25\257-4451OF2.prt

257-445

PART NUMBER DEVELOPMENT

EXAMPLE:

BASIC NO

FINISH

M = ELECTROLESS NICKEL

NF = OLIVE DRAB CADMIUM

OVER NICKEL

SHELL SIZE/ARRANGEMENT

(SEE TABLE II)

257-445 M 11-4 P N

THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO

BE DISCLOSED, REPRODUCED IN WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED

FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION

HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING EVALUATION AND INCORPORATION

INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.

REVISIONS

SYM.

DESCRIPTION

PRODUCTION RELEASED

REVISED PER DCN 27984

REVISED PER DCN 28582

REVISED PER DCN 30506

DATE

APPROVED

GSB

09/21/06

F.Q.

08/06/07

J.L.

11/30/07

J.L.

09/29/08

.235 MAX

CONTACT STYLE

P = PIN, PC TAIL

S = SOCKET, PC TAIL

POLARIZATION PER MIL-DTL-38999

.175

.125

A THREAD

.843 MAX

2X D

.102

.075

4X CHAMFERED

OR ROUNDED

CLINCH NUT

REF

POTTING COMPOUND

B SQ

2X C

BSC

.189

TYP

PCB STANDOFF

.520 MAX

FULLY MATED

INDICATOR

BAND-RED

4X M3X0.5-6G HOLES

.156 DEEP @90° APART

4X M3X0.5-6G

.005 M

CLINCH NUT

4 PLACES

5 INSERT ARRANGEMENT SHOWN FOR REFERENCE ONLY.

4. MATERIAL/FINISH:

SHELL - AL ALLOY/ SEE PART NO. DEVELOPMENT

CONTACTS - COPPER ALLOY/GOLD PLATED

INSULATOR - HIGH GRADE RIGID DIELECTRIC/N.A.

POTTING - EPOXY

UNLESS OTHERWISE SPECIFIED

3. GLENAIR 257-445 RECEPTACLE CONNECTOR IS DESIGNED TO MATE WITH ANY

QPL MANUFACTURER'S MIL-C-38999 SERIES III PLUG CONNECTOR HAVING

THE SAME INSERT ARRANGEMENT AND POLARIZATION.

2 INSERT ARRANGEMENTS IN ACCORDANCE WITH MIL-STD-1560, SEE TABLE II.

1. ASSEMBLY IDENTIFIED WITH GLENAIR'S NAME, PART NO

AND DATE CODE

DIMENSIONS ARE IN INCHES

TOLERANCES:

FRACTIONS

DECIMALS

ANGLES

+ 1/16

+.03

.XX

.XXX +.015

+ 2

DRAWN CI

CHECK GSB

ENGR CI

02/06/06

CAD 1996

1211 AIR WAY - GLENDALE - CALIFORNIA 91201

APPROVED

CONNECTOR, RECEPTACLE

SERIES III, BOX MOUNT

THREADED FLANGE, PC TAILS

CODE IDENT. NO. SIZE

APPROVED

RELEASE DATE

ORIGINAL

RELEASE DATE

NOTES: UNLESS OTHERWISE SPECIFIED

DO NOT SCALE THIS DRAWING

06324

SCALE

N/A

257-445

N/A

SHEET

1 OF 2

REV.

B/F

6580

P/C

NON REPARABLE COMMERCIAL ITEM

WEIGHT

1 of 1

257-445NF11-4PN Related Products

	257-445NF11-4PN	257-445M11-4PN	257-445M11-4SN	257-445NF11-4SN
Description	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle	MIL Series Connector, 4 Contact(s), Aluminum Alloy, Female, Solder Terminal, Receptacle
Reach Compliance Code	not_compliant	compliant	compliant	not_compliant
Back shell type	SOLID	SOLID	SOLID	SOLID
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	FEMALE	FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES
Manufacturer's serial number	257-445	257-445	257-445	257-445
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM PLATED	NICKEL PLATED	NICKEL PLATED	CADMIUM PLATED
Shell material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Housing size	11	11	11	11
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	4	4	4
Base Number Matches	1	1	1	1
