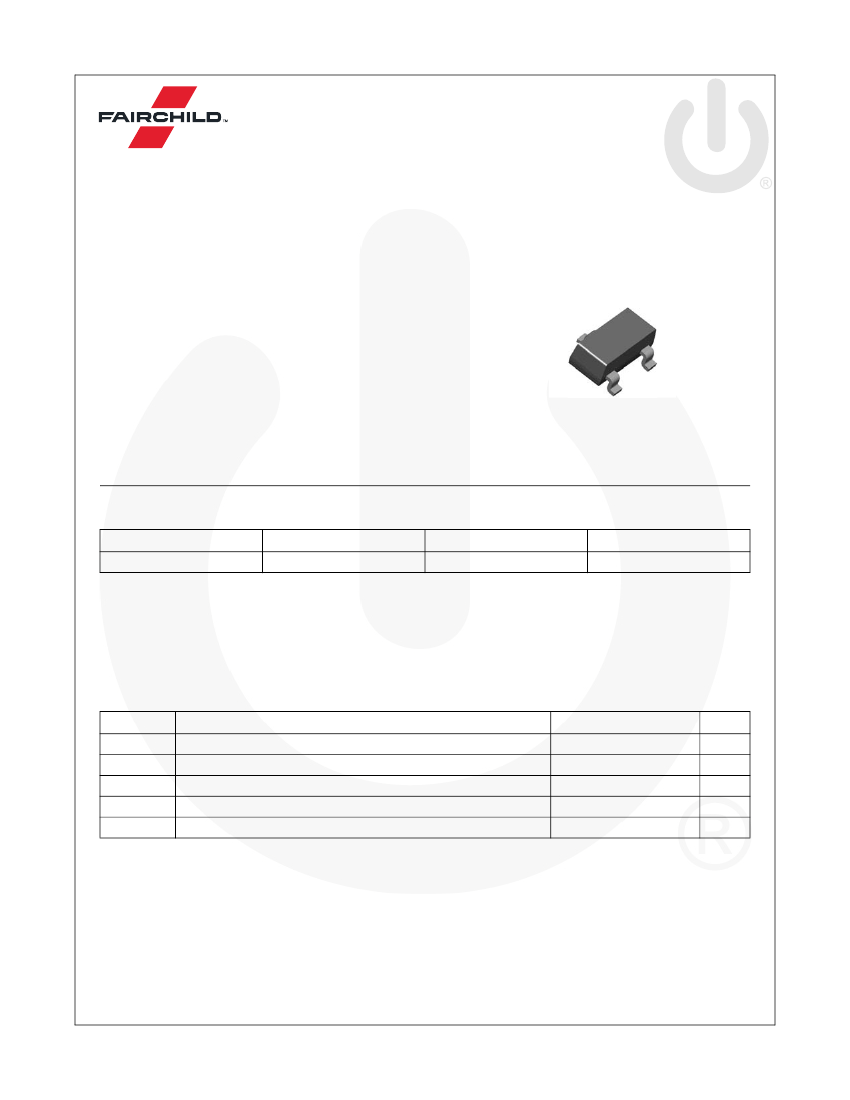

MMBT4126 — PNP General-Purpose Amplifier
March 2014
MMBT4126
PNP General-Purpose Amplifier
Description
This device is designed for general-purpose amplifier
and switching applications at collector currents to 10
μA
as a switch and to 100 mA as an amplifier.
C
E
SOT-23
Mark: ZF
B
Ordering Information
Part Number
MMBT4126
Marking
ZF
Package
SOT-23 3L
Packing Method
Tape and Reel
Absolute Maximum Ratings
(1),(2)
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
CEO
V
CBO
V
EBO
I
C
T
J ,
T
STG
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Parameter
Value
-25
-25
-4
-200
-55 to +150
Unit
V
V
V
mA
°C
Collector Current - Continuous
Junction and Storage Temperature Range
Notes:
1. These ratings are based on a maximum junction temperature of 150°C.
2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or
