EP26 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision H 03/25/2014
Electrical Specifications
Nominal Frequency
1.000MHz to 106.250MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging @25°C, Shock, and
Vibration)
±100ppm Maximum
±50ppm Maximum
-20°C to +70°C
-40°C to +85°C
3.3V
DC
±0.3V
DC
28mA Maximum (Unloaded)
V
DD
-0.4V
DC
Minimum (I
OH
= -8mA)
0.4V
DC
Maximum (I
OL
= +8mA)
Measured at 50% of waveform
50 ±10(%)
50 ±5(%)(Only available over Nominal Frequency of 1M to 50M)
Measured at 20% to 80% of Waveform
4nSec Maximum
30pF Maximum over Nominal Frequency of 1MHz to 50MHz
15pF Maximum over Nominal Frequency of 50.000001MHz to
106.25MHz
CMOS
Power Down (Disable Output: Logic Low)
Tri-State (Disabled Output: High Impedance)
70% of V
DD
Minimum to enable output, 20% of V
DD
Maximum to
disable output, No Connect to enable output.
20 A Maximum (Pin 1 = Ground)
16mA Maximum (Pin 1 = Ground)
±250pSec Maximum, ±100pSec Typical over Nominal Frequency of
1MHz to 33MHz
±125pSec Maximum, ±75pSec Typical over Nominal Frequency of
33.000001MHz to 106.25MHz
±50pSec Maximum over Nominal Frequency of 1MHz to 33MHz
±40pSec Maximum over Nominal Frequency of 33.000001MHz to
106.25MHz
Operating Temperature Range
Supply Voltage (V
DD
)
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Standby Current
Disable Current
Absolute Clock Jitter
One Sigma Clock Period Jitter
1 of 10
28-Jan-2016 2:02 PM
Ecliptek | EP26 Series Oscillator
http://www.ecliptek.com/oscillators/EP26/

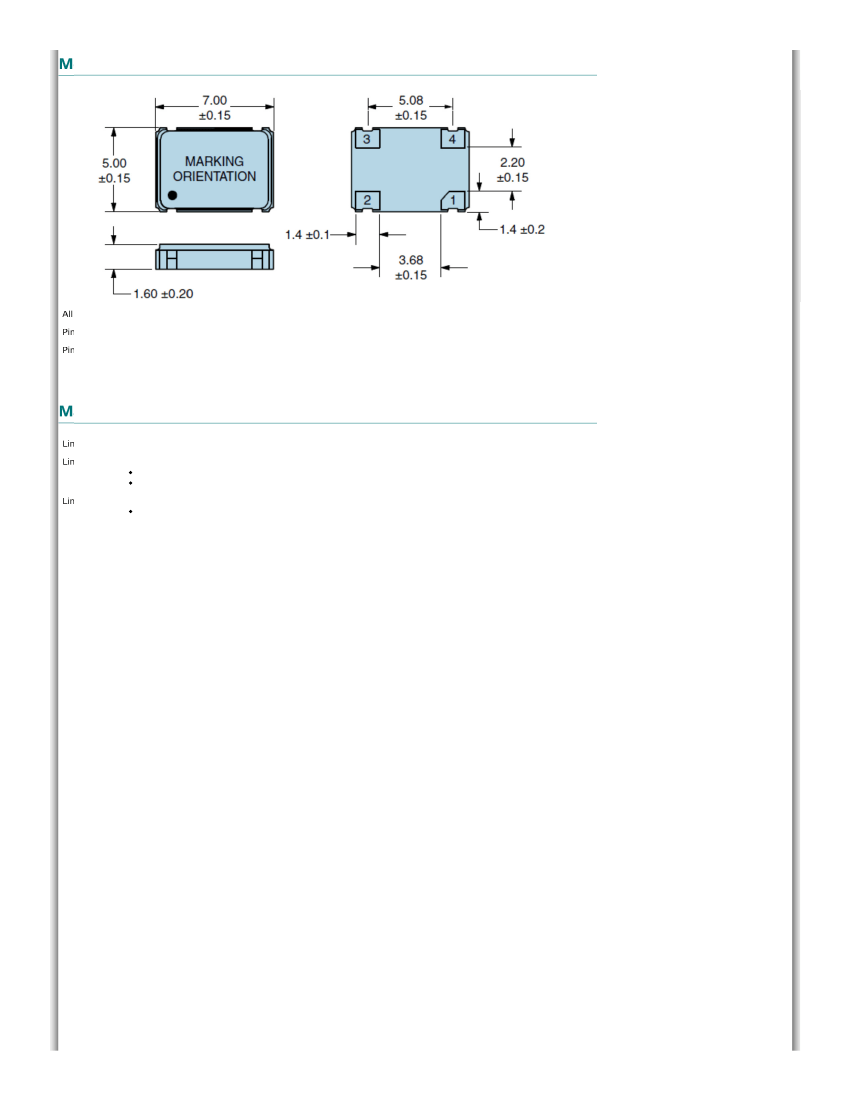

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Power Down (Logic Low) or Tri-State (High Impedance)
Pin 2: Ground/Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
Line 2:
ECLIPTEK
XXXXXXM
XXXXXX = Nominal Frequency (5 Digits + Decimal)
M = Frequency unit of measure (MHz)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 3:
3 of 10
28-Jan-2016 2:02 PM
Ecliptek | EP26 Series Oscillator
http://www.ecliptek.com/oscillators/EP26/
Environmental and Mechanical Specifications
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 3015, Class 1, HBM:1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
42°C/W (degrees Celsius per Watt)
15°C/W (degrees Celsius per Watt)

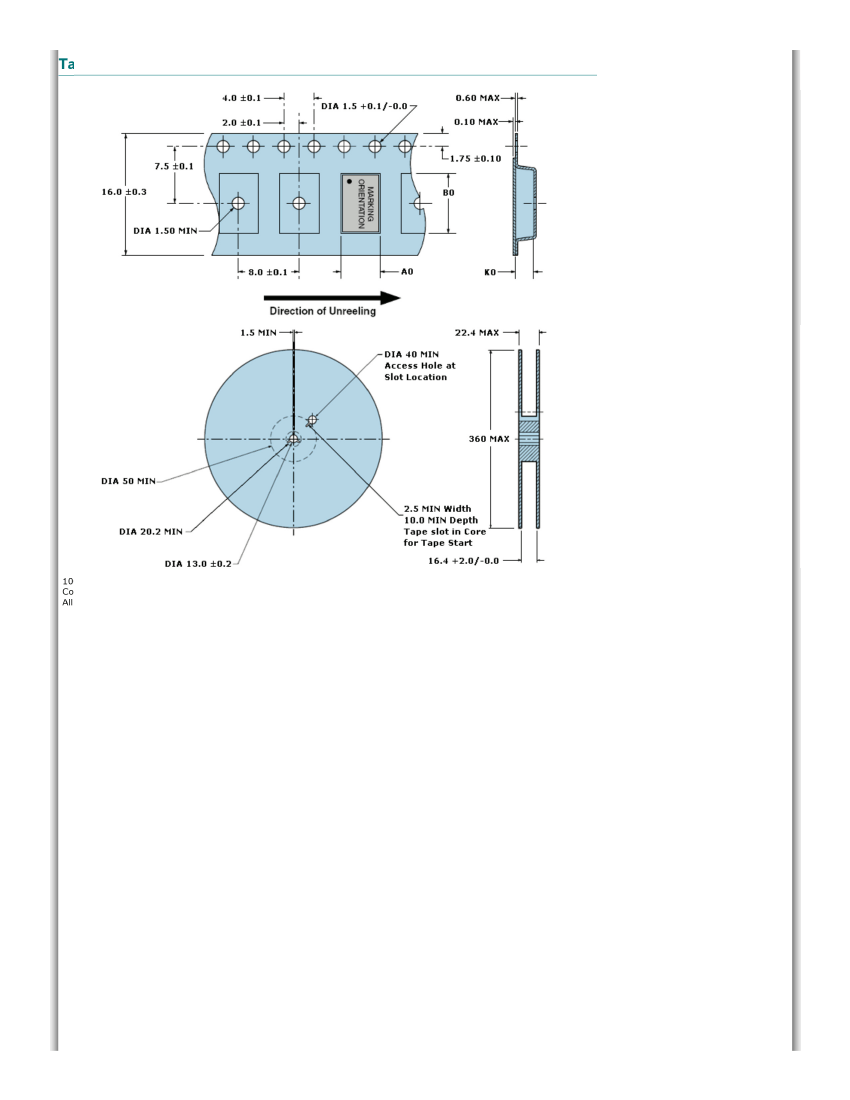

4 of 10
28-Jan-2016 2:02 PM
