73801-1000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73801-1000

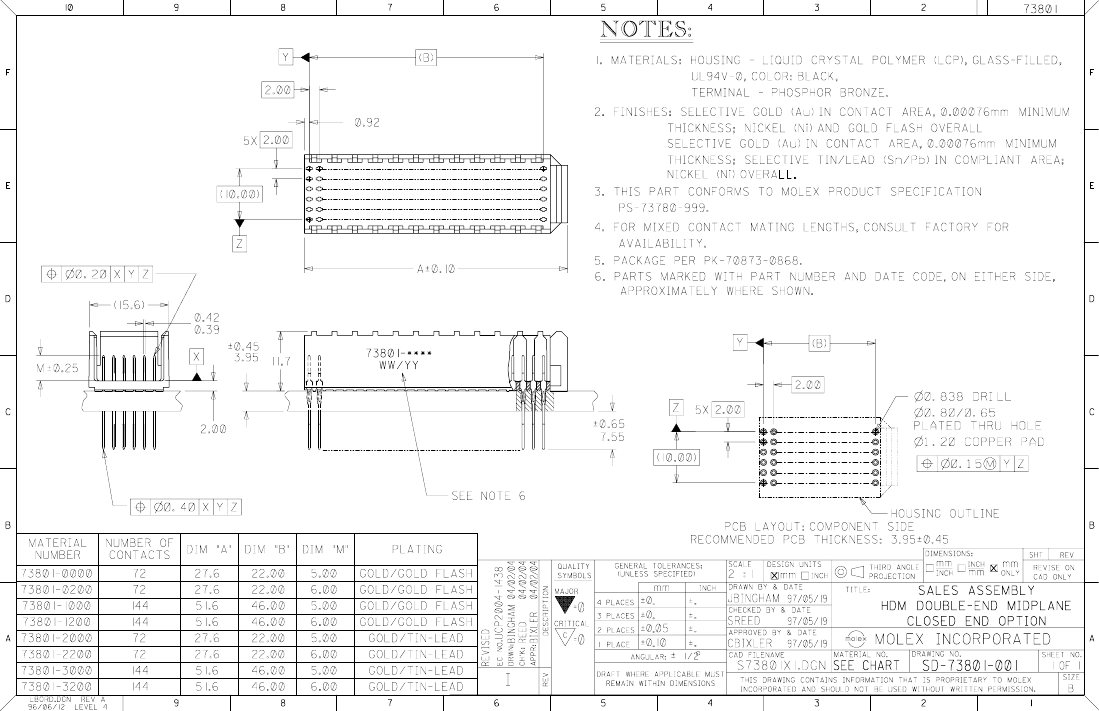

73801-1000: DescriptionBoard Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

73801-1000 Overview

Board Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle,

73801-1000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HDM
body width	0.614 inch
subject depth	0.461 inch
body length	2.031 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	32 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3058 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	6
Number of rows loaded	6
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.453 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	144
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

73801-1000 Related Products

	73801-1000	73801-2000	73801-3000
Description	Board Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle,	Board Connector, 72 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle	Board Connector, 144 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	compliant	unknown	unknown
Other features	HDM	HDM	HDM
body width	0.614 inch	0.614 inch	0.614 inch
subject depth	0.461 inch	0.461 inch	0.461 inch
body length	2.031 inch	1.087 inch	2.031 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	32 mΩ	32 mΩ	32 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Durability	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
maximum insertion force	.3058 N	.3058 N	.3058 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	6	6	6
Number of rows loaded	6	6	6
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	30u inch	30u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.453 inch	0.453 inch	0.453 inch
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	144	72	144
UL Flammability Code	94V-0	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N	.139 N
Base Number Matches	1	1	1
ECCN code	EAR99	EAR99	-
Is it lead-free?	-	Lead free	Lead free
Manufacturer's serial number	-	73801	73801
