K66-A26S-N15 datasheet, PDF - EEWORLD Datasheet

K66-A26S-N15: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size323KB，3 Pages; ManufacturerKycon

Download Datasheet Parametric View All

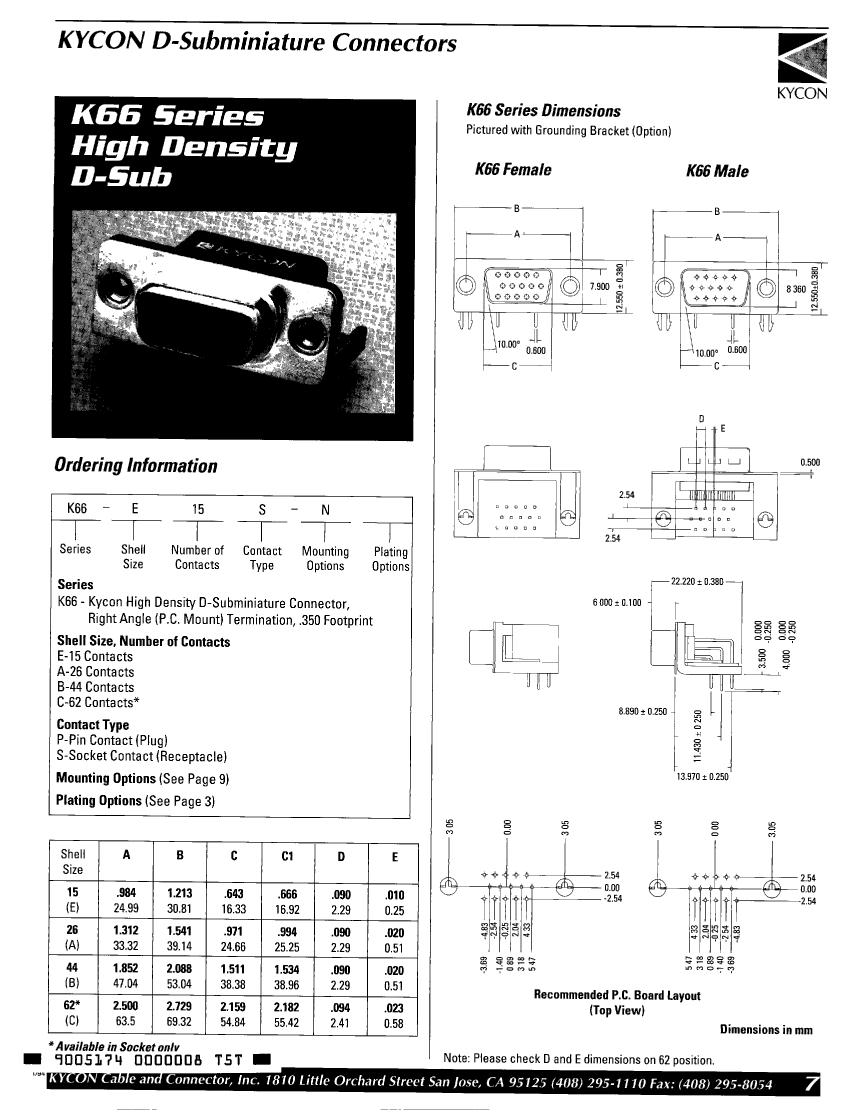

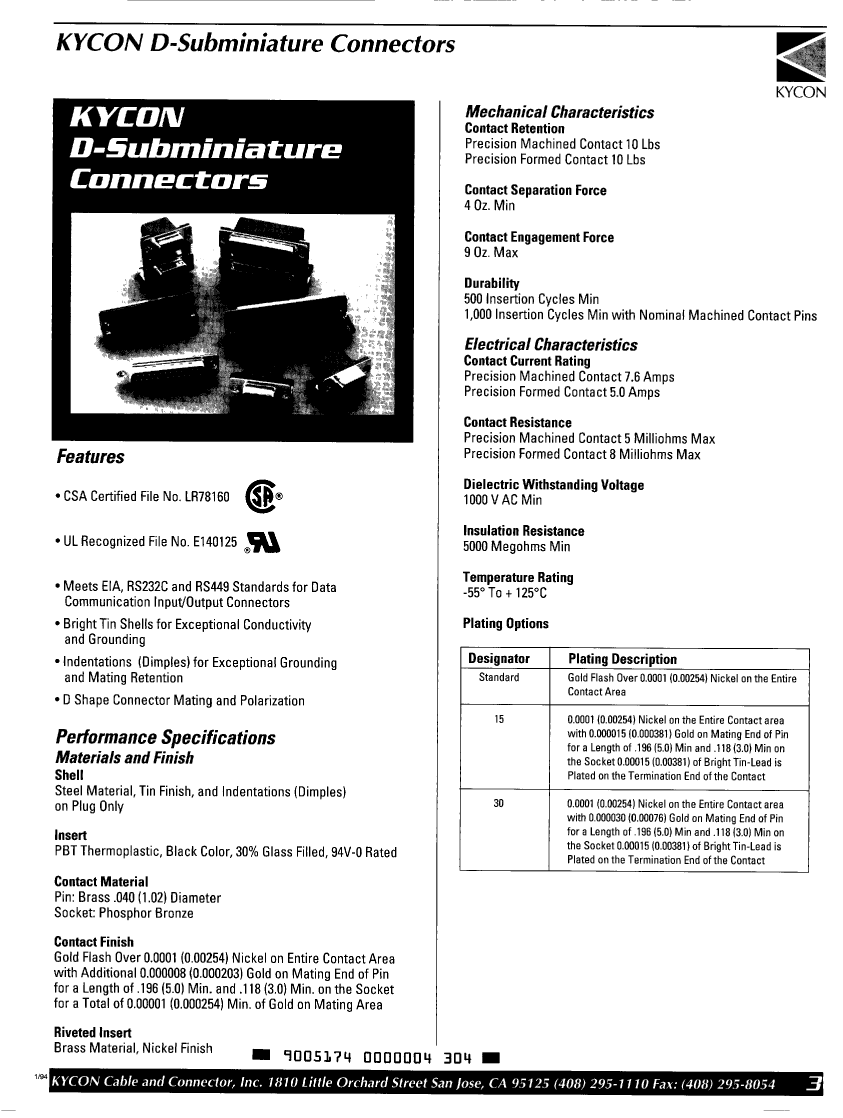

K66-A26S-N15 Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug,

Parameter Name	Attribute value
Objectid	1149720393
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	0
Other features	GNDING BRACKETS
body width	0.494 inch
subject depth	0.639 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch

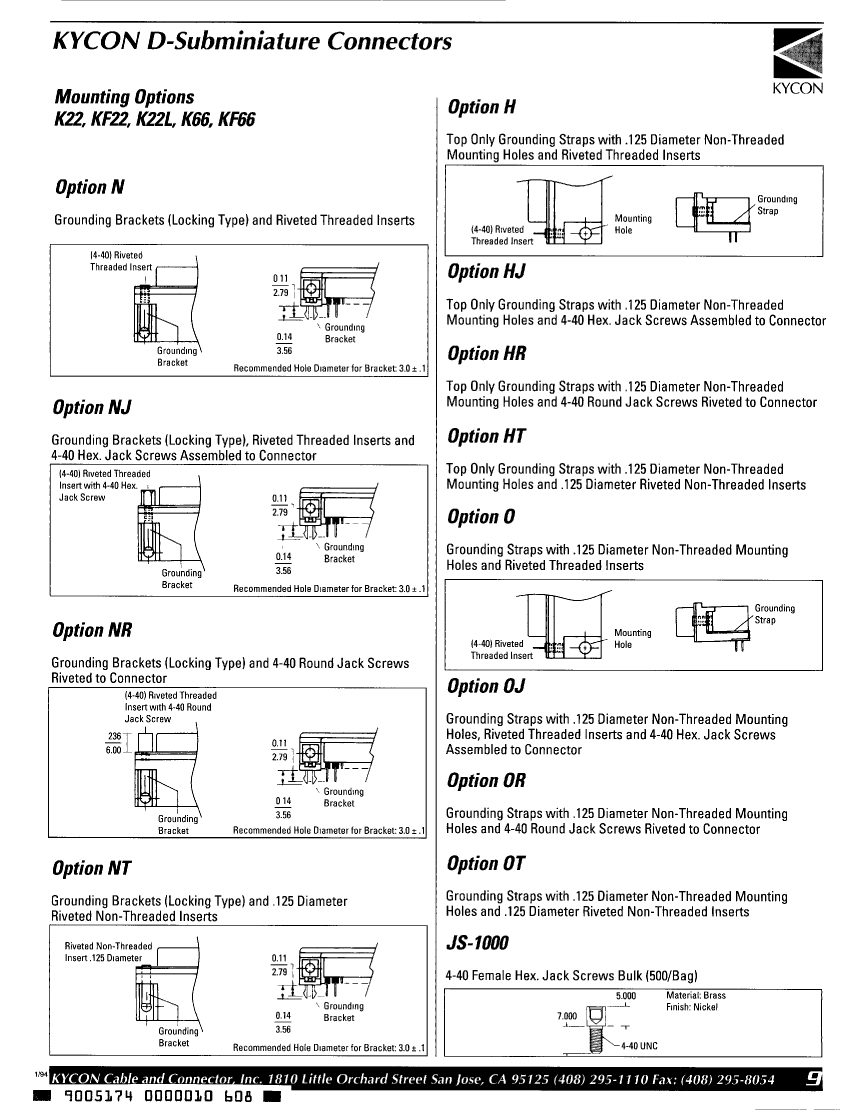

Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL, CSA
Shell surface	TIN
Shell material	STEEL
Terminal length	0.138 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26
Evacuation force-minimum value	1.112 N
