K66XHT-A26S-NV30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> K66XHT-A26S-NV30

K66XHT-A26S-NV30: DescriptionD Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size295KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric View All

K66XHT-A26S-NV30 Overview

D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Receptacle, ROHS COMPLIANT

K66XHT-A26S-NV30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1598162339
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
YTEOL	8.5
body width	0.494 inch
subject depth	0.646 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.09 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	2 A
Shell surface	TIN
Housing size	2/A
Terminal length	0.138 inch
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

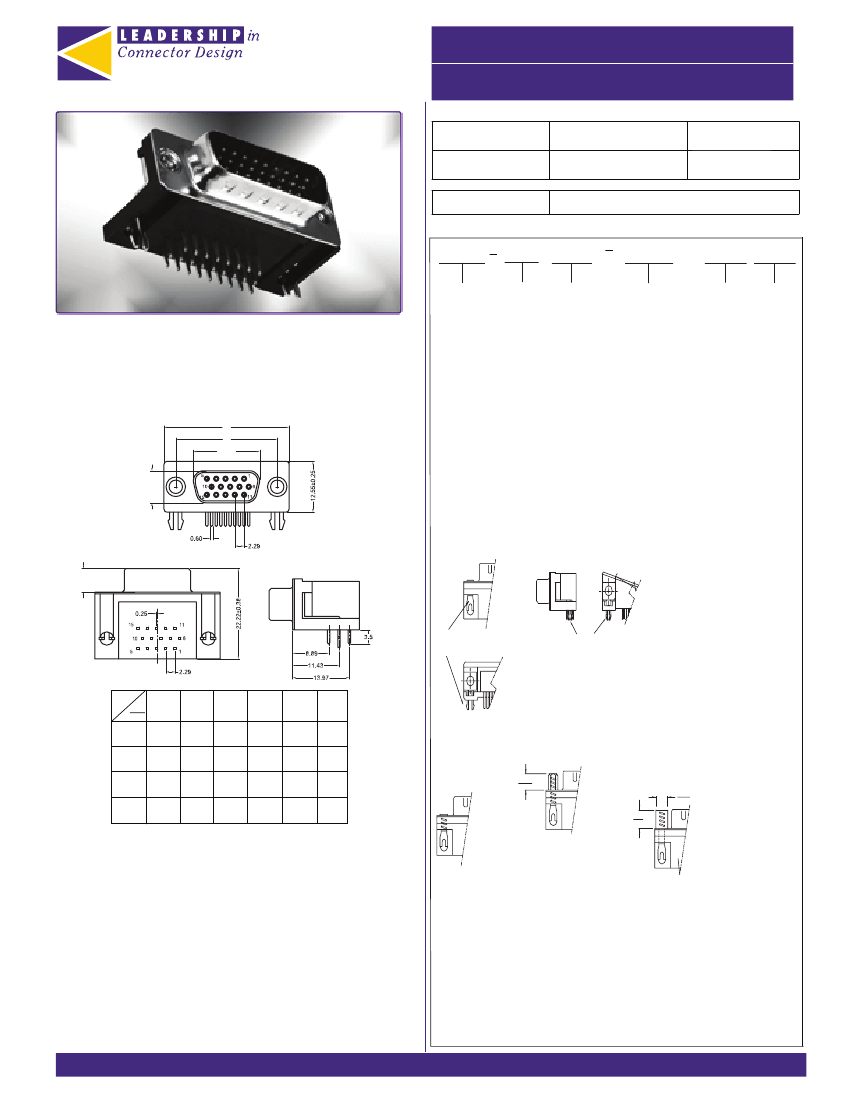

D-SUBMINIATURE CONNECTORS

KYCON

RoHS

K66XHT Series

Documentation &

Ordering Information

Drawing

Sample

Stock

CofC

RFQ

Kycon Part #

K66XHT-E15P-N

Part Number Builder

K66XHT

Series

E15

Shell

Size

Contact

Type

PCB & Front Panel

Mounting Options

Plating

Option

VESA

Option

K66XHT Series High Density

High Temperature Right Angle PCB Mount

K66XHT Series Dimensions

Pictured with Board Lock Option, Dimensions in mm

C, C1

Series

K66XHT - Reflow Compatible Version

Shell Size-Contact Option

- 15 Contacts

- 26 Contacts

- 44 Contacts

- 62 Contacts

Contact Type

P - Pin Contact (Plug)

- Socket Contact (Receptacle)

PC Board Mounting Option

Option

NV Option

8.36 Plug Interior

7.90 Socket Exterior

6.1 Plug

5.8 Socket

Grounding

Bracket

4 Prong

Grounding Bracket

Shell

Size

.015

0.38

1.213

(E)

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.005

0.13

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

.010

.0.25

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.010

0.25

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.005

0.13

.090

2.29

.090

2.29

.090

2.29

.095

2.41

.005

0.13

.010

0.25

.020

0.51

.020

0.51

.023

0.58

Front Panel Mounting Option

Standard

(4-40)Riveted

Threaded Insert

5.00

.197

(A)

(B)

(C)

J Option

R Option

(4-40) Round Jack Screws

Riveted to Connector

Ø5.0

.197

6.00

.236

C = Exterior of Female Shell (S)

C1 = Interior of Male Shell (P)

(4-40)Riveted Threaded

Insert with 4-40 Hex.

JS1000 Jack Screws Installed

to Connector

Plating Option

Blank - Gold Flash

15 - 15

” Gold

30 - 30

” Gold

VESA Option

Blank

- Standard

VESA - VESA Compliant Version (E15S Only)

Click here for Performance Specification

Contact Kycon for other options

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
