5559-04P3

Description
4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-2, 4 circuits
CategoryThe connector    The connector
File Size334KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

5559-04P3 Overview

4.20mm (.165") pitch mini-fit Jr.? plug housing, single row, without panel mount ears, PA polyamide nylon 6/6, UL 94v-2, 4 circuits

5559-04P3 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Connector typeRECTANGULAR POWER CONNECTOR

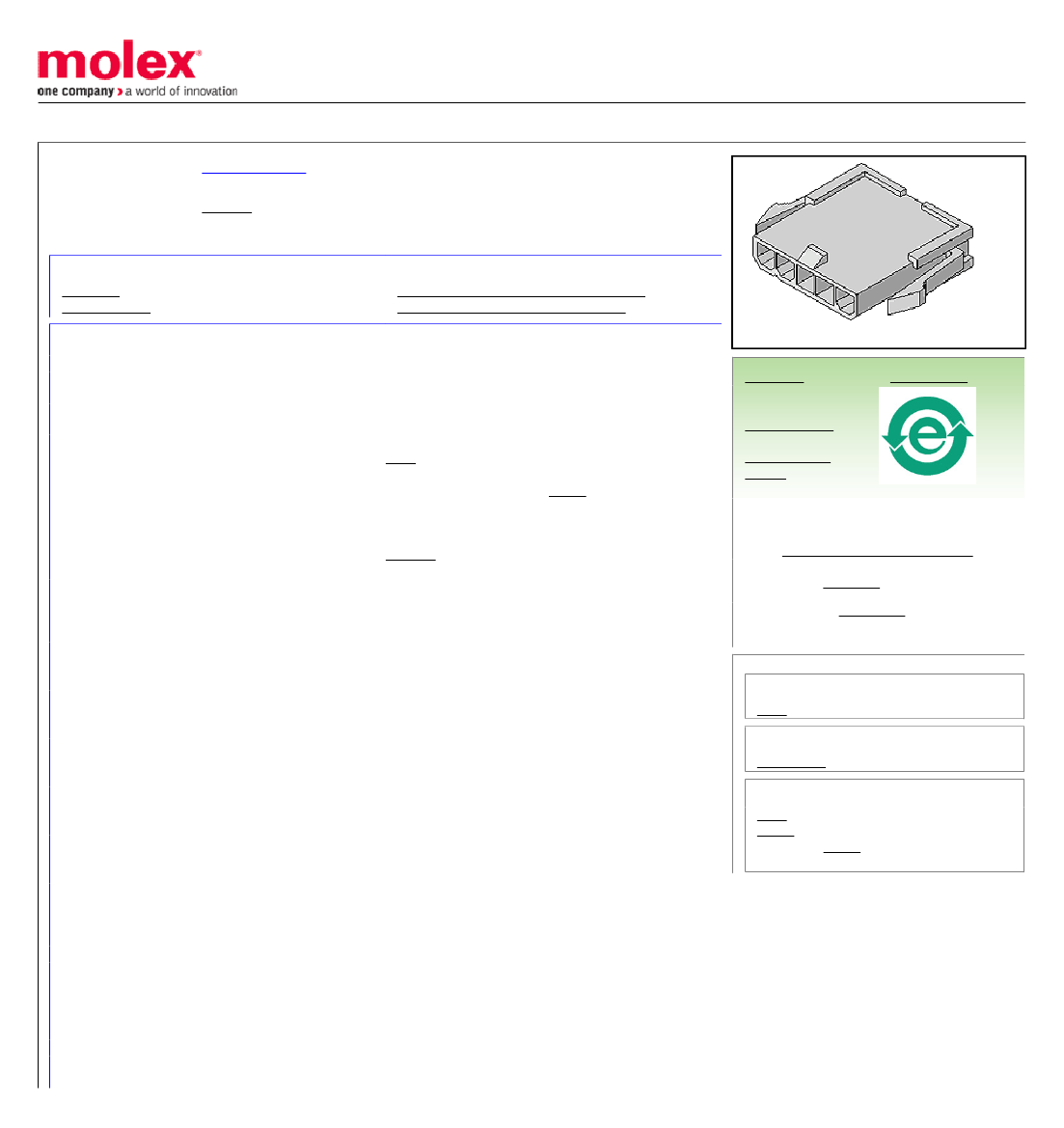

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0039014046
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit Jr.™ Plug Housing, Single Row, without Panel Mount
Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits
Documents:
3D Model

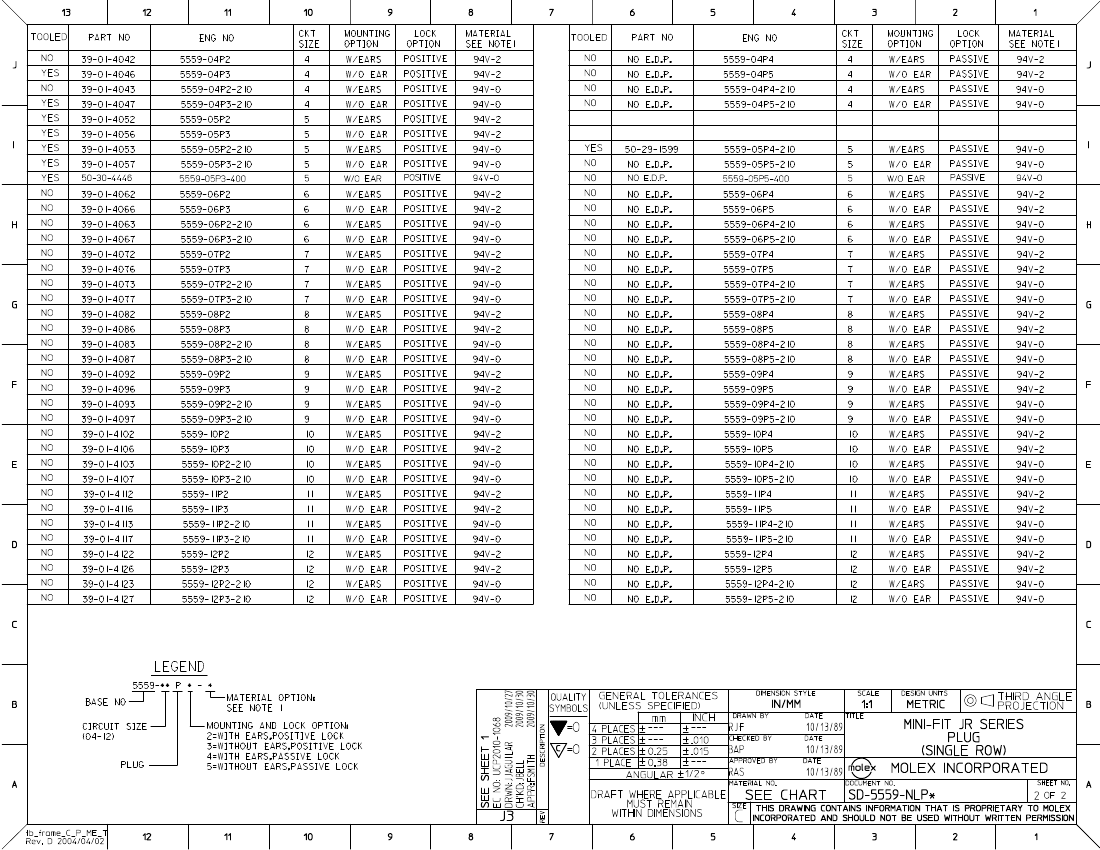

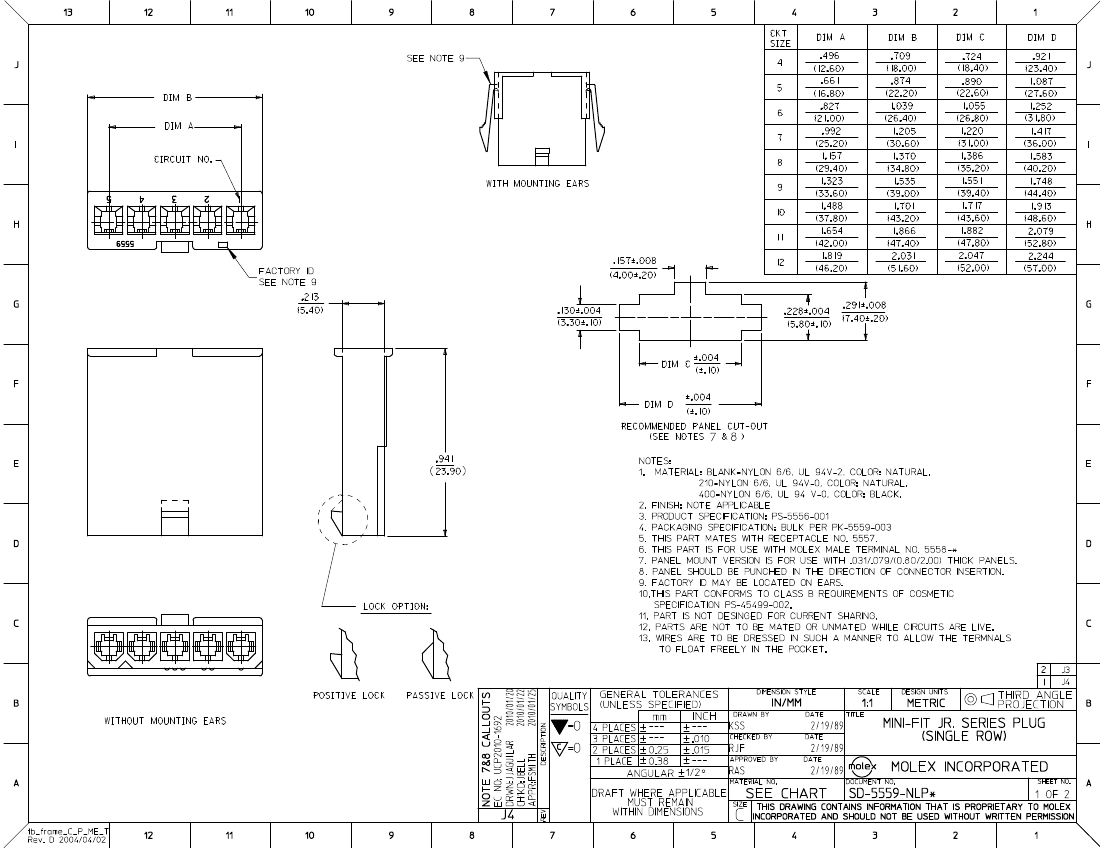

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
General
Product Family
Series
Comments
Crimp Housings
5559
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 series terminals
crimped to 16 AWG wire. . See Molex product
specification PS-45750-001 for additional current de-
rating information.
minifit_jr
Mini-Fit Jr.™
Overview
Product Name
Physical
Breakaway
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
No
4
Natural
94V-2
Male
No
None
Yes
Nylon
1
Bag
No
0.165 In
4.20 mm
0.165 In
4.20 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
5559Series
Mates With
39-01-4040 Receptacle Housing
Use With
5558 Mini-Fit Jr.™ Male Crimp Terminals.
44478 Mini-Fit HCS™ Male Crimp
Terminals. 30490 Mini-Fit® Male Grounding
Crimp Terminals
Electrical
Current - Maximum per Contact
13A
Material Info
Old Part Number
5559-04P3
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-5559-003
PS-5556-001
SD-5559-NLP*
