10080594-IED0101LF

Description
Board Connector, 4 Contact(s), Female, Straight, Locking, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size244KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

10080594-IED0101LF Overview

Board Connector, 4 Contact(s), Female, Straight, Locking, Black Insulator, Receptacle

10080594-IED0101LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid306347853
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialCOPPER ALLOY
Contact resistance2 mΩ
Contact styleBLADE PIN-SKT
Dielectric withstand voltage2500VDC V
Durability200 Cycles
Filter functionNO
maximum insertion force6.95 N
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYETHYLENE
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Number of connectorsONE
Maximum operating temperature80 °C
Minimum operating temperature-20 °C
Plating thickness50u inch
GuidelineUL
Total number of contacts4
Evacuation force-minimum value2.224 N

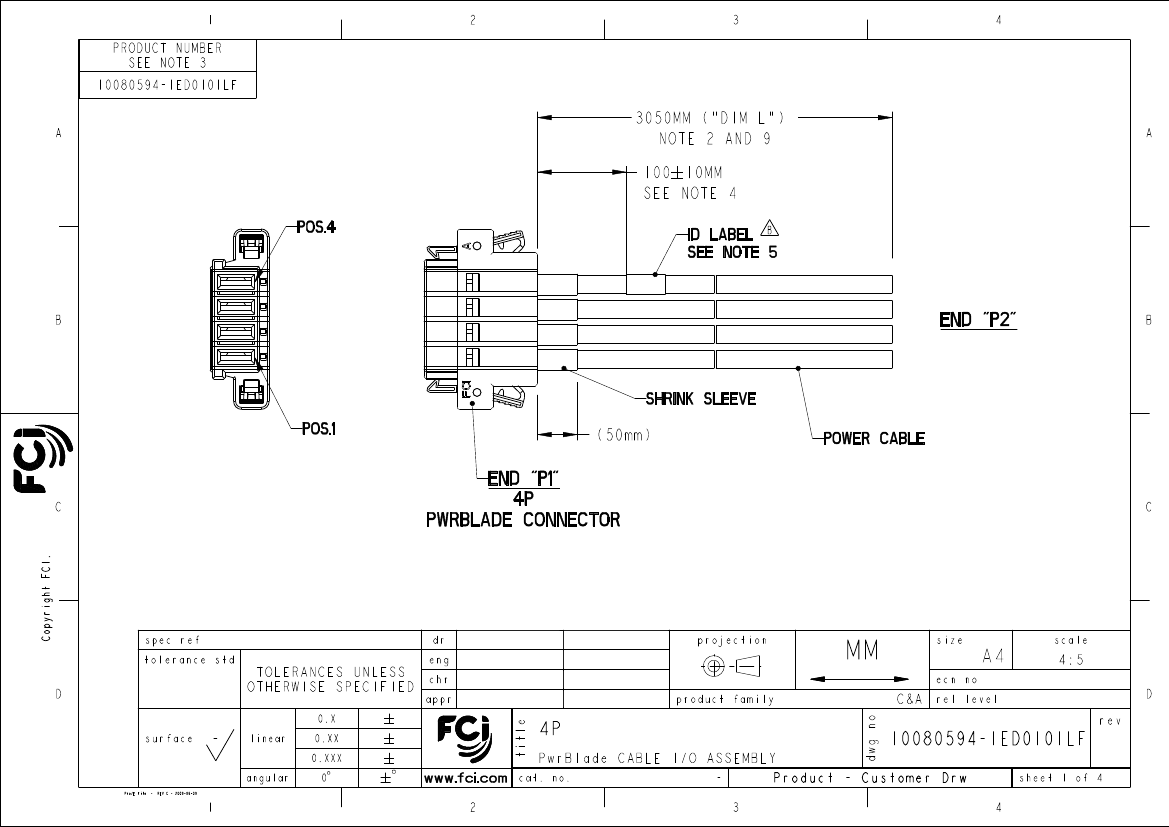

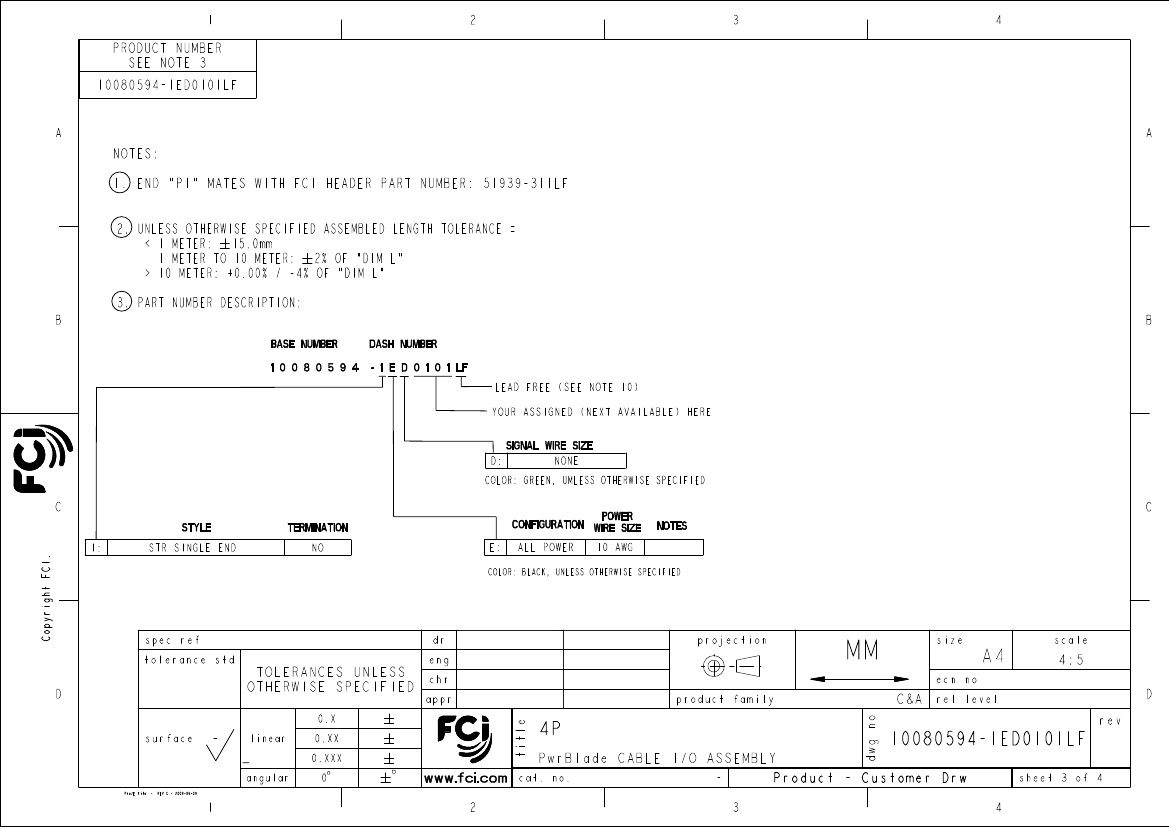

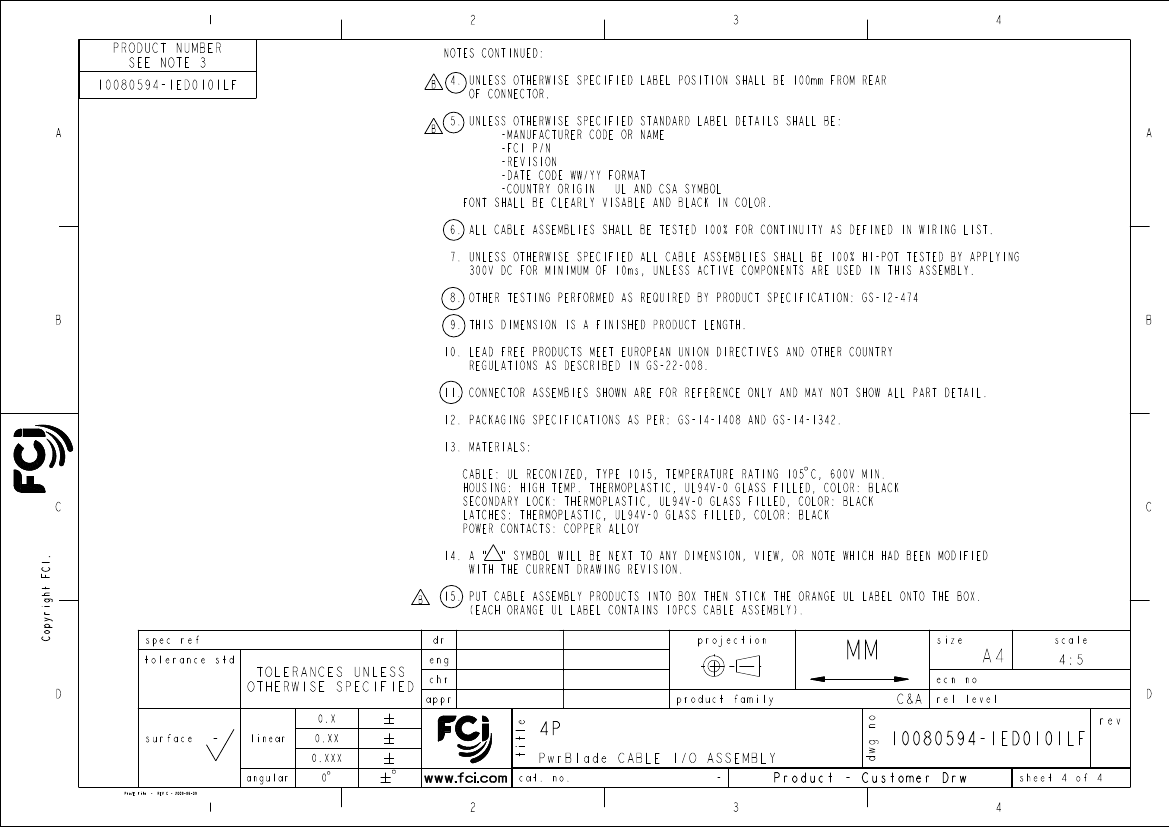

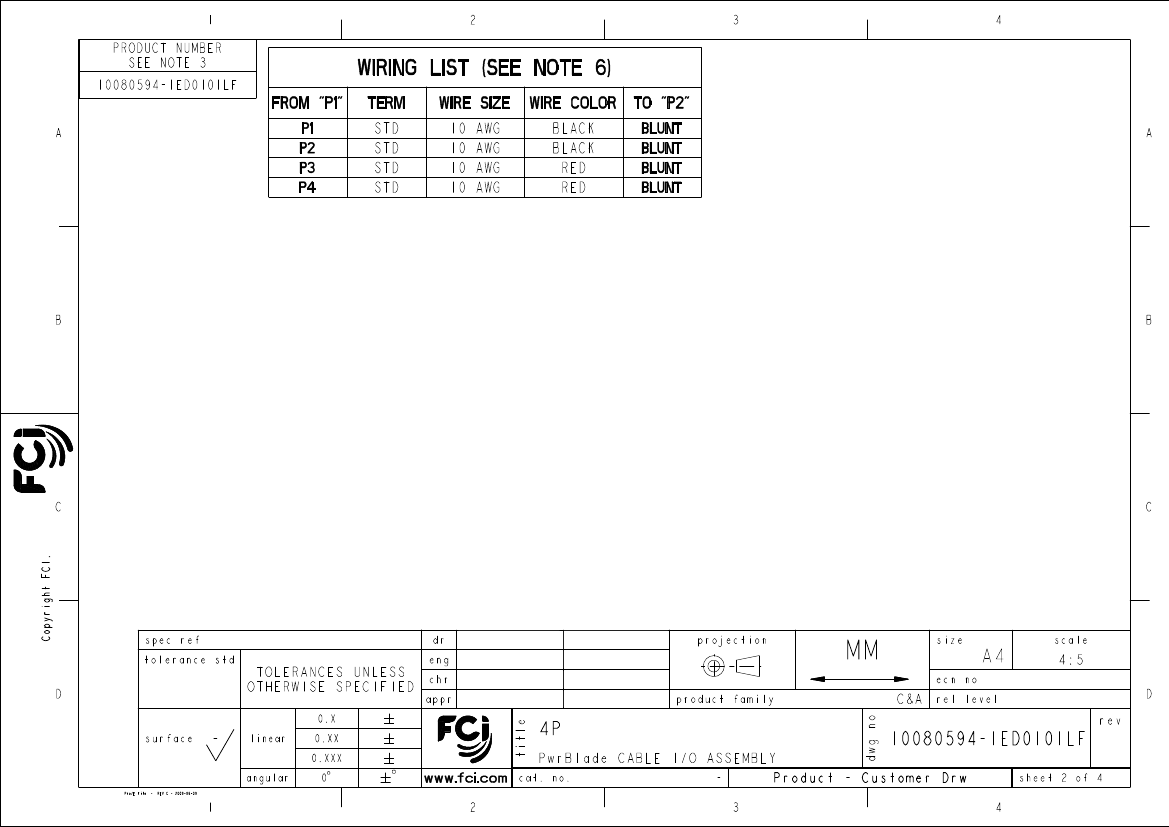

Delhly Liu
Delhly Liu
Jimmy Guo
Johnson Long
2010/09/29
2011/11/14
2011/11/14
2011/11/14
ELX-N-007841-1
Released
E
PDS: Rev :E
STATUS:Released
Printed: Dec 09, 2011
