2349-2041: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

2349-2041 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug

2349-2041 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.197 inch
subject depth	0.591 inch
body length	0.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2349
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation type	CABLE
Number of rows loaded	1
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	4
Evacuation force-minimum value	.7784 N
Base Number Matches	1

Preview

Download Datasheet

View All

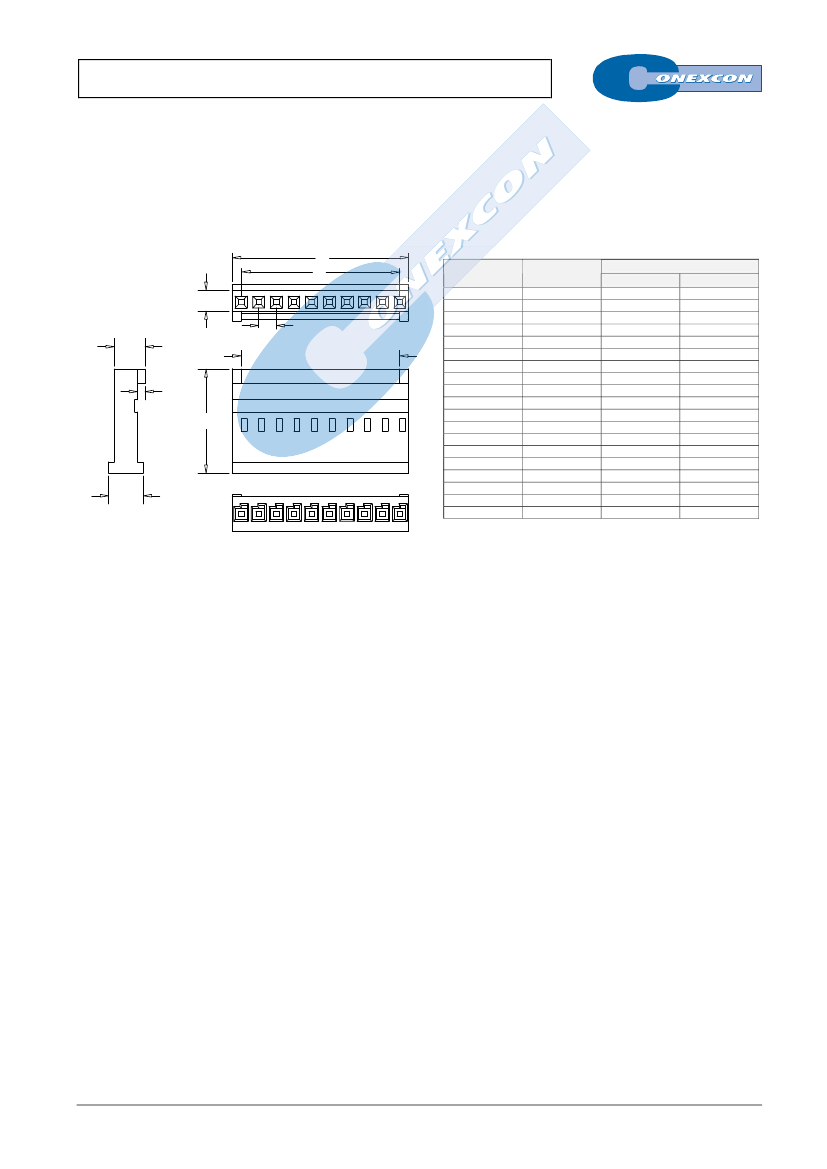

SINGLE ROW CRIMP HOUSING

2349 SERIES.

2.54mm(0.100”). With Locking Ramp.

Features



Available in 2 through 20 circuits

Insulator Material: PBT, UL 94V-0

Polarised with locking ramp



Accepts 2351 series crimp terminal

Mates with 2345, 2346 series connectors and single row

headers without polarisation pitch 2.54mm

Ordering and Dimensional Information

Dimensional Information

A

B

Circuit Size

02

03

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

Part Number

2349- 2021

2349- 2031

2349- 2041

2349- 2051

2349- 2061

2349- 2071

2349- 2081

2349- 2091

2349- 2101

2349- 2111

2349- 2121

2349- 2131

2349- 2141

2349- 2151

2349- 2161

2349- 2171

2349- 2181

2349- 2191

2349- 2201

Dimensions

A

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

50,80(2,000)

B

2,54(0,100)

5,08(0,200)

7,62(0,300)

10,16(0,400)

12,70(0,500)

15,24(0,600)

17,78(0,700)

20,32(0,800)

22,86(0,900)

25,40(1,000)

27,94(1,100)

30,48(1,200)

33,02(1,300)

35,56(1,400)

38,10(1,500)

40,64(1,600)

43,18(1,700)

45,72(1,800)

48,26(1,900)

3.4

2.54

4.5

2.54 X N’ POSIC.-1)

1.1

15.0

5.0

FULL LINE CATALOGUE

E-XX

2349-2041 Related Products

	2349-2041	2349-2171	2349-2181	2349-2191
Description	Board Connector, 4 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 17 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 18 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug	Board Connector, 19 Contact(s), 1 Row(s), Female, 0.1 inch Pitch, Crimp Terminal, Locking, Plug
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.591 inch	0.591 inch	0.591 inch	0.591 inch
body length	0.4 inch	1.7 inch	1.8 inch	1.9 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
maximum insertion force	8.0064 N	8.0064 N	8.0064 N	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2349	2349	2349	2349
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK	FRICTION LOCK
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1	1
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	4	17	18	19
Evacuation force-minimum value	.7784 N	.7784 N	.7784 N	.7784 N
Base Number Matches	1	1	1	1
