87331-3820: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87331-3820 Overview

Board Connector, 38 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

87331-3820 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MILLI-GRID, POLARIZED
body width	0.248 inch
subject depth	0.252 inch
body length	1.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	87331
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
polarization key	CTR W/GUIDE SLOTS
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	38
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

s

Features and Beneﬁts

Sizes 4 to 50 circuits

Fully shrouded to protect pins during mating/unmating

Center slot for polarization

Front latches for mechanical locking

Center polarization slot (6 to 12 circuits); center

polarization slot and front latches (14 to 50 circuits)

Electrical

Current: 2.0A

Dielectric Withstanding Voltage: 1000V

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: Black 4/6 nylon, UL 94V-0

Contact: Phosphor Bronze

Plating: See Table

Operating Temperature: -55 to +105˚C

2.00mm (.079") Pitch

Milli-Grid

™

Header

87331

Shrouded

Vertical, SMC

Reference Information

Product Speciﬁcation: PS-87331

Packaging: Tube

UL File No.: E29179

CSA File No.: LR19980

Mates With: 50394, 51110 and 87568

Designed In: Millimeters

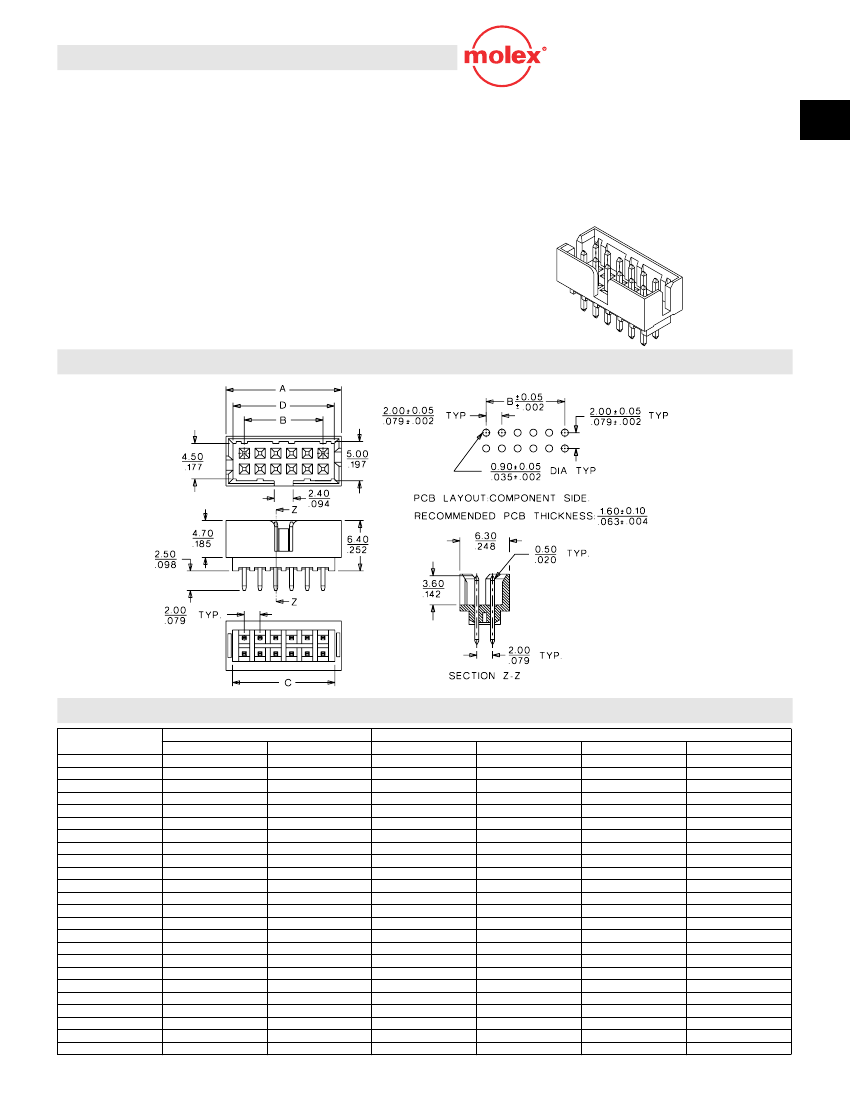

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

04

06

08

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

Order No.

15

µ

" Select Gold

87331-0420

87331-0620

87331-0820

87331-1020

87331-1220

87331-1420

87331-1620

87331-1820

87331-2020

87331-2220

87331-2420

87331-2620

87331-2820

87331-3020

87331-3220

87331-3420

87331-3620

87331-3820

87331-4020

87331-4220

87331-4420

87331-4620

87331-4820

87331-5020

30

µ

" Select Gold

87331-0421

87331-0621

87331-0821

87331-1021

87331-1221

87331-1421

87331-1621

87331-0621

87331-2021

87331-2221

87331-2421

87331-2621

87331-2821

87331-3021

87331-3221

87331-3421

87331-3621

87331-3821

87331-4021

87331-4221

87331-4421

87331-4621

87331-4821

87331-5021

A

6.65 (.262)

8.65 (.341)

10.65 (.419)

12.65 (.498)

14.65 (.577)

16.65 (.656)

18.65 (.734)

20.65 (.813)

22.65 (.892)

24.65 (.970)

26.65 (1.049)

28.65 (1.128)

30.65 (1.207)

32.65 (1.285)

34.65 (1.364)

36.65 (1.443)

38.65 (1.522)

40.65 (1.600)

42.65 (1.679)

44.65 (1.758)

46.65 (1.837)

48.65 (1.915)

50.65 (1.994)

52.65 (2.073)

B

2.00 (.079)

4.00 (.157)

6.00 (.236)

8.00 (.315)

10.00 (.394)

12.00 (.472)

14.00 (.551)

16.00 (.630)

18.00 (.709)

20.00 (.787)

22.00 (.866)

24.00 (.945)

26.00 (1.024)

28.00 (1.102)

30.00 (1.181)

32.00 (1.260)

34.00 (1.339)

36.00 (1.417)

38.00 (1.496)

40.00 (1.575)

42.00 (1.654)

44.00 (1.732)

46.00 (1.811)

48.00 (1.890)

Dimension

C

5.00 (.197)

7.00 (.276)

9.00 (.354)

11.00 (.433)

13.00 (.512)

15.00 (.591)

17.00 (.669)

19.00 (.748)

21.00 (.827)

23.00 (.906)

25.00 (.984)

27.00 (1.063)

29.00 (1.142)

31.00 (1.220)

33.00 (1.299)

35.00 (1.378)

37.00 (1.457)

39.00 (1.535)

41.00 (1.614)

43.00 (1.693)

45.00 (1.771)

47.00 (1.850)

49.00 (1.929)

51.00 (2.008)

D

4.85 (.191)

6.85 (.270)

8.85 (.348)

10.85 (.427)

12.85 (.506)

14.85 (.585)

16.85 (.663)

18.85 (.742)

20.85 (.821)

22.85 (.900)

24.85 (.978)

26.85 (1.057)

28.85 (1.136)

30.85 (1.215)

32.85 (1.293)

34.85 (1.372)

36.85 (1.451)

38.85 (1.530)

40.85 (1.608)

42.85 (1.687)

44.85 (1.766)

46.85 (1.844)

48.85 (1.923)

50.85 (2.002)

MX01

A-21

Dense

Packaging

A
