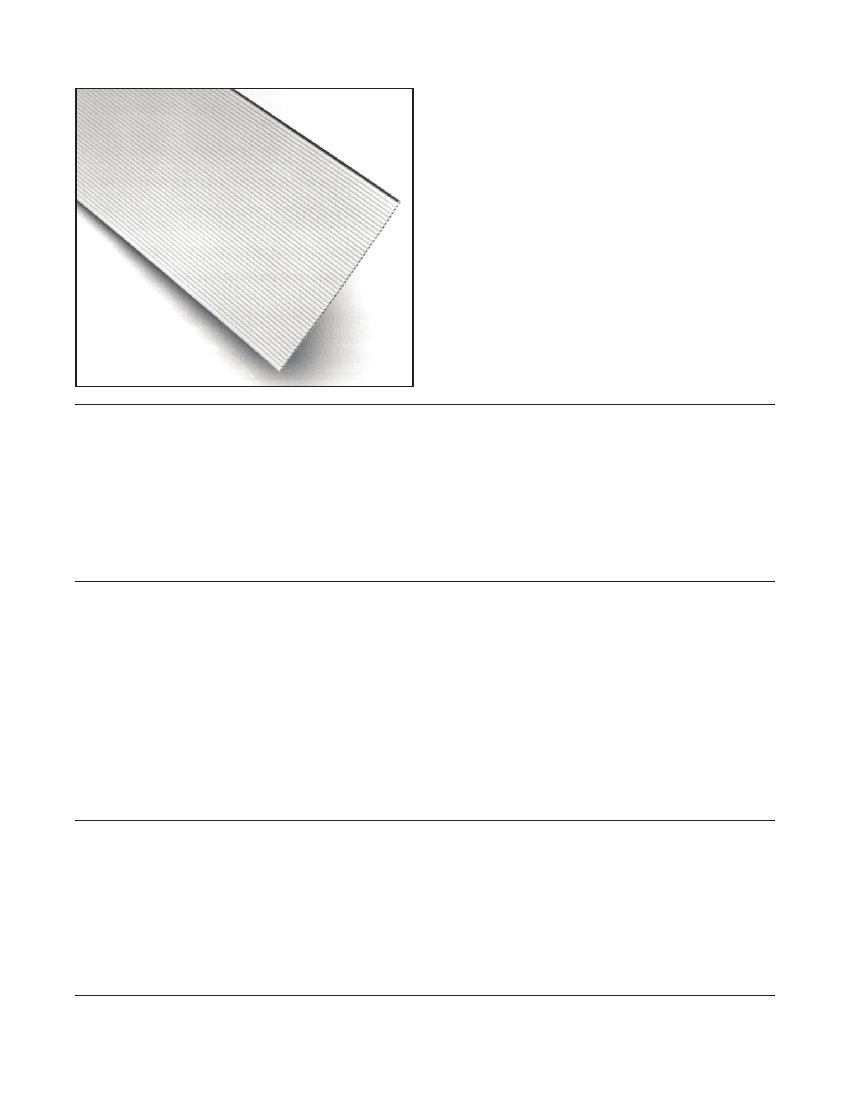

• FEP insulation is compatible with most insulation
displacement connectors
• .050 inch pitch parallel conductors for mass
termination
• Low dielectric constant
• Excellent abrasion and chemical resistance
• Excellent mechanical durability
• Nonflammable
• UL Recognized to 200°C
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 6, 2009
TS-0553-B
Sheet 1 of 2
Physical
Insulation:
Material: Flourinated Ethylene Propylene (FEP)
Color: Blue
Marking:
Standard: None
Conductors:
28 AWG, 7
×
36 AWG [ 7
×
Ø
0.127 ] Silver Plated Stranded Copper
Electrical
Voltage Rating:
USA: 300V
EU: <50V
Insulation Resistance:
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Unbalanced
Characteristic Impedance:
131
Ω
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
9.9 pF/ft [ 32.5 pF/m ]
0.17 μH/ft [ 0.56 μH/m ]
1.29 ns/ft [ 4.23 ns/m ]
79%
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-55°C to +200°C
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No: 20424
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.050" 28 AWG Stranded, FEP
Number of
Conductors
10
15
16
20
25
26
34
40
50
60
3M Part
Number
3601/10
3601/15
3601/16
3601/20
3601/25
3601/26
3601/34
3601/40
3601/50
3601/60
Dimension A
0.500 ± .010 [12.70]
0.750 ± .010 [19.05]
0.800 ± .010 [19.05]
1.000 ± .015 [25.40]
1.250 ± .015 [31.75]
1.300 ± .015 [33.02]
1.700 ± .020 [43.18]
2.000 ± .020 [50.80]
2.500 ± .020 [63.50]
3.000 ± .020 [76.20]
3601 Series
Dimension B
0.450 ± .007 [11.43]
0.700 ± .007 [17.78]
0.750 ± .007 [17.78]
0.950 ± .011 [24.13]
1.200 ± .011 [30.48]
1.250 ± .011 [31.75]
1.650 ± .015 [41.91]
1.950 ± .015 [49.53]
2.450 ± .015 [62.23]
2.950 ± .015 [74.93]
A
B
.025
±
.007
[0.64]
.050
±
.002 Typ
[1.27]
.029
±
.003
[0.74]
28 AWG, 7X 36 AWG [7X Ø 0.127]
Silver Plated Stranded Copper
Conductors
Inch
[mm]
Tolerance Unless Noted
.0
Note: Blue marking on one edge of cable designates wire #1.
.00
±.01
.000
±.005
Inch
±.1
[ ] Dimensions for Reference Only
Ordering Information
3601/XX
Number of Conductors
(See Table)
Note: Available in standard 100 ft rolls, contact 3M for availability of
additional conductor counts and/or custom roll lengths.
TS-0553-B
Sheet 2 of 2
3
Interconnect Solutions
