36769 Overview

Rectangular Power Connector, 9 Contact(s), Male, IDC Terminal

36769 Parametric

Parameter Name	Attribute value
Maker	Lumberg
Reach Compliance Code	compliant
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	3676
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

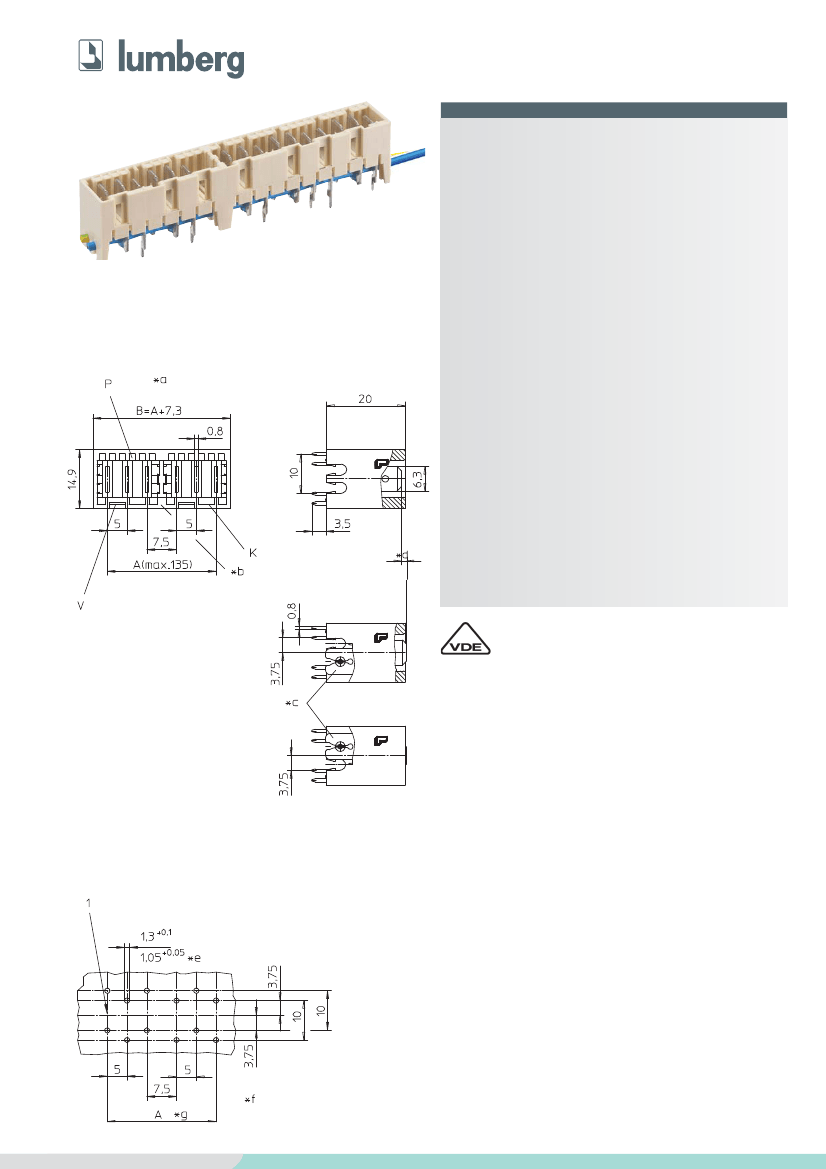

RAST-5-Steckverbinder, Raster 5,0 mm

RAST 5 connectors, pitch 5.0 mm

Connecteurs RAST 5, pas 5,0 mm

3676

RAST-5-Messerleiste, stehend, mit Zwischenwänden und

Null- und/oder Schutzleiterbrücke in Schneidklemmtechnik

(SKT)

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktmesser

3. Mechanische Daten

Kontaktmesser

Brückenleiter

Kontaktierung mit

6,3 x 0,8 mm nach DIN 46244

Schaltlitze LiY 0,75 mm

Steckverbindern 3611, 3615, 3623,

3626,

Steckverbindern nach RAST-5-

Standard

PA GF, V0 nach UL 94

CuZn, unternickelt und verzinnt

-40 °C/+120 °C

4. Elektrische Daten

Bemessungsstrom

10 A bei T

70 °C

250 V AC

Bemessungsspannung

IIIa (IEC)/2 (UL) CTI

≥

250

Isolierstoffgruppe

Kriechstrecke

≥

4,2 mm

Luftstrecke

≥

4,2 mm

Isolationswiderstand

> 10

Bauteil glühdrahtbeständig (GWT 750 °C), Prüfung nach IEC 60695-2-11,

Beurteilung nach IEC 60335-1 (Flamme < 2 s)

nach DIN EN 60664/IEC 60664, CTI UL-Klassifizierung nach ANSI/UL 746A

Reg.-Nr. 135721

*a K = Kodierung

K = keying

K = codage

P = Positionierung

P = positioning

P = positionnement

V = Raum für Verriegelung

V = space for lock

V = emplacement pour verrouillage

*b Zwischenwand

partitioning

séparation

*c Null- und Schutzleiterbrücke

neutral and protective conductor bridge

conducteurs neutre et de protection pontés

*d Null- und Schutzleiterkontakt voreilend

neutral and protective conductor contact pre-mating

contact du conducteur neutre et de protection avancé

*e Maß für Presssitz auf der Leiterplatte

measure for press-fit on printed circuit board

mesure pour autofixation sur carte imprimée par pression

*f Lochbild in der Leiterplatte, von der Bauteilseite gesehen

printed circuit board layout, components side view

modèle de la carte imprimée, vue du côté à équiper

*g A = (P - 1) x 5 + (Z x 2,5)

P = Polzahl

P = poles

P = pôles

Z = Anzahl Zwischenwände (je 12 Kontakte mindestens 1 Zwischenwand)

Z = number of partitionings (at least 1 partitioning every 12 contacts)

Z = nombre de séparations (au moins 1 séparation tous les 12 contacts)

www.lumberg.com

05/2011

36769 Related Products

	36769	36766	36764	36767	36765	36768
Description	Rectangular Power Connector, 9 Contact(s), Male, IDC Terminal	Rectangular Power Connector, 6 Contact(s), Male, IDC Terminal	Rectangular Power Connector, 4 Contact(s), Male, IDC Terminal	Rectangular Power Connector, 7 Contact(s), Male, IDC Terminal	Rectangular Power Connector, 5 Contact(s), Male, IDC Terminal	Rectangular Power Connector, 8 Contact(s), Male, IDC Terminal
Maker	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	3676	3676	3676	3676	3676	3676
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	9	6	4	7	5	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	-	-
