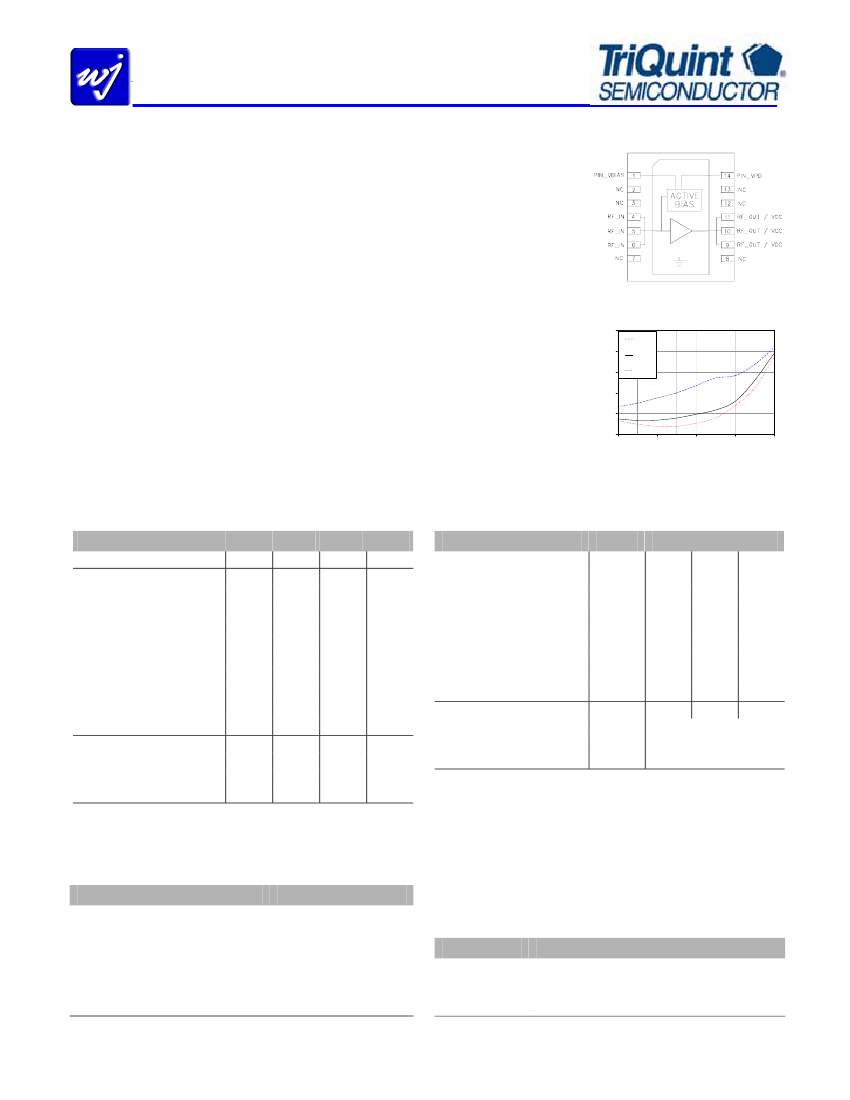

AP601
Product Features
•
800 – 2400 MHz
•
+32.5 dBm P1dB
•
-51 dBc ACLR @ ¼W P
AVG
•
-55 dBc IMD3 @ ¼W PEP
•
17% Efficiency @ ¼W P
AVG
•
•
•
•
High Dynamic Range 1.8W 28V HBT Amplifier
Product Description
The AP601 is a high dynamic range power amplifier in a
lead-free/RoHS-compliant 5x6mm power DFN SMT
package. The single stage amplifier has 13.5 dB gain, while
being able to achieve high performance for 800-2400 MHz
applications with up to +32.5 dBm of compressed 1dB power.
Functional Diagram
ACLR1 (dBc)
The AP601 uses a high reliability, high voltage
InGaP/GaAs HBT process technology.
The device
Internal Active Bias
incorporates proprietary bias circuitry to compensate for
Internal Temp Compensation
variations in linearity and current draw over temperature.
Capable of handling 7:1 VSWR @
The module does not require any negative bias voltage; an
internal active bias allows the AP601 to operate directly off
28 Vcc, 2.14 GHz, 1W CW Pout
a commonly used high voltage supply (typically +24 to
+32V). An added feature allows the quiescent bias to be
Lead-free/RoHS-compliant
adjusted externally to meet specific system requirements.
5x6 mm power DFN package
The AP601 is targeted for use as a pre-driver and driver
stage amplifier in wireless infrastructure where high
linearity and high efficiency is required. This combination
makes the device an excellent candidate for next generation
multi-carrier 3G mobile infrastructure.
ACLR1 vs. Output Power vs. Icq
WCDMA, Vcc = 28V, 2140 MHz, 25
˚C
-35
20 mA
-40
-45
-50
-55
-60
18
40 mA
50 mA
Applications
•
Mobile Infrastructure HPA
•
WiBro HPA
20
22
24
26
Average Output Power (dBm)
Specifications
W-CDMA 3GPP Test Model 1+64 DPCH, 60% clipping, PAR = 8.6 dB
@ 0.01% Probability, 3.84 MHz BW, Vcc = +28V, Icq = 40 mA
Typical Performance
W-CDMA 3GPP Test Model 1+64 DPCH, 60% clipping, PAR = 8.6 dB
@ 0.01% Probability, 3.84 MHz BW, Vcc = +28V, Icq = 40 mA
Parameter
Operational Bandwidth
Test Frequency
Output Channel Power
Power Gain
Input Return Loss
Output Return Loss
ACLR
IMD3 @ +24 dBm PEP
PIN_VPD Current, Ipd
Operating Current, Icc
Collector Efficiency
Output P1dB
Quiescent Current, Icq
Vpd, Vbias
Vcc
Units Min
MHz
MHz
dBm
dB
dB
dB
dBc
dBc
mA
mA
%
dBm
mA
V
V
800
Typ
2140
+24
13.5
12
8
-51
-55
1
52
17
+32.5
40
+5
+28
Max
2200
Parameter
Test Frequency
Channel Power
Power Gain
Input Return Loss
Output Return Loss
ACLR
IMD3 @ +24 dBm PEP
Operating Current, Icc
Collector Efficiency
Output P1dB
Quiescent Current, Icq
Vpd, Vbias
Vcc
Units
MHz
dBm
dB
dB
dB
dBc
dBc
mA
%
dBm
mA
V
V
940
+24
15.8
13
7
-50
-51
52
17
+32.5
Typical
1960
+24
15
11
10
-49
-62
52
17
+32.7
40
+5
+28
2140
+24
13.5
12
8
-51
-55
52
17
+32.5
Absolute Maximum Rating
Parameter
Storage Temperature, T
stg
Junction Temperature, T
J
For 10 hours MTTF
6
Notes:
1. The reference designs shown in this datasheet have the device optimized for WCDMA ACLR
performance at +25° C. Biasing for the amplifier is suggested at Vcc = +28V and Icq = 40 mA to
achieve the best tradeoff in terms of efficiency and linearity. Increasing Icq will improve upon the
device linearity (IMD3 and ACLR), but will decrease the efficiency performance slightly. More
information is given in the other parts of this datasheet.
2. The AP601 evaluation board has been tested for ruggedness to be capable of handling:
7:1 VSWR @ +28 Vcc, 2140 MHz, 1W CW Pout,
5:1 VSWR @ +30 Vcc, 2140 MHz, 1W CW Pout,
3:1 VSWR @ +32 Vcc, 2140 MHz, 1W CW Pout.
Rating
-55 to +125 ºC
192 ºC
Input P6dB
80 V @ 0.1 mA
51 V @ 0.1 mA
80 mA
2.3 W
Ordering Information
Part No.
AP601-F
AP601-PCB900
AP601-PCB1960
AP601-PCB2140
RF Input Power (CW tone), P
in
Breakdown Voltage C-B, BV
CBO
Breakdown Voltage C-E, BV
CEO
Quiescent Bias Current, I
CQ
Power Dissipation, P
DISS
Description
High Dynamic Range 28V 1.8W HBT Amplifier
869-960 MHz Evaluation board
1930-1990 MHz Evaluation board
2110-2170 MHz Evaluation board
Specifications and information are subject to change without notice
Operation of this device above any of these parameters may cause permanent damage.
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 1 of 10 May 2007 ver 1
AP601
40
35
30
25
Gain (dB)
20
15
High Dynamic Range 1.8W 28V HBT Amplifier

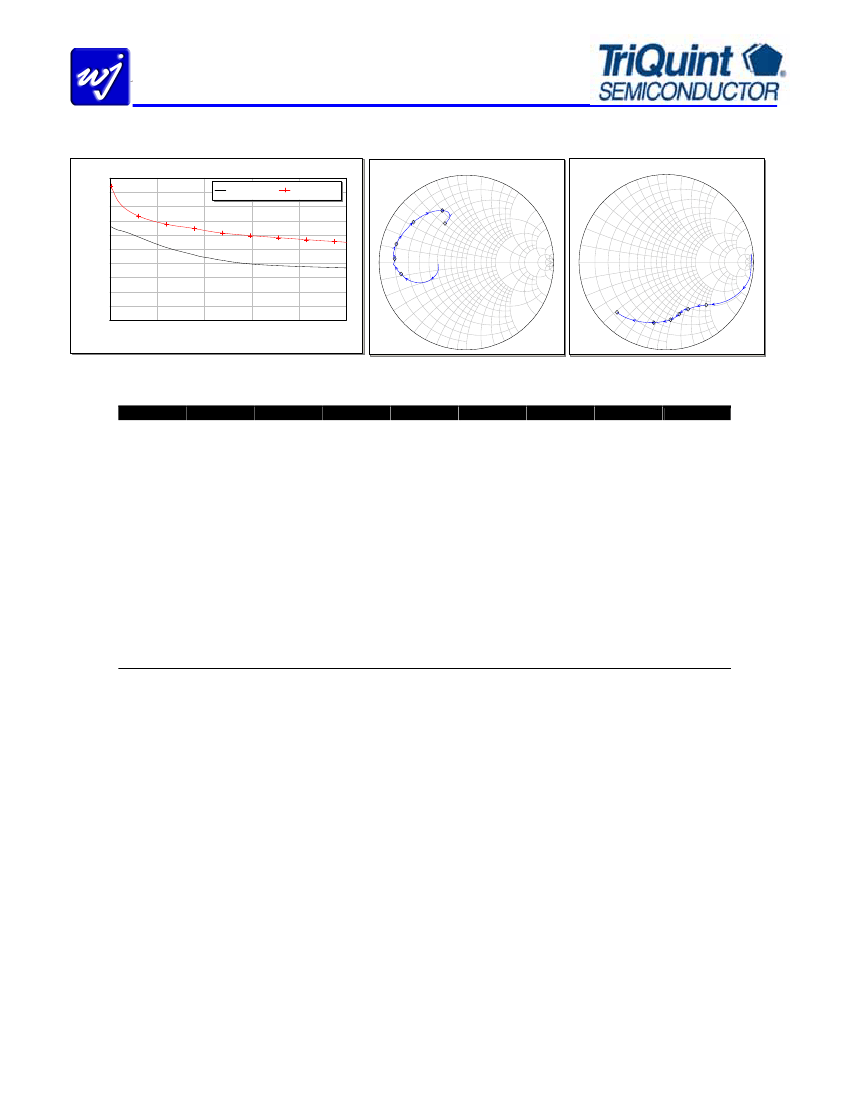

S-Parameters (V
CC
= +28 V, V
PD
= V
BIAS
= 5 V, I
CQ
= 40 mA, T = 25
°C,
unmatched 50 ohm system, calibrated to device leads)
1.0
1.0
Typical Device Data
S11
0.8
Gain / Maximum Stable Gain
DB(|S(2,1)|)
DB(GMax())
0.
4
S22
6
0.
6
0.
Swp Max
3.00001GHz
2.
0
Swp Max
3.00001GHz
2.
0
0.8
0
3.
0
4.
10.0
10.0
0.2
0.4
0.6
0.8
1.0
2.0
3.0
4.0
5.0
10
5
0
-5
-10
0
0.5
1
1.5
Frequency (GHz)
2
2.5
0
10.0
0.2
0.4
0.6
0.8
1.0
2.0
3.0
4.0
5.0
0
.4
-0
.4
-0
-0
.6
-0
.6
-0.8
-0.8
.0
-2
.0
-2
Swp Min
3e-005GHz
Swp Min
3e-005GHz
The gain for the unmatched device in 50 ohm system is shown as the trace in black color. For a tuned circuit for a particular frequency,
it is expected that actual gain will be higher, up to the maximum stable gain. The maximum stable gain is shown in the marked red line.
The impedance plots are shown from 50 – 3000 MHz, with markers placed at 0.5 – 3.0 GHz in 0.5 GHz increments.
Freq (MHz)
S11 (dB)
S11 (ang)
S21 (dB)
S21 (ang)
S12 (dB)
S12 (ang)
S22 (dB)
S22 (ang)
50
100
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
-9.60
-8.20
-5.47
-2.93
-2.02
-1.58
-1.69
-1.49
-1.52
-1.70
-2.01
-2.35
-2.78
-3.34
-4.04
-5.00
-5.86
-165.86
-156.90
-154.63
-164.90
-173.51
-179.10
177.02
173.06
168.28
162.02
153.47
142.58
130.51
119.29
111.03
109.46
118.67
22.23
21.64
20.66
18.00
15.57
13.78
12.16
11.02
10.09
9.48
9.14
8.93
8.73
8.50
8.34
8.17
8.03
169.20
160.86
144.37
121.17
107.46
98.50
89.73
82.27
75.95
69.46
61.67
52.54
42.07
30.77
17.30
1.87
-16.70
-1.0
-46.52
-41.16
-36.22
-32.88
-31.96
-31.66
-30.97
-30.27
-29.97
-29.41
-28.83
-28.18
-27.42
-26.75
-26.07
-25.45
-25.11
80.76
69.46
55.53
35.73
24.64
18.33
22.20
13.95
9.68
5.89
1.59
-4.64
-11.50
-20.45
-30.92
-44.10
-62.65
-0.25
-0.38
-1.13
-2.85
-3.92
-4.42
-4.57
-4.73
-4.46
-4.15
-3.85
-3.63
-3.42
-3.20
-2.86
-2.39
-1.91
-1.0
-5.41
-14.13
-26.14
-41.81
-51.12
-58.97
-65.06
-70.40
-74.09
-77.84
-81.69
-85.86
-90.97
-97.68
-106.74
-119.23
-134.59
Device S-parameters are available for download off of the website at: http://www.wj.com
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 2 of 10 May 2007 ver 1
-4
.0
-5.
0
-3
.0
-4
.0
-5.
0
2
-0.
2
-0.
-10.0
0.2
5.0
0.
4
-10.0
0
3.
0
4.
5.0
-3
.0
0.2
10.0
AP601
High Dynamic Range 1.8W 28V HBT Amplifier

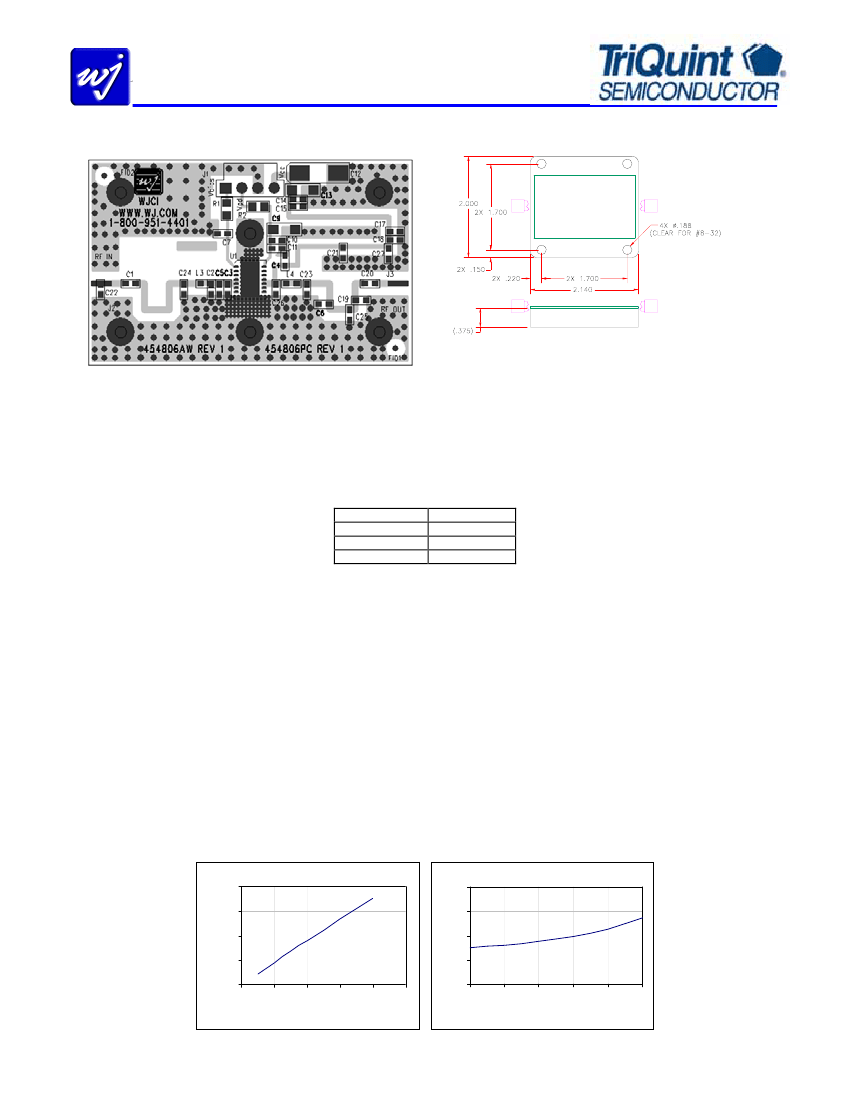

Application Circuit PC Board Layout
Baseplate Configuration
Circuit Board Material: 0.0147” Rogers Ultralam 2000, single layer, 1 oz
copper,
ε
r
= 2.45, Microstrip line details: width = .042”, spacing = .050”
Notes:
1. Please note that for reliable operation, the evaluation board will have to be mounted to a much larger
heat sink during operation and in laboratory environments to dissipate the power consumed by the
device. The use of a convection fan is also recommended in laboratory environments.
2. The area around the module underneath the PCB should not contain any soldermask in order to
maintain good RF grounding.
3. For proper and safe operation in the laboratory, the power-on sequencing is recommended.
Evaluation Board Bias Procedure
Following bias procedure is recommended to ensure proper functionality of AP601 in a laboratory environment. The sequencing is not
required in the final system application.
Bias.
Vcc
Vbias
Vpd
Voltage (V)
+28
+5
+5
Turn-on Sequence:
1.
2.
3.
4.
5.
1.
2.
3.
4.
Notes:
1.
2.
3.
Attach input and output loads onto the evaluation board.
Turn on power supply Vcc = +28V.
Turn on power supply Vbias = +5V. At this point, the only current drawn by the device is leakage current (< 25μA).
Turn on power supply Vpd = +5V. Power supply Vcc should now be drawing typical Icq = 40 mA.
Turn on RF power.
Turn off RF power.
Turn off power supply Vpd = +5V.
Turn off power supply Vbias = +5V.
Turn off power supply Vcc = +28V.
Icq can be adjusted with the resistor R2 from the Vpd (+5V) supply and the PIN_VPD (pin14) of the amplifier. Increasing R2
results in a lower Icq. Icq should not be increased above 80mA.
Vpd is used as a reference for the internal active bias circuitry. It can be used to turn on/off the amplifier. Ipd depends on the Icq
quiescent current setting. Ipd can be up to 2mA at a quiescent current setting of 40mA.
Vbias should be maintained fixed at +5V. Ibias will change based on RF input power level. It can be up to 2mA on the AP601.
Turn-off Sequence:
Ipd vs Icq
2
Ibias (mA)
Ibias vs Output Power
2
1.5
1
0.5
0
Ipd (mA)
1.5
1
0.5
0
0
20
40
60
80
100
Icq Setting (mA)
18
20
22
24
26
28
Output Average Power (dBm)
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 3 of 10 May 2007 ver 1
AP601
Frequency (MHz)
W-CDMA Ch. Power
Power Gain
Input Return Loss
Output Return Loss
ACLR
IMD3 @ +24 dBm PEP
Operating Current, Icc
Collector Efficiency
Output P1dB
Quiescent Current, Icq
Vpd, Vbias
Vcc
High Dynamic Range 1.8W 28V HBT Amplifier

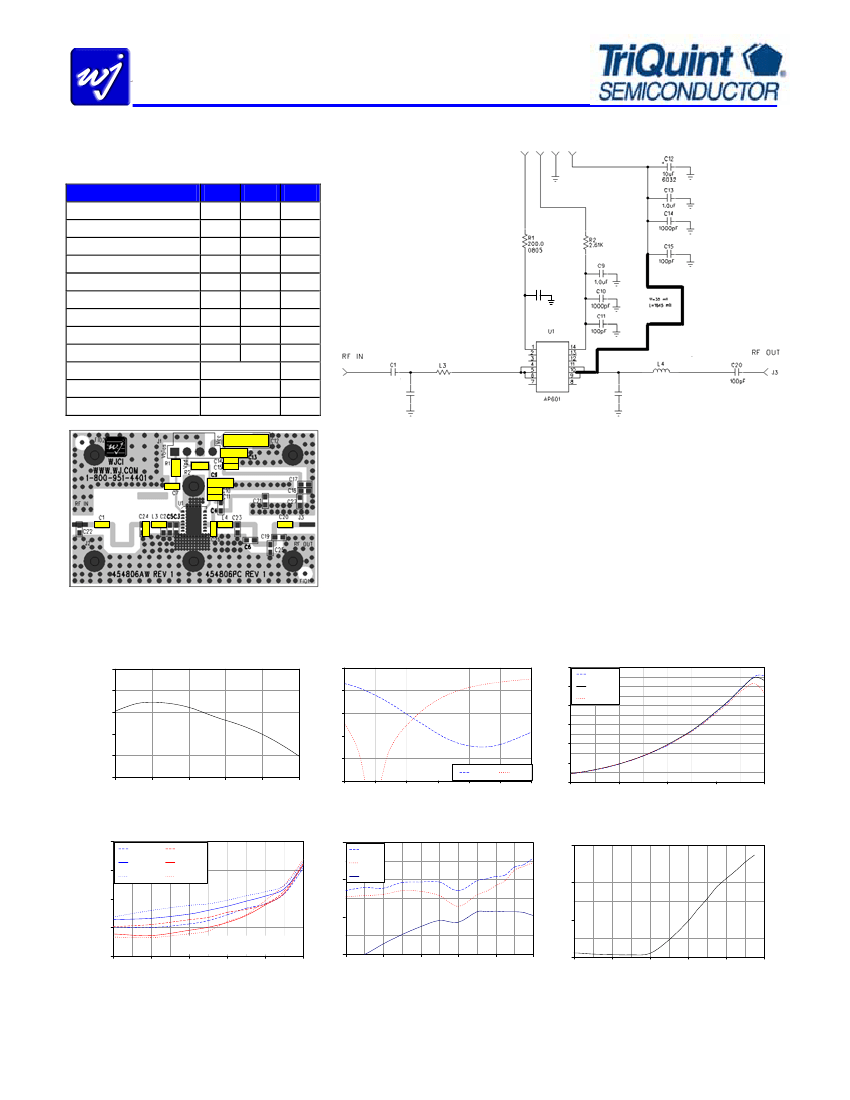

869-960 Application Circuit (AP601-PCB900)
Typical WCDMA Performance at 25
°C
at a channel power of +24 dBm
880
940 Units
+24
+24 dBm
16.5 15.8
dB
8.9
14
dB
15
7.5
dB
-50
-50
dBc
-51
-51
dBc
54
52
mA
16.6
17
%
+32.5 +32.5 dBm
40
mA
+5
V
+28
V
V
PD
GND
V
BIAS
V
CC
C7
1000pF
3.3pF
See note 3
5.1 Ohm
C24
1.8pF
See note 4
15nH
See note 6
C26
0.5pF
See note 5
Notes:
1. The primary RF microstrip line is 50
Ω.
2. Components shown on the silkscreen but not on the schematic are not used.
3. The center of C1 is at 0.710” (29.1° @ 940 MHz) from the center of C24.
4. The center of C24 is placed at 0.285” (11.7°@ 940 MHz) from the edge of the AP601 (U1).
5. The center of C26 is placed at 0.055” (2.3° @ 940 MHz) from the edge of the AP601 (U1).
6. The center of L4 is at 0.095” (3.9° @ 940 MHz) from the center of C26.
7. The bold-faced RF trace is for the DC bias feed. The stub’s length is approximately a ¼
λ.
8. The main RF trace is cut at components L3 and L4 for this particular reference design.
869-960 MHz Application Circuit Performance Plots
Gain vs. Frequency
Vcc = 28V, Icq = 40 mA, 25
˚C
S11, S22 vs. Frequency
Vcc = 28V, Icq = 40 mA, 25
˚C
Efficiency vs. Output Power vs. Frequency
CW tone, Vcc = 28V, Icq = 40 mA, 25
˚C
18
17
S11, S22 (dB)
0
60
Collector Efficiency (%)
920 MHz
940 MHz
960 MHz
-5
-10
-15
-20
50
40
30
20
10
0
Gain (dB)
16
15
14
13
0.8
0.84
0.88
0.92
0.96
1
Frequency (GHz)
ACLR1 vs. Output Power vs. Frequency
WCDMA, Vcc = 28V, Icq = 40 mA, 25
˚C
S11
-25
0.8
0.85
0.9
0.95
1
1.05
S22
1.1
17
21
25
29
33
Frequency (GHz)
Output Power (dBm)
ACPR vs. Output Power vs. Frequency
IS-95A, 9 Ch. Fwd, 940 MHz, Vcc = 28V, Icq = 40 mA, 25
˚C
IMD vs. Output Power
CW 2-tone signal, 940 MHz,
∆f
= 1 MHz, 28V, 40 mA Icq, 25
˚C
-40
869 MHz
880 MHz
920 MHz
940 MHz
-40
IMD3L
IMD3U
-40
ACLR1 (dBc)
-45
IMD (dBc)
-50
ACPR (dBc)
894 MHz
960 MHz
IMD5
-50
-50
-60
-60
-55
WCDMA 3GPP Test Model 1+64DPCH,
60% clipping, PAR = 8.6 dB @ 0.01%
-60
16
18
20
22
24
26
-70
20
22
24
26
28
30
Output Power, PEP (dBm)
-70
17
19
21
23
25
27
Average Output Power (dBm)
Average Output Power (dBm)
Unconditionally stable circuit version of this application circuit is available for download off of the website at: http://www.wj.com
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 4 of 10 May 2007 ver 1
AP601
Frequency
W-CDMA Channel Power
Power Gain
Input Return Loss
Output Return Loss
ACLR
IMD3 @ +24 dBm PEP
Operating Current, Icc
Collector Efficiency
Output P1dB
Quiescent Current, Icq
Vpd, Vbias
Vcc
High Dynamic Range 1.8W 28V HBT Amplifier

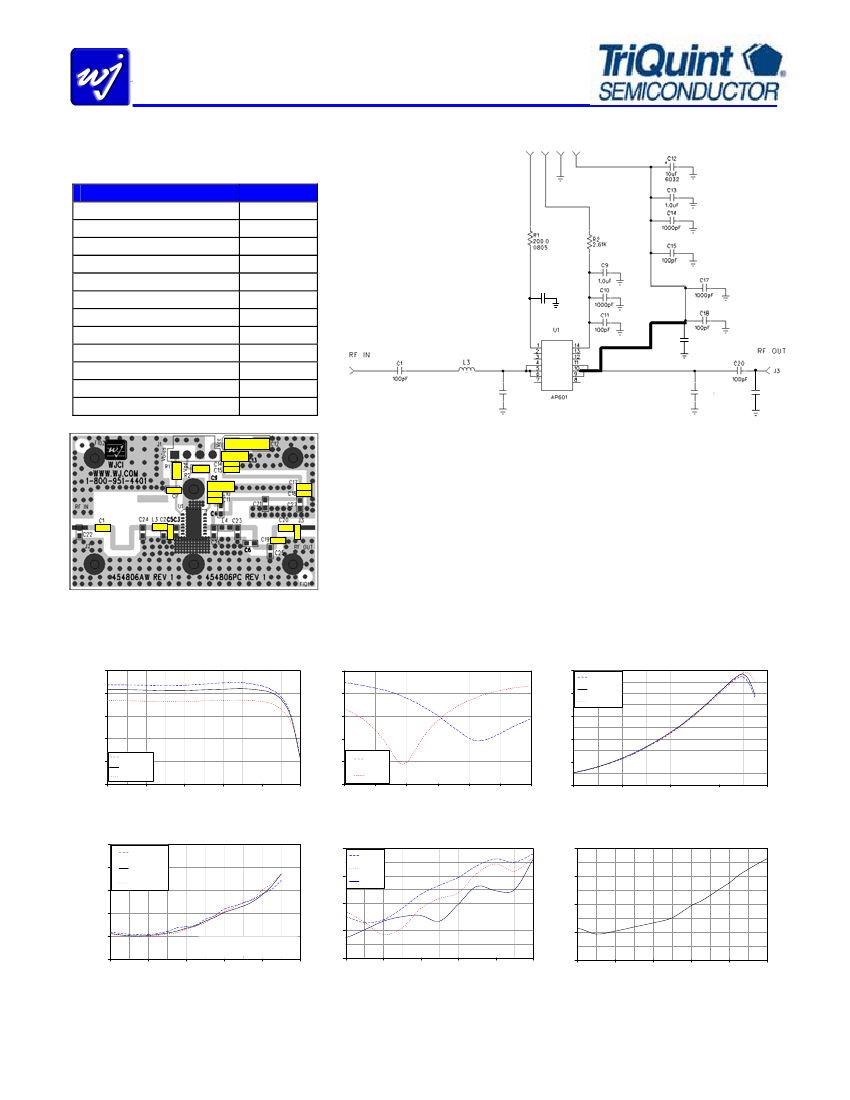

1930-1990 MHz Application Circuit (AP601-PCB1960)
Typical WCDMA Performance at 25
°C
at a channel power of +24 dBm
1960 MHz
+24 dBm
15 dB
11 dB
10 dB
-49 dBc
-62 dBc
52 mA
17 %
+32.7 dBm
40 mA
+5 V
+28 V
V
PD
GND
V
BIAS
V
CC
C7
1000pF
W = .030”
L = .980”
C27
0.1μF
4.7 nH
See note 3
C5
2.2pF
See note 4
C19
2.4pF
See note 5
C28
0.8pF
See note 6
Notes:
1. The primary RF microstrip line is 50
Ω.
2. Components shown on the silkscreen but not on the schematic are not used.
3. The center of L3 is placed at 0.035” (3.0° @ 1960 MHz) from the center of C5.
4. The center of C5 is placed at 0.085” (7.3° @ 1960 MHz) from the edge of the AP601 (U1).
5. The center of C19 is placed at 0.755” (64.5° @ 1960 MHz) from the edge of the AP601 (U1).
6. The center of C18 is placed at 0.300” (25.6° @ 1960 MHz) from the center of C19.
7. The bold-faced RF trace is for the DC bias feed. The stub’s length is approximately a ¼
λ.
8. The main RF trace is cut at component location L3 for this particular reference design.
1930-1990 MHz Application Circuit Performance Plots
Gain vs. Output Power vs. Frequency
CW tone, Vcc = 28V, Icq = 40 mA, 25
˚C
S11, S22 vs. Frequency
Vcc = 28V, Icq = 40 mA, 25
˚C
Efficiency vs. Output Power vs. Frequency
CW tone, Vcc = 28V, Icq = 40 mA, 25
˚C
16
15
14
13
12
11
23
1930 MHz
1960 MHz
1990 MHz
0
50
Collector Efficiency (%)
1930 MHz
1960 MHz
1990 MHz
-5
40
30
20
10
0
S11, S22 (dB)
Gain (dB)
-10
-15
-20
-25
S11
S22
25
27
29
31
33
1.8
1.85
1.9
1.95
2
2.05
2.1
18
22
26
30
34
Output Power (dBm)
ACLR1 vs. Output Power vs. Frequency
Vcc = 28V, Icq = 40 mA, 25
˚C
Frequency (GHz)
Output Power (dBm)
ACPR vs. Output Power vs. Frequency
IS-95A, 9 Ch. Fwd, 1960 MHz, Vcc = 28V, Icq = 40 mA, 25
˚C
IMD vs. Output Power
CW 2-tone signal, 940 MHz,
∆f
= 1 MHz, 28V, 40 mA Icq, 25
˚C
-40
1930 MHz
-40
-50
IMD (dBc)
-40
IMD3L
IMD3U
-45
1960 MHz
1990 MHz
ACLR1 (dBc)
-50
-55
-60
-65
16
18
20
22
24
26
WCDMA 3GPP TM 1+64DPCH,
60% clipping, PAR = 8.6 dB
-60
-70
-80
22
24
26
28
30
32
Output Power, PEP (dBm)
ACPR (dBc)
IMD5
-50
-60
-70
-80
17
19
21
23
25
27
Average Output Power (dBm)
Average Output Power (dBm)
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com, www.TriQuint.com
Page 5 of 10 May 2007 ver 1
Talking
京公网安备 11010802033920号
EEWORLD
