TVS01RF25-92H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TVS01RF25-92H

TVS01RF25-92H: DescriptionMIL Series Connector; CategoryThe connector The connector; File Size123KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

TVS01RF25-92H Overview

MIL Series Connector

TVS01RF25-92H Parametric

Parameter Name	Attribute value
Objectid	7050328435
Reach Compliance Code	unknown
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Number of contacts	92,9
Contact size	22D,16
Coupling type	THREADED
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
insulator material	POLYETHYLENE
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
polarization	N
Shell surface	NICKEL PLATED
Shell material	COMPOSITE
Housing size	25
Termination type	CRIMP
Total number of contacts	101
Unique insertion number	25-92

Preview

Download Datasheet

View All

Amphenol

Aerospace

38999

III

Dualok

SJT

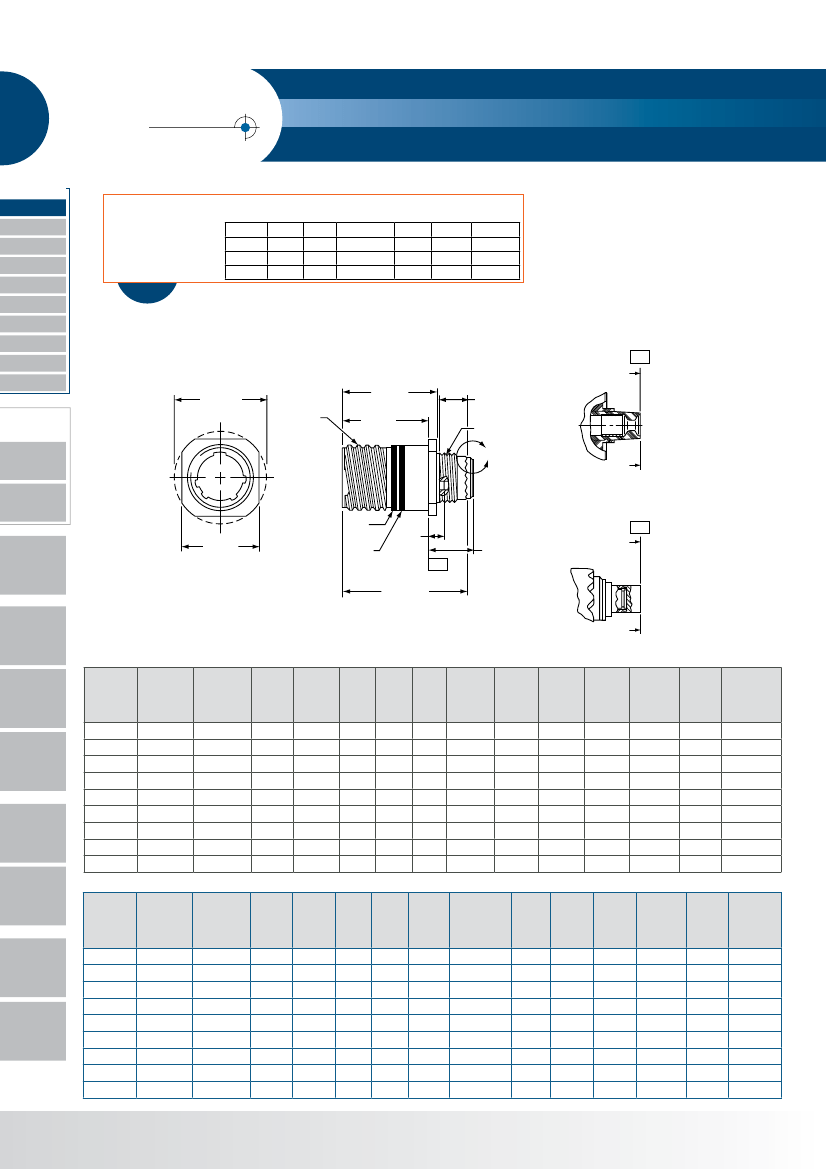

TV01R – Crimp, Metal

CTV01R – Crimp, Composite

Line Receptacle

Shell

Style

Service Shell Size

Class & Insert Arrg

Contact Alternate

Special

Type

Position Variations

PART #

To complete,

see how to order

pages 25-27.

Connector

Type

TVS

CTV

CTVS

9-35

X-X

(453)

(XXX)

ccessories

quacon

erm/Seal

PCB

HIgH

SPEED

Fiber

Optics

Connectors

GG (TV)

(CTV)

THREAD

LL (TV)

(CTV)

M (TV)

(CTV)

VIEW D

FOR SIZE 8 COAXIAL ONLY,

RELATIVE TO –A–

.861 MAX

21.87 MAX

(TV)

.280 MIN FULL THD

7.11 MIN FULL THD

V THREAD

.909 MAX

23.09 MAX

(CTV)

VIEW D

FOR SIZE 8 TWINAX ONLY,

RELATIVE TO –A–

L (TV)

(CTV)

1.037 MAX

26.34 MAX

(TV)

Contacts

Cables

RED

BAND

†

BLUE

BAND

††

EMI Filter

Transient

S (TV)

(CTV)

2 PLACES

Z (TV)

(CTV)

–A–

1.240MAX

31.50 MAX

Matrix 2

26482

† Red band indicates fully mated

†† Blue band indicates rear release contact retention system

1.084 MAX

27.53 MAX

(CTV)

Inches

83723 III

Matrix|Pyle

Shell

Size

B Thread

0.1P-0.3L-

MS Shell

TS-2A

Size Code (Plated)

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

+.000

–.005

(TV)

.820

.790

+.00

–.13

(CTV)

+.000

–.005

(CTV)

.773

.741

Max.

(TV)

.469

.500

Max. ±.010 S

±.010

(CTV) (TV)

(CTV)

.514

.545

.675

.800

.925

1.050

1.238

1.300

1.425

1.550

1.675

.635

.765

.885

1.100

1.197

1.260

1.385

1.510

1.635

Z Max

(TV)

.153

.183

Z Max

(CTV)

±.010

(TV)

.812

.905

1.093

1.219

1.375

1.469

1.625

1.750

1.875

±.010

(CTV)

.699

.875

1.007

1.140

1.229

1.380

1.493

1.626

1.777

+.006

–.000

(TV)

.905

+.15

–.00

(TV)

22.99

±.005

(CTV)

.908

.904

Millimeters

.198

.228

22992

Class L

Crimp Rear

Release

Matrix

5015

26500

Pyle

Shell

Size

MS Shell

Size

Code

+.00–.013

(TV)

20.83

20.07

L Max. Max. S ±.25 ±.010

(TV) (CTV) (TV) (CTV)

11.91

12.70

13.06

13.84

17.15

20.32

23.50

26.67

31.45

33.02

36.20

39.37

42.55

16.13

19.43

22.47

27.94

30.40

32.00

35.18

38.35

41.53

V Thread

Metric

M12X1-6g

M15X1-6g

M18X1-6g

M22X1-6g

M25X1-6g

M28X1-6g

M31X1-6g

M34X1-6g

M37X1-6g

Z Max Z Max

(TV)

(CTV)

±.25

(TV)

20.62

22.99

27.76

30.96

34.93

37.31

41.28

44.45

47.63

GG ±.25

(CTV)

±.13

(CTV)

23.06

22.96

Back-

Shells

19.63

18.82

3.89

4.65

5.03

5.79

17.75

22.22

25.57

28.95

31.21

35.05

37.92

41.30

45.13

Options

Others

All dimensions for reference only

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com
