SFL Series, 75–600 Watt
Power Supplies
The SFL series is a DIN Rail switching power supply series
that complements the SolaHD SDN™ products with more
input voltage, output voltage and power levels to give an
even broader range of industrial DC power solutions.
These products are available in 12, 24 and 48 Vdc output
and 115/230 Vac Input. They feature pluggable screw
connectors* (mating connectors are included in each box
sold) for easy installation and service. The products feature
a DIN Rail connection, front panel DC OK indicators, and
easily accessible AC and DC connections.
For parallel operation with power sharing, a redundant
version is available for the 300 W (24 V/12 A) and 600 W
(24 V/24 A) models.
Features
• DIN Rail Mount regulated switch mode power supplies
• 12 V, 24 V, and 48 V outputs available from 1.5-24 A
• Easy-to-wire pluggable* and screw terminal connectors
• Adjustable output voltage
• Selectable input: 115/230 Vac
• UL1604 Listed for Class 1, Division 2 hazardous
locations (except -RED and -UDS versions)
• UL 508 Listed (except -RED and -UDS versions).
No derating necessary.
• Two year warranty
* Except 600 watt models.
UL 508 Listed
IND. CONT.
EQ.E6I379
UL 60950
E137632
CUL/CSA-C22.2
No. 234-M90
EMC and
Low Volt.
Directive
• Fully Integrated Redundant models available:
- RED (For SFL24-24-100 and SFL12-24-100 only)
Designed for N + 1 redundant power supply systems,
these units provide active current sharing and allow
up to 5 power supplies to be paralleled. Decoupling
diodes and an alarm output to signal a unit failure
are included in this option. Multiple units are required
for redundancy.
• Models with optional battery back-up available:
-
UDS (For SFL24-24-100 and SFL12-24-100 only)
Contact Technical Services for details.
Selection Table
Catalog Number
SFL 6-12-100
SFL 1.5-48-100
SFL 3-48-100
SFL 12-24-100
SFL 6-48-100
SFL 24-24-100
SFL 12-48-100
115/230 Vac
Input Voltage Selectable
Output Power Maximum
75 Watt
150 Watt
300 Watt
600 Watt
Redundant Models
SFL 12-24-100RED
SFL 24-24-100RED
115/230 Vac
300 Watt
600 Watt
24 Vdc
12 A
24 A
Output Voltage Nominal
12 Vdc
48 Vdc
48 Vdc
24 Vdc
48 Vdc
24 Vdc
48 Vdc
Output Current Maximum
6A
1.5 A
3A
12 A
6A
24 A
12 A
134
Visit our website at www.solahd.com or
contact Technical Services at (800) 377-4384 with any questions.
Power Supplies
SFL Specifications
Parameter
Input
Input voltages nominal (user selectable)
Input Frequency
Input current at full load (typical)
- 75 W (12 V/6 A, 24 V/3 A, 48 V/1.5 A)
- 150 W (24 V/6 A, 48 V/3 A)
- 300 W (24 V/12 A, 48 V/6 A)
- 600 W (24 V/24 A, 48 V/12 A)
4
Value
General
-25°C...+70°C 2%/°C
-25°C...+85°C
95% rel H max.
100 kHz typical
67 kHz typical
>85%
LED, DC OK
3,000 Vac (1 minute)
2,000 Vac (1 minute)
500 Vac (1 minute)
Class 1
IEC950,EN60950,CE marked
for LVD, UL60950 recognized
and UL 508.
EN55022 Class B, EN55011
Class B, FCC-B
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-6
EN61000-4-8
IP 20
Steel
Snap-on 35 mm DIN Rail as
per EN50022 or Chassis mounting
option available
4 kV/8 kV
10 V/m
2 kV
10 V
30 A/m
Value
93-132 Vac / 187-264 Vac
47-63 Hz
115 Vac
1.7A
3.0A
5.4A
10.5A
115 Vac
16.5 A
35.0 A
35.0 A
70.0 A
4.0 A
6.3 A
12.0 A
230 Vac
0.9 A
1.7 A
3.3 A
6.4 A
230 Vac
33.0 A
70.0 A
70.0 A
80.0 A
Parameter
Operating Temperature Range
Derating above 50°C
Storage Temperature
Humidity (non condensing)
Switching Frequency
- 75 W
- 150 W/300 W/600 W
Inrush current (max.)
- 75 W
- 150 W
- 300 W
- 600 W
Efficiency
Operation Indication
Isolation Voltage
- Input/output
- Input/case
- Output/case
Internal fuse (slow blow) not accessible
- 75 W / 150 W
- 300 W
- 600 W
Safety Class (IEC536)
Safety Standards Met
Output
Voltage Adjustment Range
- 12 V models
- 24 V models
- 48 V models
12 – 14 Vdc
24 – 28 Vdc
48 – 52 Vdc
±0.2% max.
±1.0% max.
±0.5% max.
< 50 mVpp
110 % typ. (constant current)
Up to 5 units
140% typical out nominal
min. 20 mS
Conducted EMI according to:
Electromagnetic Susceptibility
- Electrostatic discharge ESD.
- RF field susceptibility.
- Electrical fast transients/
bursts on main line.
- Immunity to conducted radio
frequency disturbances above
9 kHz.
- Mains frequency field
Output Regulation
- Line voltage variation
- Load variation 10–90%
75W, 150W models
300W, 600W models
Ripple and noise (20 MHz bandwidth)
Electronic short circuit protection /
current limitation
Parallel Operation
- SFL12-24-100RED
- SFL24-24-100RED
Case protection according to IEC529
Case material
Mounting
Overvoltage Protection, trigger point at
Holdup Time
Mounting Brackets
For easy conversion to panel or chassis mounting.
Catalog Number
SFL 75-PMBRK
SFL 150-PMBRK
SFL 300-PMBRK
SFL 600-PMBRK
Output Power Maximum
75 Watt
150 Watt
300 Watt
600 Watt
Visit our website at www.solahd.com or
contact Technical Services at (800) 377-4384 with any questions.
135
4

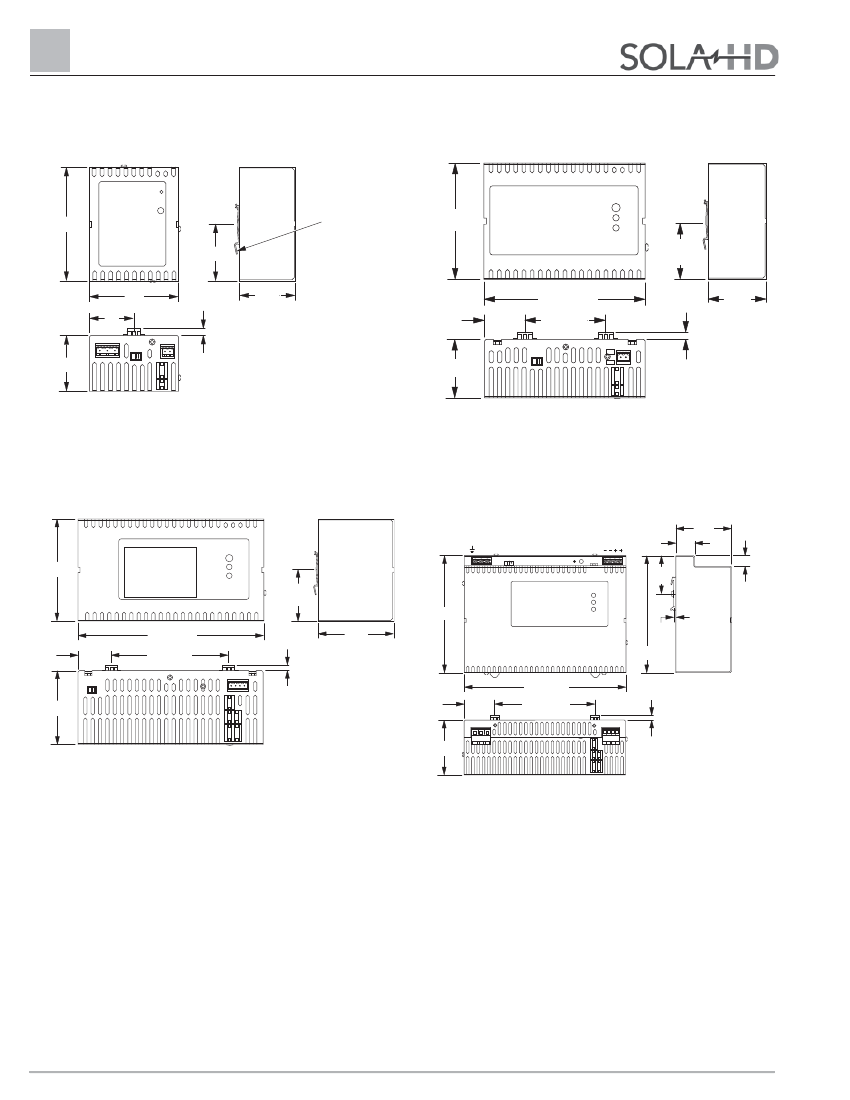

SFL Series Dimensions (inches/mm)
SFL 75 Watt (12 V/6 A, 48 V/1.5 A)
Power Supplies
SFL 150 Watt (SFL 3-48-100)
SOLA
SFL 6-12-100
LED
4.51 (114.6)
2.25 (57.3)
Clip for
35 mm DIN-rail
SOLA
SFL3-48-100
LED
4.51 (114.6)
2.25
(57.3)
3.54
(90)
1.77
(45)
.27 (7)
50V
2.23
(56.7)
6.18 (157)
1.51
(38.5)
50V
2.23
(56.7)
.27 (7)
3.14 (80)
2.23 (56.7)
2.23 (56.7)
Weight: 1.06 lbs/.48 kg approx.
Weight: 1.6 lbs/.73 kg approx.
SFL 300 Watt (SFL 12-24-100[RED], SFL 6-48-100)
SFL 600 Watt (SFL 12-48-100, SFL 24-24-100[RED])
3.25
(82.6)
S O LA
SFL 12-24-100
NP
LED
V
out
adi
LED
1.06
(27.1)
.60 (15.3)
2.24
(57.0)
4.51 (114.6)
2.25
(57.3)
6.97 (177.2)
8.14 (207)
1.51
(38.5)
5.11 (130)
.27 (7)
9.56 (243)
1.83
(46.5)
5.90 (150)
3.26
(83)
S O LA
SFL 24-24-100
.13
(3.4)
6.97 (177.2)
50V
3.26 (83)
.27 (7)
3.25 (82.8)
Weight: 3.09 lbs/1.4 kg approx.
Weight: 4 lbs/1.81 kg approx.
136
