27-7200-110-000-001 datasheet, PDF

27-7200-110-000-001: DescriptionBoard Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,; CategoryThe connector The connector; File Size73KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

27-7200-110-000-001 Overview

Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	27-7200-110
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
Base Number Matches	1

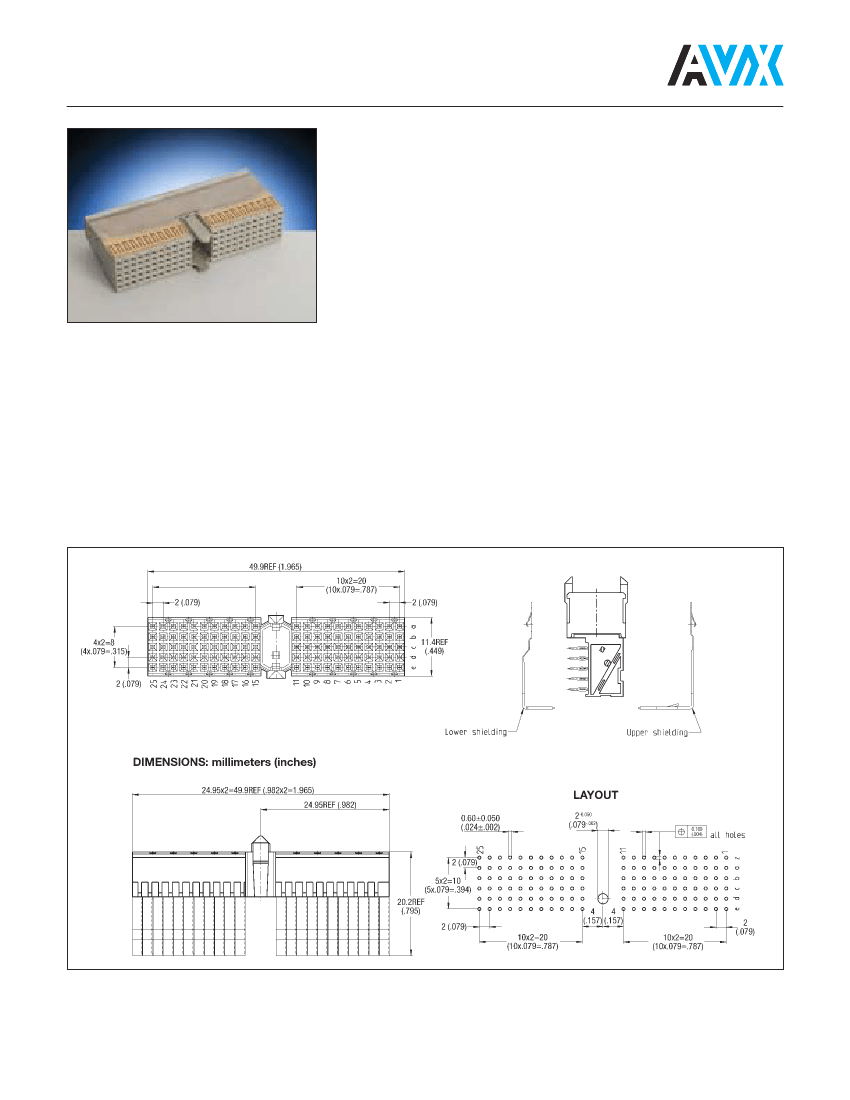

Right Angle Female

Style A 25 – 110 Contacts

• 110 signal contacts in 5 rows of 25 positions

• Center cavity with pre-alignment guides and polarization option (uses 3

positions)

• Designed for gas tight press-fit installations

• This connector can be used by itself or in conjunction with Style B or C

connectors

• Used in positions J1 and J4 of the CompactPCI

specification (Daughter

Card)

• Available with or without upper ground return shield

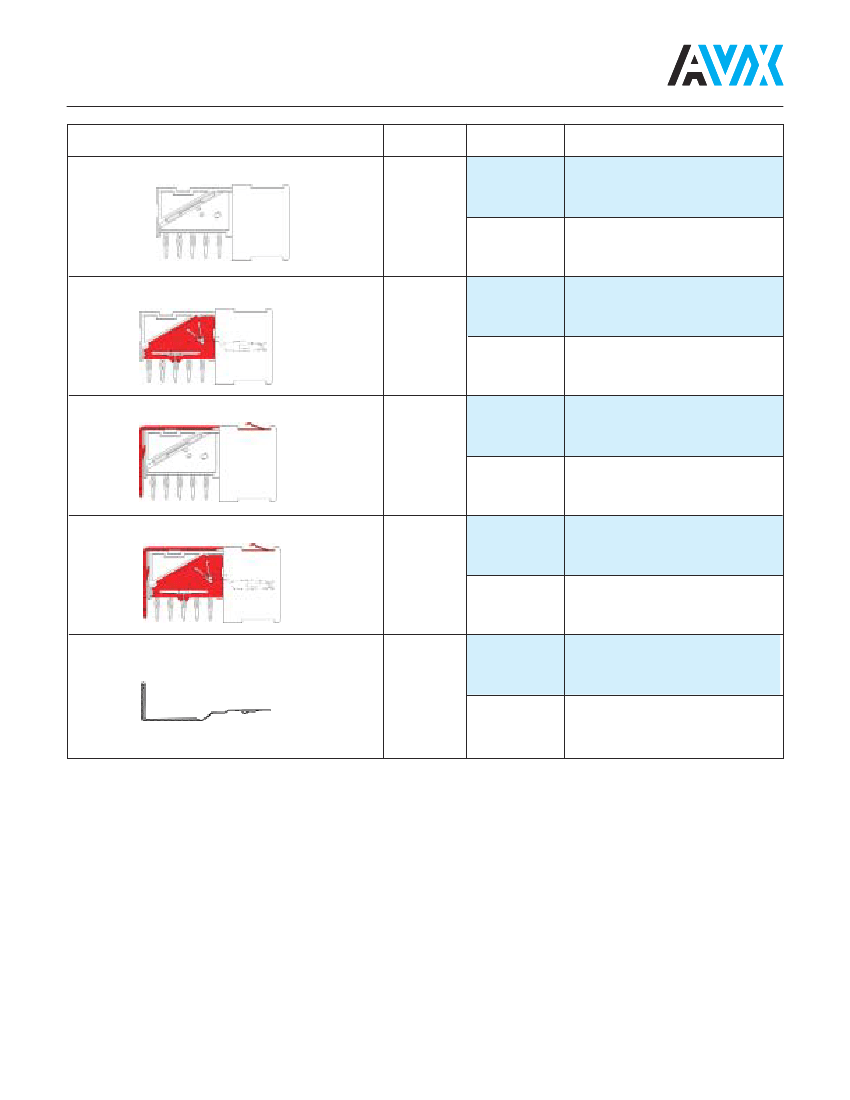

• Lower shield available, see next page

• Reduced crosstalk version available

ELCO

	27-7200-110-000-001	27-7200-110-003-001	27-7200-110-002-001	27-7200-110-001-001
Description	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant
Other features	POLARIZED	POLARIZED, SHIELDED	POLARIZED, SHIELDED	POLARIZED
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	27-7200-110	27-7200-110	27-7200-110	27-7200-110
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	110	110	110	110
Base Number Matches	1	1	1	1
