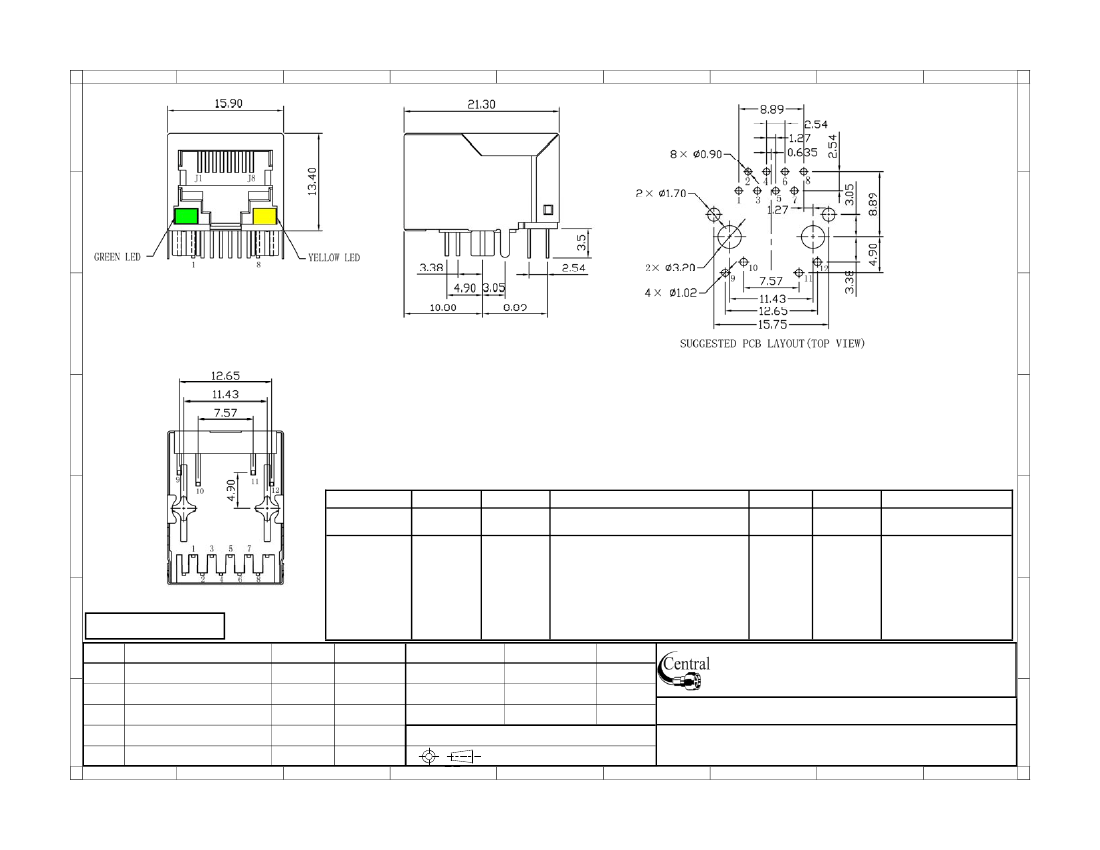

SPECIFICATIONS
.Housing:
Contact/Shield:
Shield Plating:
Contact Plating:
Solder Temp:
Series
Positions
X
Contacts
XX
02-10
Body Style
LM0011B
Side entry thru
hole bottom
latch
Thermoplastic UL94V-0
Copper Alloy
Nickel
Gold 6 micro-inches in contact area
265°C Max @ 5 Sec Max
LED
LXX
Color
BK
Plating
PX
Options
XX
Blank=None
FSY=Full shield
Y:Panel Grounds
(Omitted)=None
2=Top (Dual)
4=Sides(Dual)
6=Top & sides(Dual)
D
E
CTJ
Modular jack, 4-10
single position
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
(omitted)=no LED
Left then right LED
R=Red
G=Green
Y=Yellow
K=Blank
BK=Black P0=6µ”
P1=15µ”
P2=30µ”
P3=50µ”
F
Date
12/12/08
12/12/08
12/12/08 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CTJ-8-08-LM0011BLGY-BK-P0-FS
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: RJ45 Connector with 10/100 Base-T
Integrated Magnetics
1
2
3
4
5
6
7
8
9
A
B
C
D

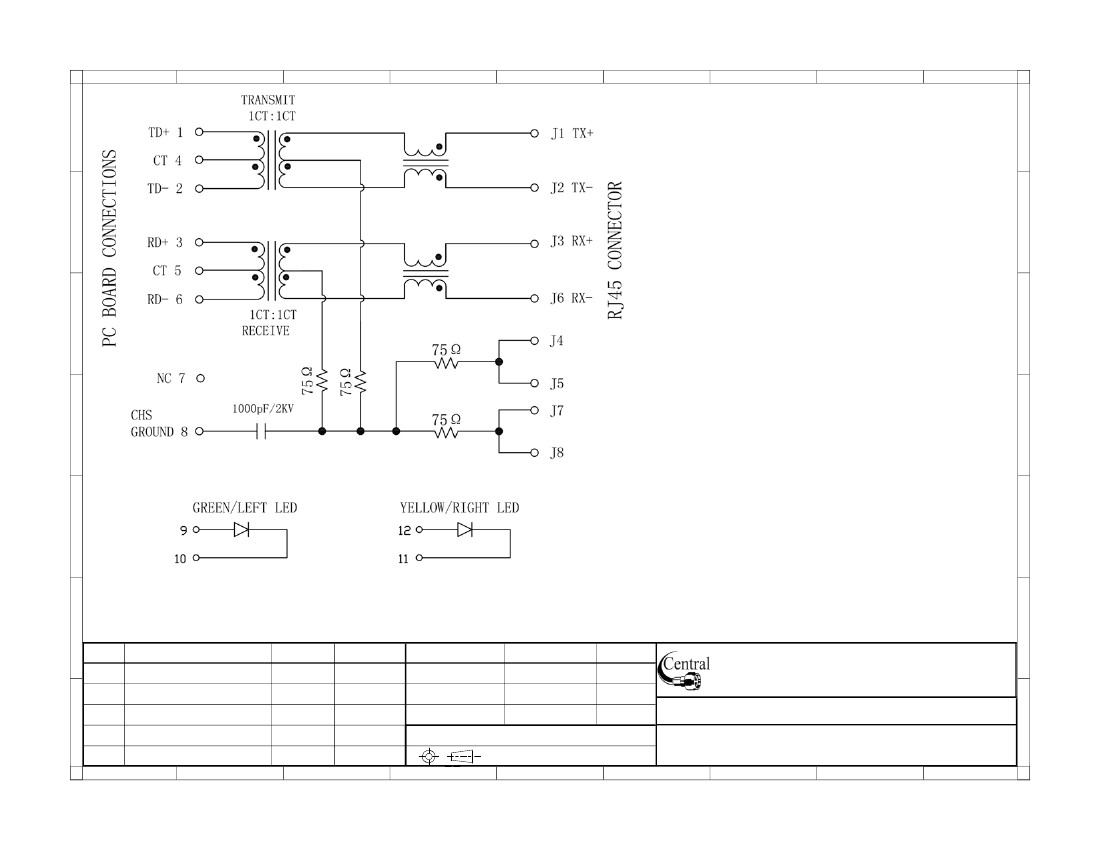

ELECTRICAL SPECIFICATIONS
Turn Ratio (±2%):
TX=1CT:1CT
RX=1CT:1CT
Inductance OCL:
350uH Min @ 100KHz 0.1V 8mA DC Bias
Insertion Loss:
-18dB Min @ 1-30MHz
-15dB Min @ 30-60MHz
-12dB Min @ 60-80MHz
-10dB Min @ 80-100MHz
Cross Talk:
-40dB Min @ 30MHz
-35dB Min @ 60MHz
-30dB Min @ 100MHz
Common Mode Rejection:
-40dB Min @ 30MHz
-35dB Min @ 60MHz
-30dB Min @ 100MHz
Hipot:
1500Vrms
LED Lamp:
Wave Length: Green/Yellow: 570nm/590nm
Forward Voltage (Vf):
1.8V-2.6V (test condition: 20mA)
Operating Temperature: 0°C to 70°C
A
B
C
D
E
E
F
F
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
12/12/08
12/12/08
12/12/08 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
CTJ-08-LM0011BLGY-BK-P0-FS
G
7
8
9
G
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: RJ45 Connector with 10/100 Base-T
Integrated Magnetics
1
2
3
4
