Trimmer Potentiometers
Lead Sealed Type Multi-turns PV12/PV37/PV23/PV22/PV36 Series

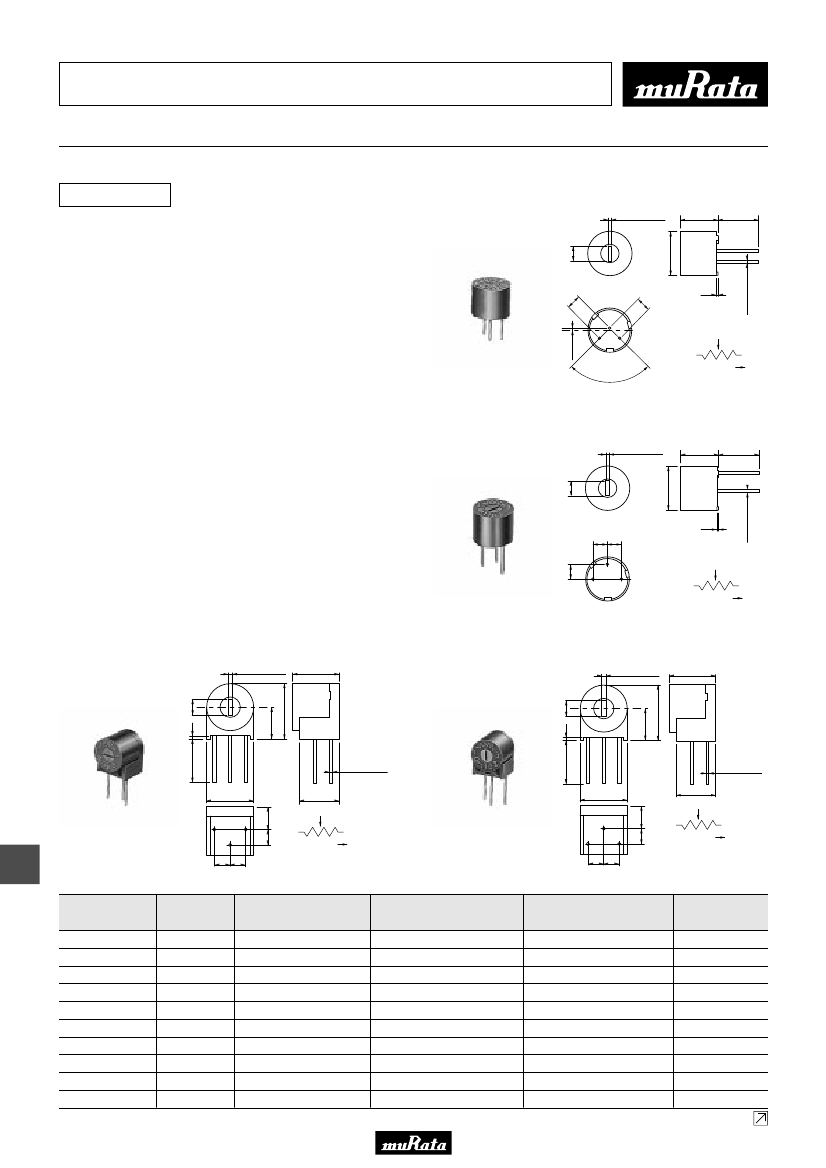

PV12 Series
1. The unique inner gear system recognizes the
position of the center of the shaft of the
potentiometer.
2. Sealed construction protects the interior from dust
and liquid, which achieves stable performance.
3. Available for ultrasonic cleaning after soldering
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
Continued from the preceding page.
Part Number
PV12p203A01
PV12p503A01
PV12p104A01
PV12p204A01
PV12p504A01
PV12p105A01
PV12p205A01
Power Rating
0.5W(70°C)
0.5W(70°C)
0.5W(70°C)
0.5W(70°C)
0.5W(70°C)
0.5W(70°C)
0.5W(70°C)
Soldering Method
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
4
4
4
4
4
4
4
Total Resistance Value
20k ohm
±10%
50k ohm
±10%
100k ohm
±10%
200k ohm
±10%
500k ohm
±10%
1M ohm
±10%
2M ohm
±10%
TCR
±100ppm/°C
±100ppm/°C
±100ppm/°C
±100ppm/°C
±100ppm/°C
±100ppm/°C
±100ppm/°C
Operating Temperature Range: -55 to 125
°C
The blank column is filled with the code of adjustment direction and lead type (H, P, T and S).
The order quantity should be an integral multiple of the "Minimum Quantity".
s

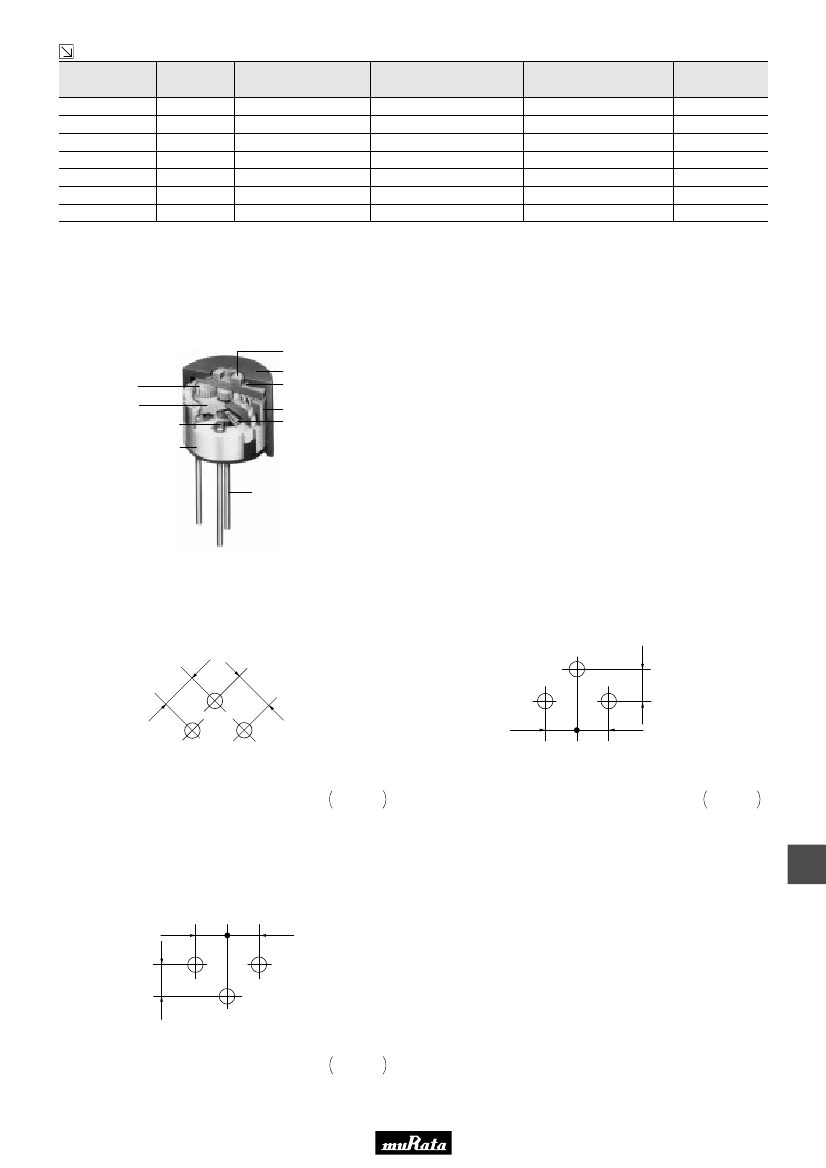

Construction
Shaft
Case
Gear
Rotor
Ceramic Resistive
Element
Alumina Substrate
"O"-Ring
Insert
Wiper
Terminal
s
Mounting Holes
PV12H
PV12P/PV12S
2.
5
(2)
(3)
(1)
(2)
2.5
(1)
(3)
2.5
2.5
2.
5
Tolerance:±0.1
in mm
Tolerance:±0.1
in mm
PV12T
8
2.5
2.5
(1)
2.5
(3)
(2)
Tolerance:±0.1
in mm
55
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
s
Characteristics
Temperature Cycle
∆TR
∆V.S.S.
∆TR
IR
∆TR
∆V.S.S.
∆TR
∆V.S.S.
∆TR
∆V.S.S.
∆TR
∆V.S.S.
∆TR
∆V.S.S.
∆TR
±2%
±1%
±2%
100Mohm min.
±1%
±1%
±1%
±1%
±3%
±2%
±3%
±1.5%
±3%
±1.5%
±3%
Humidity
Vibration (20G)
Shock (100G)
Temperature Load Life
Low Temperature Exposure
High Temperature Exposure
Rotational Life (200 cycles)
∆TR
: Total Resistance Change
∆V.S.S.
: Voltage Setting Stability
IR
: Insulation Resistance
8
56
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11

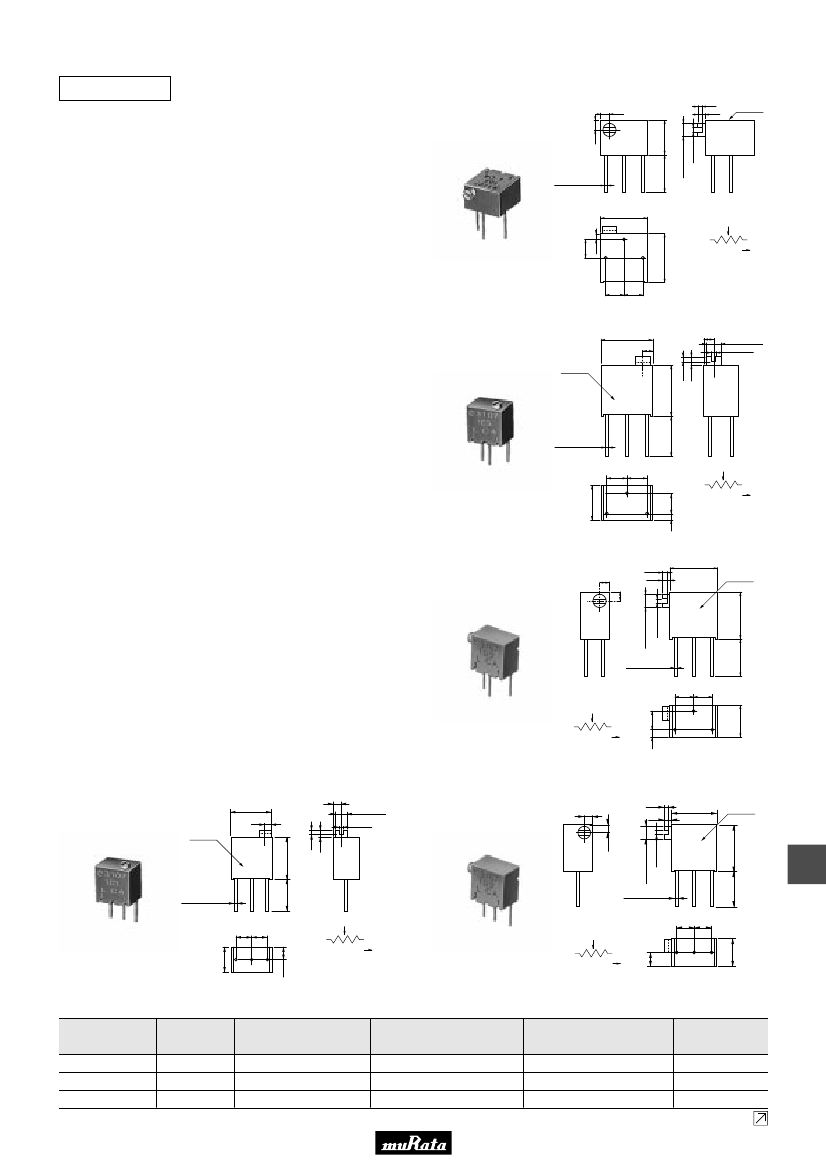

PV37 Series
1.2
0.6
1.0
4.0
Marking
s
Features
1. Smaller volume (about one-third) than 25-turns
potentiometer
2. Sealed construction protects the interior from dust
and liquid, which achieves stable performance.
3. Available for ultrasonic cleaning after soldering
7. To be complied with RoHS directive by new Cd free
cermet resistive material. Pb free terminals with
Sn plating.
1.1
3−0.4±0.1 Dia.
#1
#2
6.4
#3
5.0±1.0
1.8±0.2 Dia.
0.6±0.2
#2
2.5
#1
CLOCKWISE
6.7
#3
PV37P
2.5
2.5
mm
(
Tolerance in
±0.3
)
:
0.7
6.4
1.1
1.2
s
Applications
1. Measuring instruments 2. OA equipment
3. Medical equipment
4. Power supply
5. Base station for cellular phone
Marking
1.8±0.2 Dia.
0.6±0.2
3−0.4±0.1 Dia.
#3
2.5
#2
2.5
#1
5.0±1.0
6.7
0.6
1.0
#2
#1
#3
CLOCKWISE
2.5
mm
(
Tolerancein
±0.3
)
:
4.0
PV37W
0.7
1.1
1.1
0.6
1.0
6.4
Marking
1.8±0.2 Dia.
0.6±0.2
3−0.4±0.1 Dia.
#3
#2
2.5
#2
2.5
2.5
#1
PV37X
#1
#3
CLOCKWISE
0.7
mm
(
Tolerance in
±0.3
)
:
1.1
6.4
1.2
Marking
0.6
1.0
1.1
1.8±0.2 Dia.
1.8±0.2 Dia.
0.6±0.2
1.1
0.6
1.0
6.4
Marking
0.6±0.2
6.7
6.7
4.0
5.0±1.0
6.7
8
#3 #2
#1
2.5 2.5
5.0±1.0
mm
(
Tolerancein
±0.3
)
:
5.0±1.0
3−0.4±0.1 Dia.
#3
#2
#1
3−0.4±0.1 Dia.
#2
#1
#3
CLOCKWISE
2.0
#2
2.5 2.5
PV37Y
PV37Z
mm
(
Tolerancein
±0.3
)
:
#1
#3
CLOCKWISE
4.0
Part Number
PV37p100C01
PV37p200C01
PV37p500C01
Power Rating
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
Soldering Method
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
12
12
12
Total Resistance Value
10ohm
±10%
20ohm
±10%
50ohm
±10%
2.0
TCR
±150ppm/°C
±150ppm/°C
±150ppm/°C
Continued on the following page.
4.0
57
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
R50E13.pdf 04.6.11
Continued from the preceding page.
Part Number
PV37p101C01
PV37p201C01
PV37p501C01
PV37p102C01
PV37p202C01
PV37p502C01
PV37p103C01
PV37p203C01
PV37p253C01
PV37p503C01
PV37p104C01
PV37p204C01
PV37p254C01
PV37p504C01
PV37p105C01
PV37p205C01
PV37p100C31
PV37p200C31
PV37p500C31
PV37p101C31
PV37p201C31
PV37p501C31
PV37p102C31
PV37p202C31
PV37p502C31
PV37p103C31
PV37p203C31
PV37p253C31
PV37p503C31
PV37p104C31
PV37p204C31
PV37p254C31
PV37p504C31
PV37p105C31
PV37p205C31
Power Rating
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
0.25W(85°C)
Soldering Method
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Flow/Soldering Iron
Number of Turns
(Effective Rotation Angle)
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
Total Resistance Value
100ohm
±10%
200ohm
±10%
500ohm
±10%
1k ohm
±10%
2k ohm
±10%
5k ohm
±10%
10k ohm
±10%
20k ohm
±10%
25k ohm
±10%
50k ohm
±10%
100k ohm
±10%
200k ohm
±10%
250k ohm
±10%
500k ohm
±10%
1M ohm
±10%
2M ohm
±10%
10ohm
±10%
20ohm
±10%
50ohm
±10%
100ohm
±10%
200ohm
±10%
500ohm
±10%
1k ohm
±10%
2k ohm
±10%
5k ohm
±10%
10k ohm
±10%
20k ohm
±10%
25k ohm
±10%
50k ohm
±10%
100k ohm
±10%
200k ohm
±10%
250k ohm
±10%
500k ohm
±10%
1M ohm
±10%
2M ohm
±10%
TCR
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
±150ppm/°C
Operating Temperature Range: -55 to 125
°C
The blank column is filled with the code of adjustment direction and lead type (P, X, Y, W and Z).
The order quantity should be an integral multiple of the "Minimum Quantity".
The last three digits express the individual specification codes. C01 for standard type and C31 for radial taping type (PV37Y/PV37Z series only).
[i=s]This post was last edited by Lan Yuye on 2015-1-24 15:59[/i] [Atmel SAM R21 Creative Competition Weekly Plan] + ZLLDEMO (colorSceneRemote) scene remote control ZLLDEMO (colorSceneRemote) scene re...
ICL7107 is an integrated circuit with a wide range of applications. It contains a 3 1/2-bit digital A/D converter, which can directly drive LED digital tubes. It has internal reference voltage, indepe...
TC58CVG0S3HxAIx Engineering Data Sheet
Introducing Toshiba Memory Hardware Data
Designing portable devices
If you are interested in SoC, you can also chat with me....
[size=4]Single-ended data transmission uses only one signal line, whose potential is considered to be ground. While the signal line provides a forward path for the signal current, the ground line prov...
[font=微软雅黑]My colleague shared the promotional information about Fluke's 70th anniversary thanksgiving feedback. I think it's pretty good, so I share it with you. If you have purchasing needs, you can...
Does anyone know how to use the MC9S08QE128 chip and write programs? Can you give me a simple program example? The one with pin definitions like 51. For example: The 51 program is as follows: The time...
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
There are three types of mobile TV: one is based on analog TV broadcasting network, another is based on mobile communication network, and the other is based on digital broadcasting network. The f...[Details]
When choosing a laptop battery, you should consider several factors, such as power, appearance, and quality.
Regarding power, we often see that a manufacturer uses values such as the number ...[Details]
From the PIC16F946 datasheet, we know that there are two ways to write values to the LCD for display:
1. Directly write the value to LCDDATA1~LCDDATA23
2. Use disconnect t...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
Toyohashi University of Technology demonstrated electric field coupled wireless power supply technology using life-size car tires and roads at the wireless technology exhibition "Wireless Technolog...[Details]
1. When the slip speed regulating motor is undergoing frequency conversion and energy saving transformation, the original excitation box (referred to as the speed regulating box) and the original s...[Details]
Traditional
virtual instruments
consist of a data acquisition
board
based on PCI bus and
corresponding software. However, with
the rapid development of
computer
network techno...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
With the rapid development of wireless
digital communication
, more challenges have been raised for integrated circuit design and testing. In the product design stage, in order to ensure
t...[Details]
The DisplayPort interface standard is approved by the Video Electronics Standards Association (VESA) to provide an open, scalable standard for the entire industry. The development of DisplayPort ca...[Details]
The launch of Shenzhou IX is imminent, and Tiangong is welcoming visitors again. Yesterday, Professor Fu Qiang, Vice President of the Institute of Science and Industrial Technology of Harbin Instit...[Details]
0 Introduction
In order to improve the automation control of shortwave transmitters, so that they can automatically process from far to near, the technicians here use the ICS system to complete the ...[Details]
The installation locations of DC-DC converters are relatively scattered. DC-DC converters can be found on the power board, main board, logic control board and other circuit boards of PDP color TVs....[Details]
Microchip MCU
京公网安备 11010802033920号
EEWORLD
