290-12.0M-18LT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> 290-12.0M-18LT

290-12.0M-18LT: DescriptionParallel - Fundamental Quartz Crystal, 12MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size125KB，2 Pages; ManufacturerOscilent; Websitehttp://www.oscilent.com; Environmental Compliance

Download Datasheet Parametric View All

290-12.0M-18LT Overview

Parallel - Fundamental Quartz Crystal, 12MHz Nom, SMD, 4 PIN

290-12.0M-18LT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1352322658
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.01 µW
frequency stability	0.001%
frequency tolerance	30 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	12 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
physical size	L6.0XB3.5XH1.0 (mm)/L0.236XB0.138XH0.039 (inch)
Series resistance	50 Ω
surface mount	YES

Preview

Download Datasheet

View All

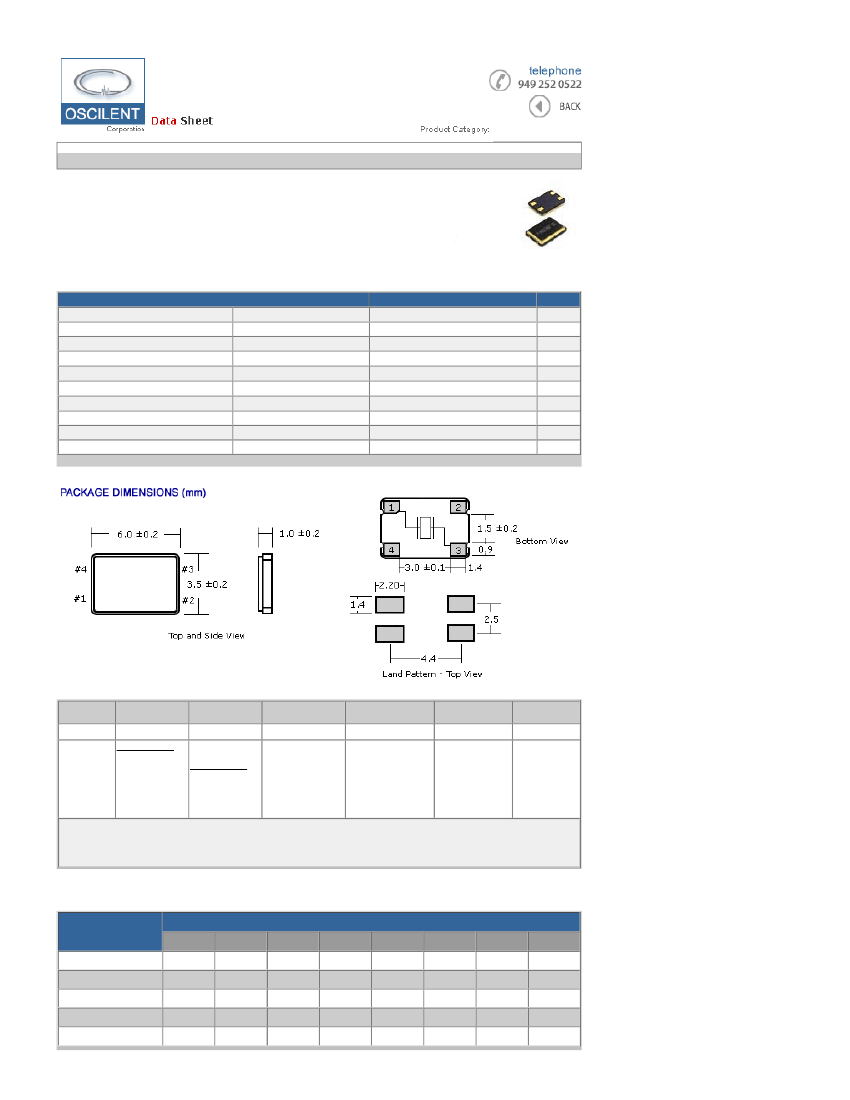

Oscilent Corporation | 290

1 of 2

SMD Quartz Crystal

Series Number

Package

Description

Last Modified

290

FEATURES

- Seam welded metal lid / ceramic package

- 1.2mm max. low profile

- Tight stability / High reliability

- Wide frequency range

- Tape and Reel

6 X 3.5

SMD Quartz Crystal

Jun. 25 2003

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency Range

Frequency Tolerance

Frequency Stability

Operating Temperature

Storage Temperature

Shunt Capacitance

Load Capacitance

Equivalent Series Resistance

Mode of Oscillation

Drive Level

@ 25ºC

Ta = -10 +70ºC

OPR

STG

(Customer Specified)

10.00 ~ 40.00 MHz

CHARACTERISTICS

10.00 ~ 40.00

±10 ~ ±50

±10 ~ ±100

-10 ~ +60 (-40 ~ +85 optional)*

-40 ~ +85

7.0 max.

16, 20, 30, Series

50 max.

Fundamental

0.01 ~ 1000

UNITS

MHz

PPM

ºC

Ohm

µW

* Consult Oscilent for available variations of temperature and stability

PART NUMBER GUIDE

Series

Number

Frequency

Load Capacitance Tolerance @ +25oC

Tolerance Over

Temp ( oC )

Operating

Temp ( oC )

Packaging**

290

Oscilent

6 x 3.5 SMD

- 12.0M

See table below for

standard freq. and

enter here

e.g.

12.0M for 12.000

MHz

OR enter any

desire frequency.

- SR

Enter desired

capacitance here.

See table below for

standard load

capacitance

e.g.

-20 for 20pF or

Enter SR for

Series.

- 05

Blank * = ±30 PPM

or Fill in E.G

05 = ±5 PPM

25 = ±25 PPM

Avail. = ±5 ~ ±100

Blank*

= ±50 PPM

±30 PPM

±25 PPM

±20 PPM

±10 PPM

±100 PPM

0~+50

-10~+60

-20~+70

-30~+80

-40~+85

- TR

Blank* = Bulk

TR = Tape/Reel

NOTE:

Deviations on all parameters available. Please consult Oscilent for details.

DEFINITIONS:

Click on the characteristic names above for definitions of that particular characteristic.

*STANDARDS:

"Blank" part number selections indicate standard variables for that particular characteristic.

**PACKAGING:

Click on the packaging name above for tape/reel specifications

STANDARD FREQUENCIES / LOAD CAPACITANCE

AVAILABLE

FREQUENCY

(MHz)

12.000

14.31818

16.000

18.432

19.6608

LOAD (pF)

Series

Std.

FOR GUIDE ONLY /

OTHER FREQ/LOADS
