P3-81226

Description
Pushbutton Switch, SPST, Momentary, 20A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS AND REACH COMPLIANT
CategoryMechanical and electronic products    switch
File Size1MB,3 Pages
ManufacturerOTTO
Websitehttp://www.ottoexcellence.com
Environmental Compliance
Download Datasheet Parametric View All

P3-81226 Overview

Pushbutton Switch, SPST, Momentary, 20A, 28VDC, Solder Terminal, Panel Mount-threaded, ROHS AND REACH COMPLIANT

P3-81226 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1743401524
package instructionROHS AND REACH COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL9.5
Actuator colorBLUE
Actuator materialTHERMOPLASTIC
Actuator stroke2.159 mm
Actuator typeBUTTON TYPE
body height33.35 mm
Body length or diameter22.23 mm
Contact (AC) maximum rated load I5A@115VAC
Contact (AC) maximum rated R load20A@115VAC
Maximum contact current (AC)20 A
Maximum contact current (DC)20 A
Contact (DC) maximum rated R load20A@28VDC
contact timeSNAP ACTION
Maximum contact voltage (AC)115 V
Maximum contact voltage (DC)28 V
Dielectric withstand voltage1050VAC V
Electrical life25000 Cycle(s)
illuminationNON-ILLUMINATED
JESD-609 codee4
Installation featuresPANEL MOUNT-THREADED
Maximum operating force17.79 N
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
sealEPOXY TERMINAL SEALED; IP64
surface mountNO
Switch actionMOMENTARY
switch functionSPST
Switch typePUSHBUTTON SWITCH
Terminal surfaceSilver (Ag)
Terminal length0.156 inch
Terminal materialBRASS
Termination typeSOLDER

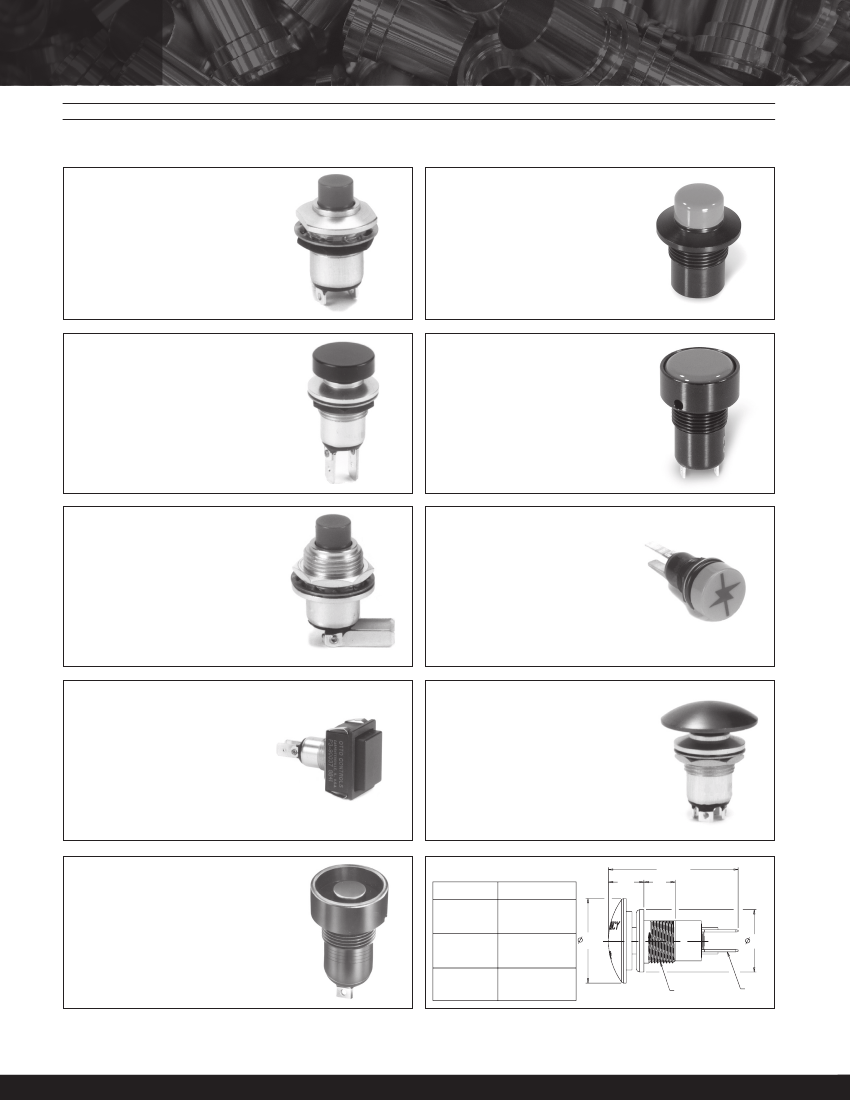

P3
COMMERCIAL
PUSHBUTTONS

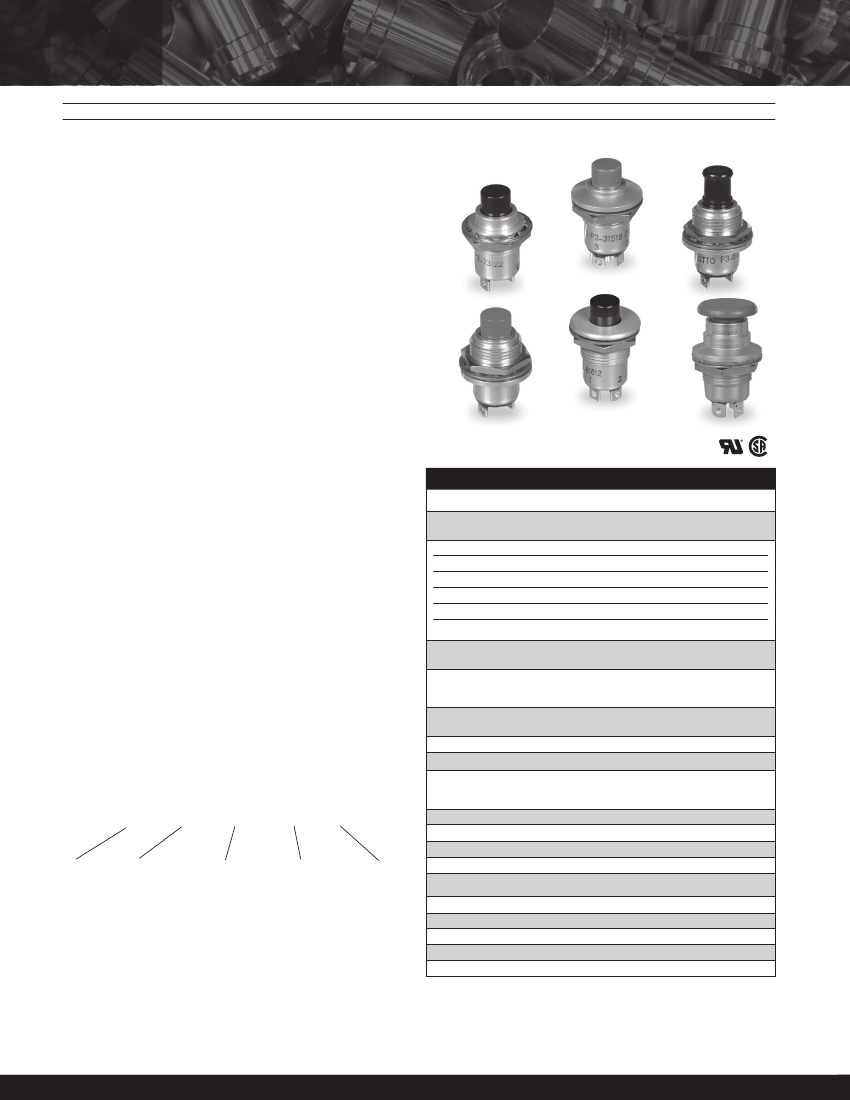

SEALED COMMERCIAL GRADE PUSHBUTTONS
MOMENTARY ACTION, SEALED, SNAP-ACTION, DOUBLE BREAK
Style P3-6
with
Push-Pull
Action
Makes and breaks every time! Less than 25mΩ contact
resistance because the OTTO design features inherent rocking
action that breaks welds and wipes contacts clean.
The P3 is the commercial version of the P1 Pushbutton switch,
offering vastly improved life under extreme conditions found in
some industrial environments. The pushbutton is sealed by a
silicone boot operating on our patented “rolling sleeve,” providing
longer life and smoother operation over a wide temperature
range. Epoxy protects the contacts and terminals from hostile
environments and solder flux.
High contact force (120g/4.2 oz), low contact resistance
(25mΩ max) and short contact bounce are the result of our snap-
action mechanism. These characteristics provide exceptional
current carrying capabilities over the life of the switch. With the
optional low level (gold plate) configuration, the P3 is well suited
to interface directly to computers and other solid state devices.
Watertight sealing is available by simply adding “W” to your
part number. Because the P3 is a double break switch, wide
connection possibilities, longer life and greater capacity are
offered. The P3 design provides a unique terminal connection
to the moving element for added flexibility. Special versions can be
provided with five terminals to control up to four circuits.

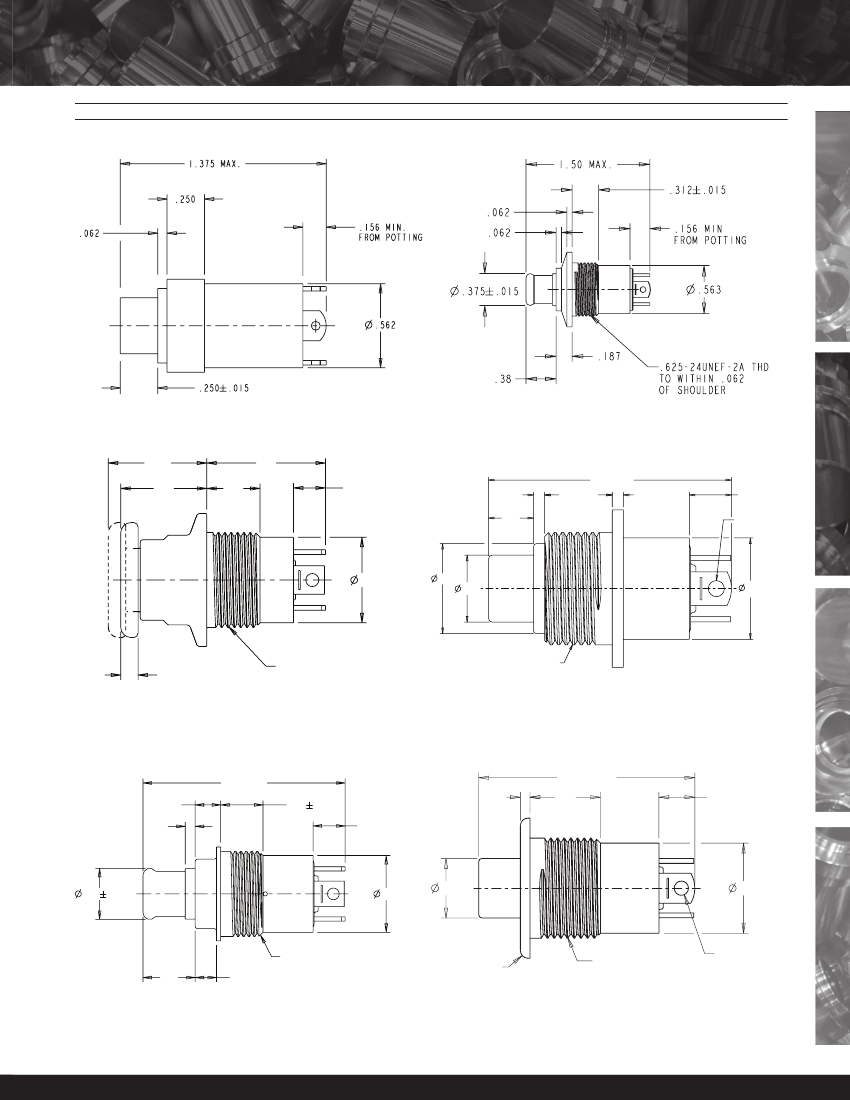

Style P3-3
Style P3-7
Style P3-8
Style P3-6
Style P3-3
with
High
Force
Push-Pull
Action
®
C
US
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Center Contact
DWV
Low Level
Electrical Life:
Mechanical Life:
Sea Level @ 28VDC
or 115VAC, 60/400Hz
10A
5A
3A
3A max
1050Vrms
50,000 feet @ 28VDC
or 115VAC, 60/400Hz
N/A
5A
N/A
N/A
400Vrms
Cycles
100,000
100,000
100,000
100,000
Features:
Button sealed with patented “rolling sleeve” principle
Contact area sealed at button & terminals
Less than 25mΩ contact resistance
Positive tactile feedback
Engraved buttons & bezels available
UL recognized & CSA certified
1 million mechanical cycle life
Watertight to IP68S available in all versions
Watertight to IP69K available in non push-pull versions
RoHS/WEEE/Reach compliant
10mA @ 30mV max DC or peak AC
25,000 or 100,000 cycles (depending on configuration)
High Force Push Pull 5,000 cycles
1 million cycles, circuit forms 1, 2 & 6
100,000 cycles, circuit forms 3, 4 & 5
High Force Push Pull 5,000 cycles
IP64 or IP68S and IP69K
IP64 or IP68S on push-pull versions
MIL-STD-202, method 207
2.5 lbs. or 4.0 lbs.
Push-Pull: .5 to 2.0 lbs.
Push-Pull High Force: 3.0 lbs. min.
0.75 lb. min or 1.0 lb.
0.085 +/- 0.015 inches
0.012 inches min
Seal:
Shock:
Operating Force:
Operating Temp Range:
-55°C to +85°C, High Force Push Pull -40°C to +85°C
P3
X
P3 PART NUMBER CODE
X
X
X
X
*
Reset Force:
Total Travel:
Overtravel:
Case Style
1.
Style 1
3.
Style 3
6.
Style 6
7.
Style 7
8.
Style 8
Terminal
Style/Rating
1.
Solder/Std.
2.
Screw/Std.
3.
Solder/Low Level
4.
Screw/Low Level
Circuit
Form
1.
N.O.
2.
N.C.
3.
N.C. 3 Terminal
4.
N.O. 3 Terminal
5.
5 Terminal
6.
2 Circuit
Operating
Force/Action
1.
2.5 lbs./Momentary
2.
4.0 lbs./Momentary
3.
Push-Pull
4.
Push-Pull
High Force**
Button
Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Purple
8.
Gray
9.
White
Movement Differential:
0.015 inches min
MATERIALS:
Case:
Button:
Terminals:
Terminal Hardware:
Mounting Hardware:
Anodized aluminum alloy
Thermoplastic
Brass with silver, gold for low level
Screws, lockwasher and terminal lug for screw terminal option
Hex nut, lockwasher and panel seal when applicable
* Add “W” suffix for watertight to IP68S and IP69K for Operating Force/Action selections 1 and 2.
Add “W” suffix for watertight to IP68S for Operating Force/Action selections 3 and 4.
**Available in Case Style 3 only.
136
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
