PDI-25RS-S-P datasheet, PDF - EEWORLD Datasheet

PDI-25RS-S-P: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size2MB，8 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/; Environmental Compliance

Download Datasheet Parametric View All

PDI-25RS-S-P Overview

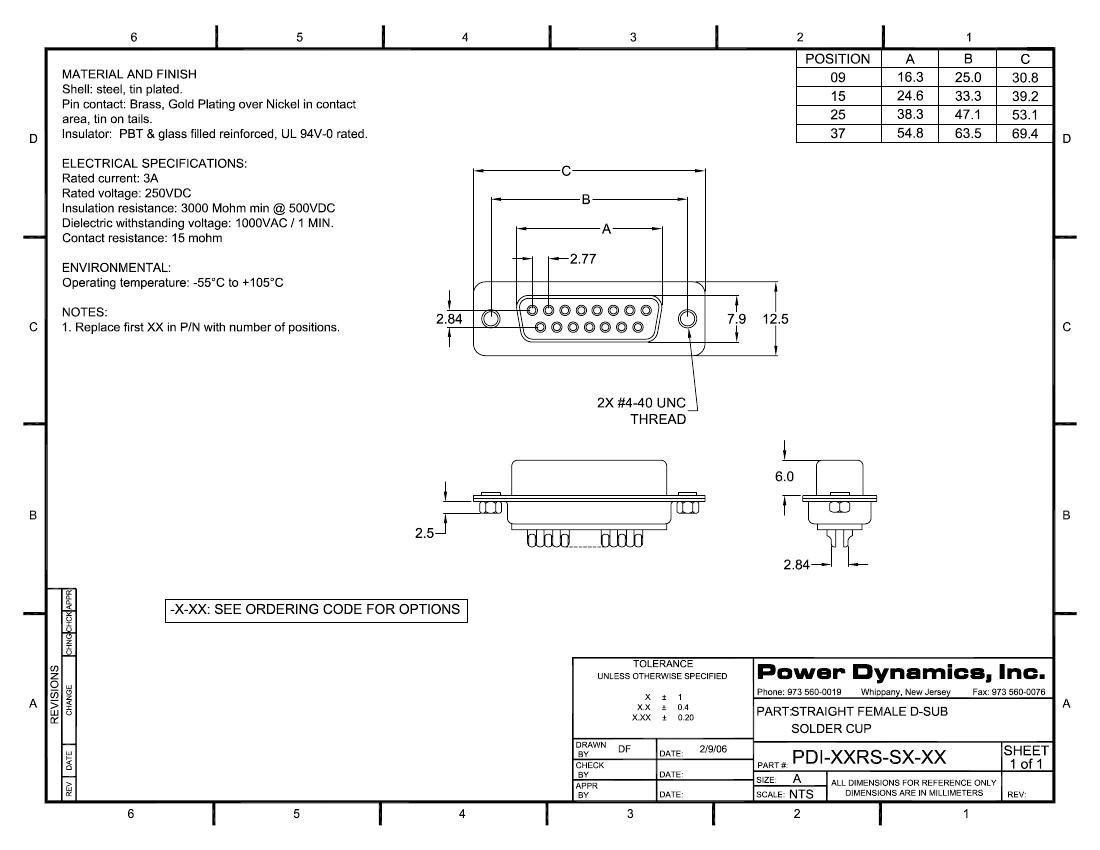

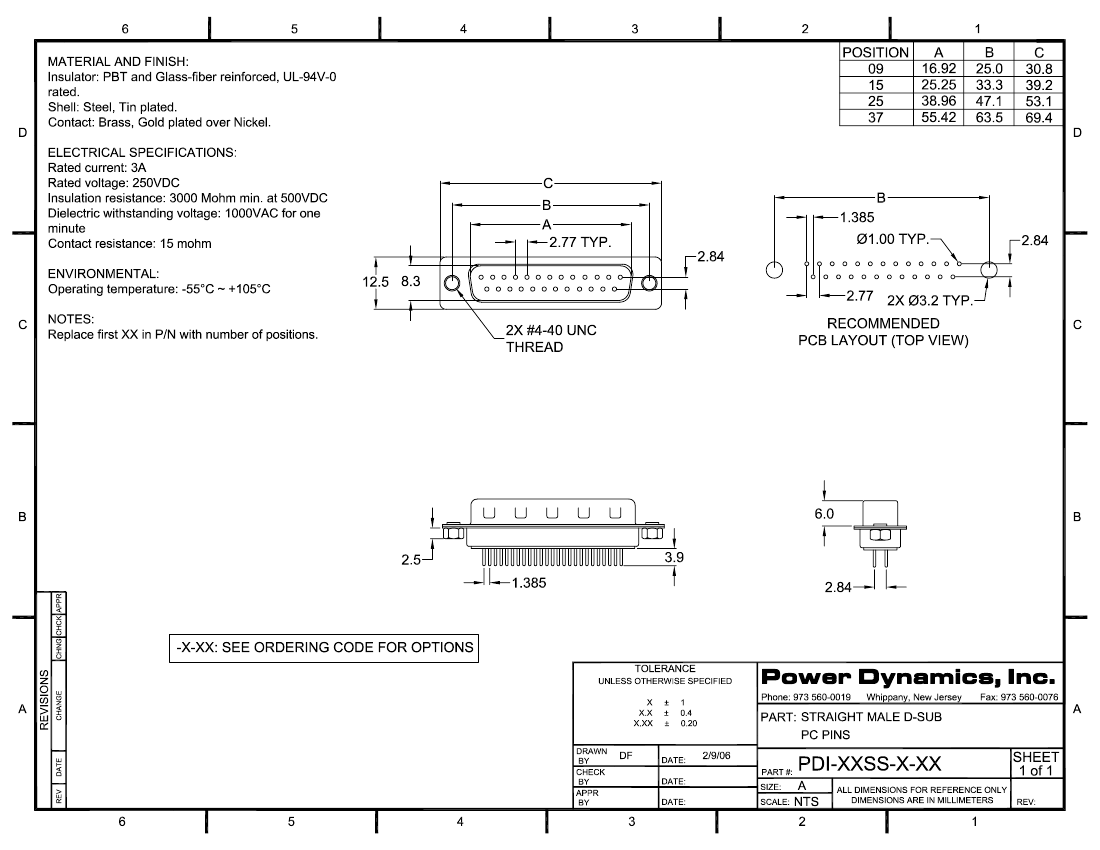

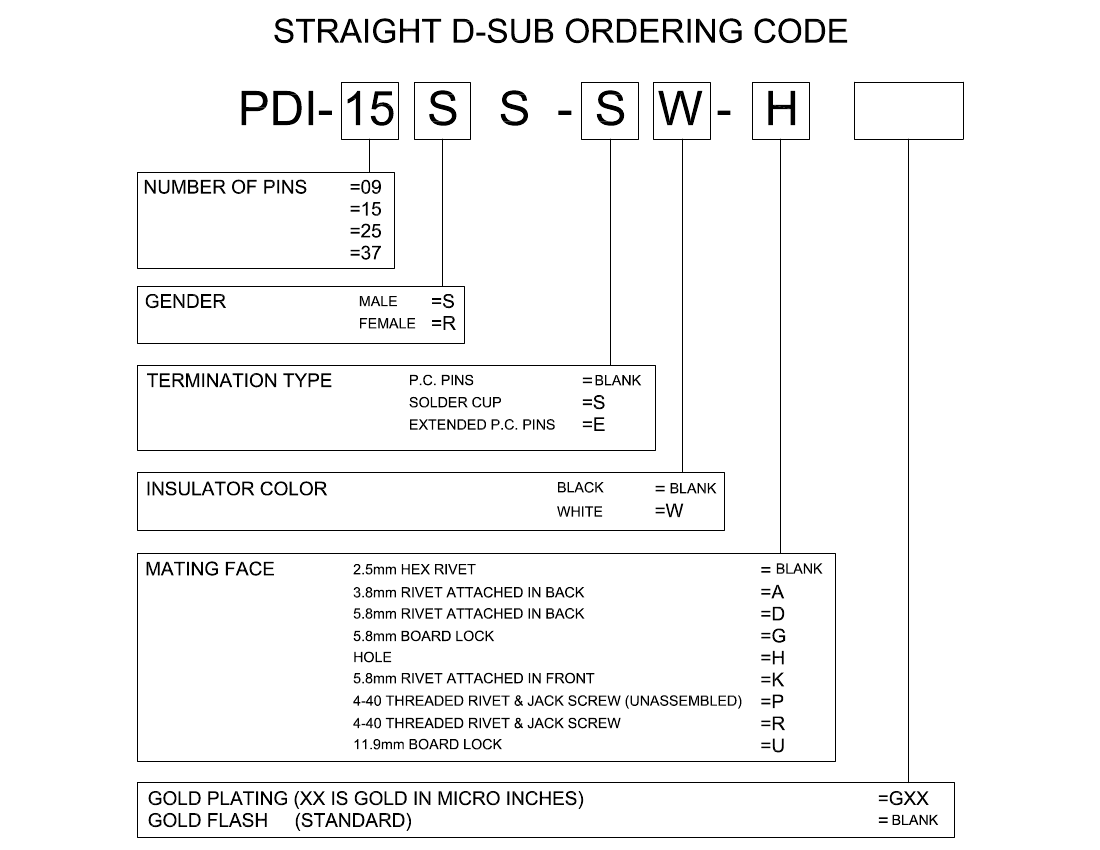

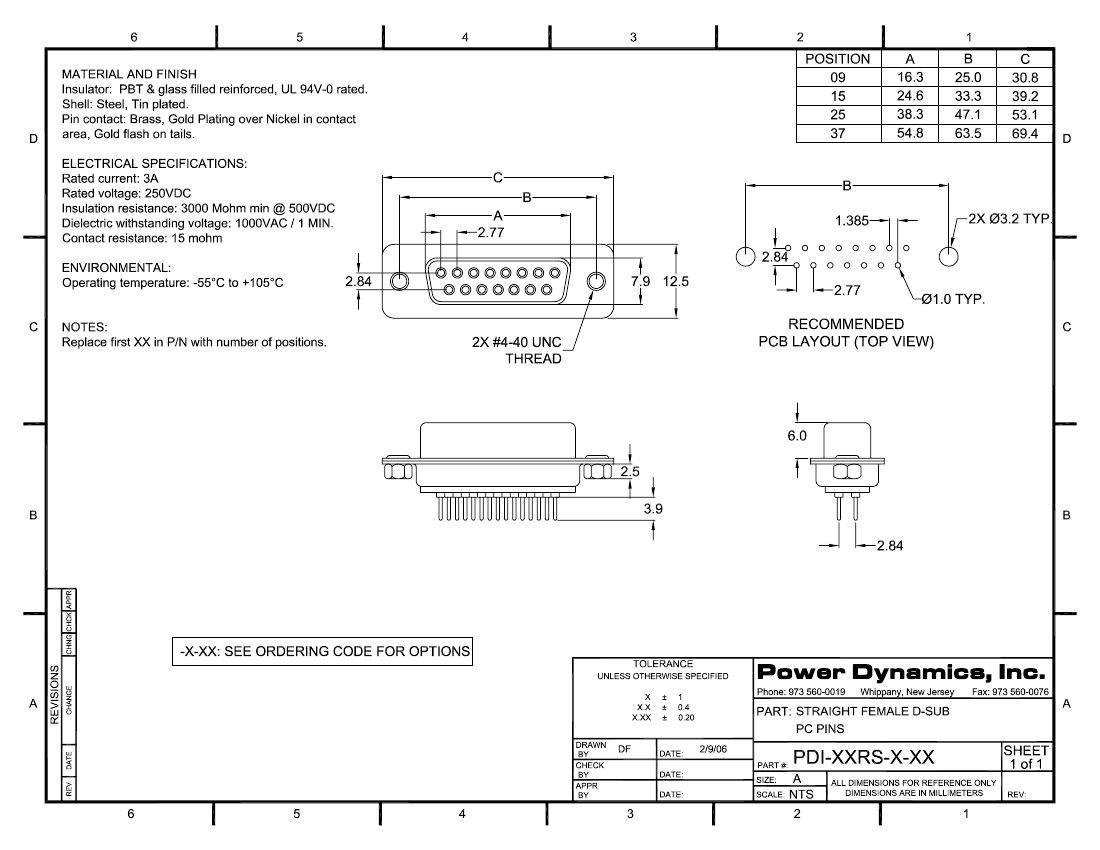

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1855859145
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
body width	0.492 inch
subject depth	0.195 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	300VDC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40

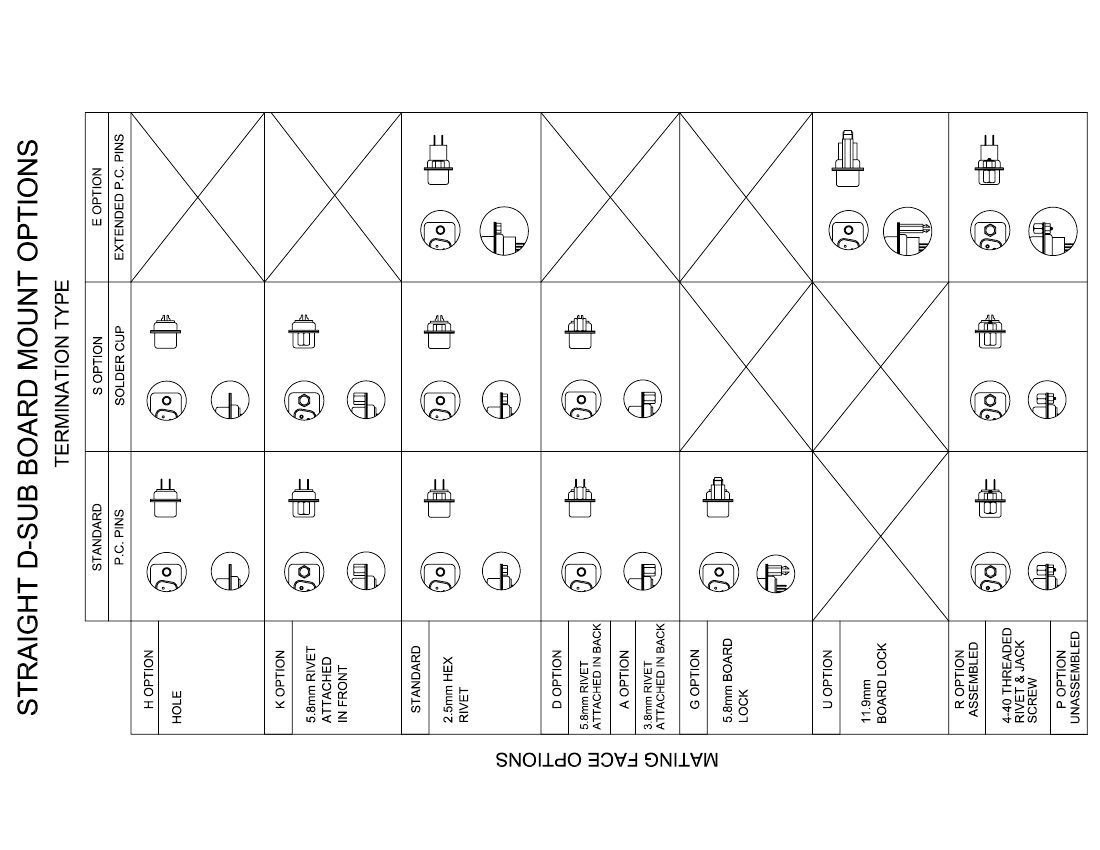

Installation option 2	RIVET & JACKSCREW
Installation type	CABLE
Number of connectors	ONE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal length	0.13 inch
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
